AIR INJECTION SYSTEM MIL "ON"

Service Category
Engine/Hybrid System

Section
Engine Control

Market
Canada

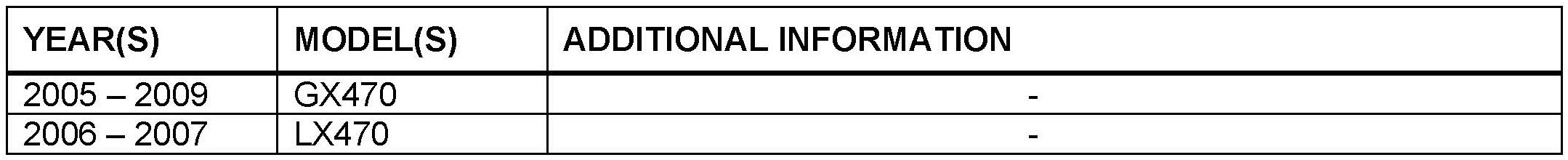

APPLICABILITY:

INTRODUCTION:

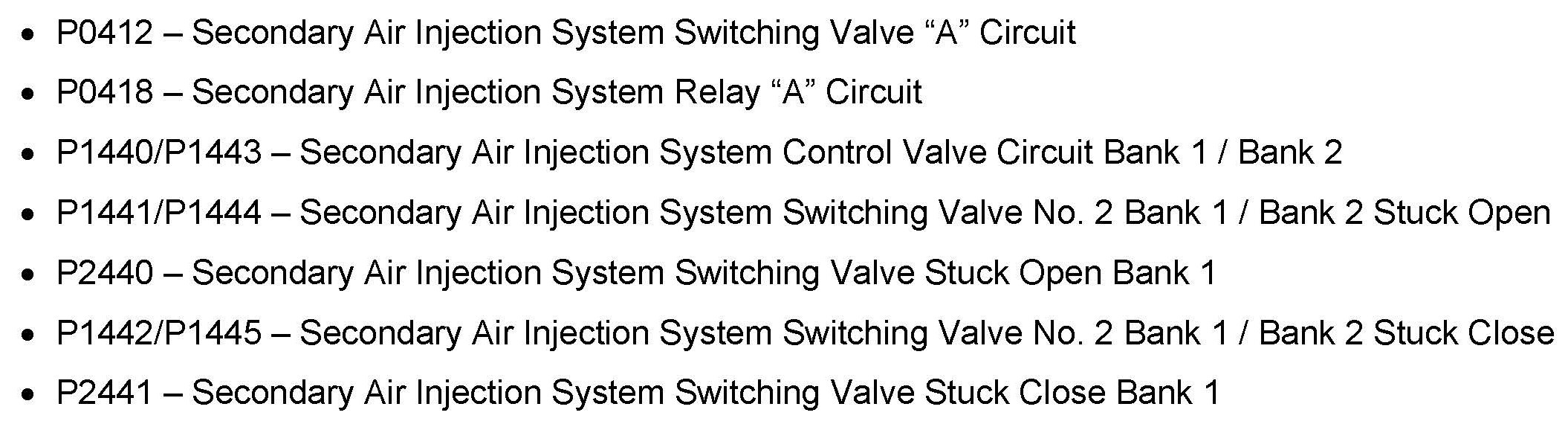

Some 2005 - 2009 model year GX 470 and 2006 - 2007 model year LX 470 vehicles may exhibit a MIL "ON" condition with the following Diagnostic Trouble Codes (DTCs):

This condition may be caused by debris passing through the air injection pump assembly and contaminating various components in the system Use the following procedure to address this condition.

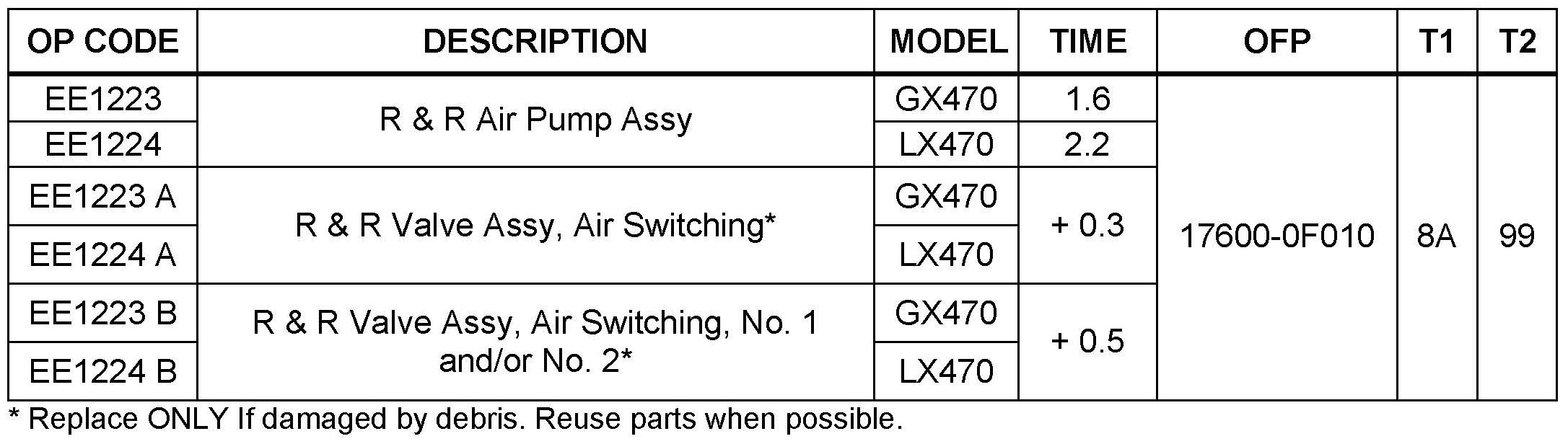

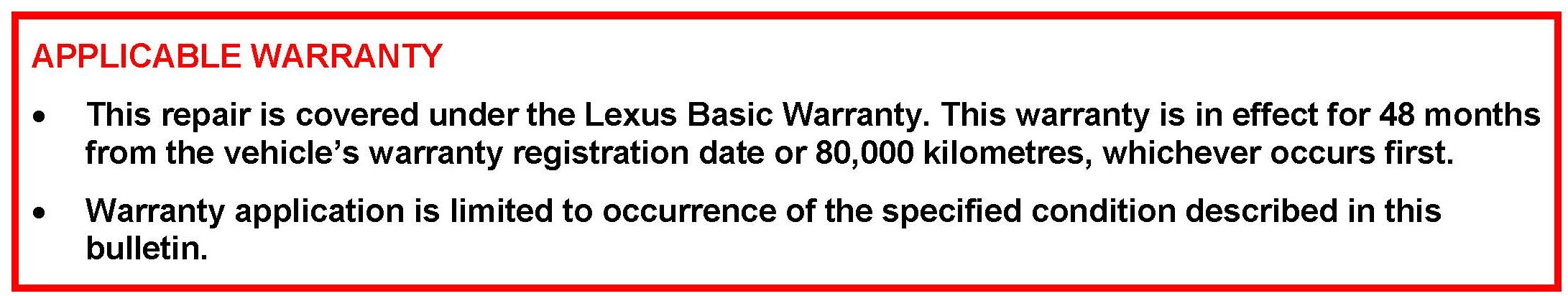

WARRANTY INFORMATION:

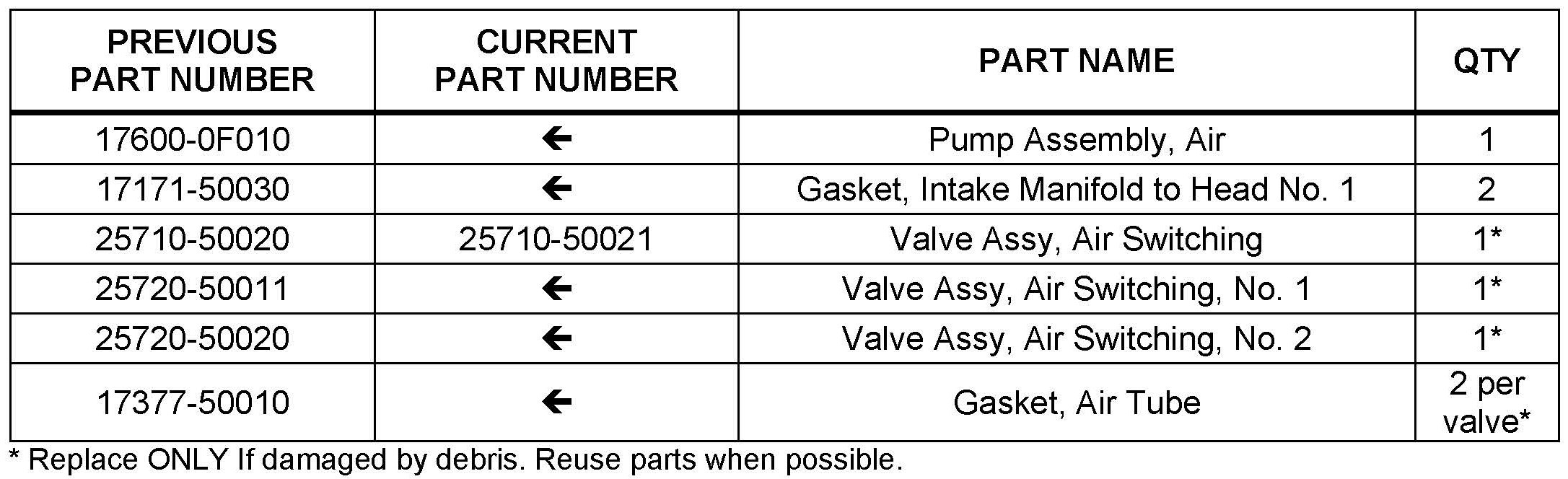

PARTS INFORMATION:

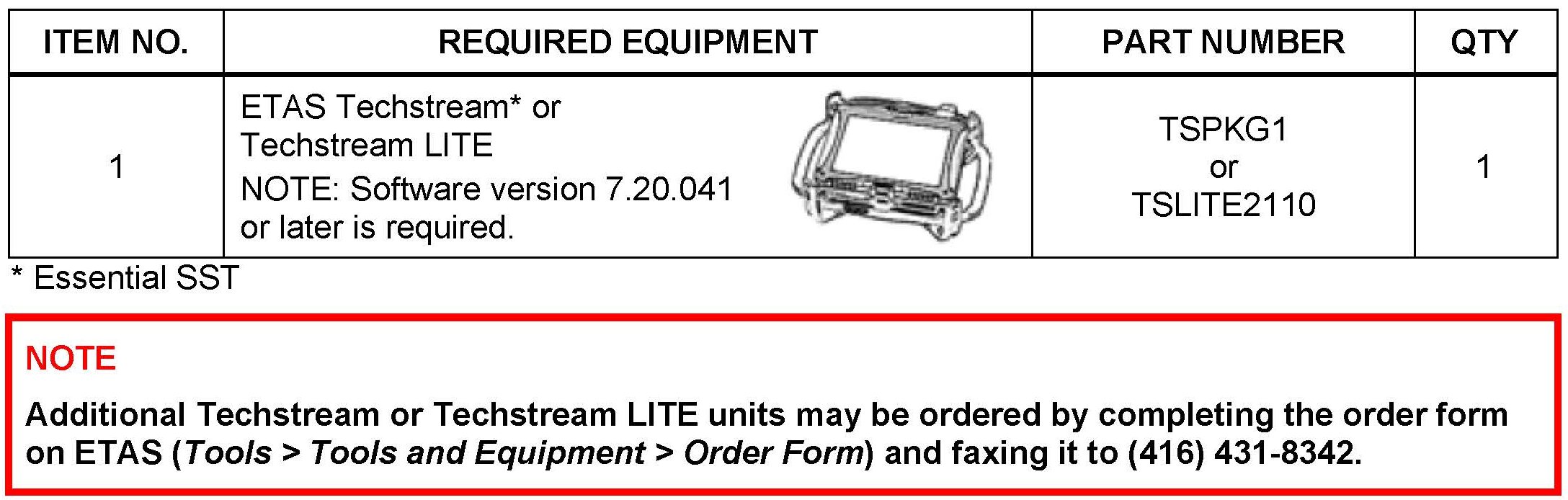

REQUIRED TOOLS & EQUIPMENT:

REPAIR PROCEDURE:

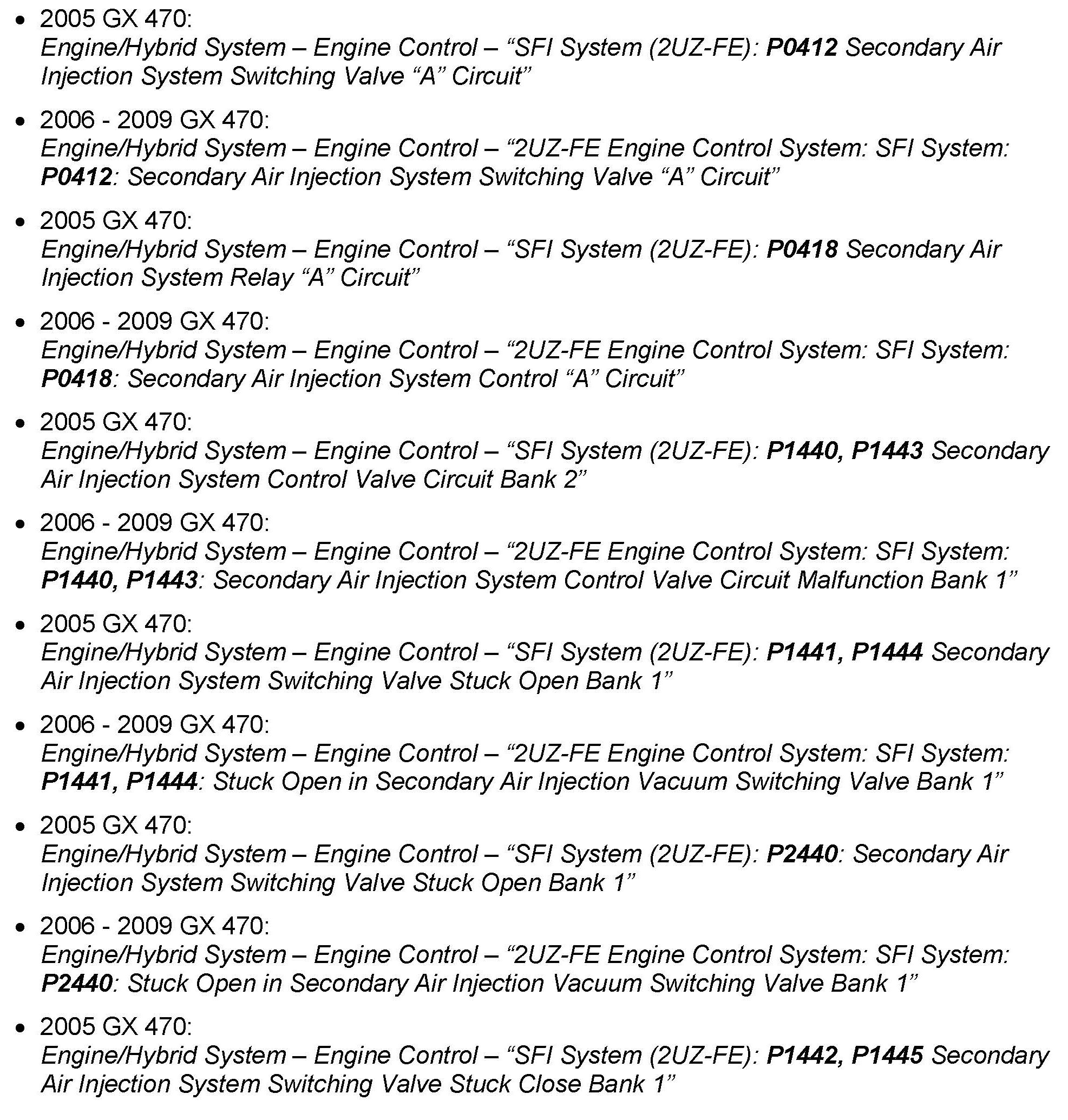

1. Using Techstream, check if DTCs P0412, P0418, P1440/P1443, P1441/P1444, P1442/P1445, P2440, or P2441 are present

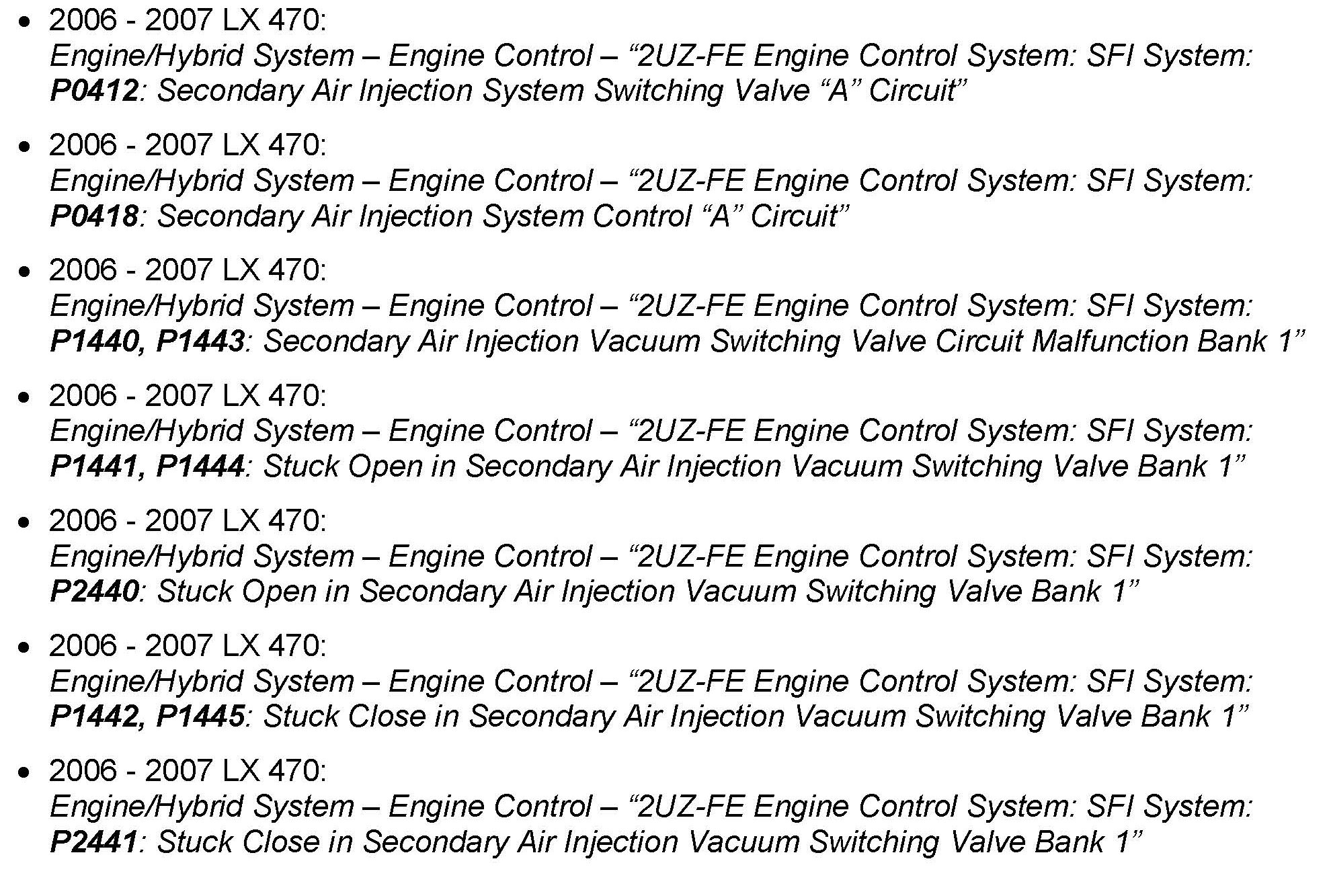

Refer to the ETAS / TIS library, applicable model and model year Repair Manual:








2005 - 2009 GX 470:

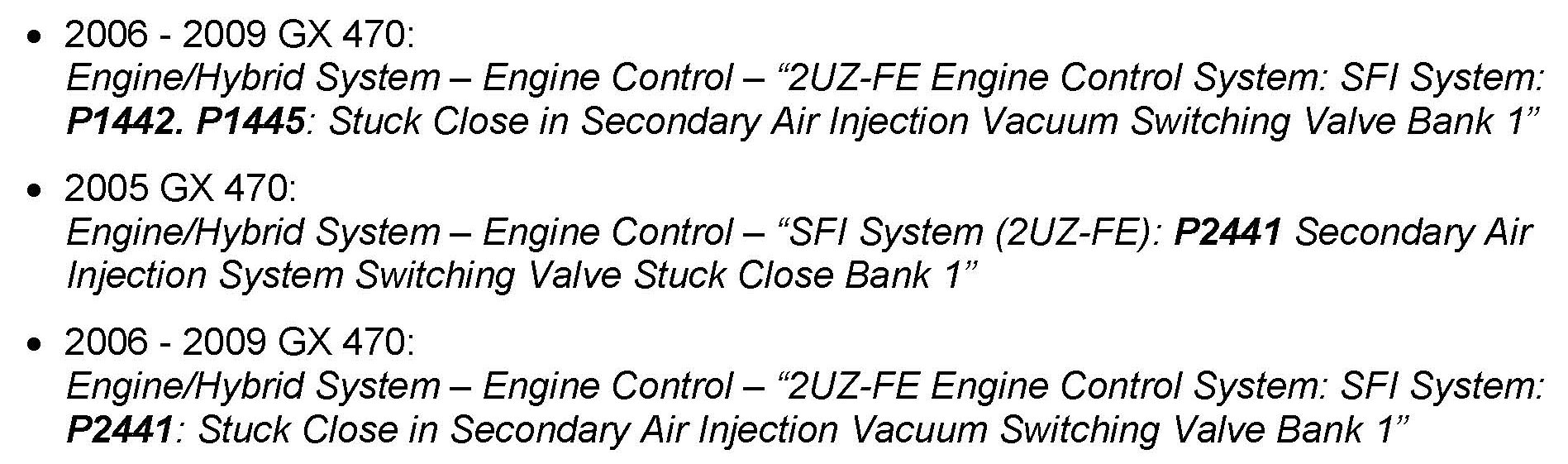

2006 - 2007 Lx 470:

2. If physical inspection is required through the Repair Manual diagnostic process, look for debris that may have contaminated the air injection system. The debris may consist of air injection pump filter material or fan blade fragments.

3. If such debris is found, replace the air injection pump.

4. Additionally, determine if the debris can be removed from any secondarily affected parts and confirm they operate properly. If they do not operate properly, part replacement is required.

5. Clear the DTC(s) and road test the vehicle to confirm the condition has been corrected.

NOTE:
Issue of the Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
