Body - Back Glass Lower Moulding Blemished
L-SB-0038-10June 11, 2010
Rear Glass Garnish Finish
Service Category
Vehicle Exterior
Section
Window/Glass
Market
USA

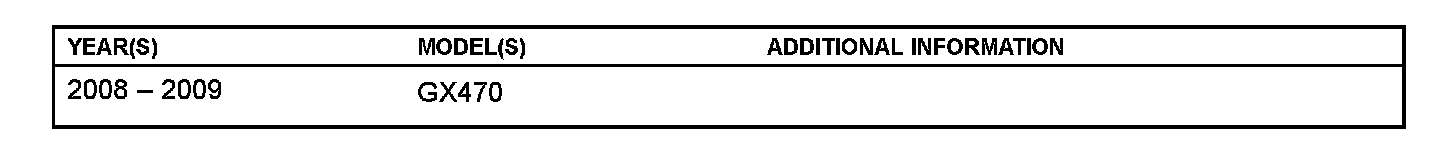

Applicability
Introduction
Some 2008 - 2009 GX 470 vehicles may exhibit a condition where surface blemishes appear on the chrome garnish of the back glass (lower back window molding). In some instances the blemish is caused by remaining adhesive left by the protective film when it was removed. To correct this condition and improve serviceability the garnish is now separately available from the rear glass assembly as a service part. Please refer to the procedure in this bulletin to clean and/or how to replace the chrome garnish.

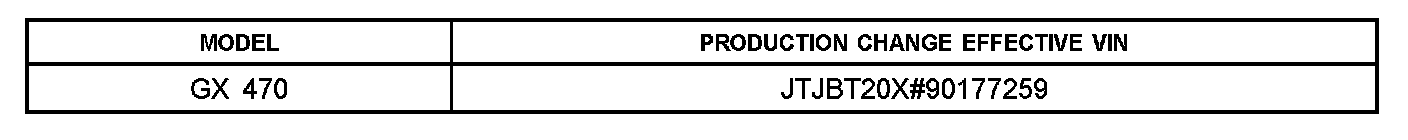

Production Change Information
This TSIB applies to vehicles produced BEFORE the Production Change Effective VIN shown.
Parts Information
Required Tools & Equipment

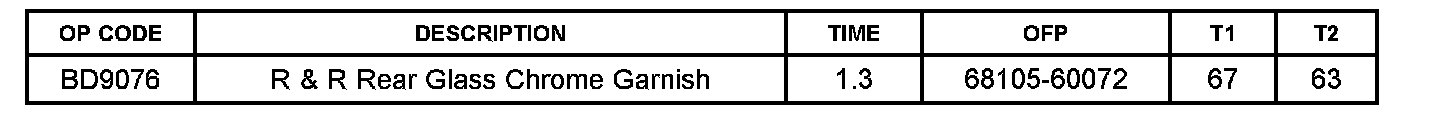

Warranty Information
APPLICABLE WARRANTY
^ Repairs due to warrantable defects are covered under the Lexus Comprehensive Warranty. This warranty is in effect for 48 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.
Warranty application is limited to defects in material or workmanship under normal use.
Repair Procedure
Adhesive Tape Deposit Removal
To remove adhesive tape deposits follow the procedures below.
1. Clean the molding with wet cloth in order to remove dust / grime.
2. Wet soft cloth (ie 3M Perfect-it cloth) with Isopropyl Alcohol.
3. Press the cloth onto the molding with the adhesive deposit for at least 10 seconds.
4. Gently wipe molding and remove adhesive deposits.
Replace Molding
To replace the molding due to damage or poor appearance follow the procedures listed below.
NOTICE
Only use the specified adhesive or primer. Using equivalent materials may affect the adhesion performance.

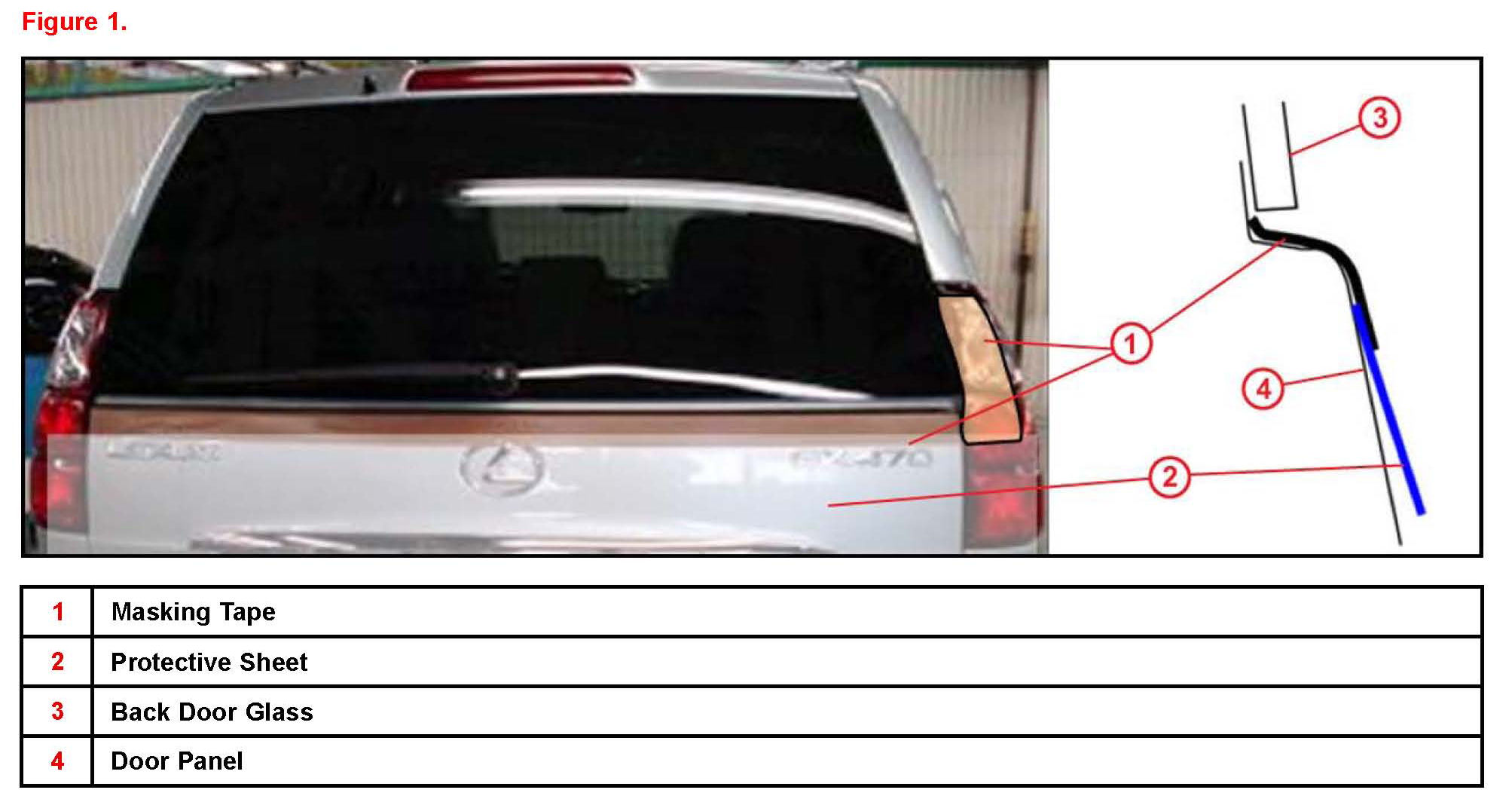

1. Apply masking tape and protective sheet on Back Door Panel to prevent it from being scratched and stained.
NOTICE
Assure the back door panel and bumper areas are completely covered by the protective sheet.
Insert the masking tape under the glass (see Fig. 1).
A. Open the Back Door.
B. Starting from the LH side insert the scraper/nylon pry tool between the molding and the glass.
NOTICE
Be careful not to damage the back door glass and body panel.

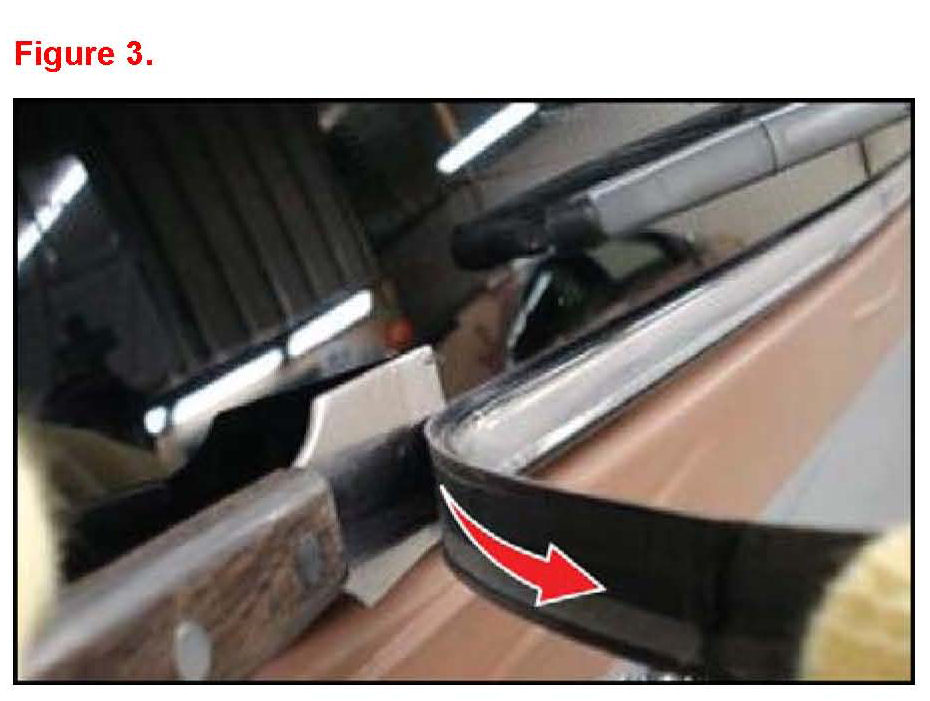

C. Remove the molding by sliding the scraper/nylon pry tool under the molding while pulling outward on the molding.
NOTICE
Be careful not to damage the back door glass and body panel.

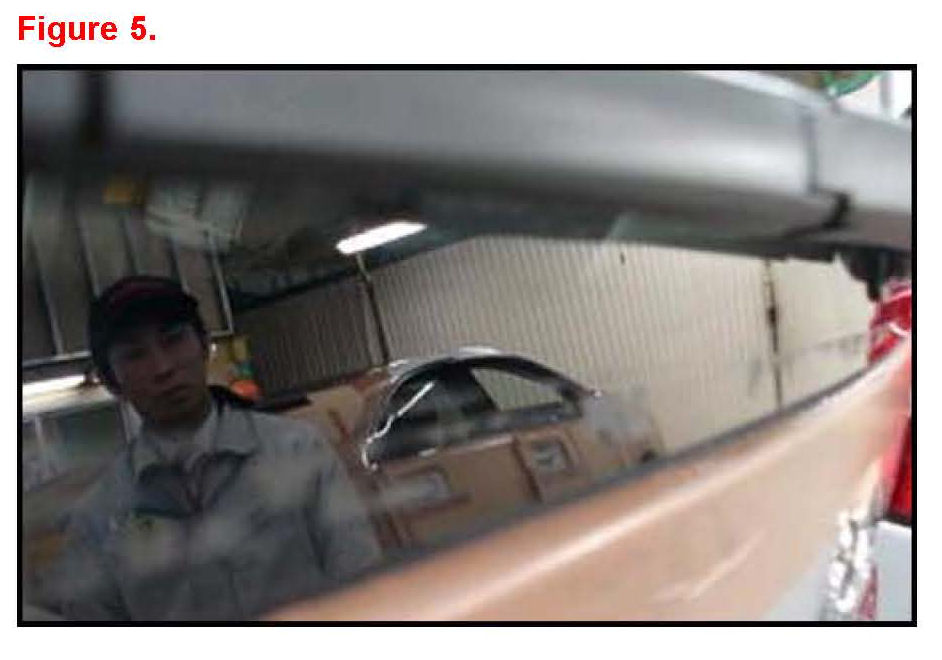

2. Remove all remaining adhesive from the glass.
^ Be careful not to damage the back door glass and body panel.
^ Do not touch the glass surface after cleaning it.
3. Apply masking tape 15 mm above the edge of glass.

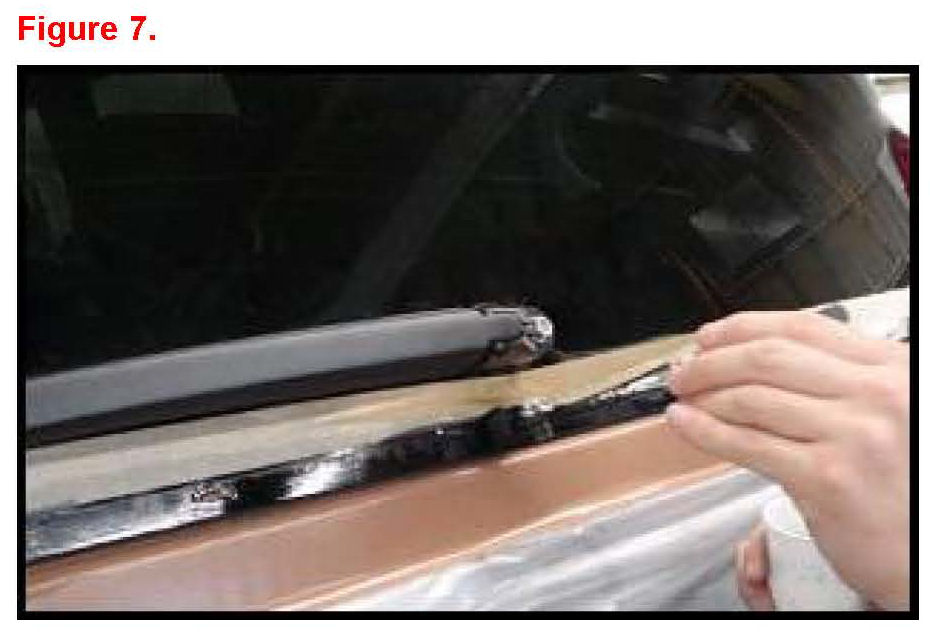

4. Using a brush coat the installation surface on the glass with glass primer (Dow Chemical BP5500).
5. Allow the primer coating to dry for 30 seconds or more.
6. Remove the masking tape.

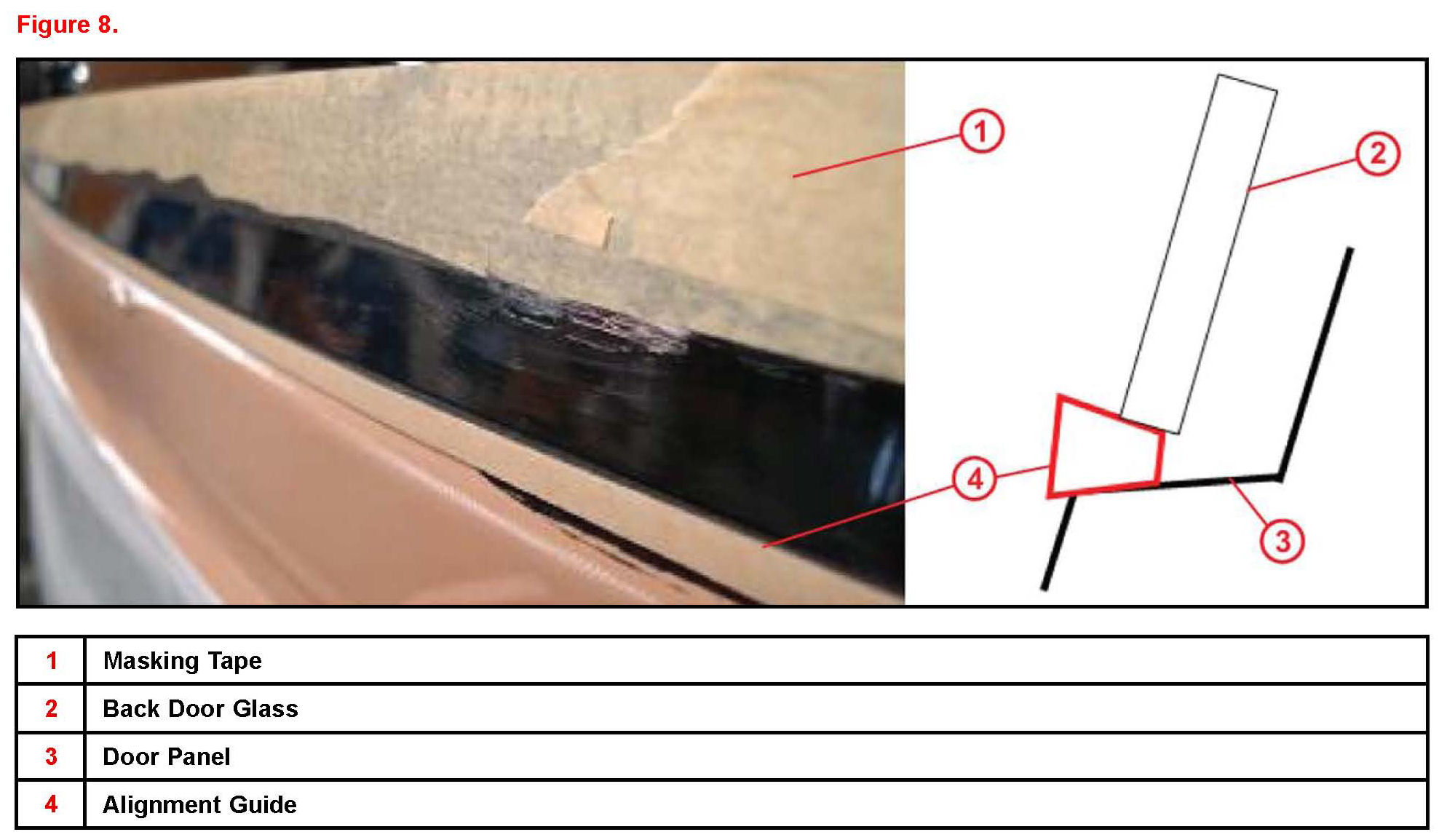

7. Push the alignment guide into the gap between the glass and door panel.
8. Using a brush coat the installation surface of the molding with molding primer (Dow Chemical BP5404).

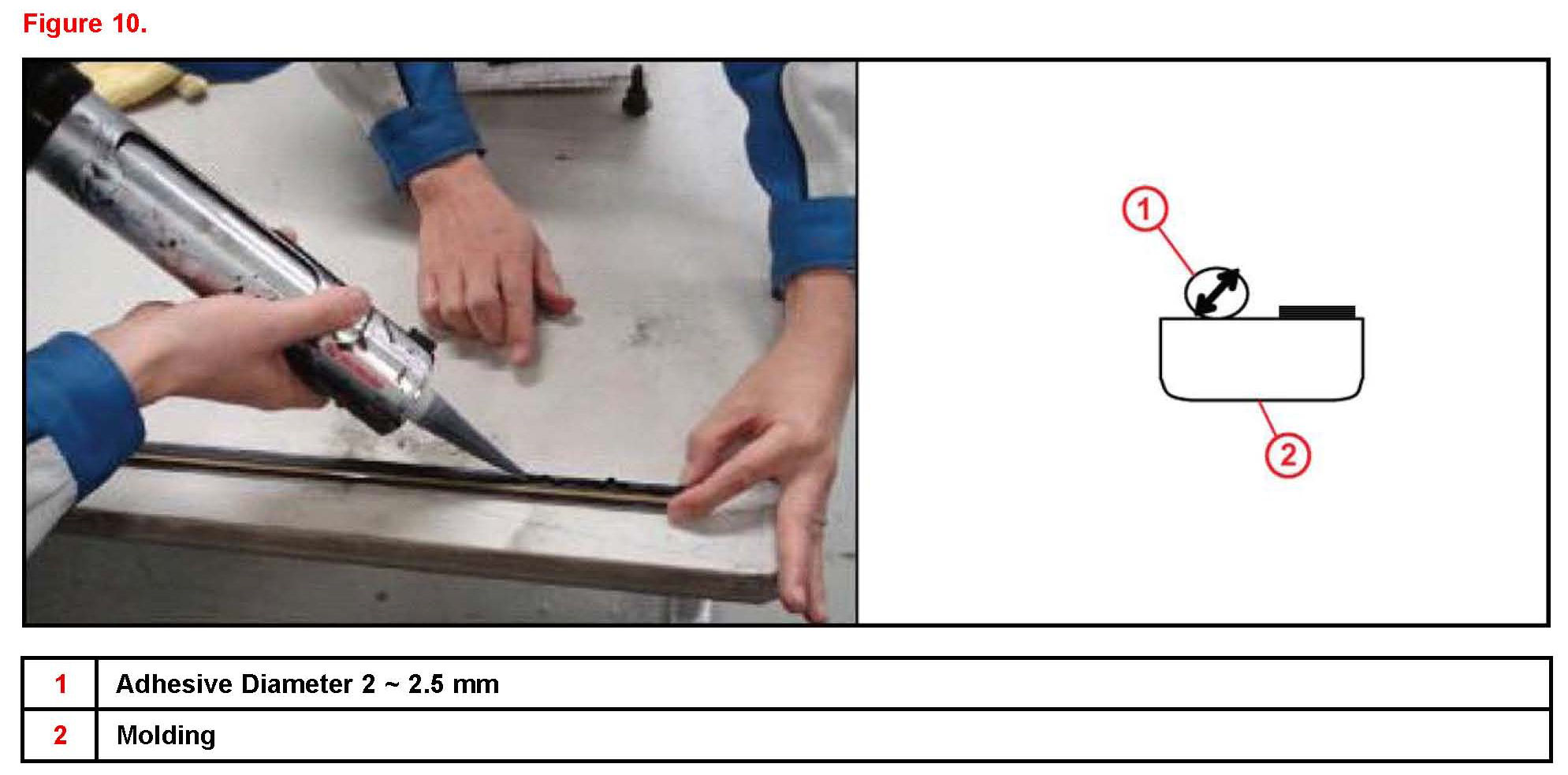

9. Apply Urethane adhesive on the molding (Dow Chemical U400HV).
NOTE
Only apply the required amount. If the adhesive is dripping off the side of the molding, too much has been applied.

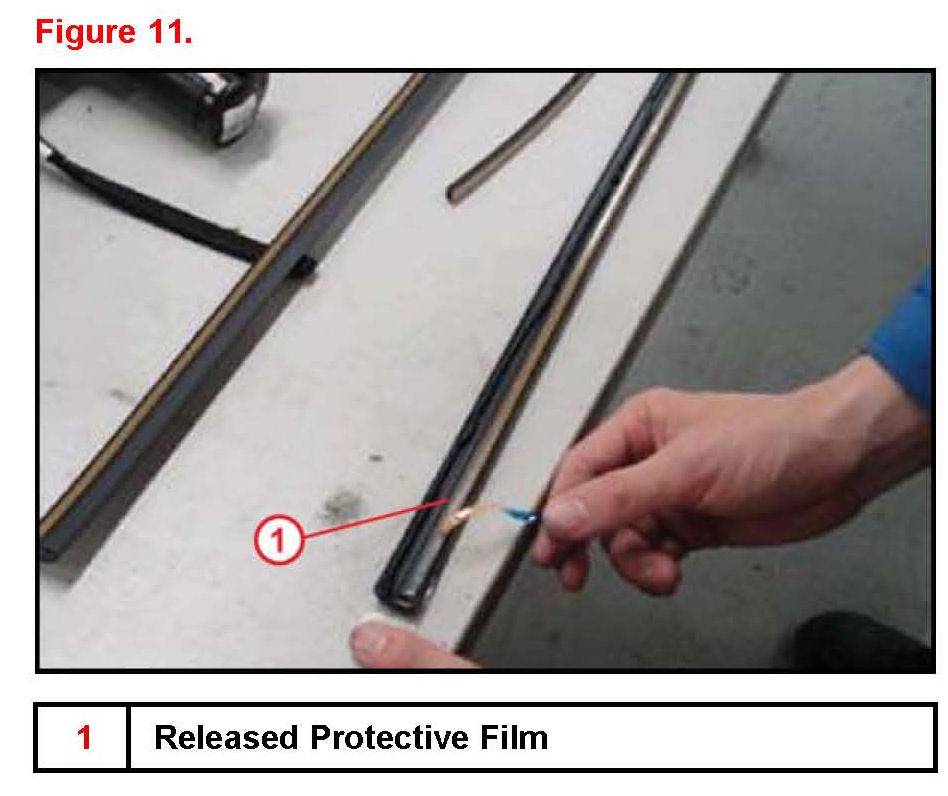

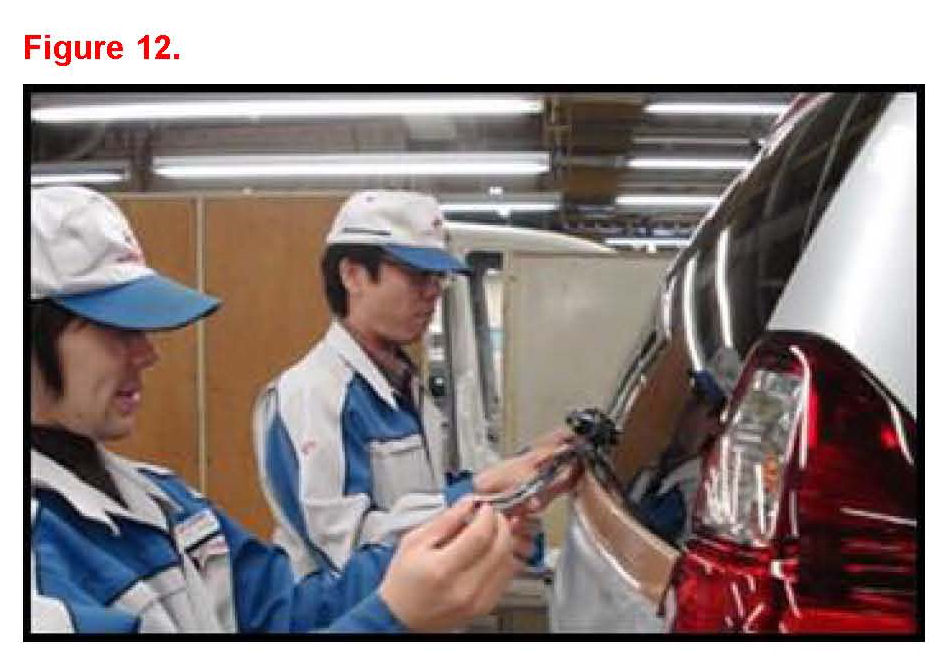

10. Remove the tape backing from the molding.
11. Adjust the molding location to right side edge of glass so that there is 2 mm on the left side.
Using the alignment guide rest the molding on the guide while pressing the molding onto the glass.

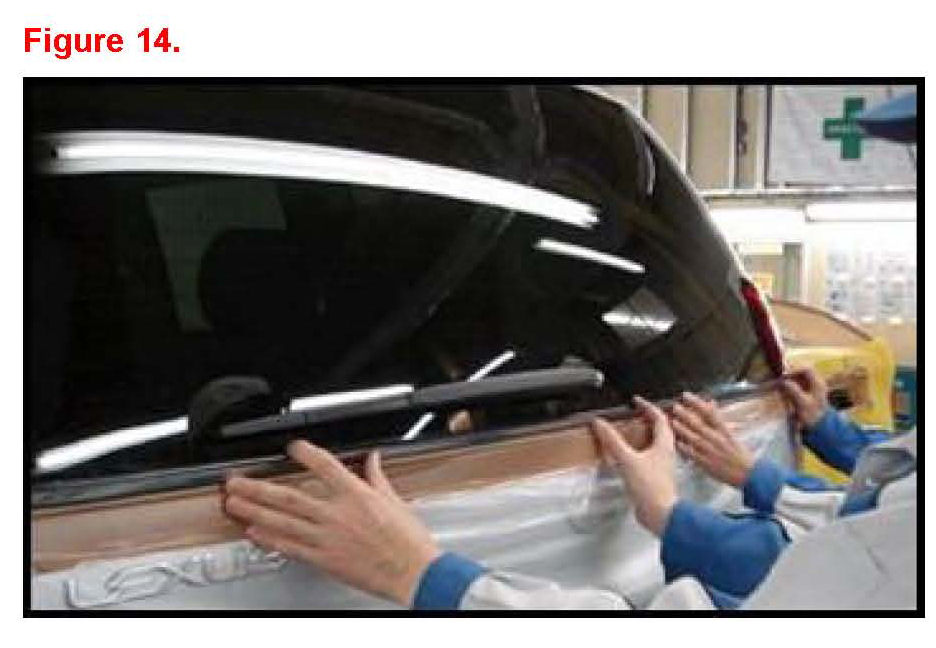

12. Lightly press the molding onto the glass to secure the adhesive and tape.

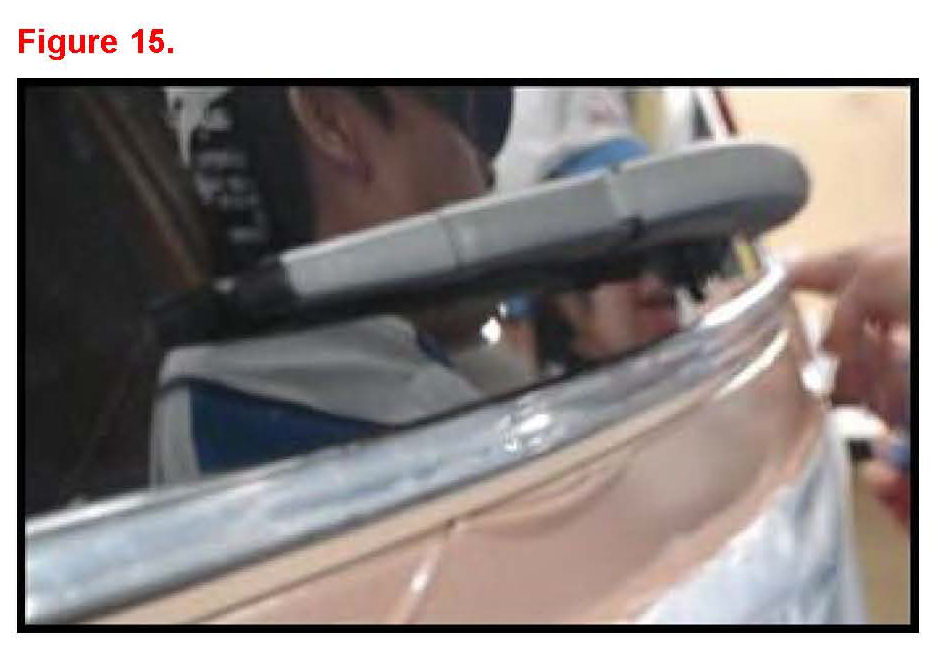

13. Remove the clear protective film from the molding and oft the vehicle.

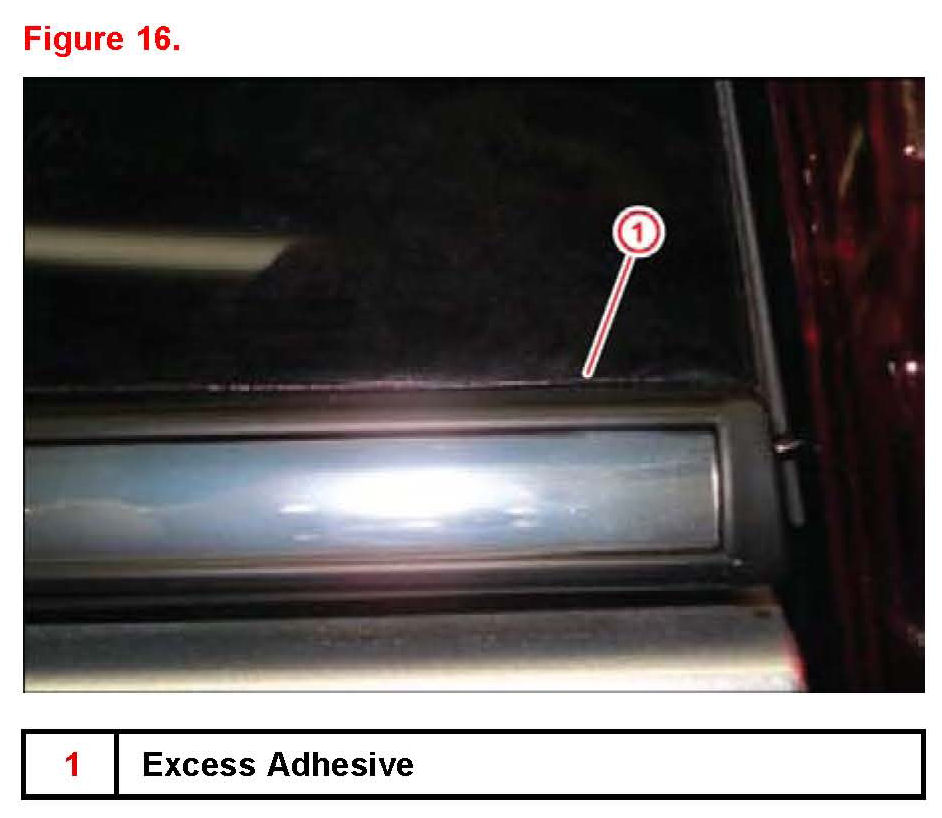

14. Allow the required time for the adhesive to harden remove any excess adhesive.
