Side Monitor System

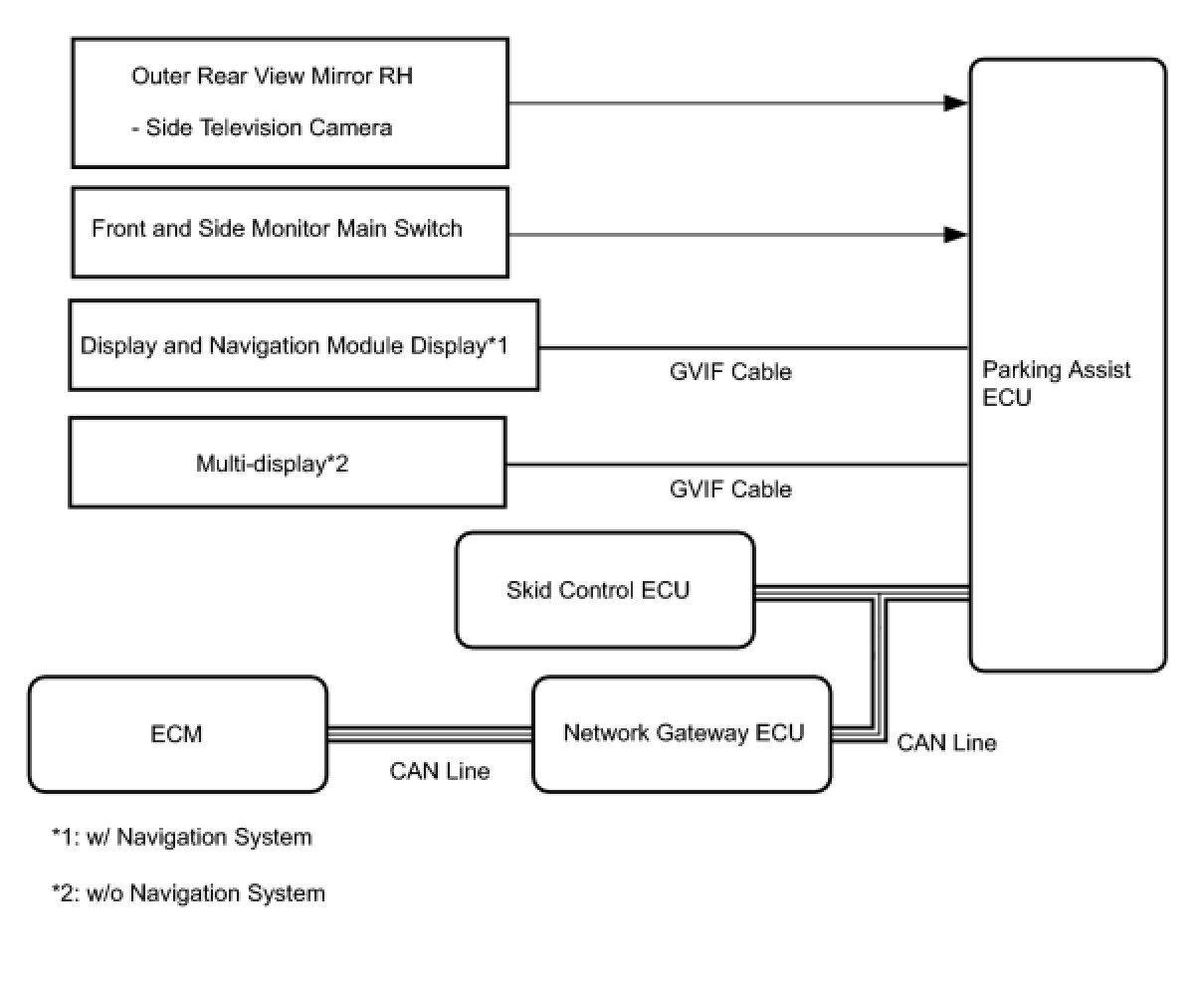

PARK ASSIST / MONITORING: SIDE MONITOR SYSTEM: SYSTEM DIAGRAM





Communication Table





PARK ASSIST / MONITORING: SIDE MONITOR SYSTEM: SYSTEM DESCRIPTION

1. SIDE MONITOR SYSTEM DESCRIPTION
(a) The side monitor system is controlled by the parking assist ECU. This system is equipped with a television camera built into the front passenger side outer mirror. Images from the camera are displayed on the display screen to inform the driver of conditions on the side of the vehicle, assist in smooth movement to the road shoulder, and help prevent vehicle accidents.
2. FUNCTION OF COMPONENTS
(a) The side monitor system operates by controlling the components listed below.





*1: w/ Navigation System
*2: w/o Navigation System
3. SIDE MONITOR SYSTEM CONTROL DESCRIPTION

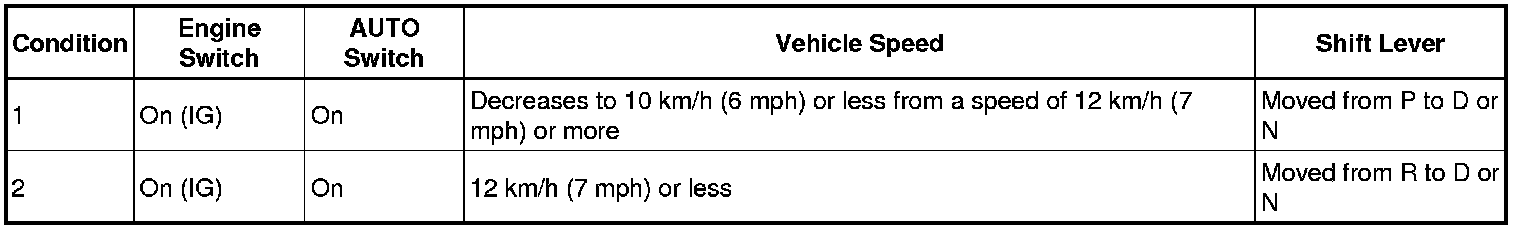

(a) Side monitor operation conditions (when auto-display mode is set).
(1) When the following conditions are met, the side monitor display screen automatically changes e to the wide view front and side monitor simultaneous display screen.





HINT:
The AUTO switch is displayed in the bottom left when the side monitor is displayed. Auto-display mode can be set/unset by turning the AUTO switch on/off.

(b) Side monitor operation conditions (when auto-display mode is not set).
(1) When the following conditions are met and the front and side monitor main switch is pushed, the side monitor display screen changes to the wide view front and side monitor simultaneous display screen.
