Wide View Front Monitor System

PARK ASSIST / MONITORING: WIDE VIEW FRONT MONITOR SYSTEM: SYSTEM DIAGRAM





Communication Table





PARK ASSIST / MONITORING: WIDE VIEW FRONT MONITOR SYSTEM: SYSTEM DESCRIPTION

1. WIDE VIEW FRONT MONITOR SYSTEM DESCRIPTION
(a) The wide view front monitor system is controlled by the parking assist ECU. This system is equipped with a front television camera in the front radiator grille. Images from the camera are displayed on the display screen to inform the driver of conditions ahead, shorten the amount the vehicle has to enter an intersection, etc.

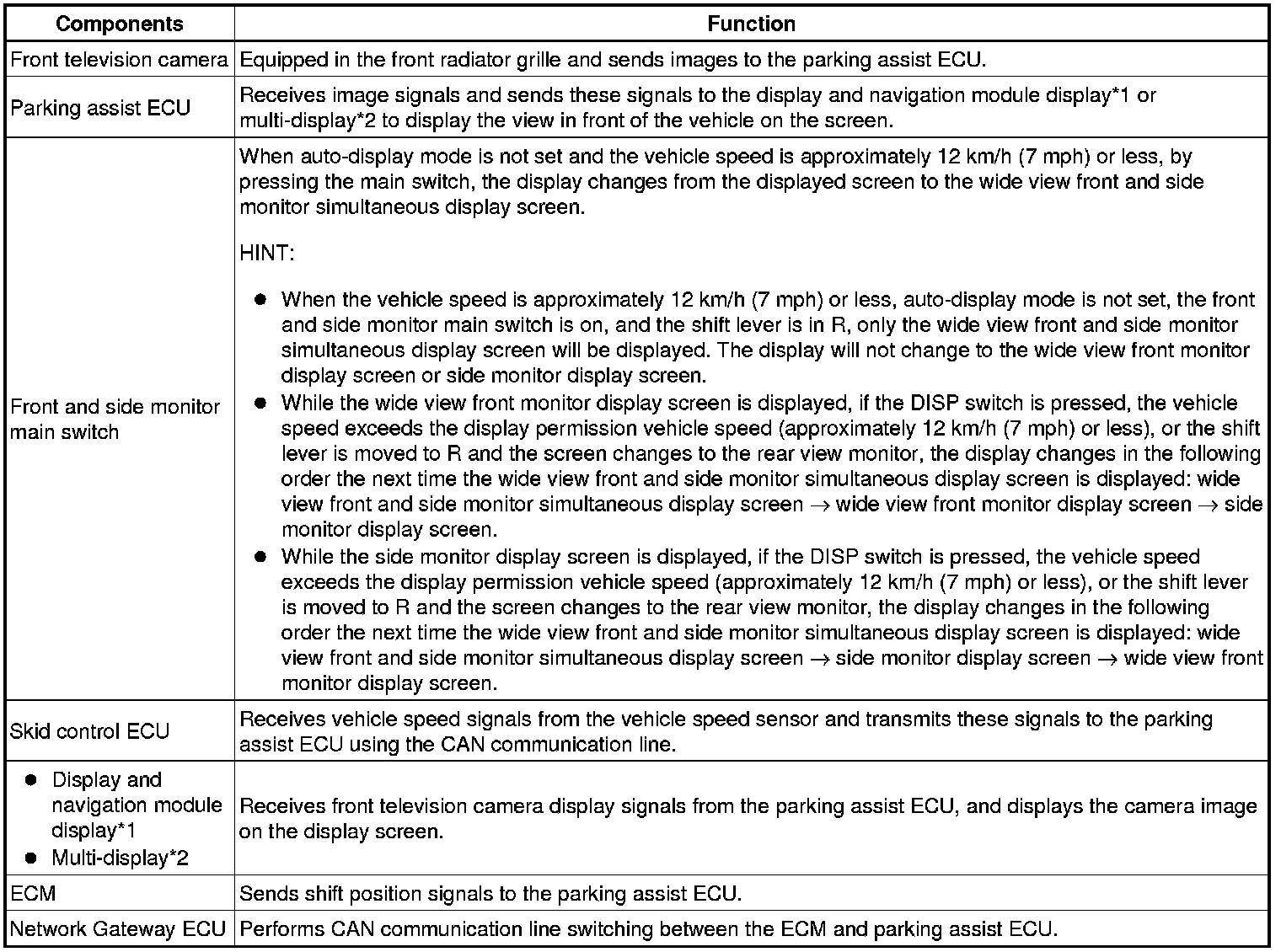

2. FUNCTION OF COMPONENTS
(a) The wide view front monitor system operates by controlling the components listed below.





*1: w/ Navigation system
*2: w/o Navigation system
3. WIDE VIEW FRONT MONITOR SYSTEM CONTROL DESCRIPTION
(a) Wide view front monitor operation conditions (when auto-display mode is set).

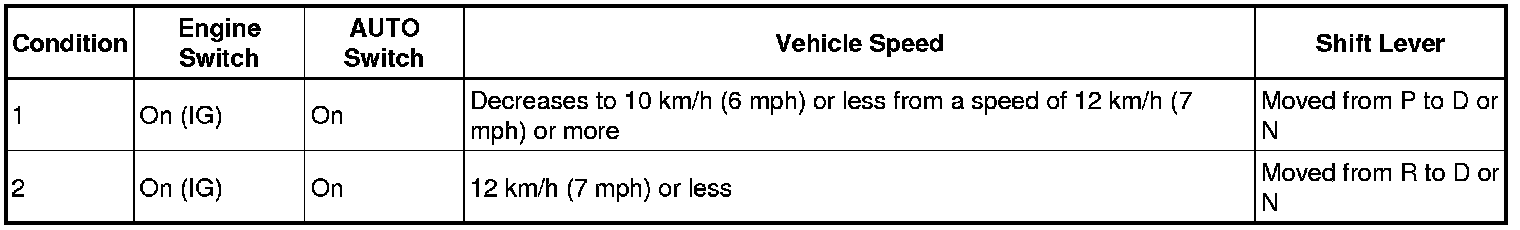

(1) When either of the following conditions is met, the wide view front monitor display screen automatically changes to the wide view front and side monitor simultaneous display screen.





HINT:
The AUTO switch is displayed in the bottom left when the wide view front monitor is displayed. Auto-display mode can be set/unset by turning the AUTO switch on/off.

(b) Wide view front monitor operation conditions (when auto-display mode is not set).
(1) When the following conditions are met and the front and side monitor main switch is pushed, the wide view front monitor display screen changes to the wide view front and side monitor simultaneous display screen.
