Power Locks: Description and Operation

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: SYSTEM DIAGRAM






Communication Table





DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: SYSTEM DESCRIPTION

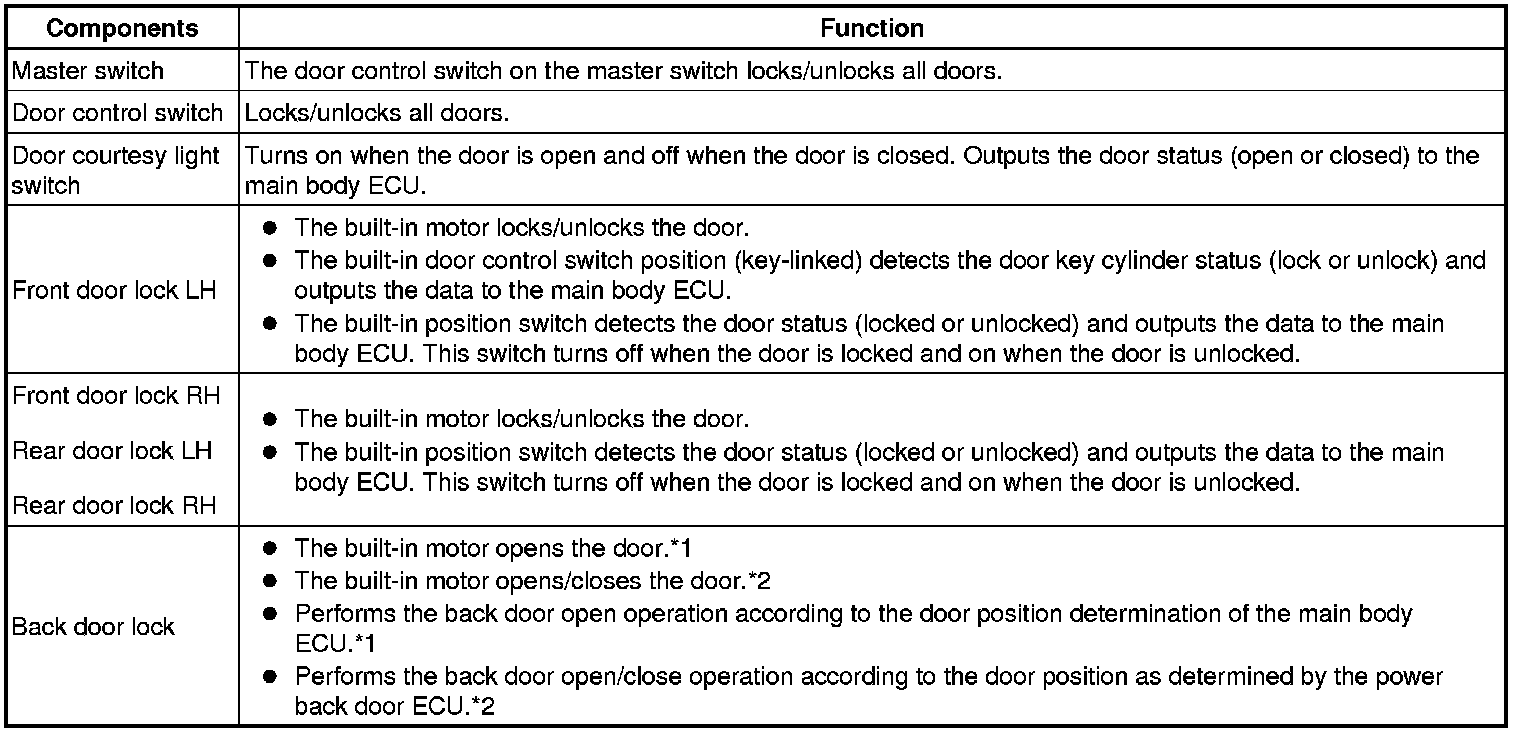

1. FUNCTION OF MAIN COMPONENT






*1: w/o Power Back Door
*2: w/ Power Back Door
2. SYSTEM DESCRIPTION
(a) The power door lock system locks/unlocks all doors.
- The door control switch of the master switch uses the LIN line to send lock/unlock request signals to the main body ECU.
- The driver door key cylinder lock/unlock request signals are sent to the main body ECU from the front door lock LH.
- The passenger door control switch lock/unlock request signals are sent to the main body ECU from the front door lock RH.
- The main body ECU receives the request signals and locks/unlocks each door.
The door control system has the following functions:





*: This function is set through the customize function, as it is off by default.
