Connector Views

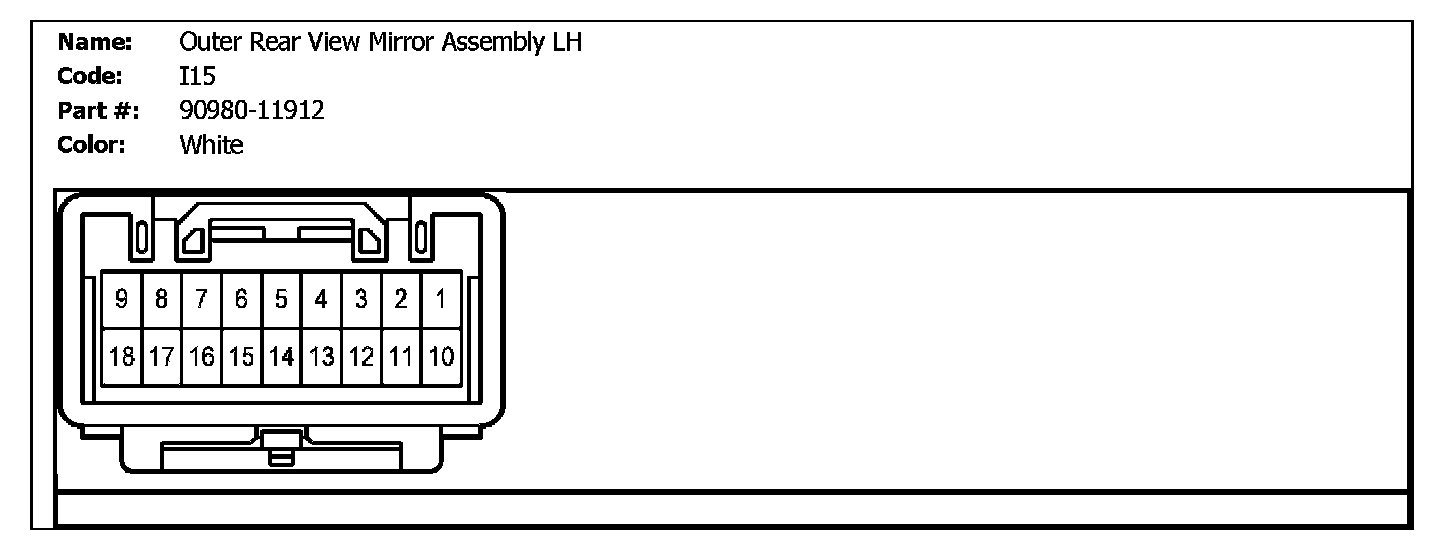

I15 (Outer Rear View Mirror Assembly LH):

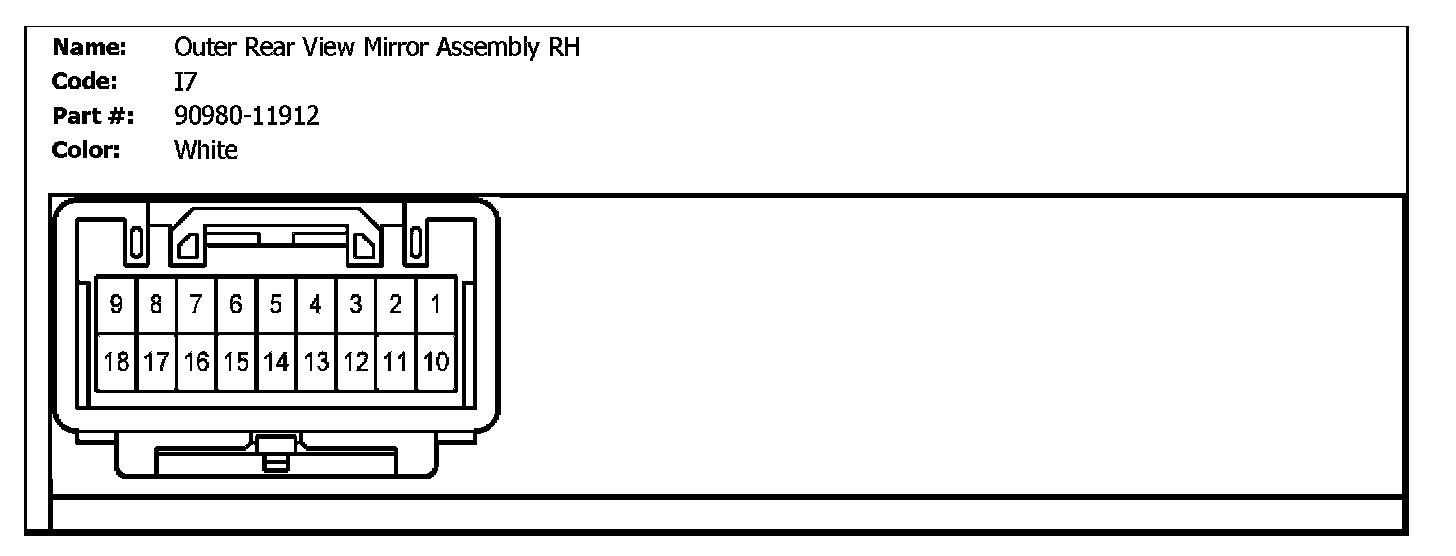

I7 (Outer Rear View Mirror Assembly RH):

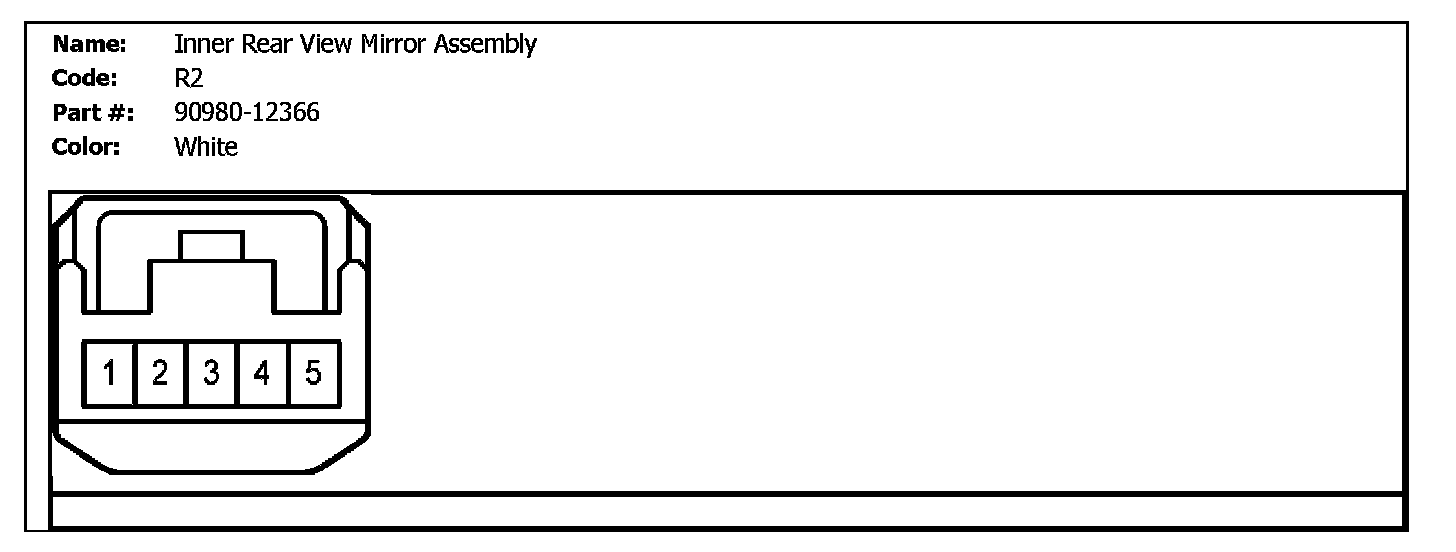

R2 (Inner Rear View Mirror Assembly):
