Lexus Truck
>>
2008
>>
LX 570 V8-5.7L (3UR-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Locations
>>
Climate Control Seat System
Climate Control Seat System

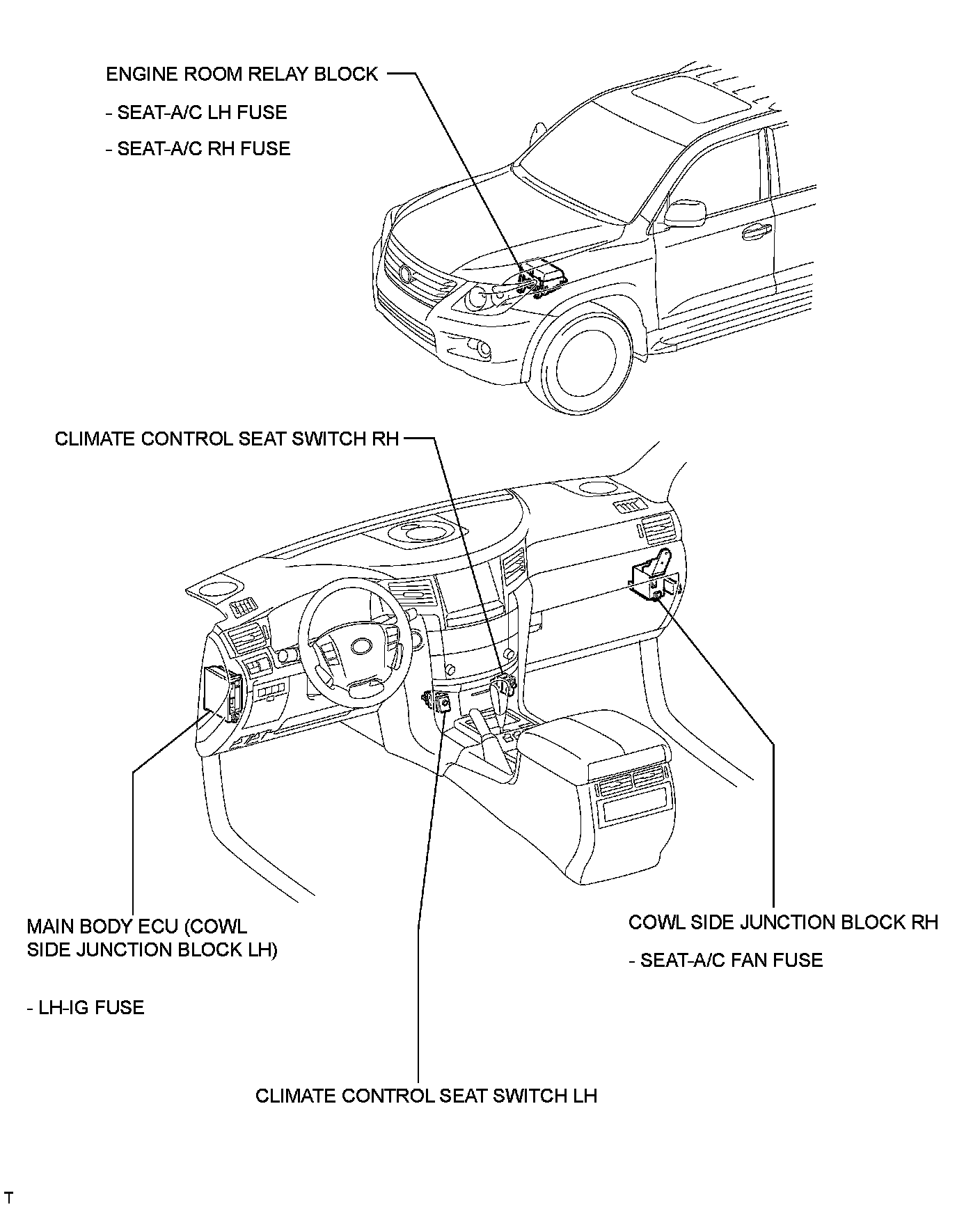

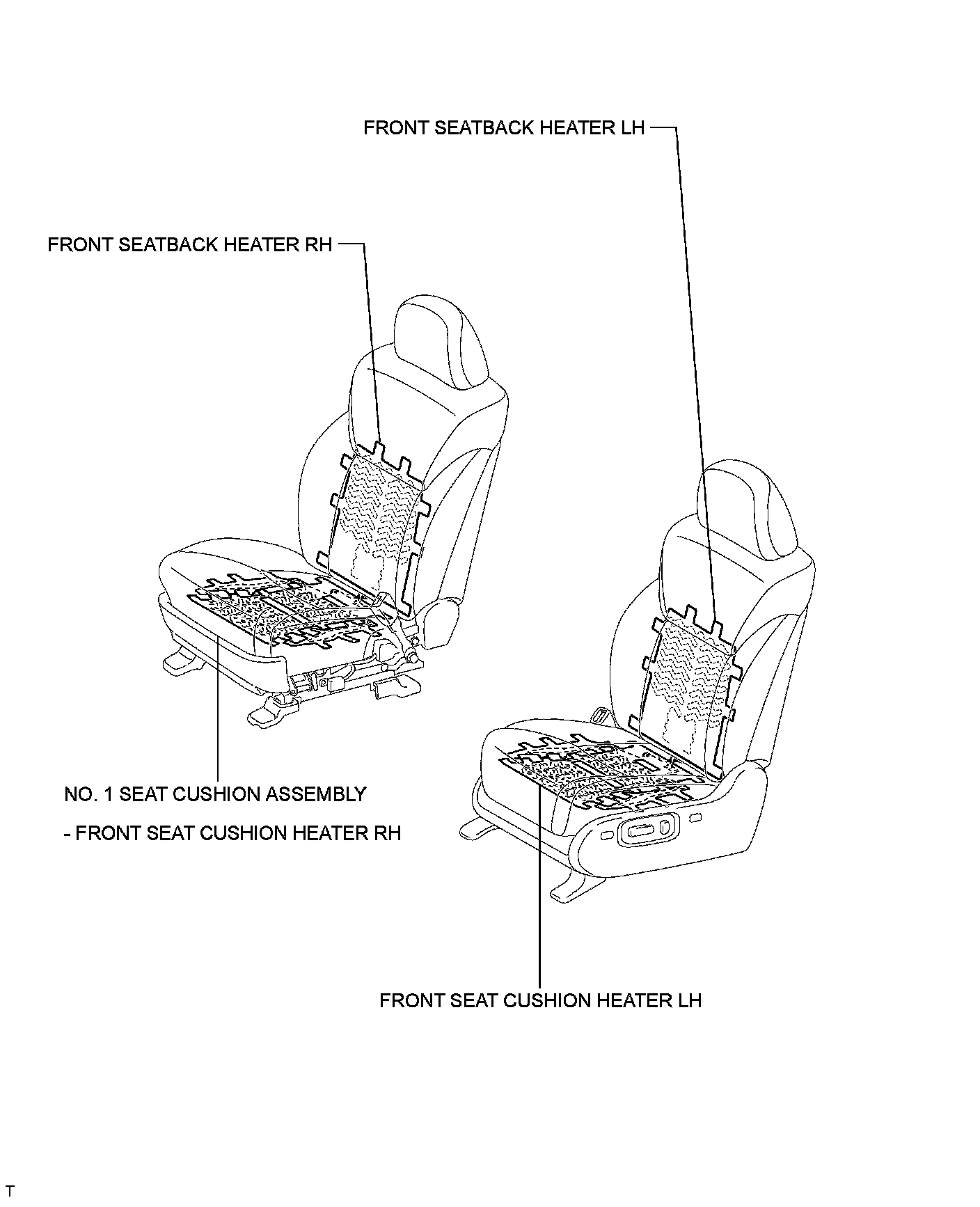

SEAT: CLIMATE CONTROL SEAT SYSTEM: PARTS LOCATION
