Home
>>
Lexus Truck
>>
2008
>>
LX 570 V8-5.7L (3UR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Position of Parts In Seat [Front Seat]
Position of Parts In Seat [Front Seat]

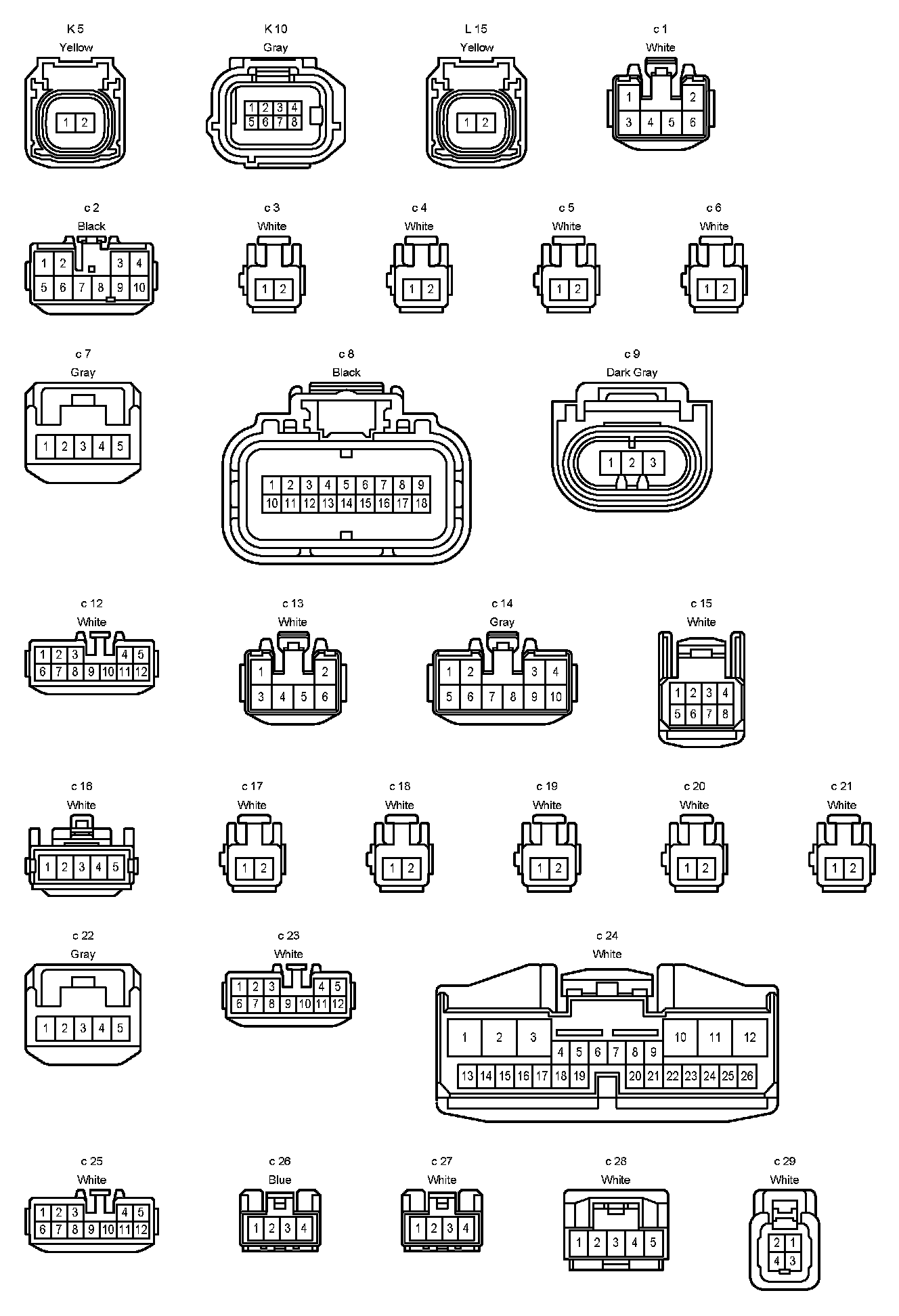

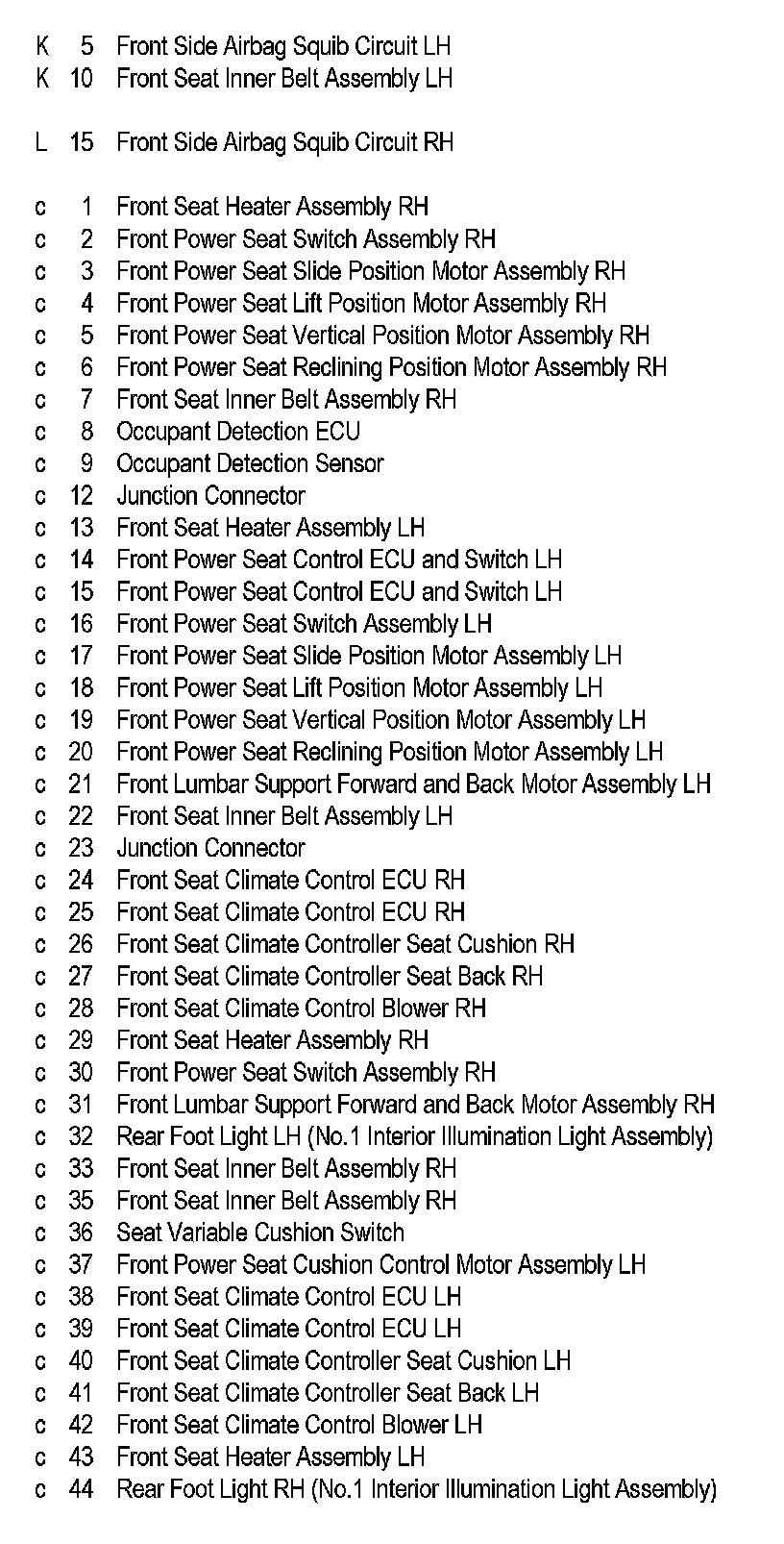

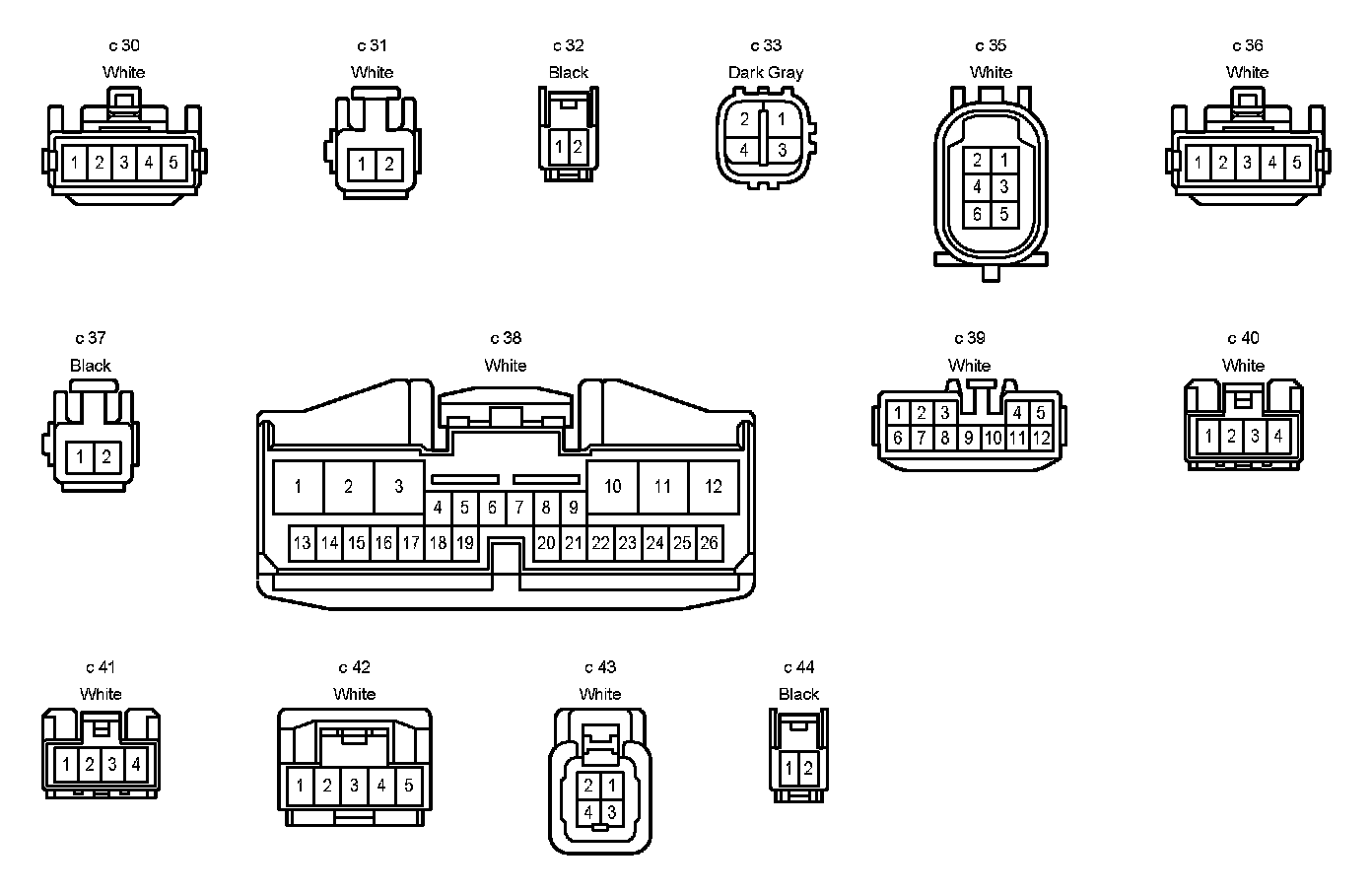

Position of Parts in Seat <Front Seat>:
Position of Parts in Seat <Front Seat>:
Position of Parts in Seat <Front Seat>:
Position of Parts in Seat <Front Seat>:
