Position of Parts In Seat [Rear No.2 Seat]
Position of Parts In Seat [Rear No.2 Seat]

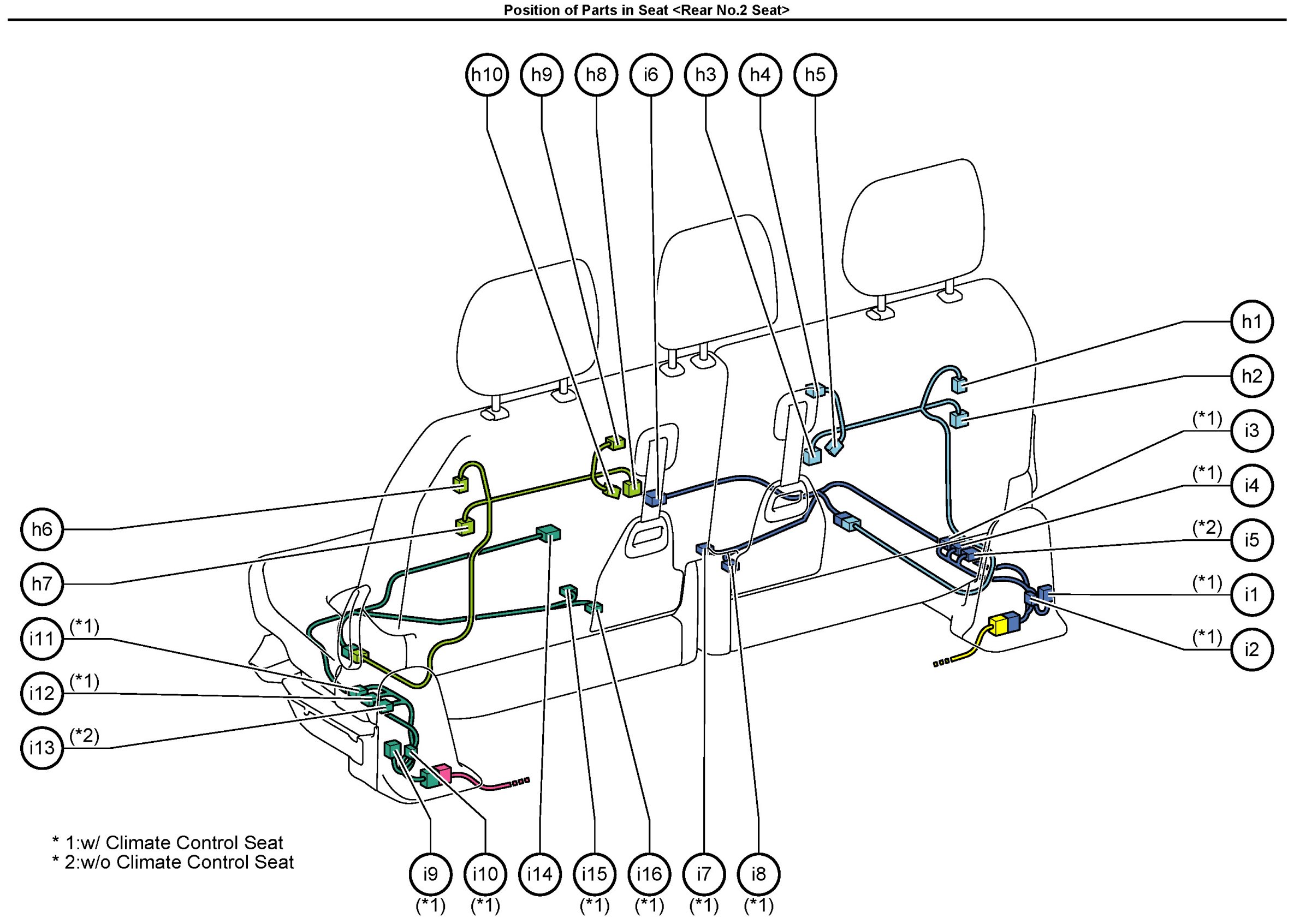

Position of Parts in Seat <Rear No.2 Seat>:

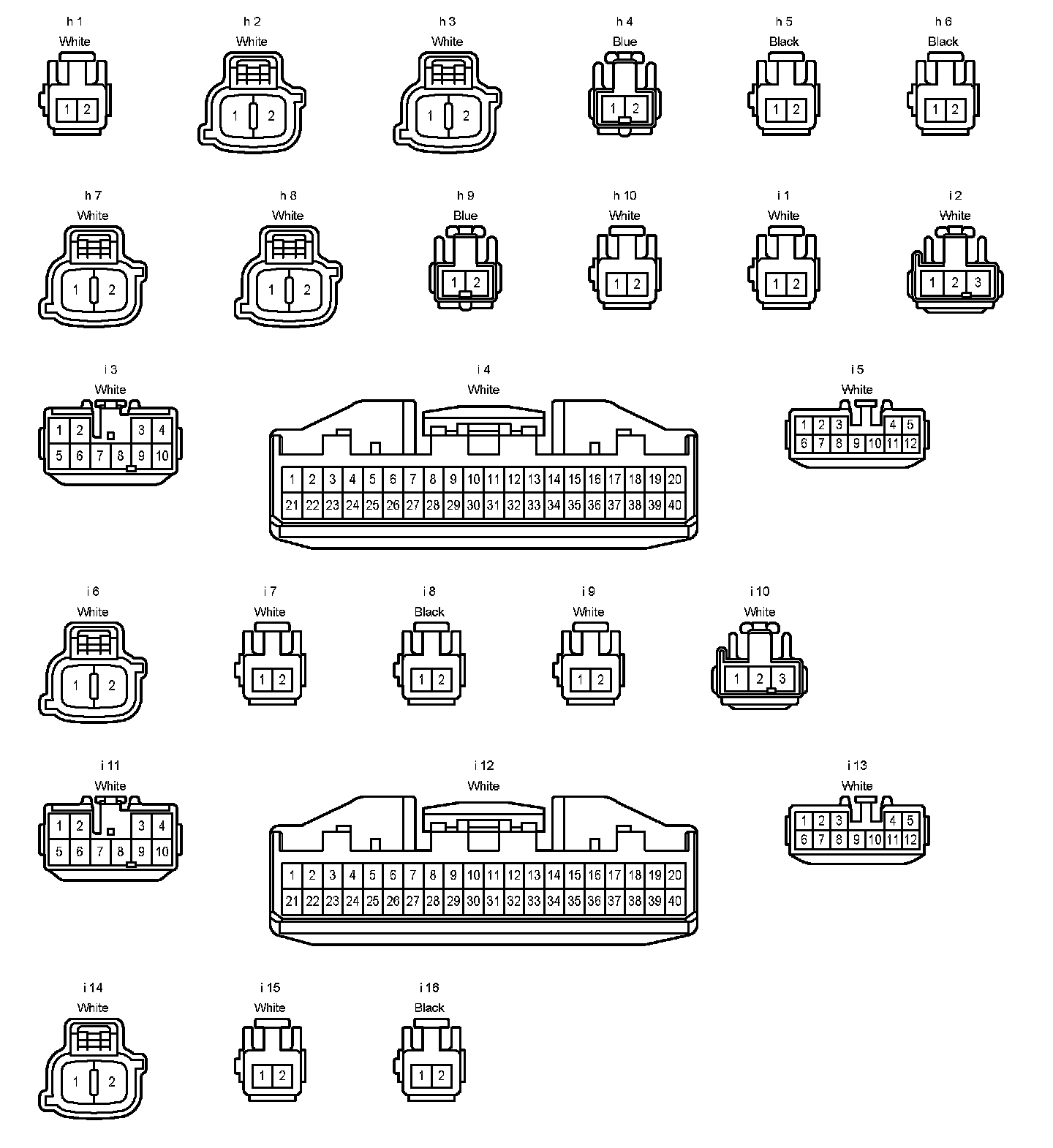

Position of Parts in Seat <Rear No.2 Seat>:
Position of Parts in Seat <Rear No.2 Seat>:
