Control Module, Transfer Case
Control Module, Transfer Case

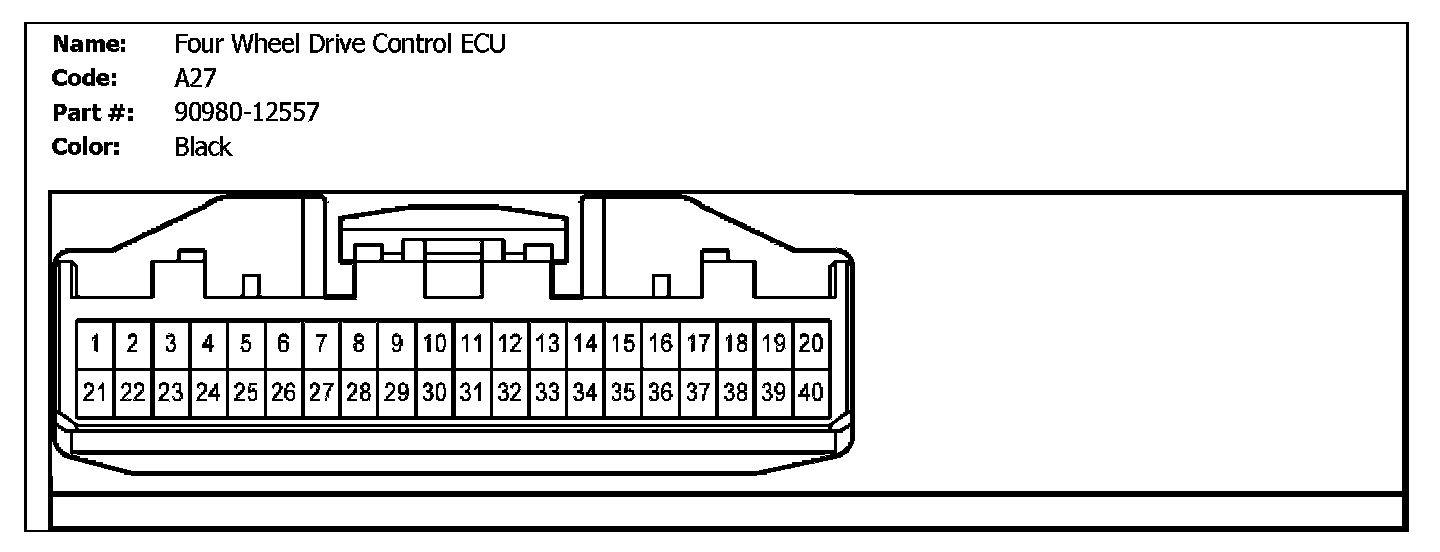

A27 (Four Wheel Drive Control ECU):
A28 (Four Wheel Drive Control ECU):
