Back Door Wire

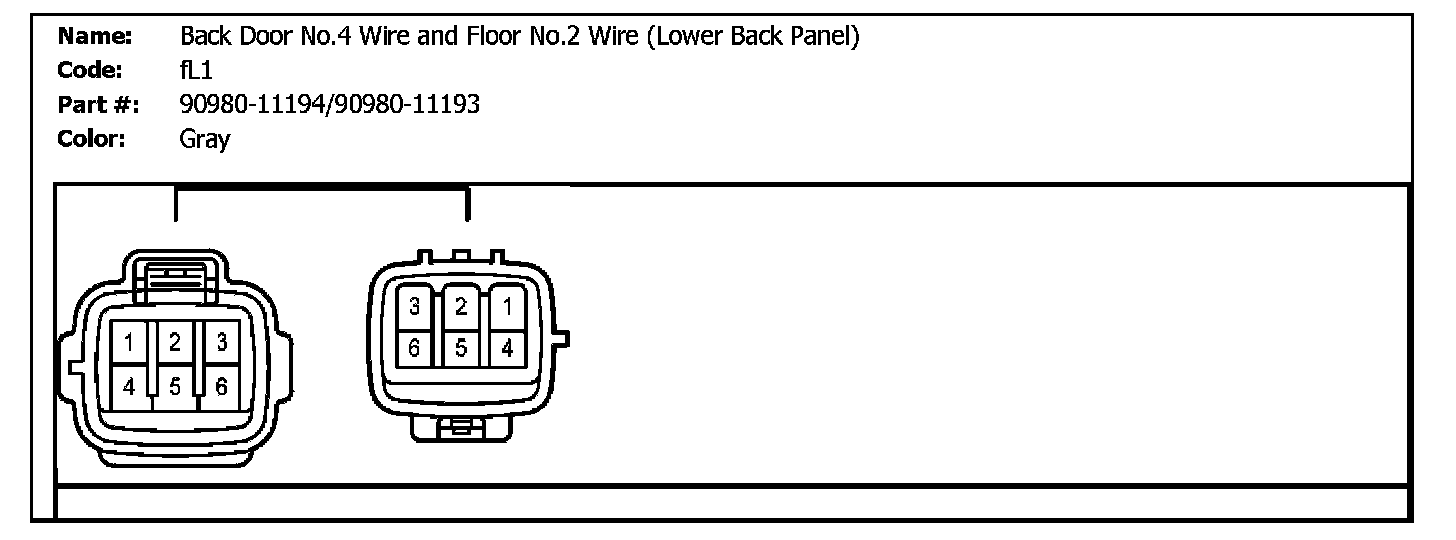

fL1 (Back Door No.4 Wire And Floor No.2 Wire (Lower Back Panel)):

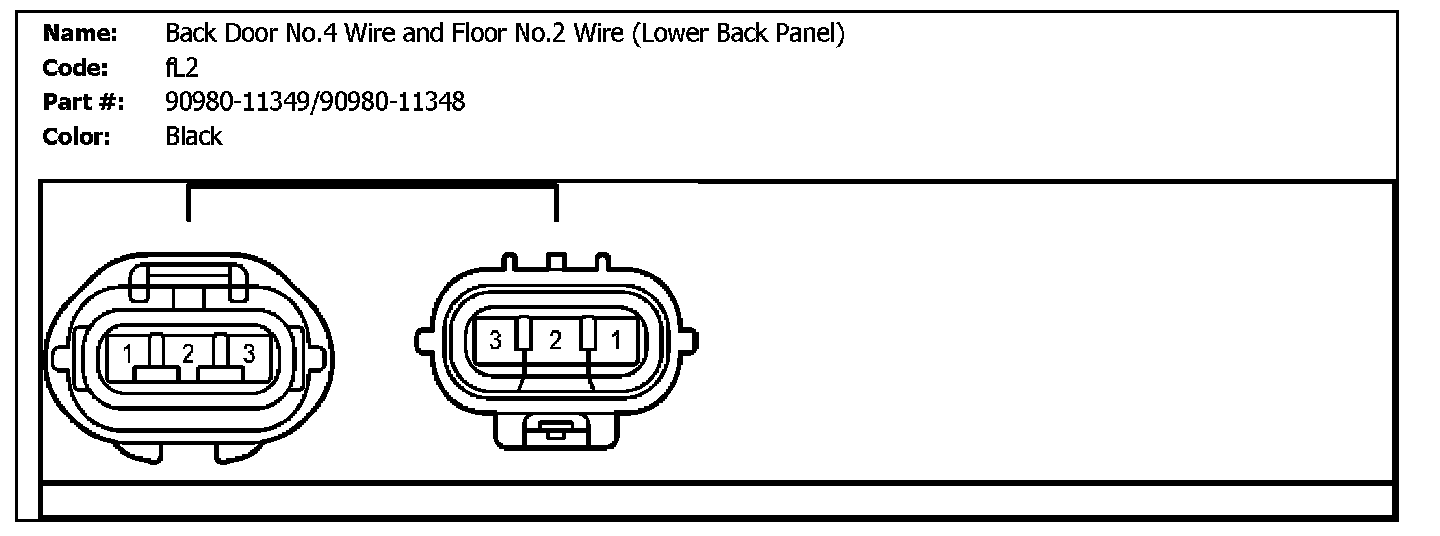

fL2 (Back Door No.4 Wire And Floor No.2 Wire (Lower Back Panel)):

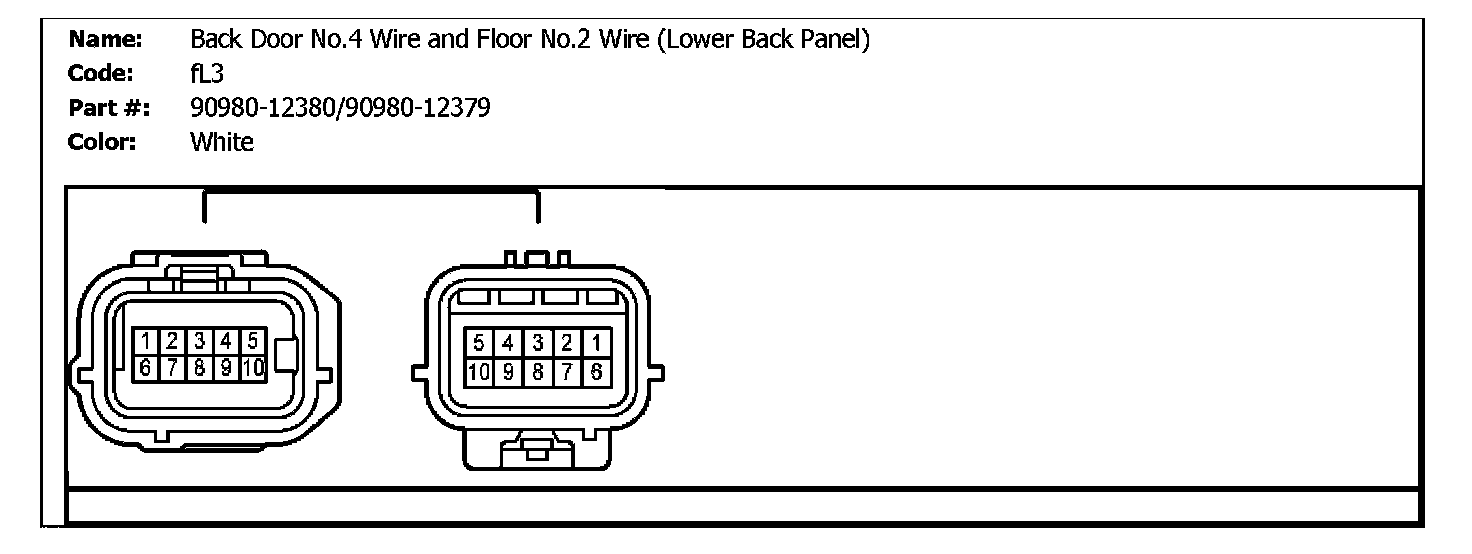

fL3 (Back Door No.4 Wire And Floor No.2 Wire (Lower Back Panel)):

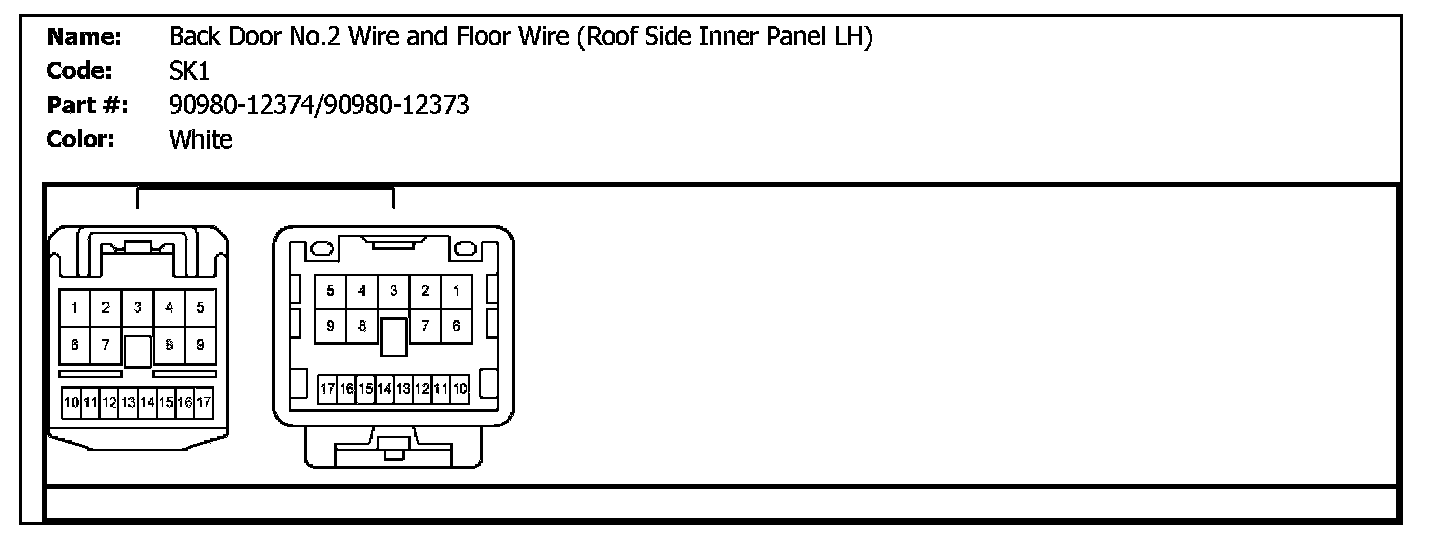

SK1 (Back Door No.2 Wire And Floor Wire (Roof Side Inner Panel LH)):



SK2 (Back Door No.2 Wire And Floor Wire (Roof Side Inner Panel LH)):
