Floor Wire

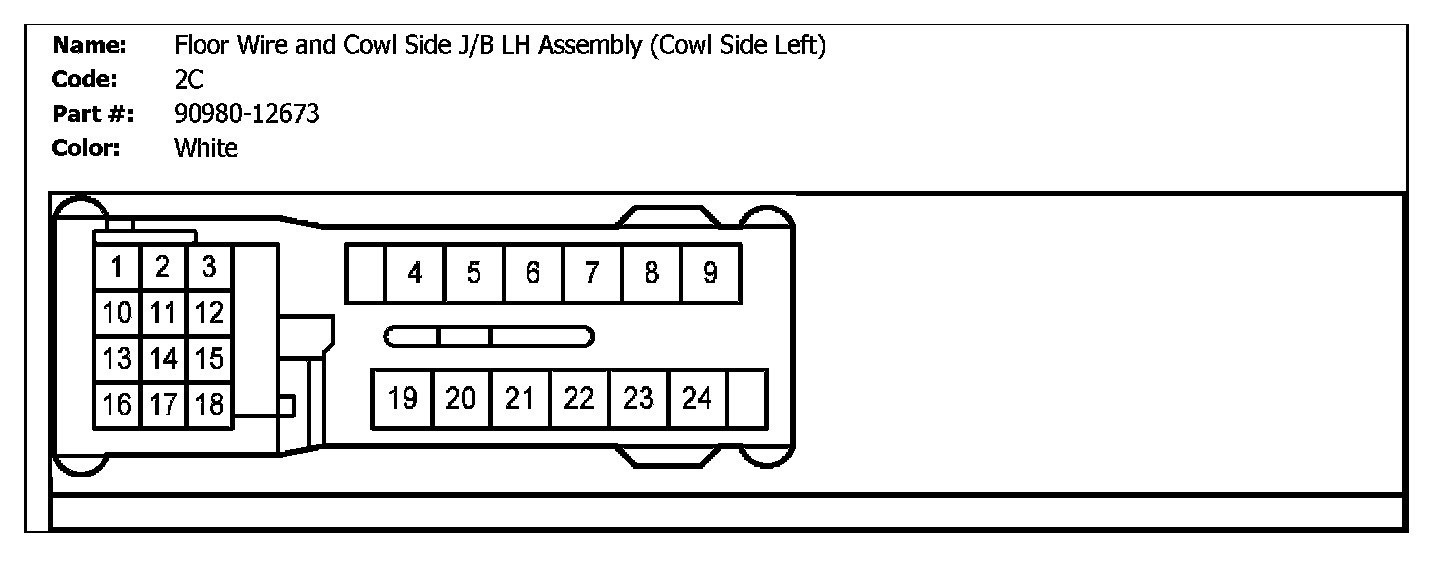

2C (Floor Wire And Cowl Side J/B LH Assembly (Cowl Side Left)):

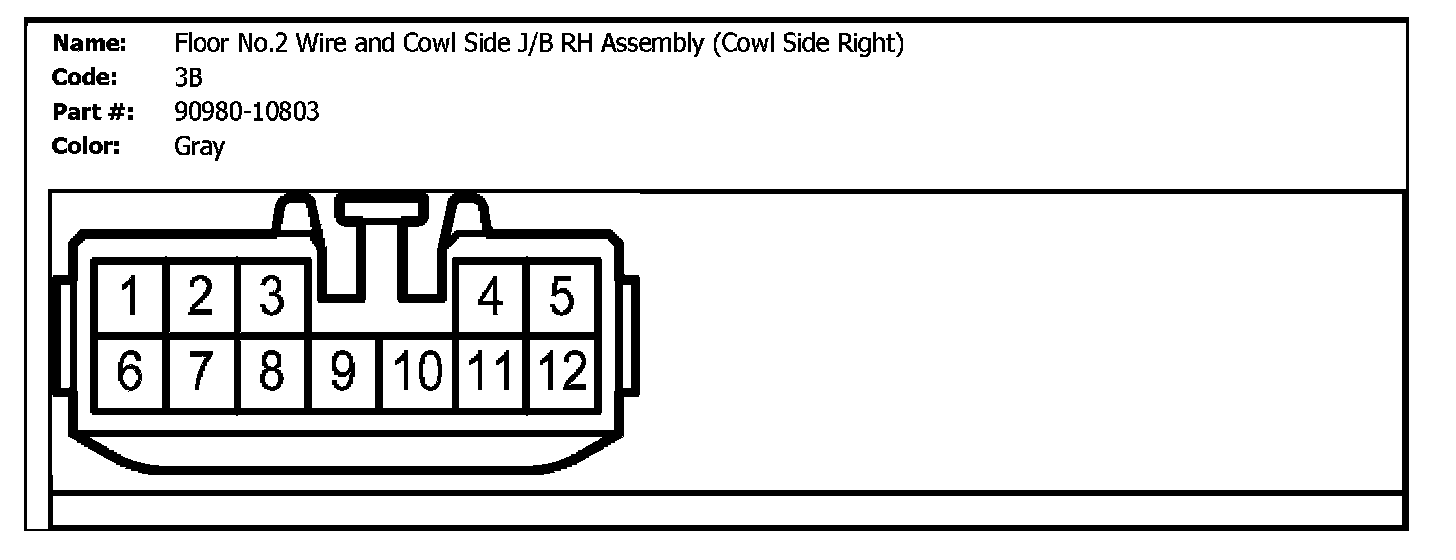

3B (Floor No.2 Wire And Cowl Side J/B RH Assembly (Cowl Side Right)):



Kc1 (Floor Wire And Front Seat LH Wire (Front Seat LH)):

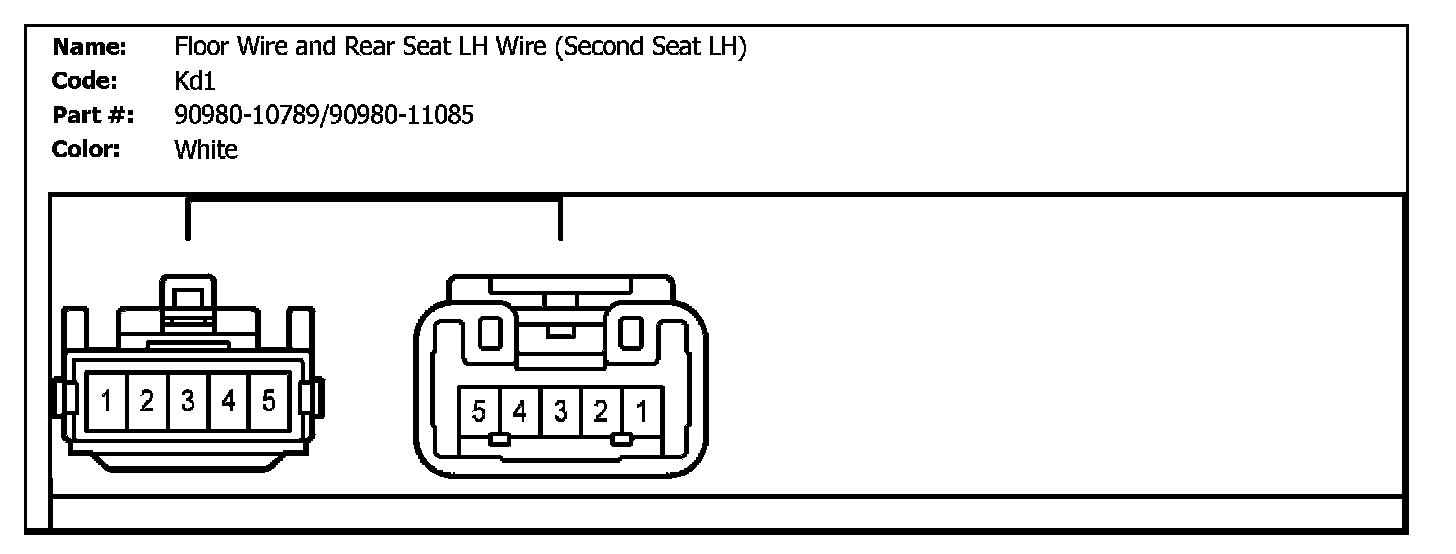

Kd1 (Floor Wire And Rear Seat LH Wire (Second Seat LH)):

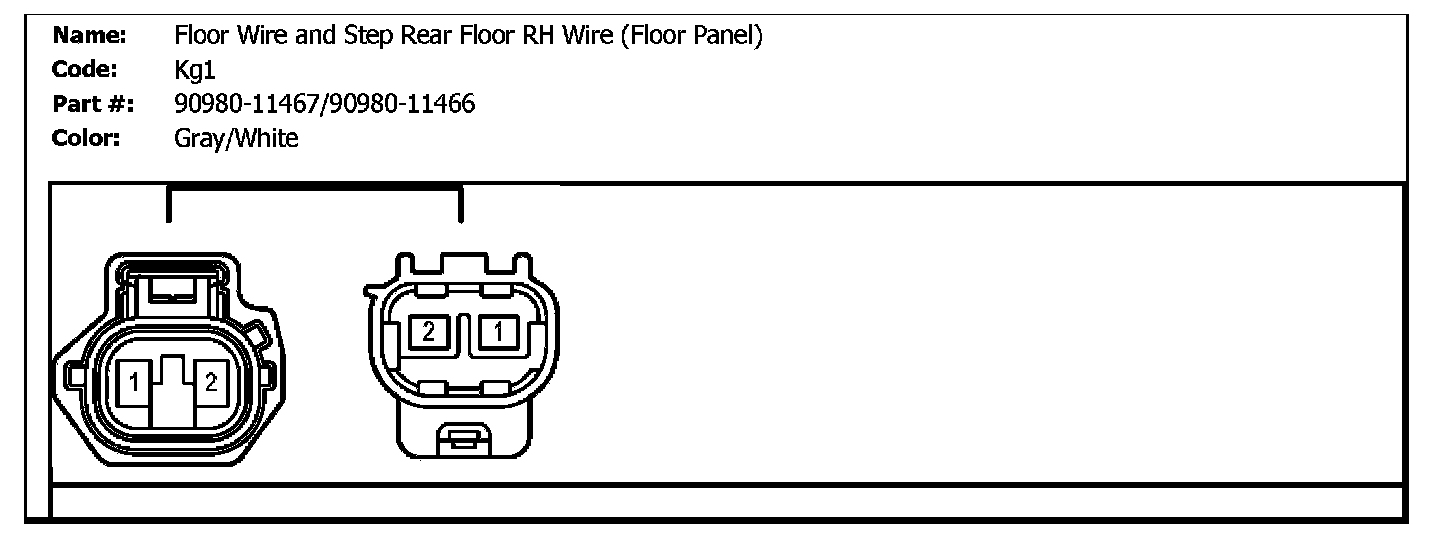

Kg1 (Floor Wire And Step Rear Floor RH Wire (Floor Panel)):

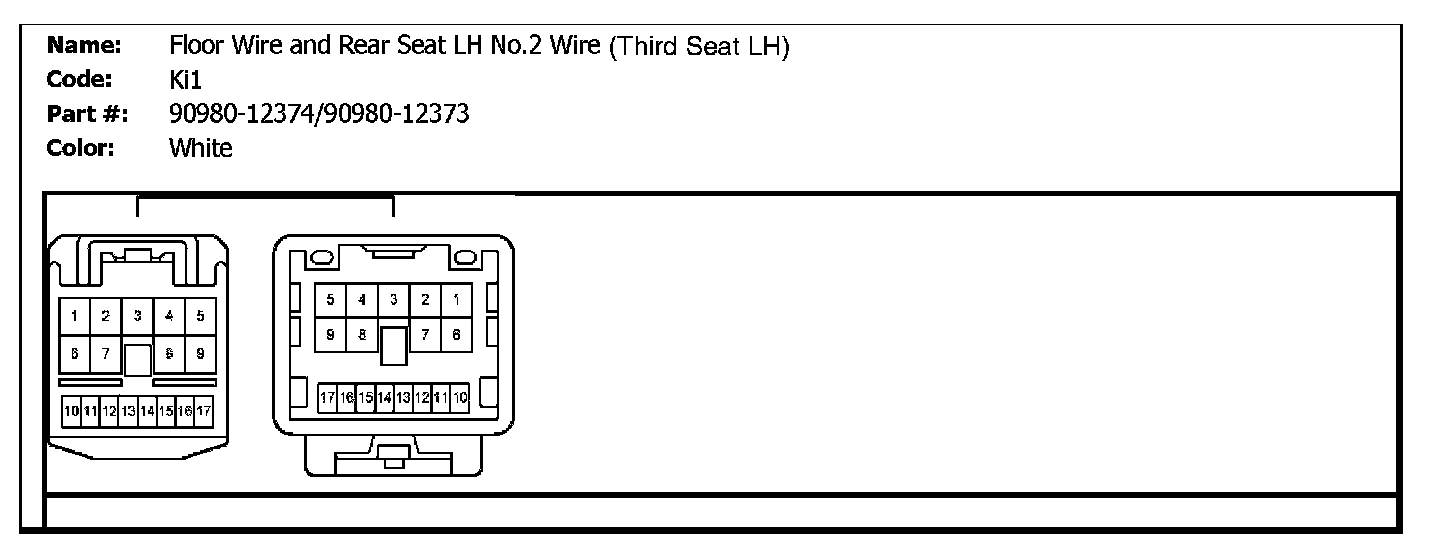

Ki1 (Floor Wire And Rear Seat LH No.2 Wire (Third Seat LH)):

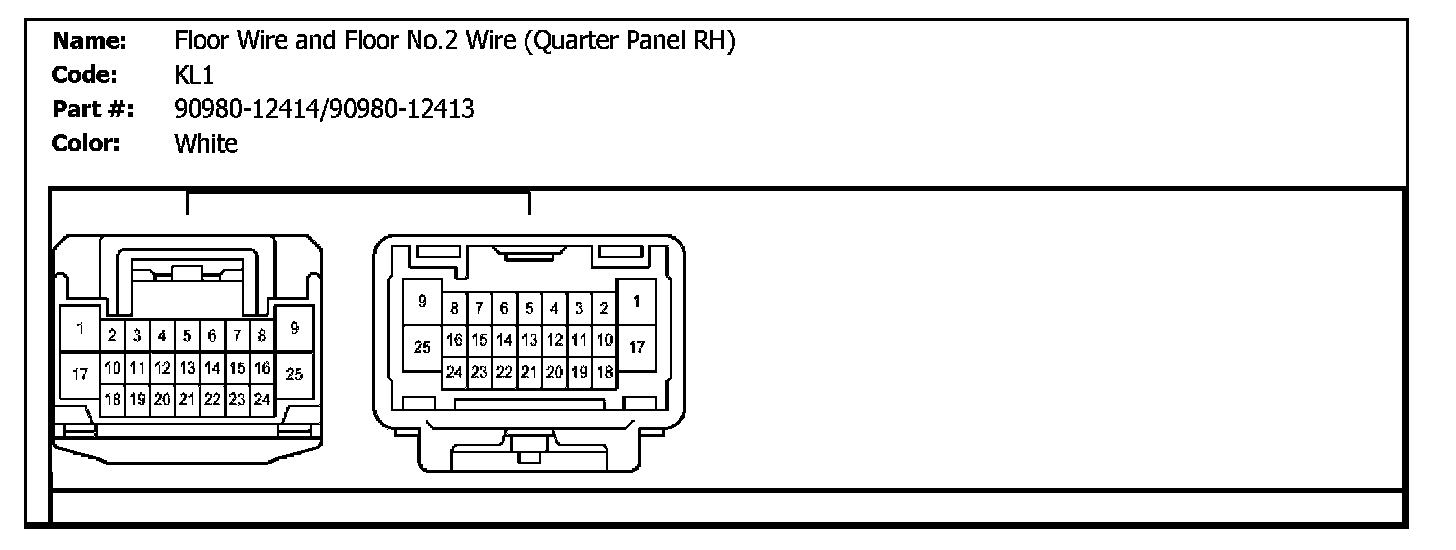

KL1 (Floor Wire And Floor No.2 Wire (Quarter Panel RH)):

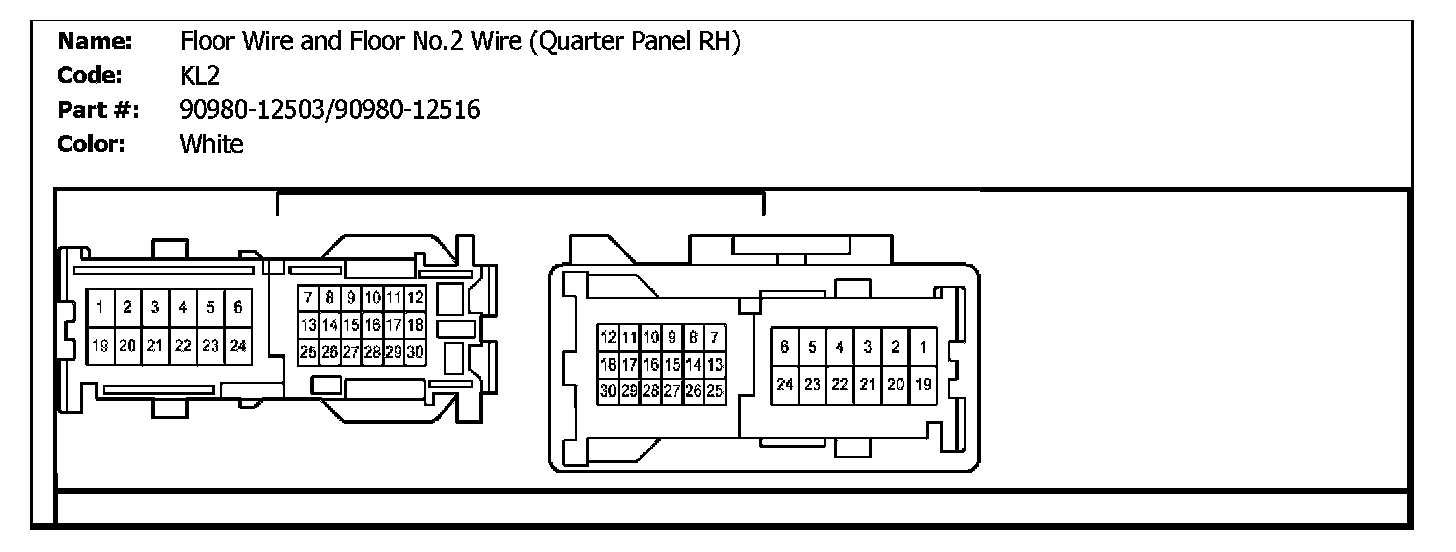

KL2 (Floor Wire And Floor No.2 Wire (Quarter Panel RH)):

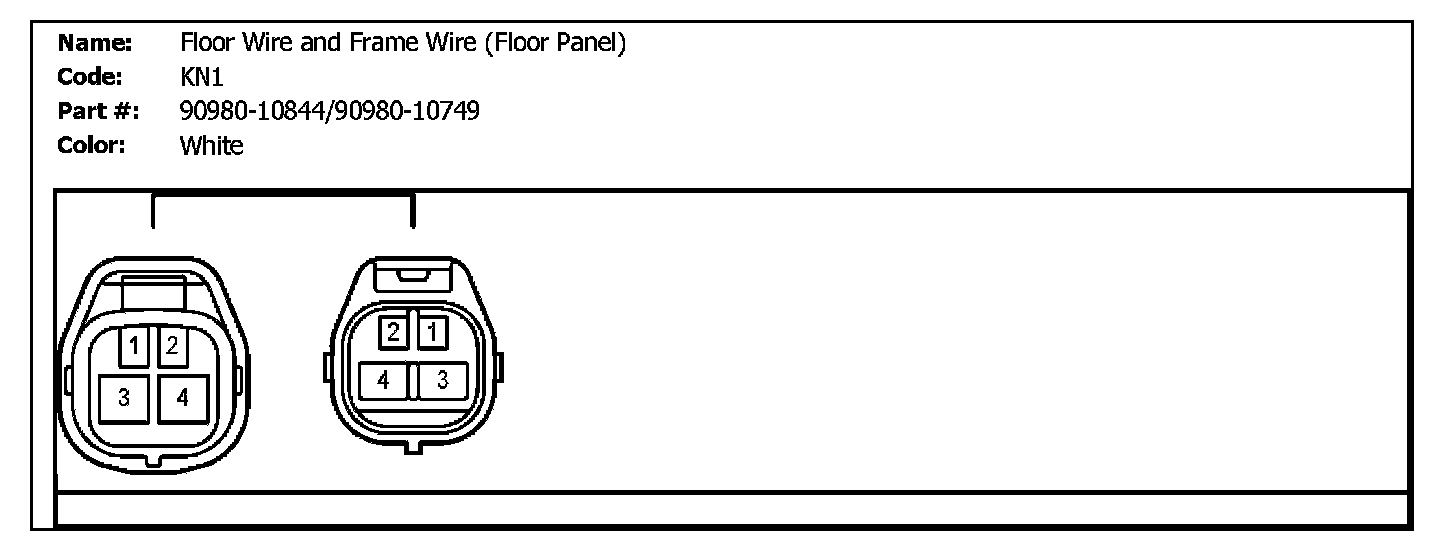

KN1 (Floor Wire And Frame Wire (Floor Panel)):

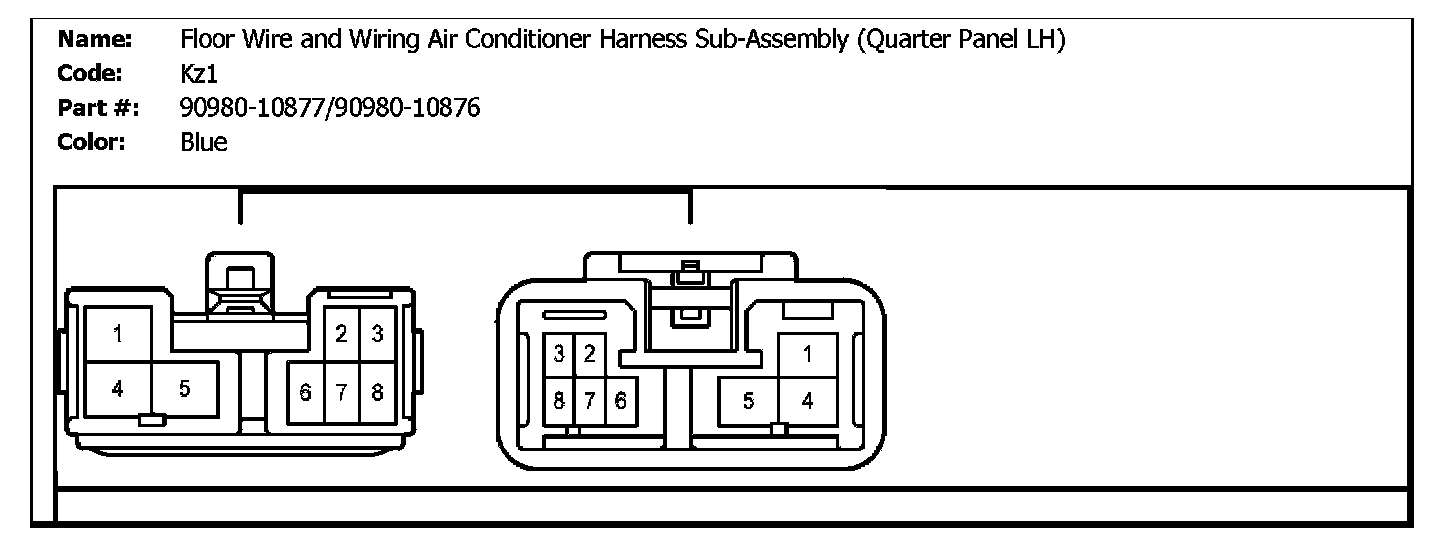

Kz1 (Floor Wire And Wiring Air Conditioner Harness Sub-Assembly (Quarter Panel LH)):

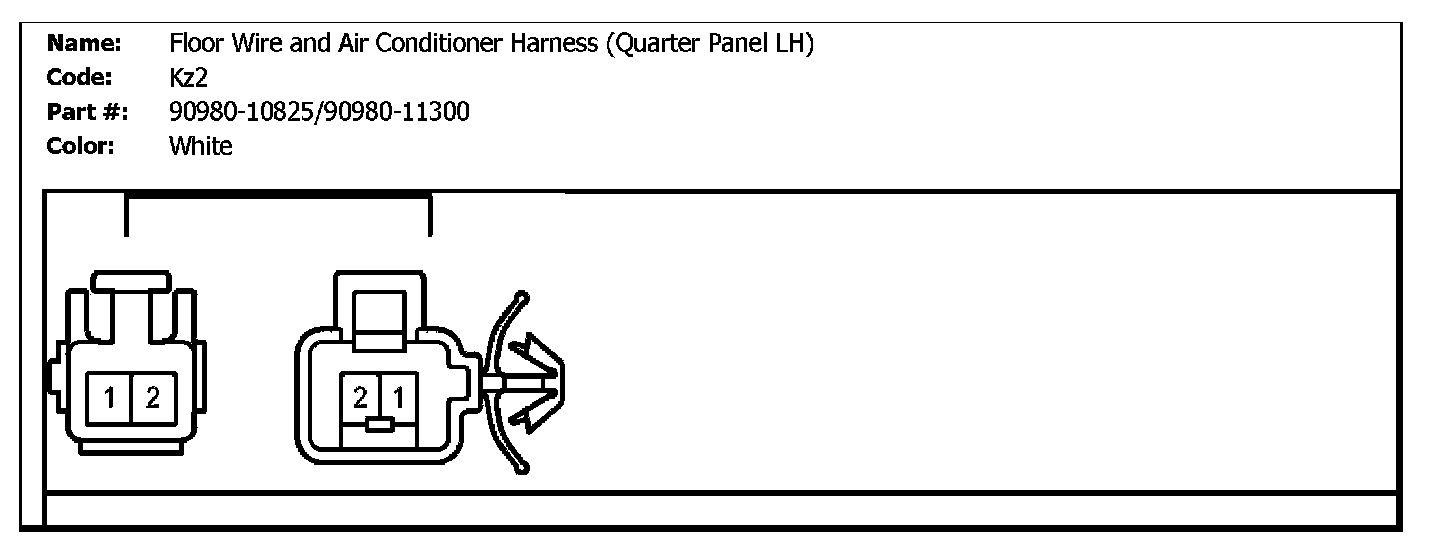

Kz2 (Floor Wire And Air Conditioner Harness (Quarter Panel LH)):

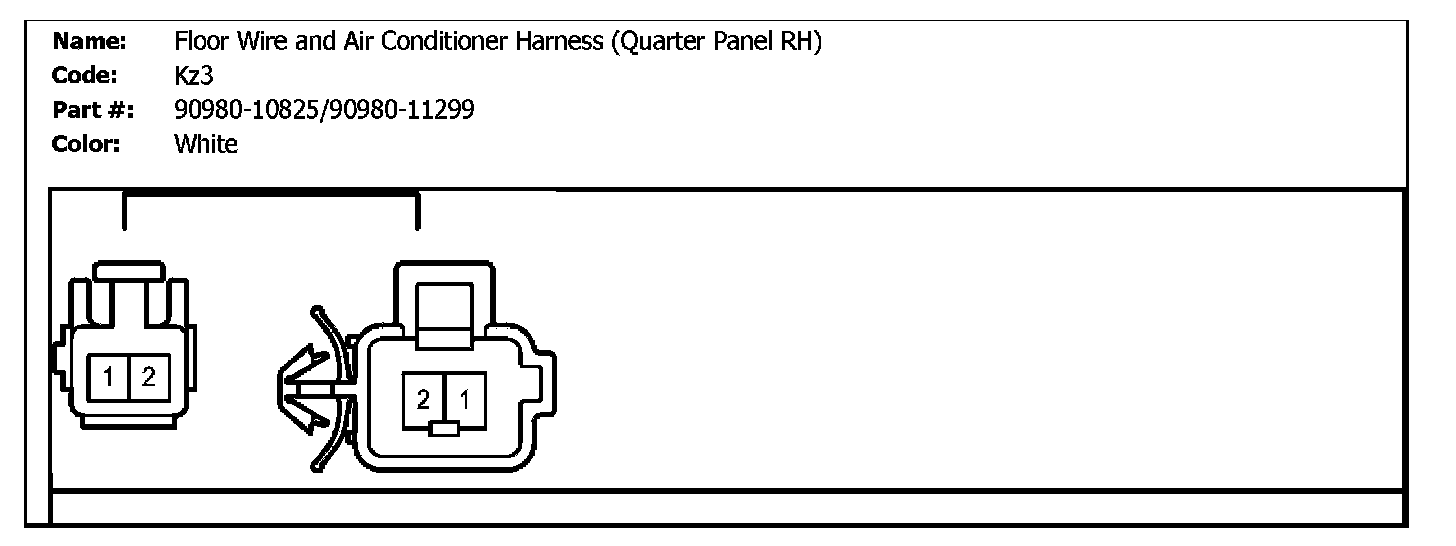

Kz3 (Floor Wire And Air Conditioner Harness (Quarter Panel RH)):

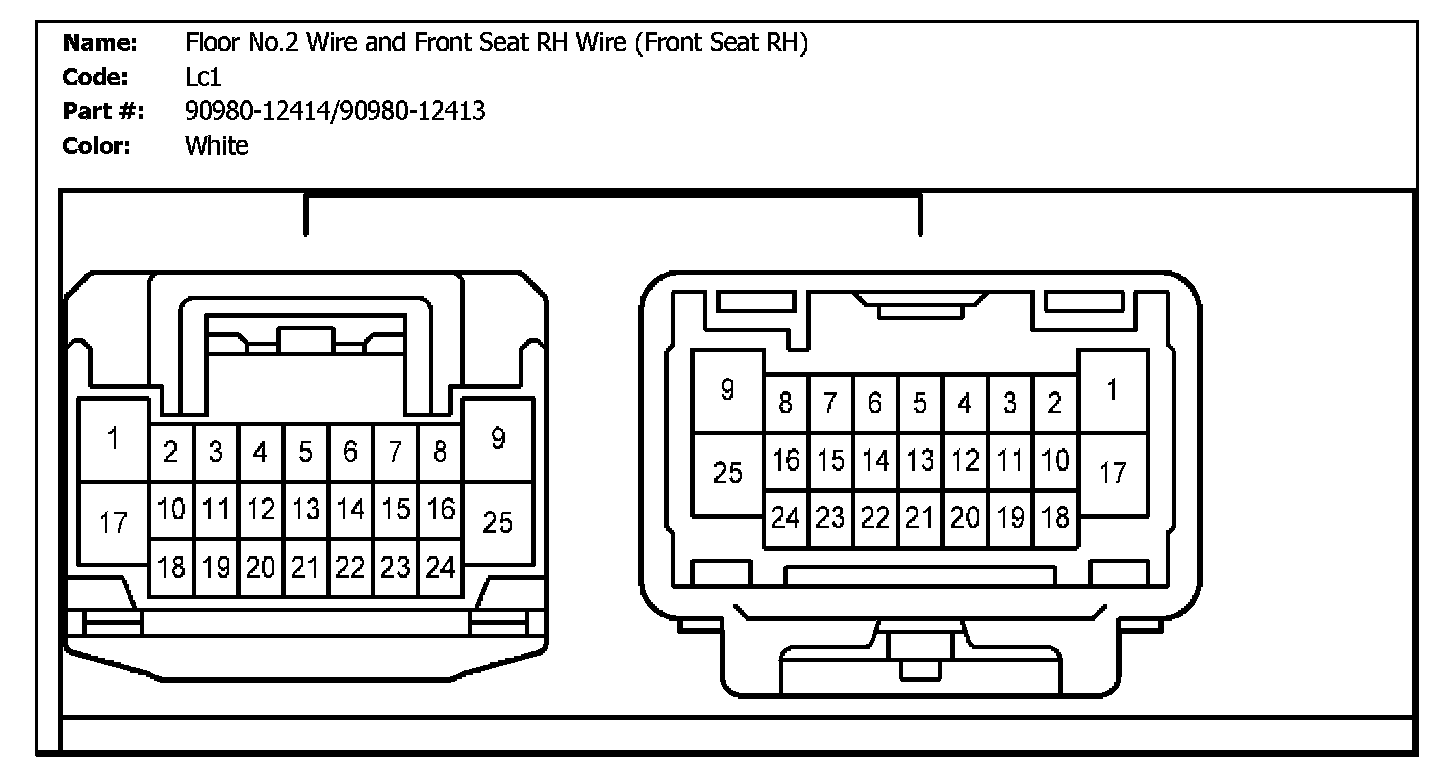

Lc1 (Floor No.2 Wire And Front Seat RH Wire (Front Seat RH)):



Lc2 (Floor No.2 Wire and Front Seat RH Wire (Front Seat RH)):

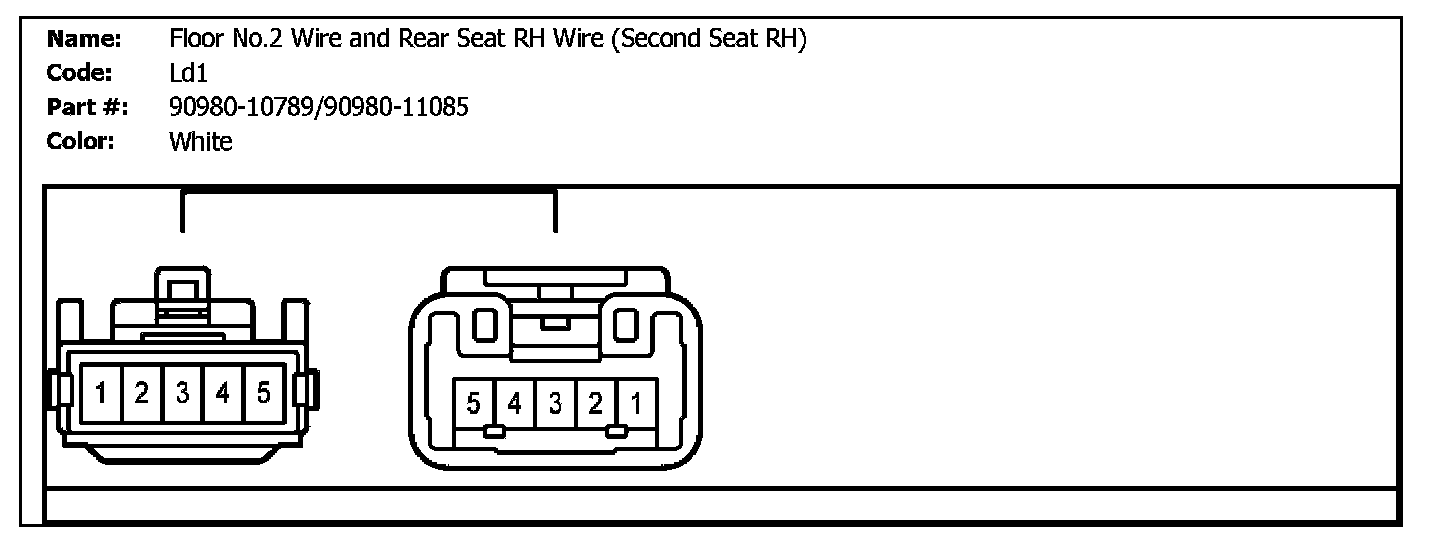

Ld1 (Floor No.2 Wire And Rear Seat RH Wire (Second Seat RH)):

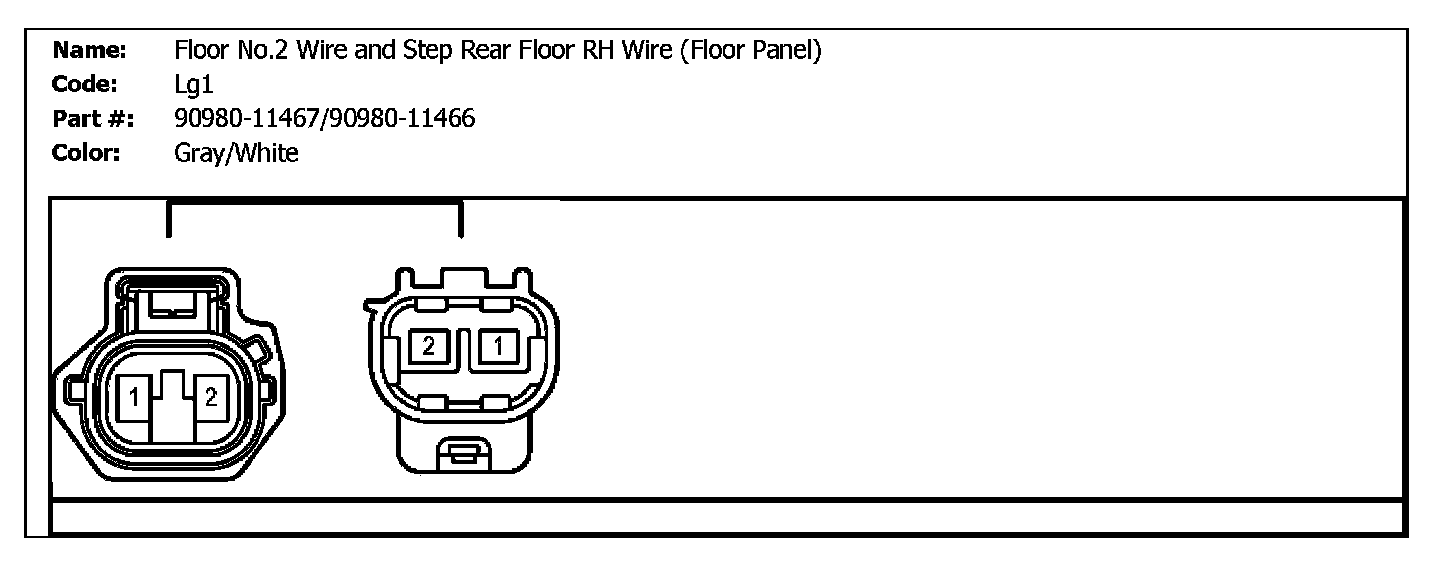

Lg1 (Floor No.2 Wire And Step Rear Floor RH Wire (Floor Panel)):

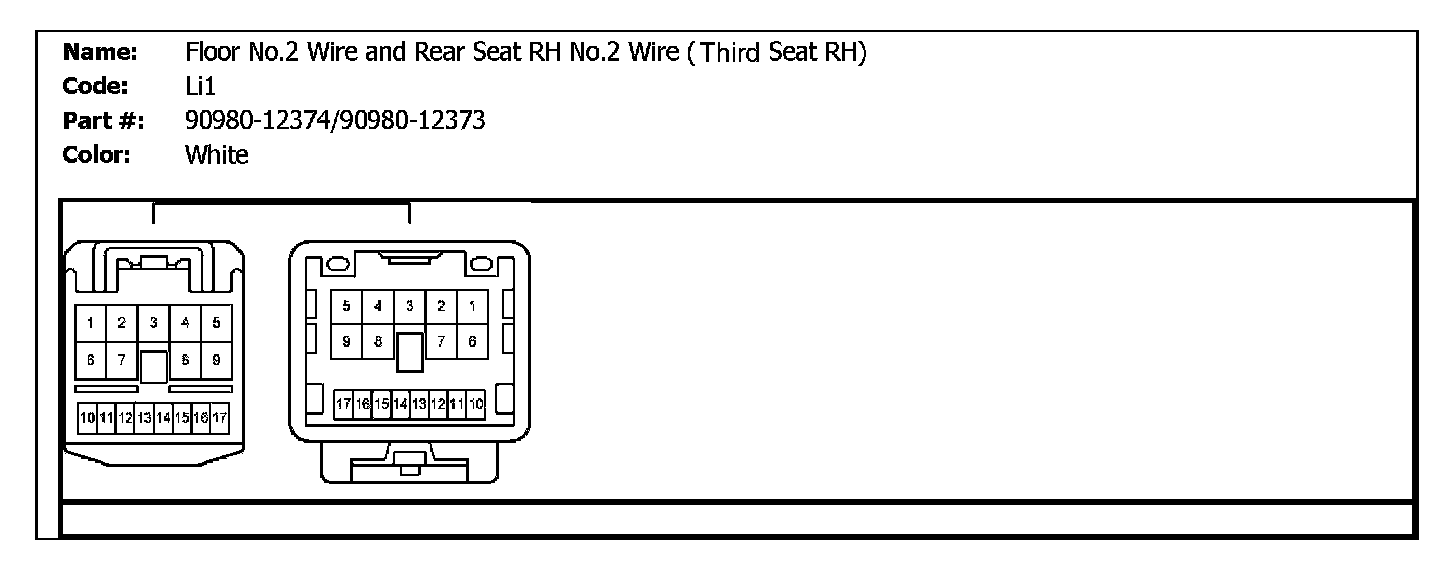

Li1 (Floor No.2 Wire And Rear Seat RH No.2 Wire (Third Seat RH)):



LL1 (Floor No.2 Wire And Floor No.2 Wire (Quarter Wheel House Panel RH)):

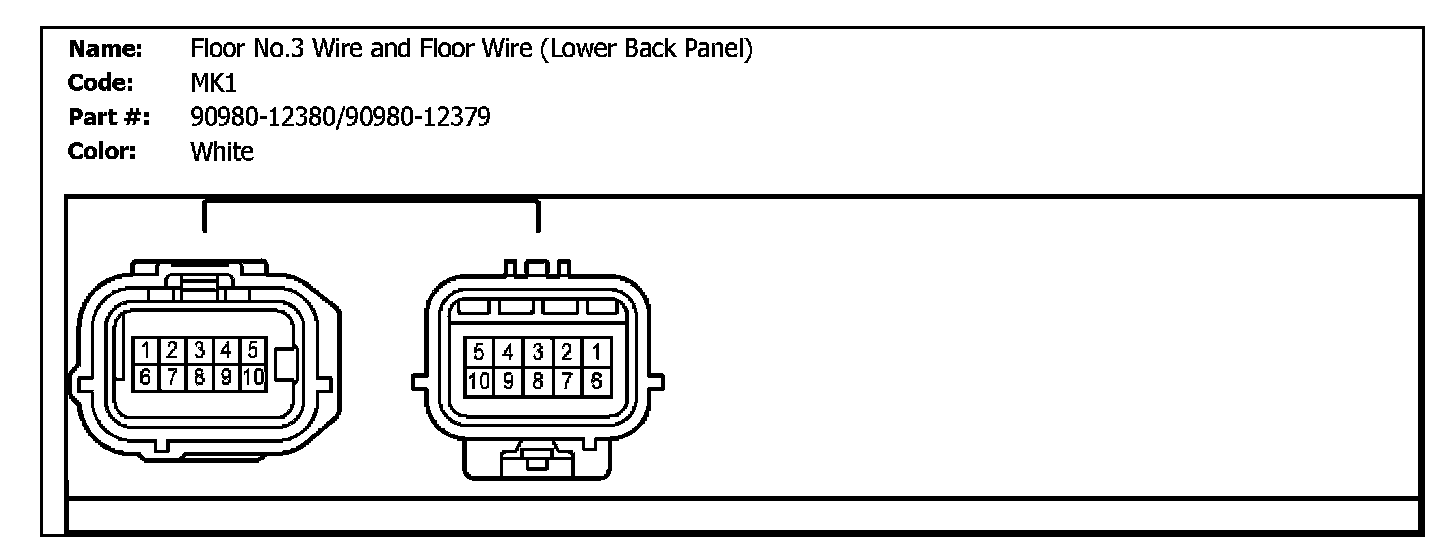

MK1 (Floor No.3 Wire And Floor Wire (Lower Back Panel)):

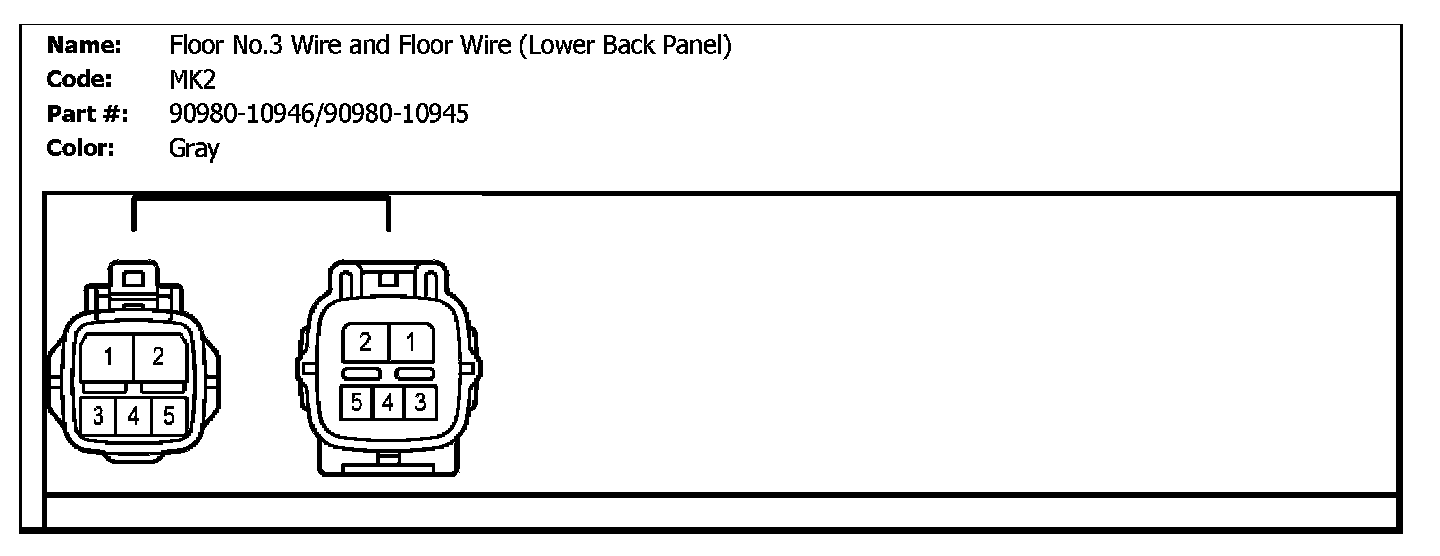

MK2 (Floor No.3 Wire And Floor Wire (Lower Back Panel)):

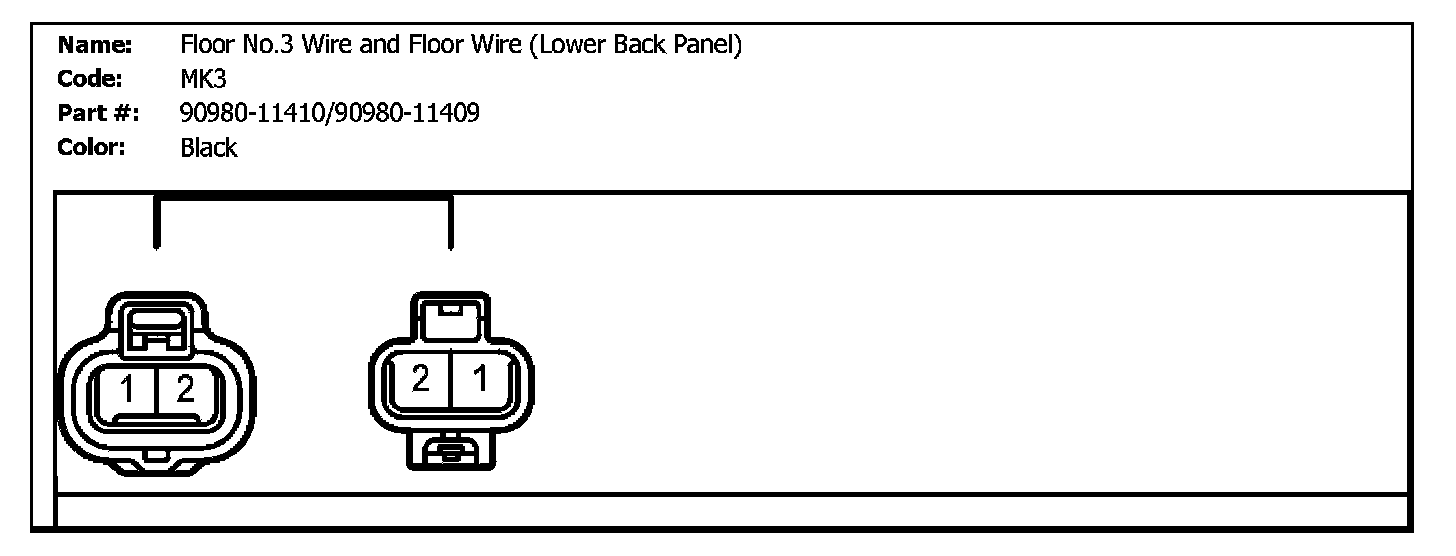

MK3 (Floor No.3 Wire And Floor Wire (Lower Back Panel)):
