Instrument Panel Wire

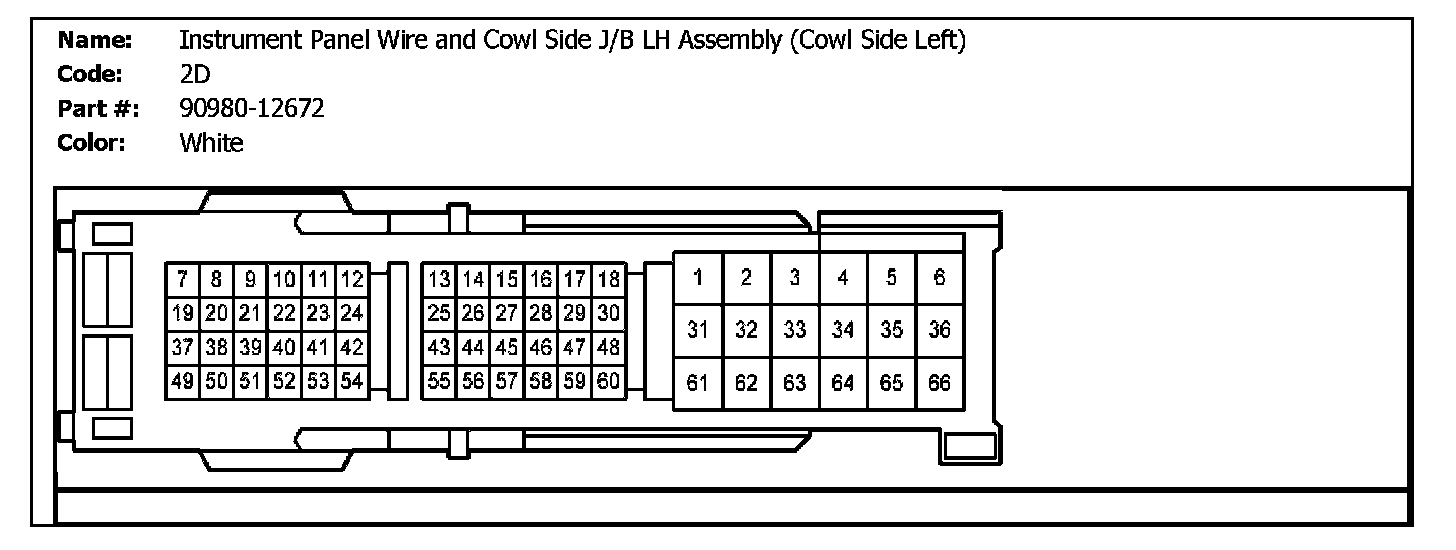

2D (Instrument Panel Wire And Cowl Side J/B LH Assembly (Cowl Side Left)):

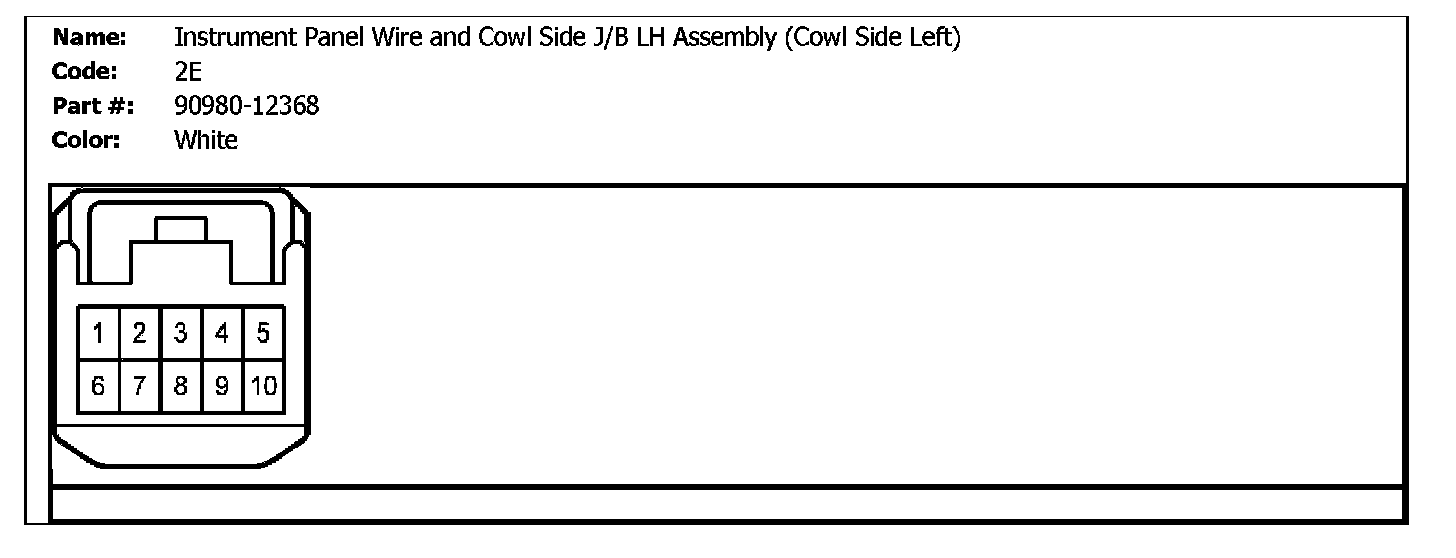

2E (Instrument Panel Wire And Cowl Side J/B LH Assembly (Cowl Side Left)):

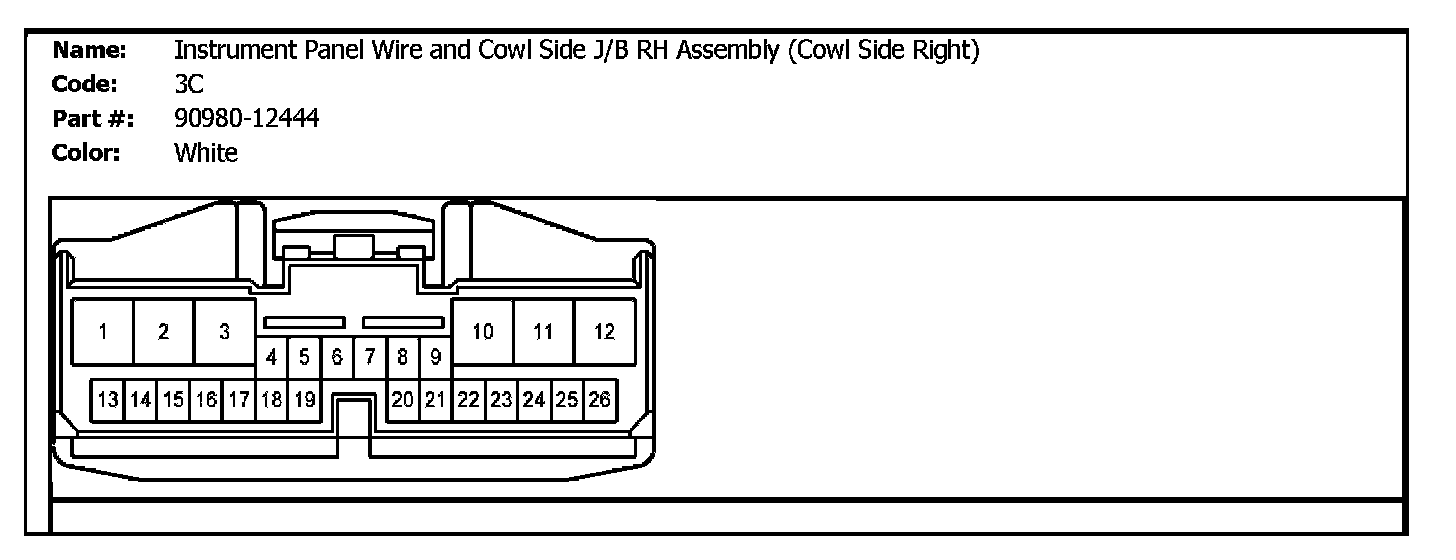

3C (Instrument Panel Wire And Cowl Side J/B RH Assembly (Cowl Side Right)):

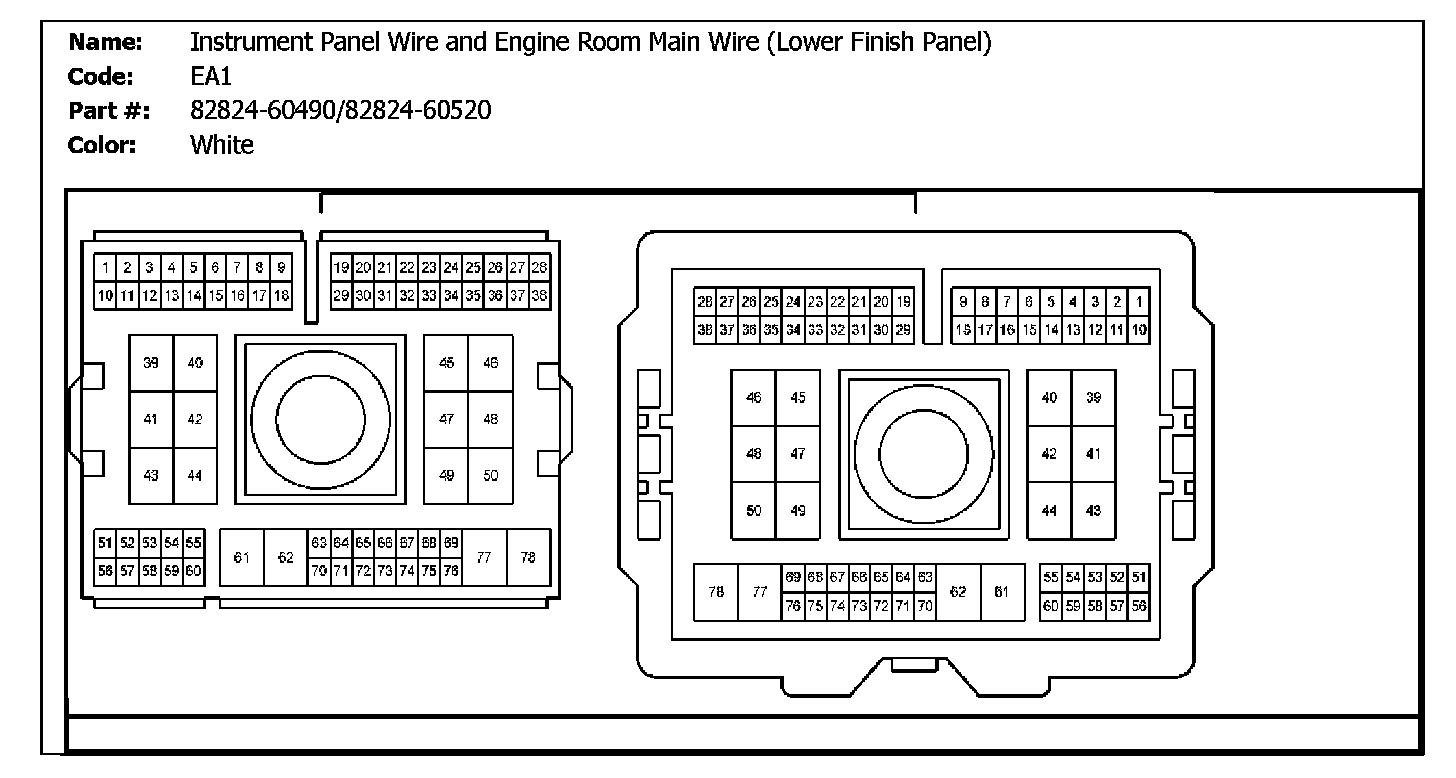

EA1 (Instrument Panel Wire And Engine Room Main Wire (Lower Finish Panel)):

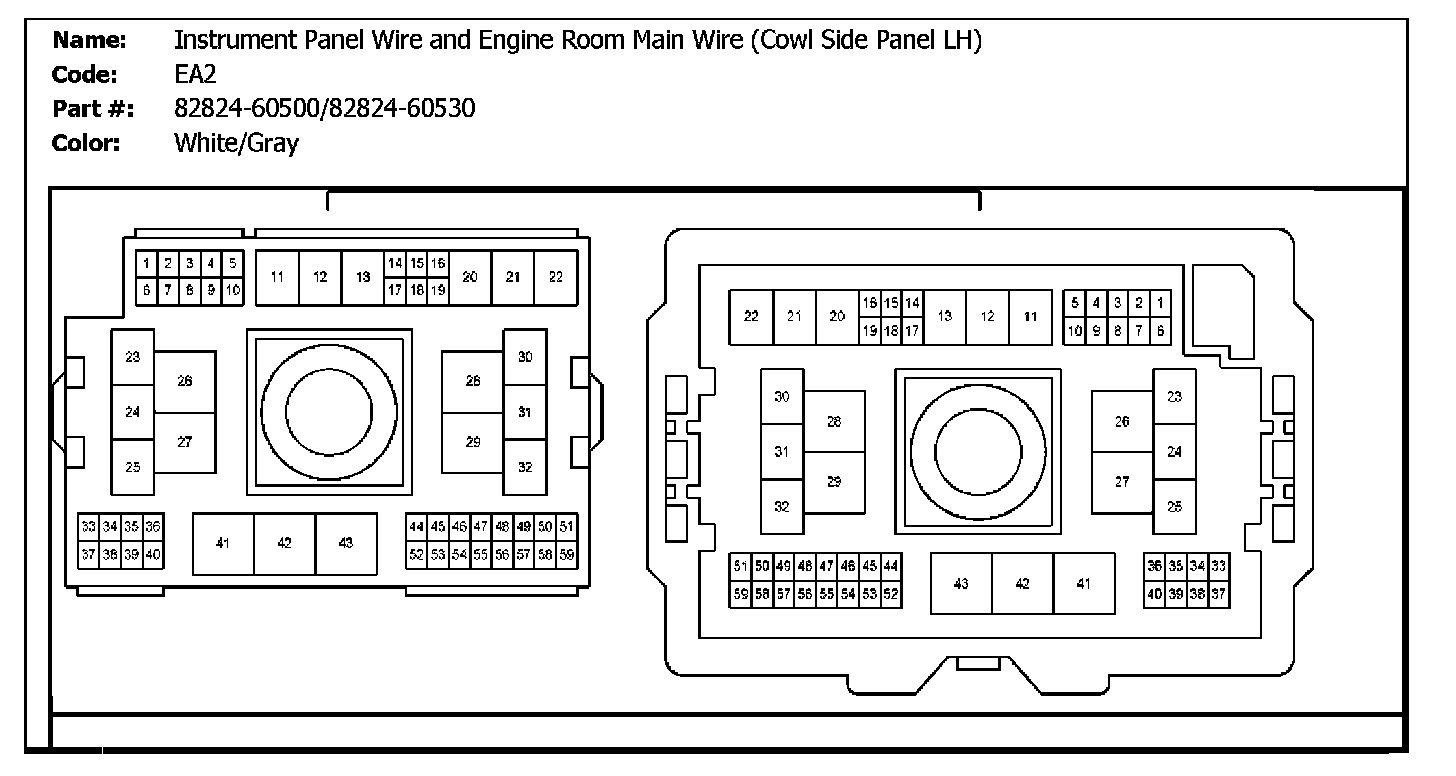

EA2 (Instrument Panel Wire And Engine Room Main Wire (Cowl Side Panel LH)):

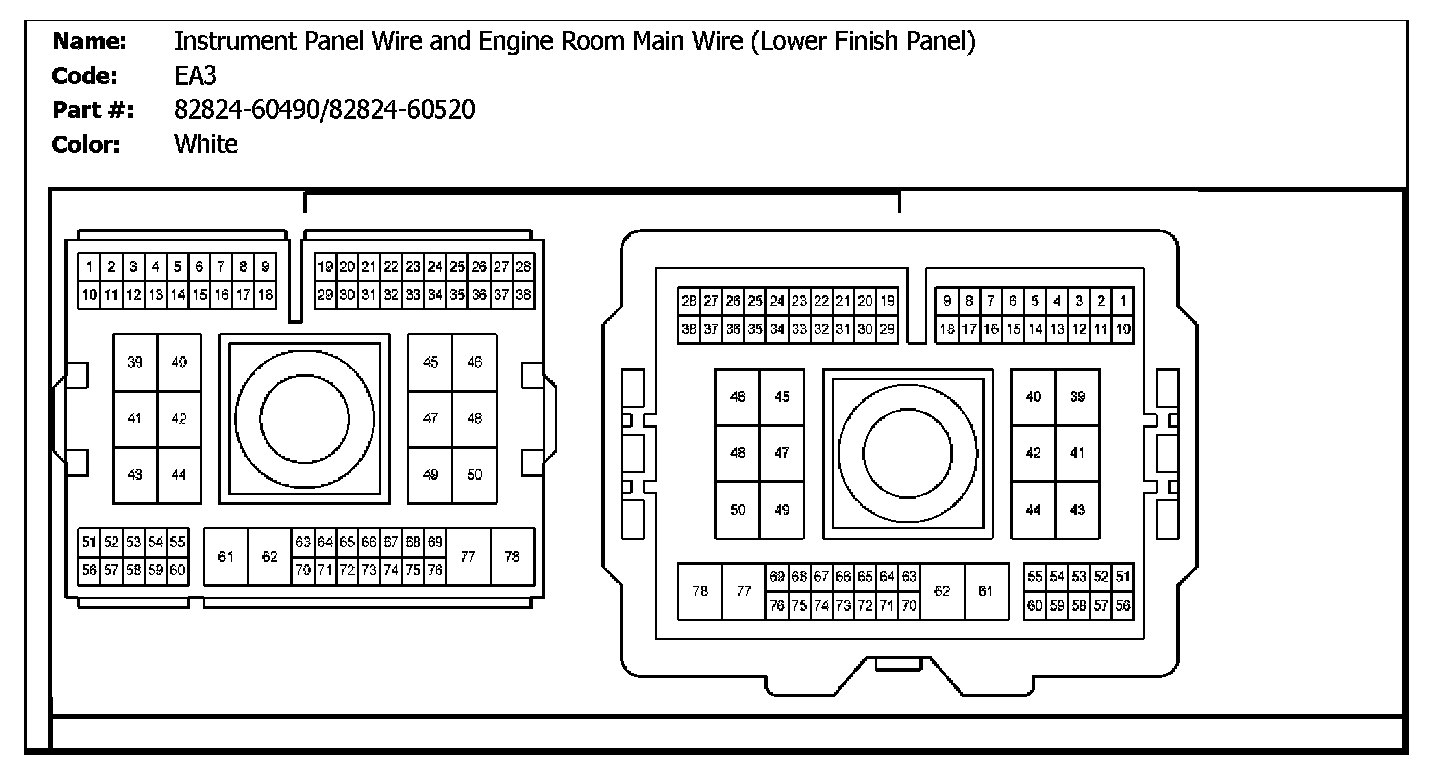

EA3 (Instrument Panel Wire And Engine Room Main Wire (Lower Finish Panel)):



Eb1 (Instrument Panel Wire And Instrument Panel No.2 Wire (Instrument Panel Reinforcement)):



EE1 (Instrument Panel Wire And Instrument Panel Wire (Instrument Panel Reinforcement)):

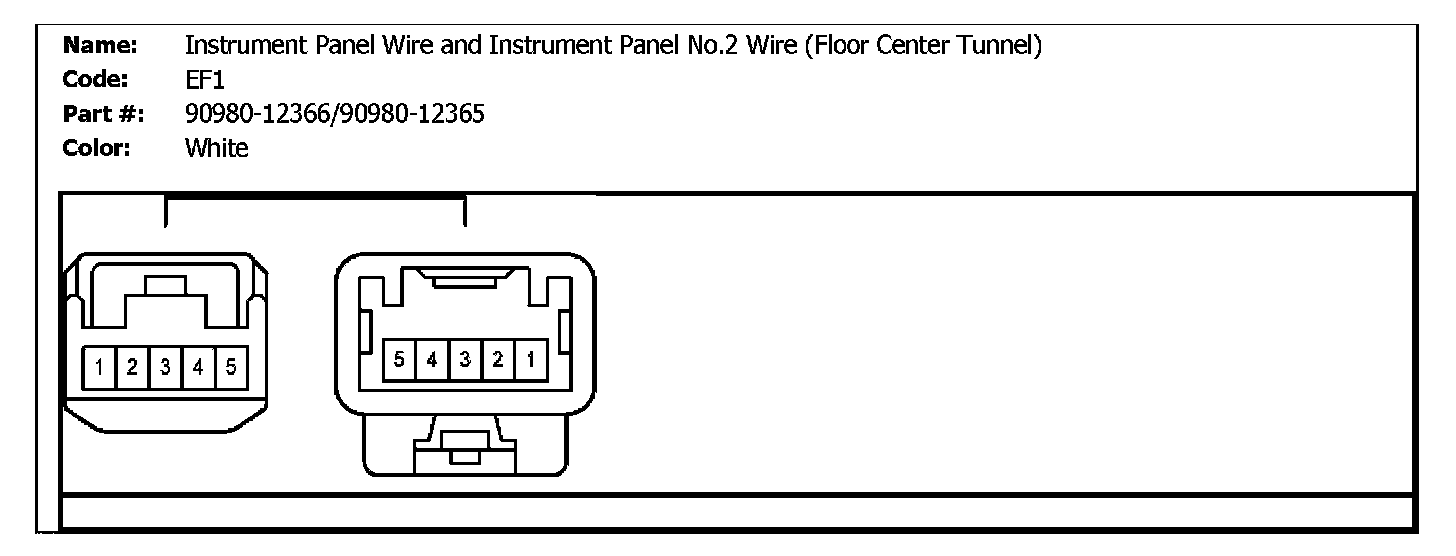

EF1 (Instrument Panel Wire And Instrument Panel No.2 Wire (Floor Center Tunnel)):

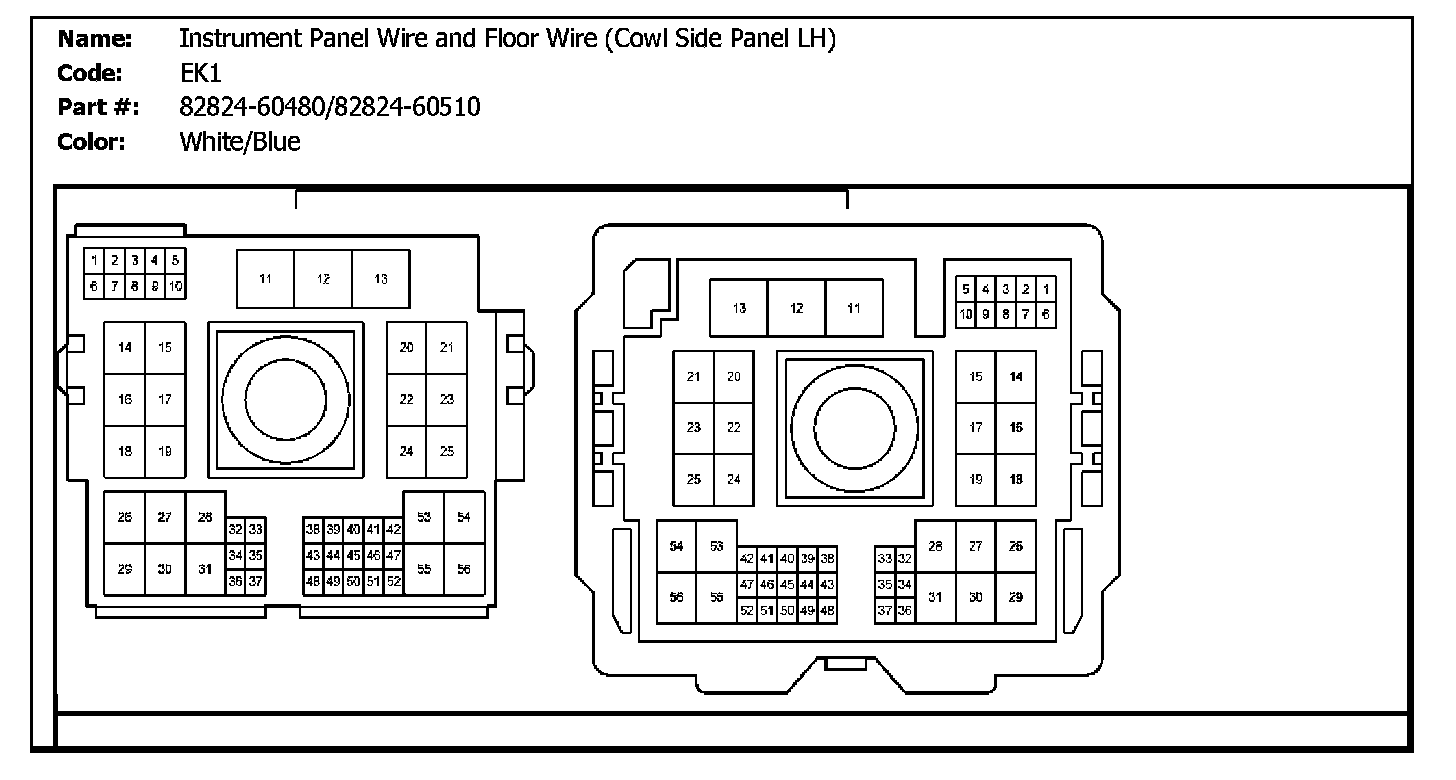

EK1 (Instrument Panel Wire And Floor Wire (Cowl Side Panel LH)):

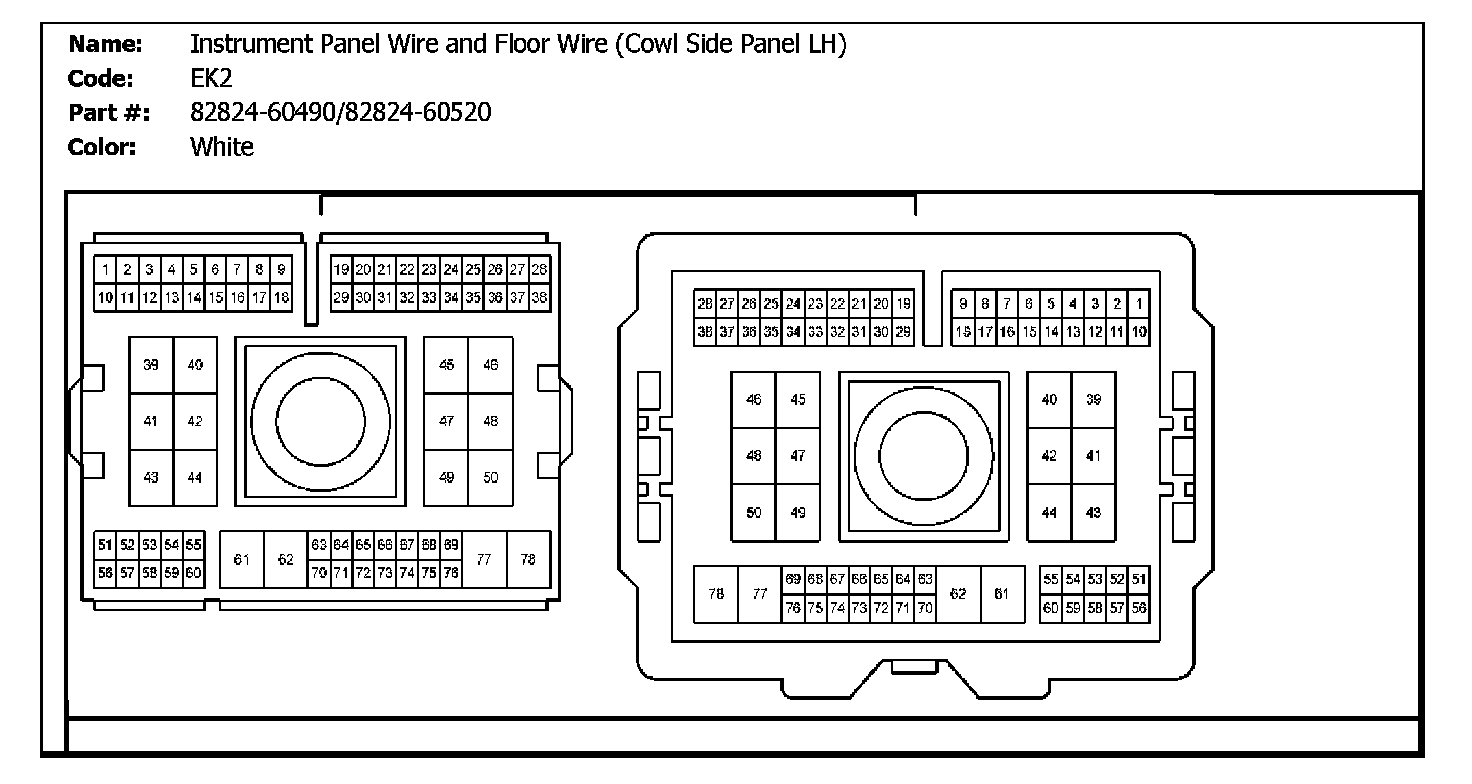

EK2 (Instrument Panel Wire And Floor Wire (Cowl Side Panel LH)):

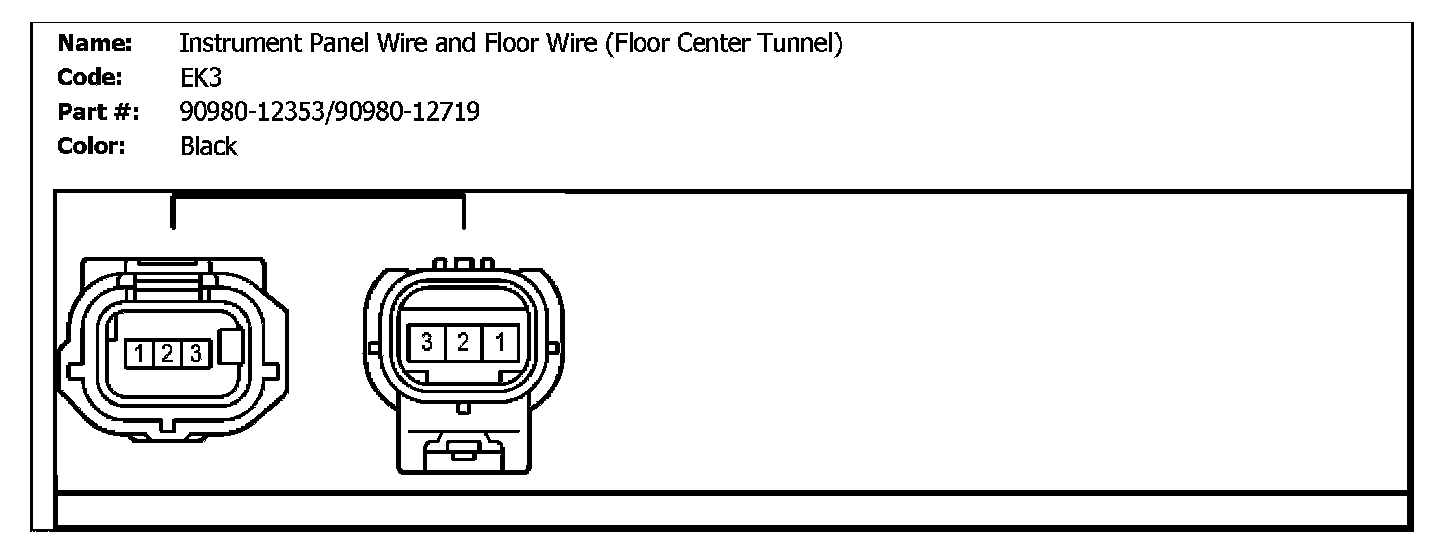

EK3 (Instrument Panel Wire And Floor Wire (Floor Center Tunnel)):

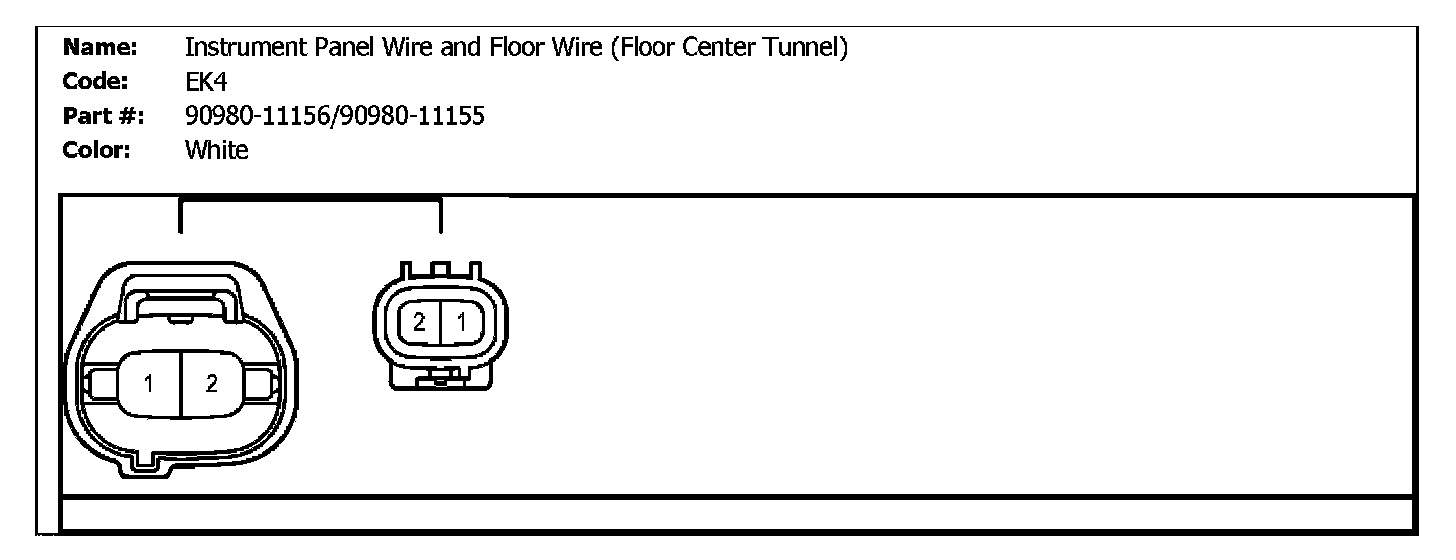

EK4 (Instrument Panel Wire And Floor Wire (Floor Center Tunnel)):



EL1 (Instrument Panel Wire And Floor No.2 Wire (Cowl Side Panel Right)):



EL2 (Instrument Panel Wire And Floor No.2 Wire (Floor Center Tunnel)):



FE1 (Instrument Panel No.2 Wire And Instrument Panel Wire (Instrument Panel Reinforcement)):

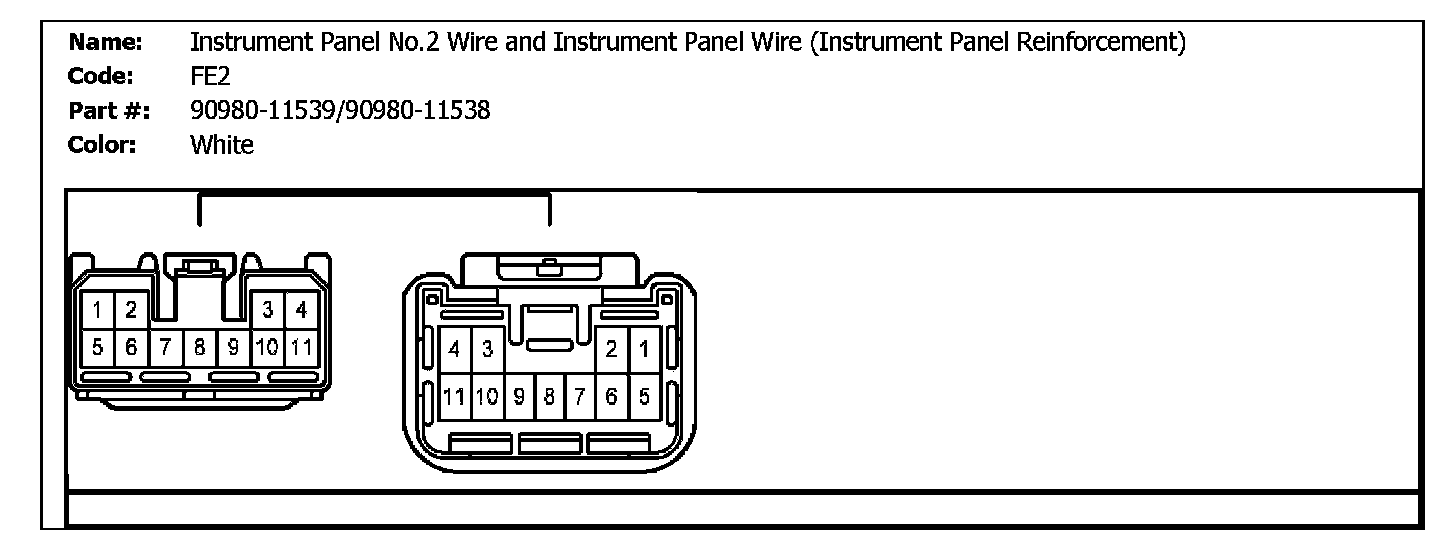

FE2 (Instrument Panel No.2 Wire And Instrument Panel Wire (Instrument Panel Reinforcement)):

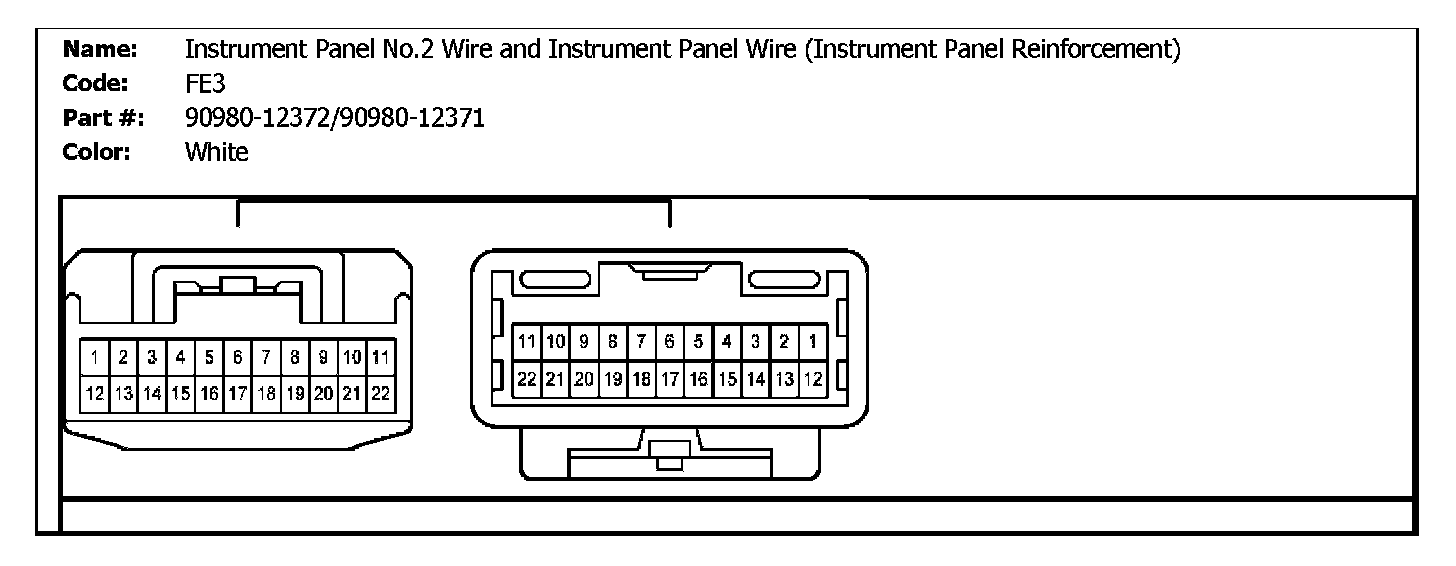

FE3 (Instrument Panel No.2 Wire And Instrument Panel Wire (Instrument Panel Reinforcement)):

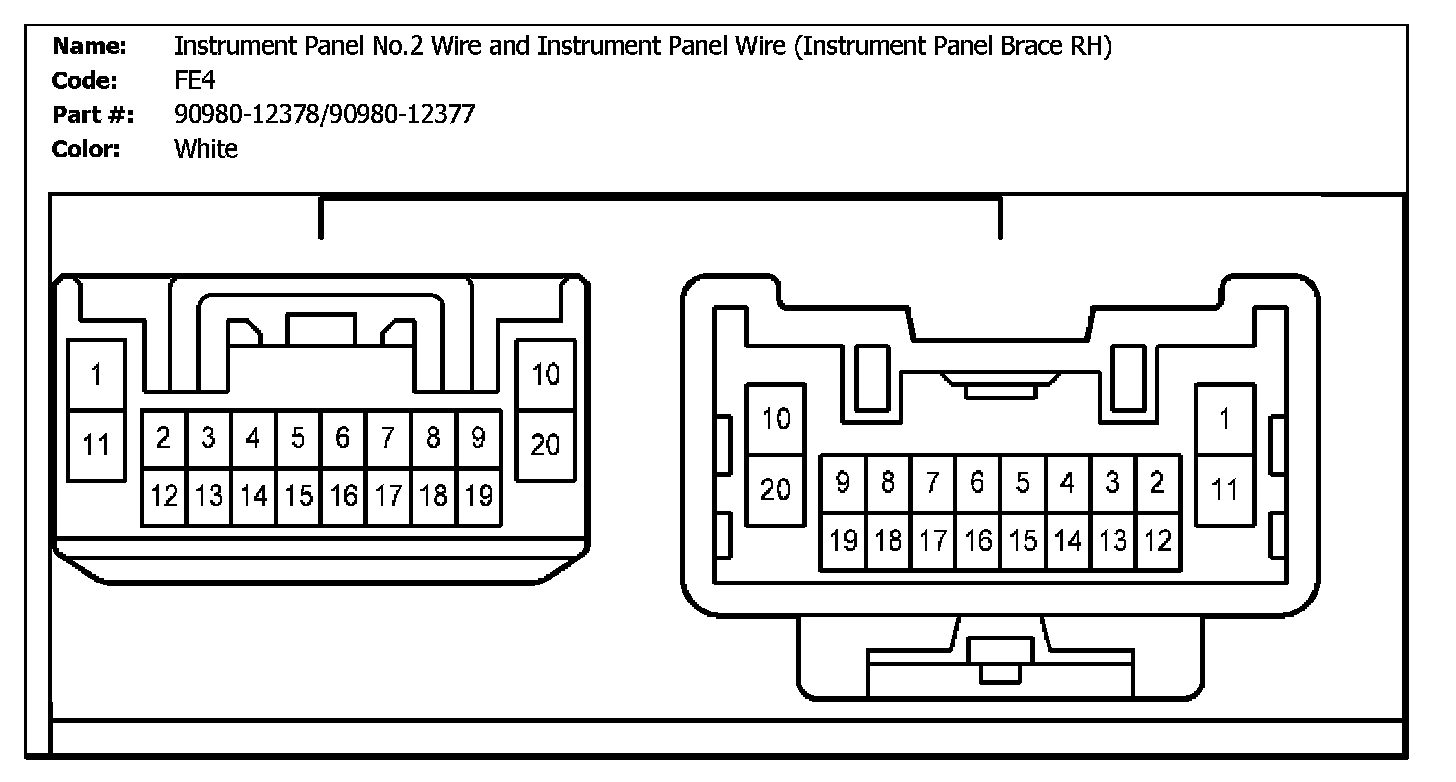

FE4 (Instrument Panel No.2 Wire And Instrument Panel Wire (Instrument Panel Brace RH)):

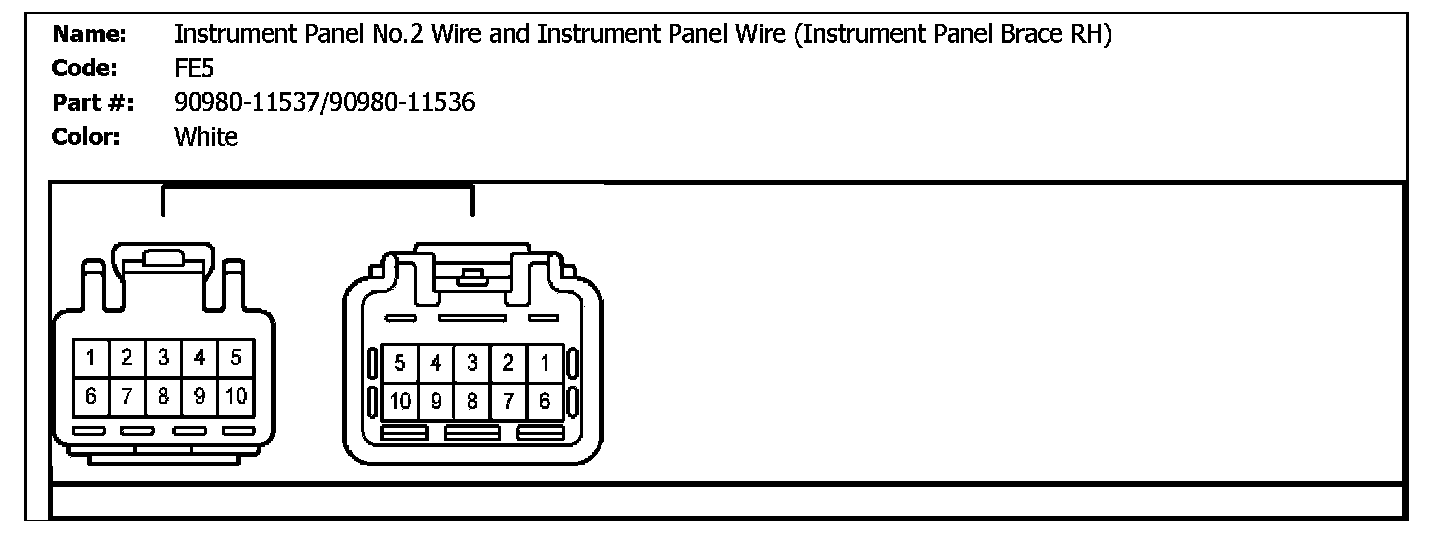

FE5 (Instrument Panel No.2 Wire And Instrument Panel Wire (Instrument Panel Brace RH)):



FE6 (Instrument Panel No.2 Wire And Instrument Panel Wire (Instrument Panel Brace RH)):



FE7 (Instrument Panel No.2 Wire And Instrument Panel Wire (Instrument Panel Reinforcement)):

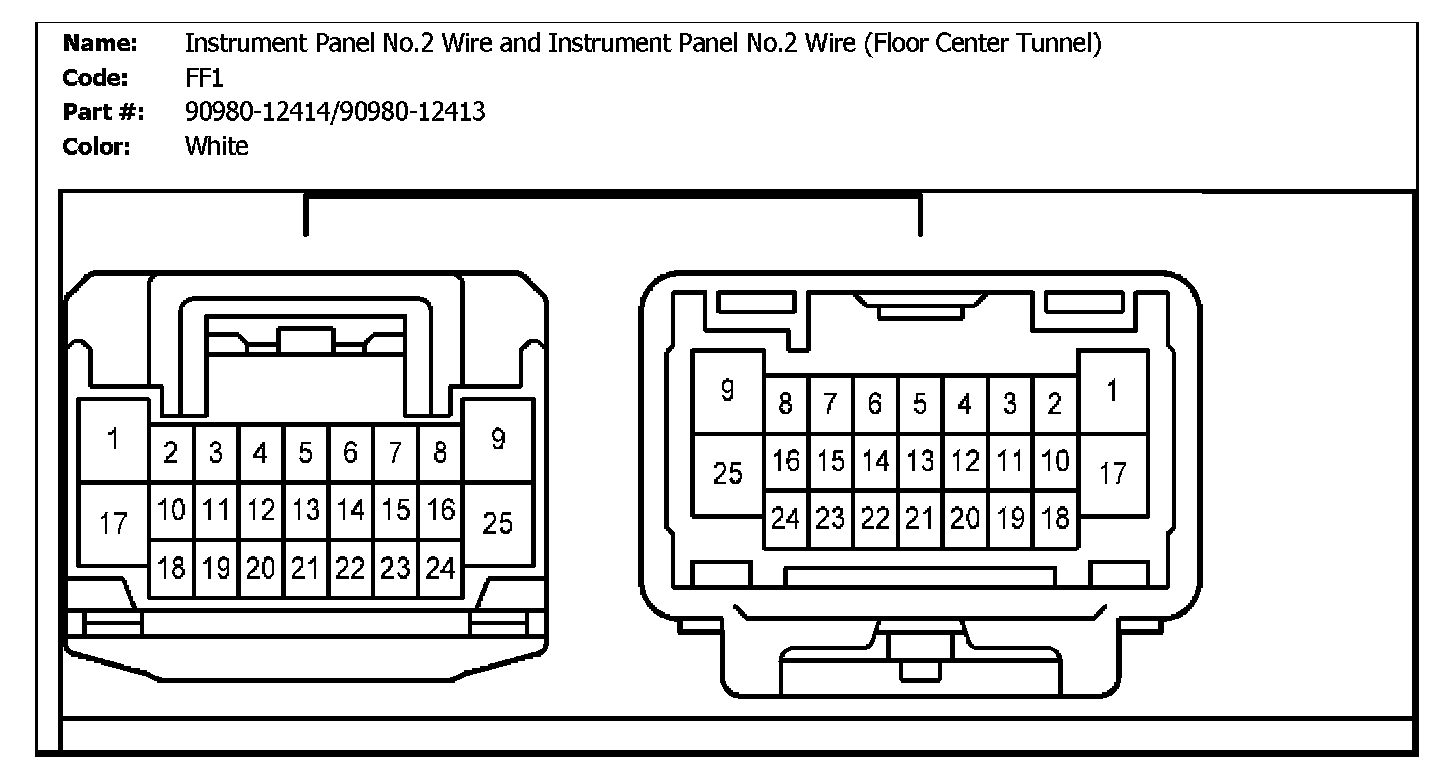

FF1 (Instrument Panel No.2 Wire And Instrument Panel No.2 Wire (Floor Center Tunnel)):

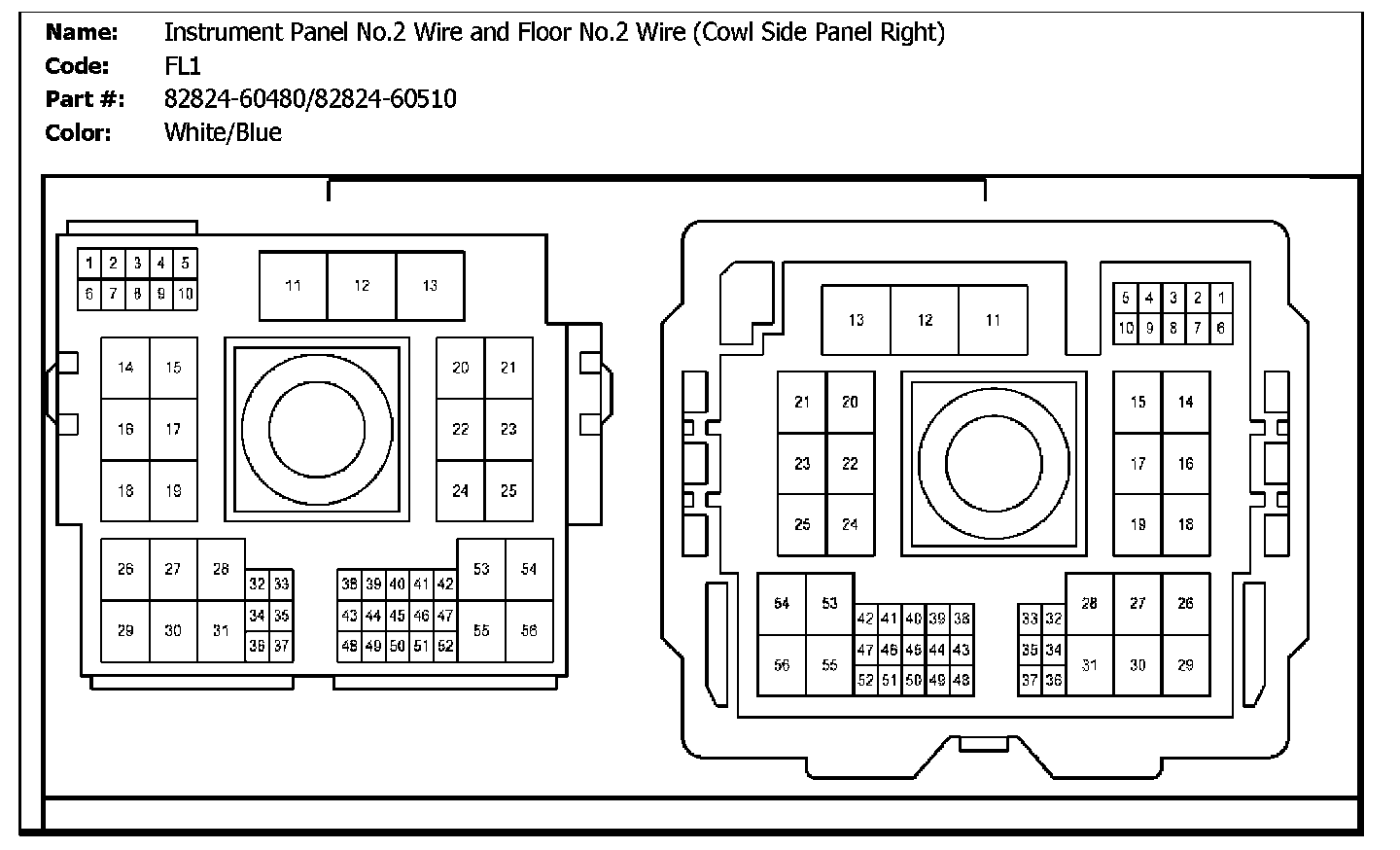

FL1 (Instrument Panel No.2 Wire And Floor No.2 Wire (Cowl Side Panel Right)):

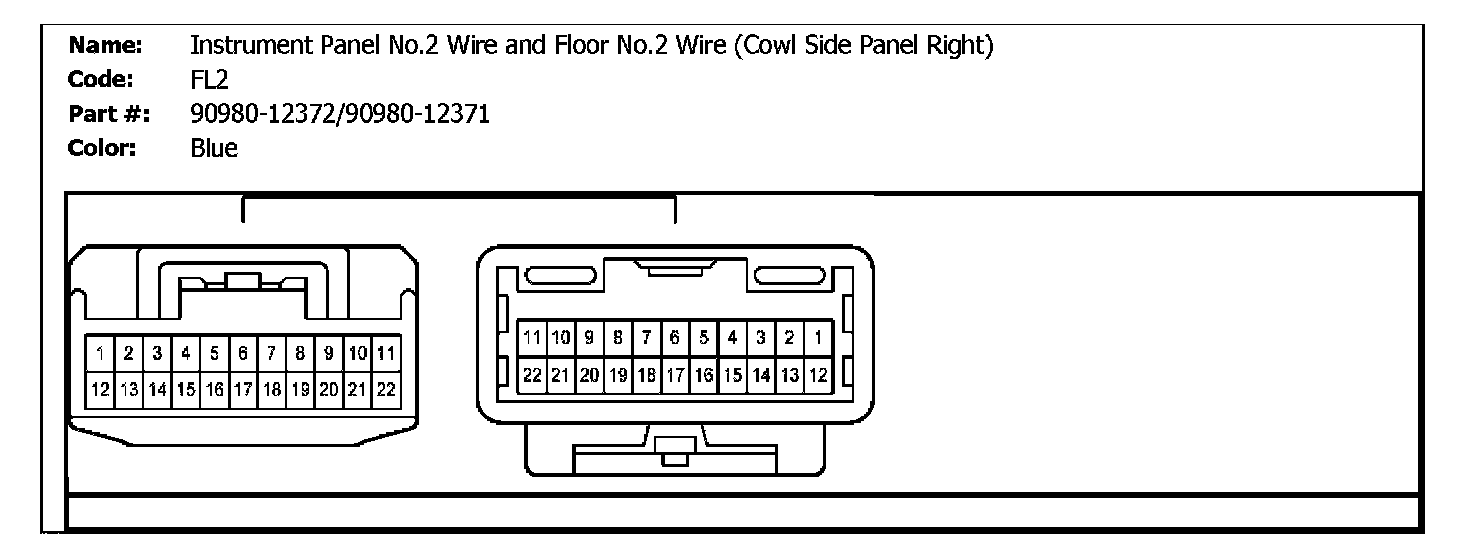

FL2 (Instrument Panel No.2 Wire And Floor No.2 Wire (Cowl Side Panel Right)):



FL3 (Instrument Panel No.2 Wire And Floor No.2 Wire (Cowl Side Panel Right)):

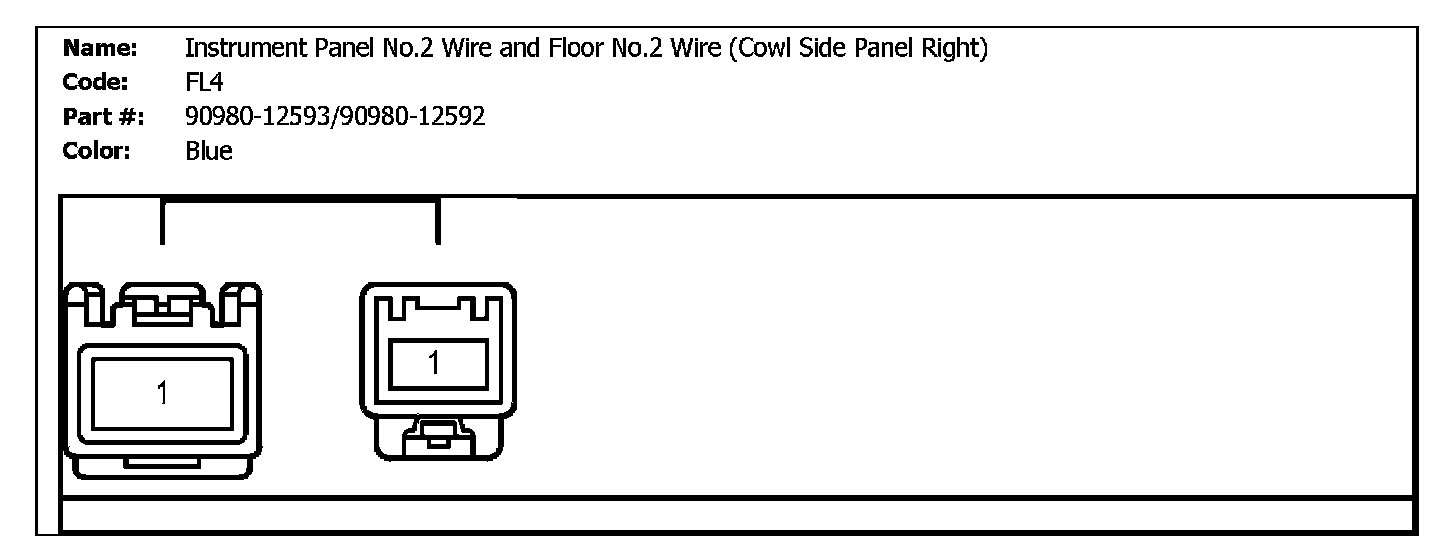

FL4 (Instrument Panel No.2 Wire And Floor No.2 Wire (Cowl Side Panel Right)):
