Antitheft and Alarm Systems

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Back Door Opener, Smart Access System with Push-Button Start, Theft Deterrent

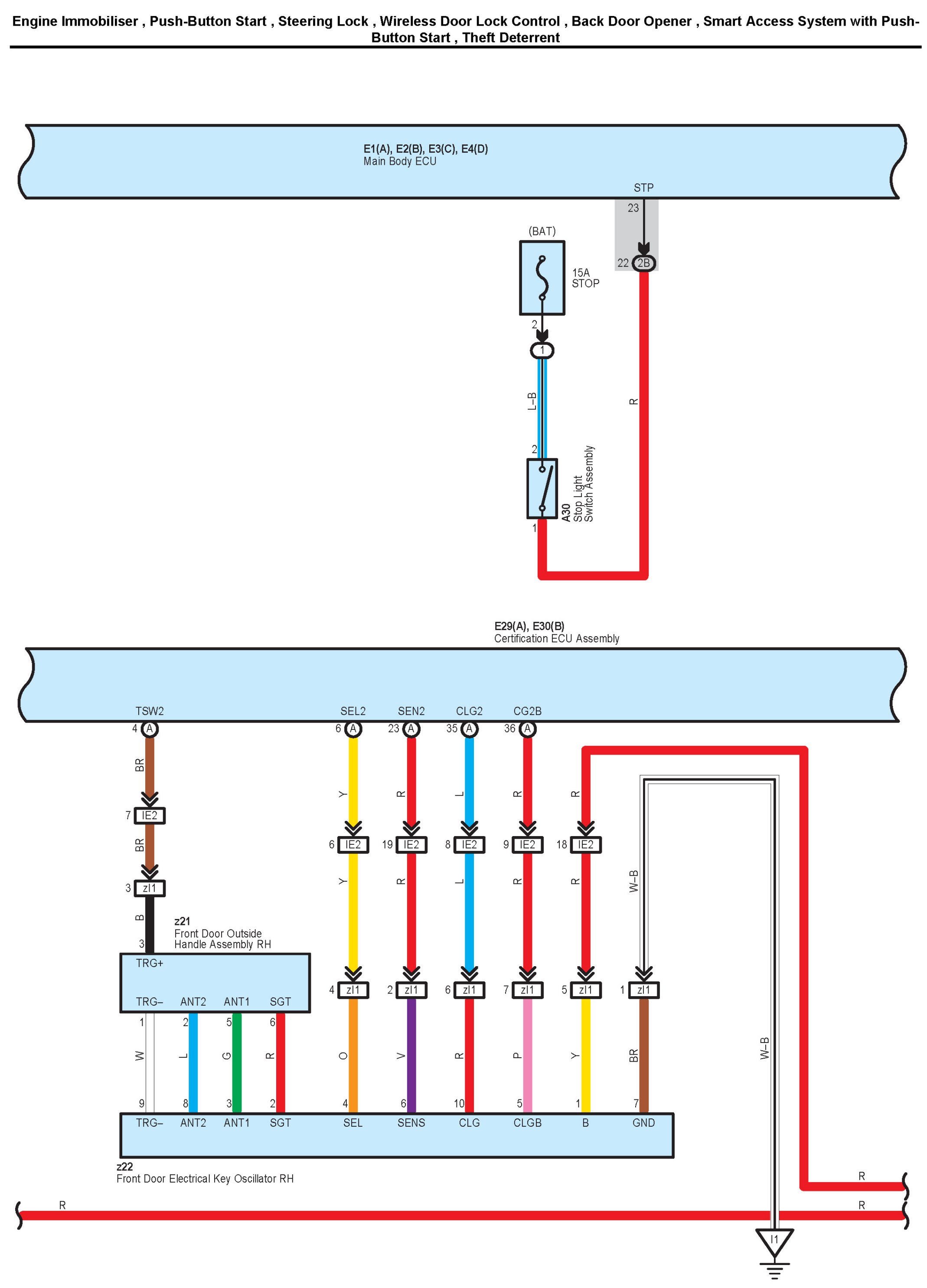

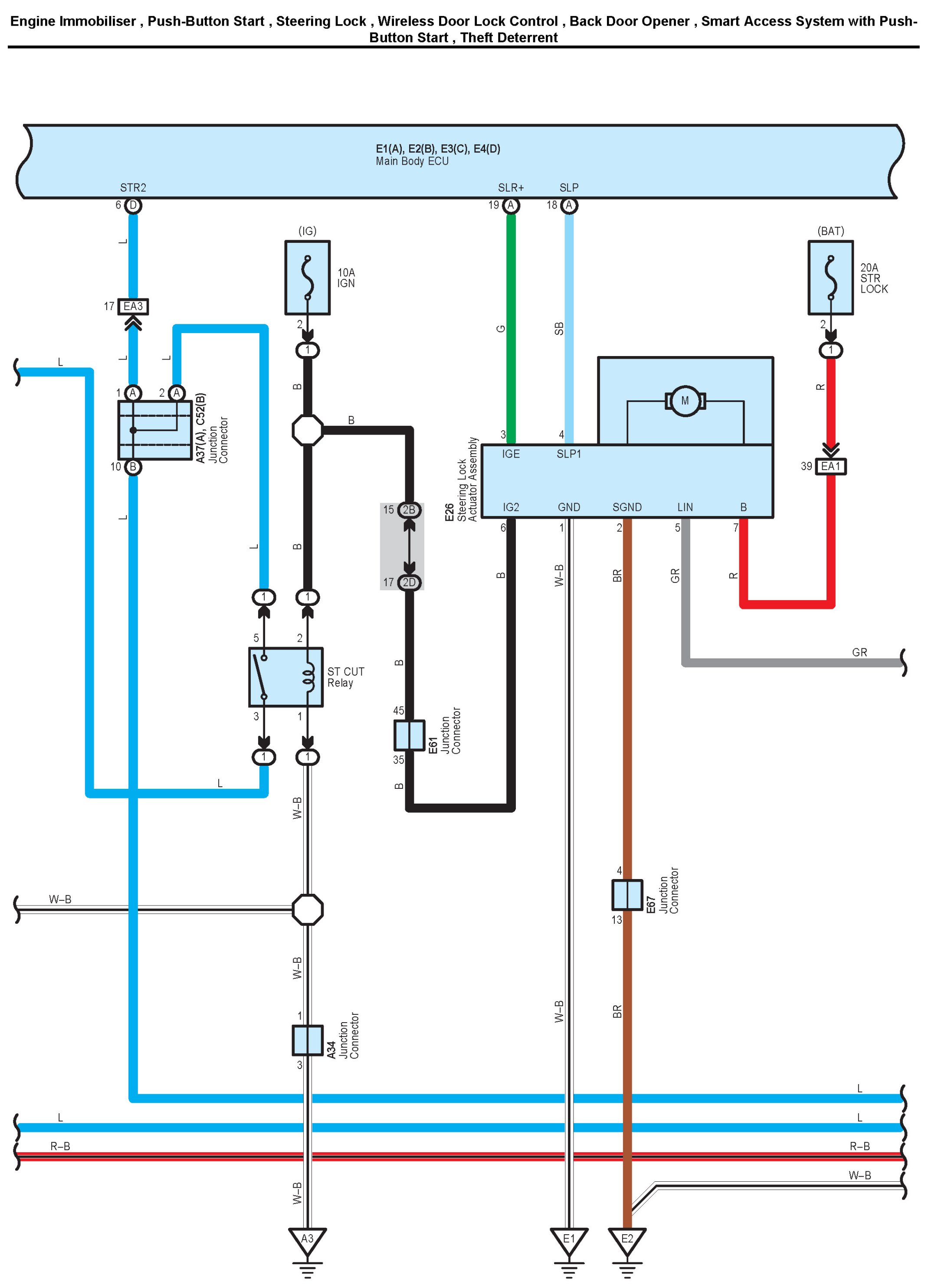

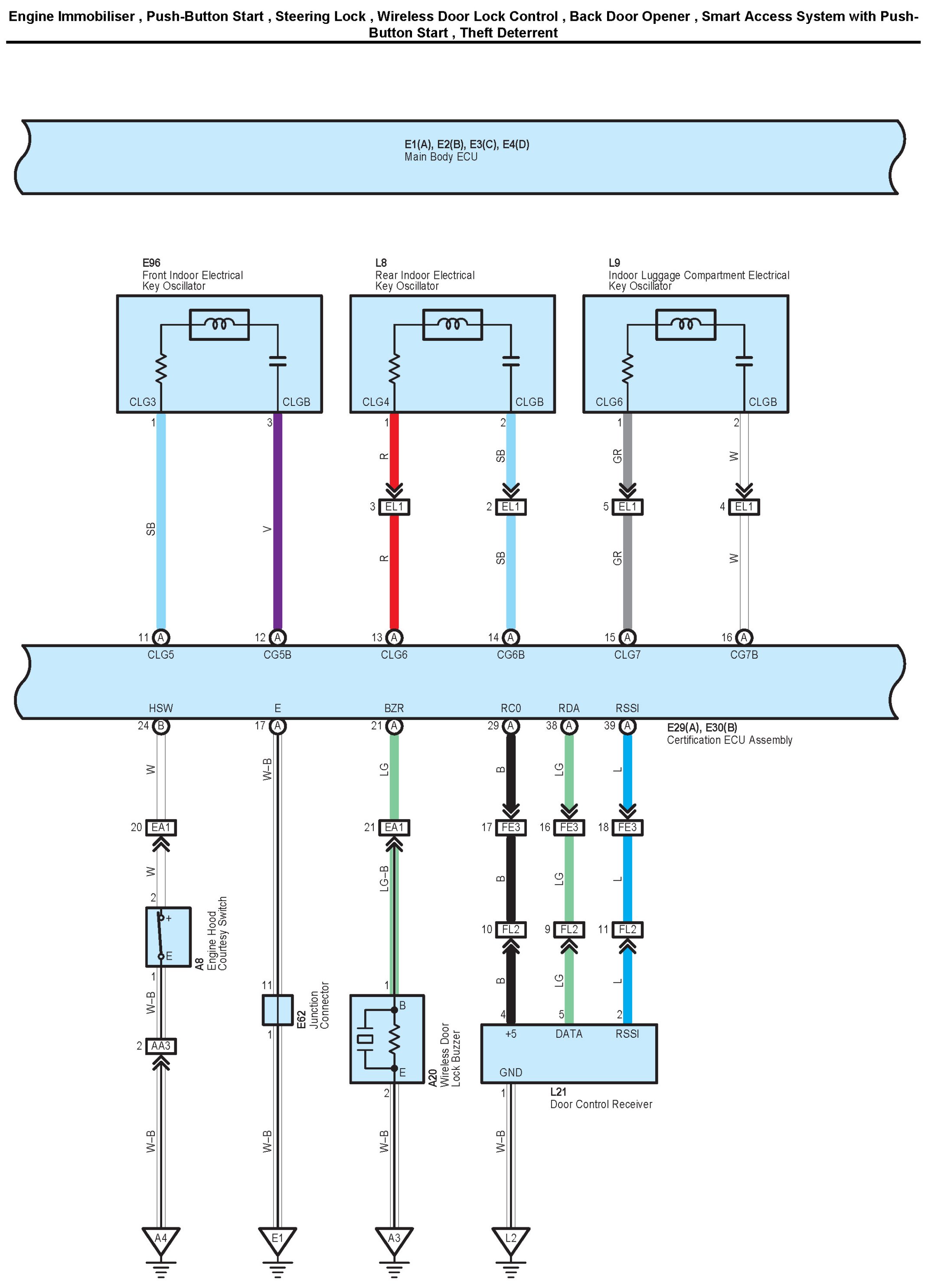

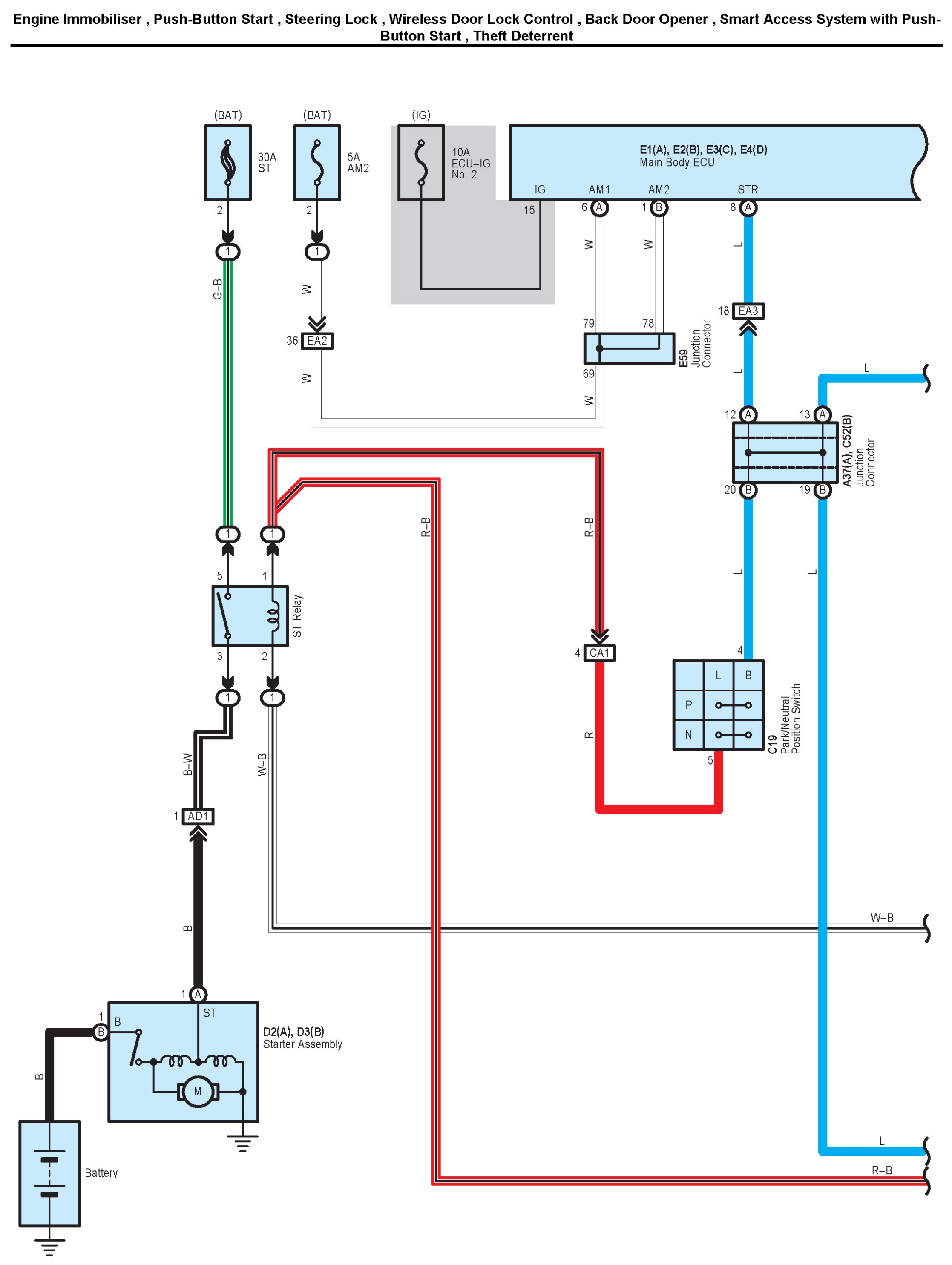

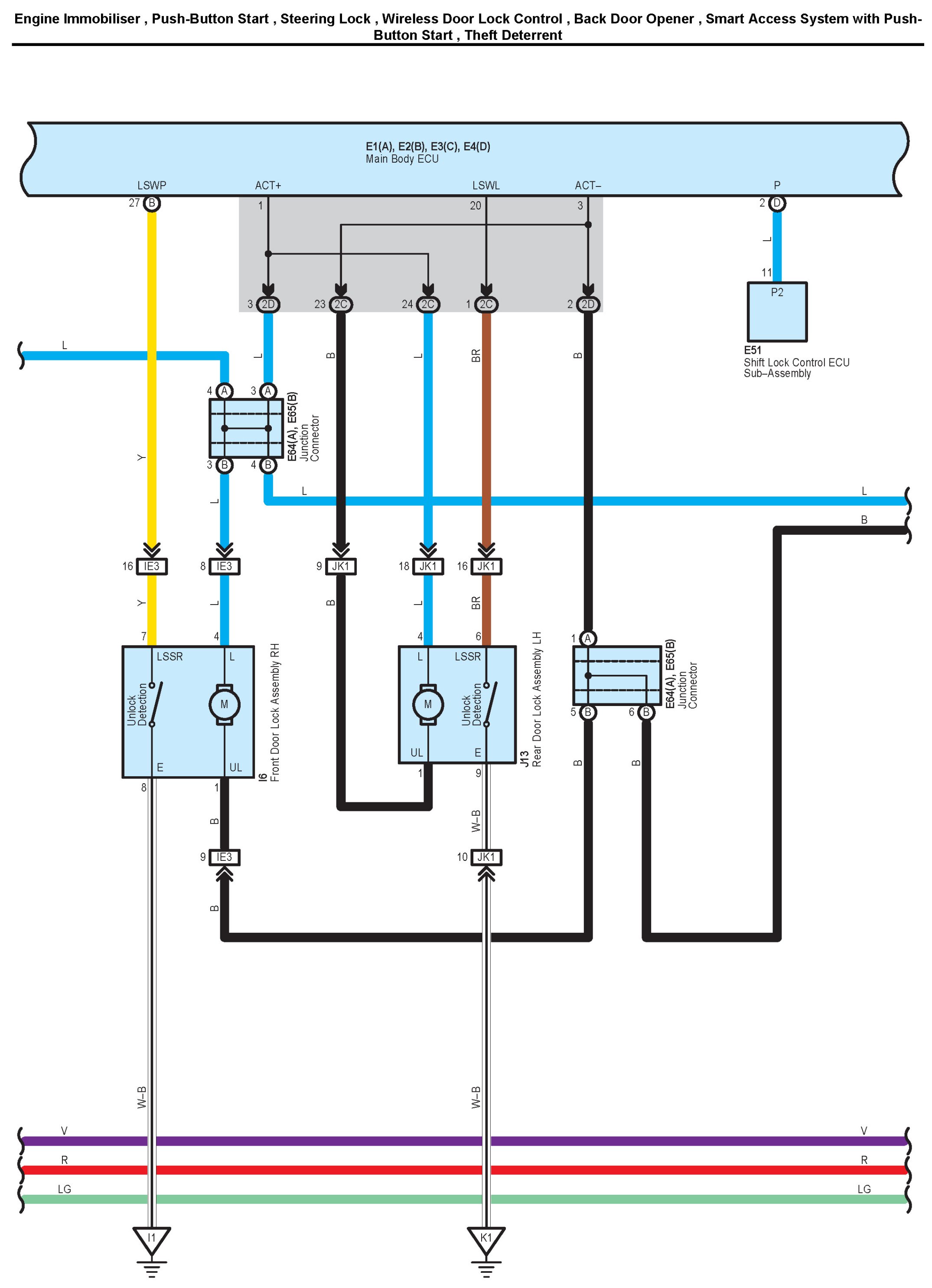

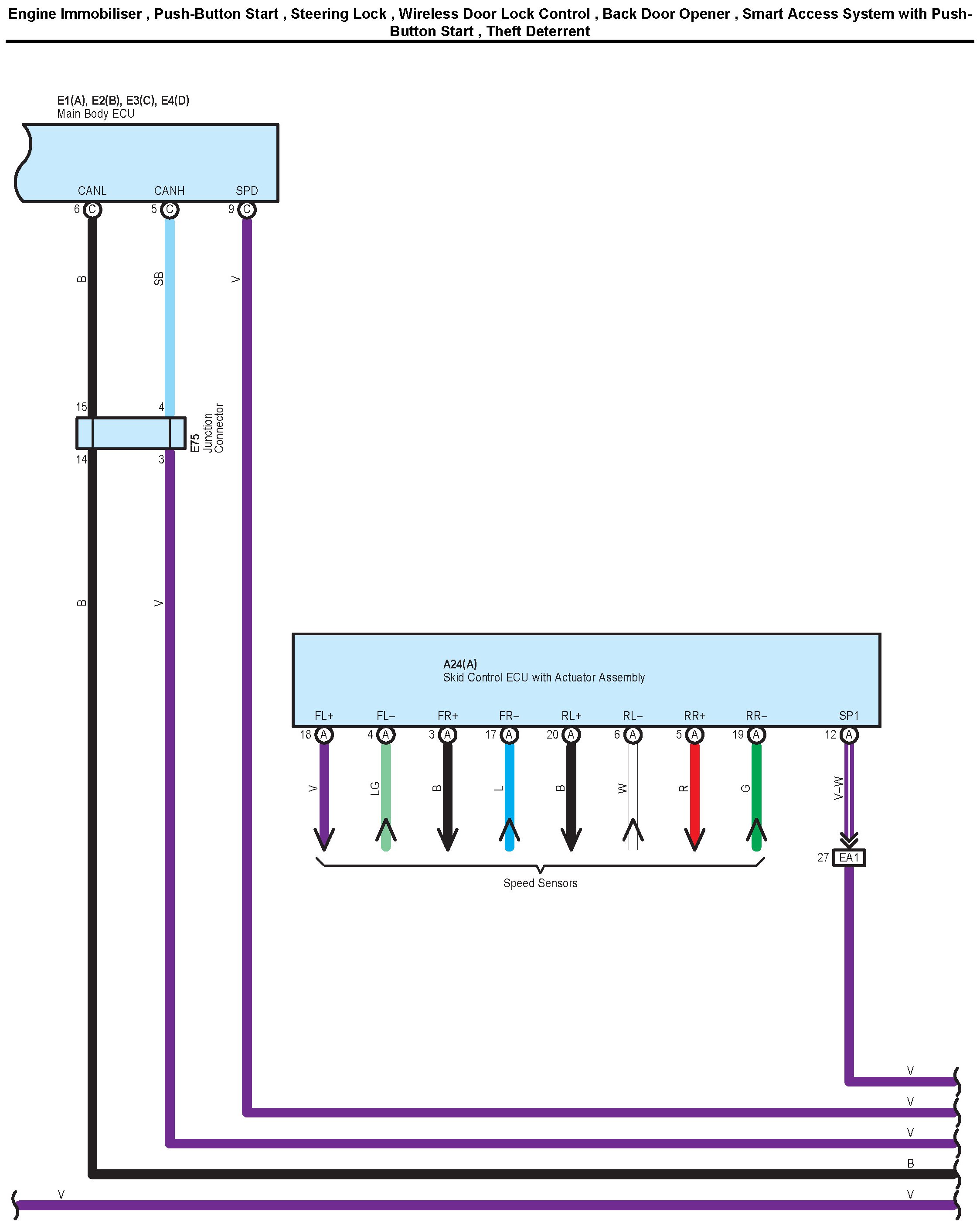

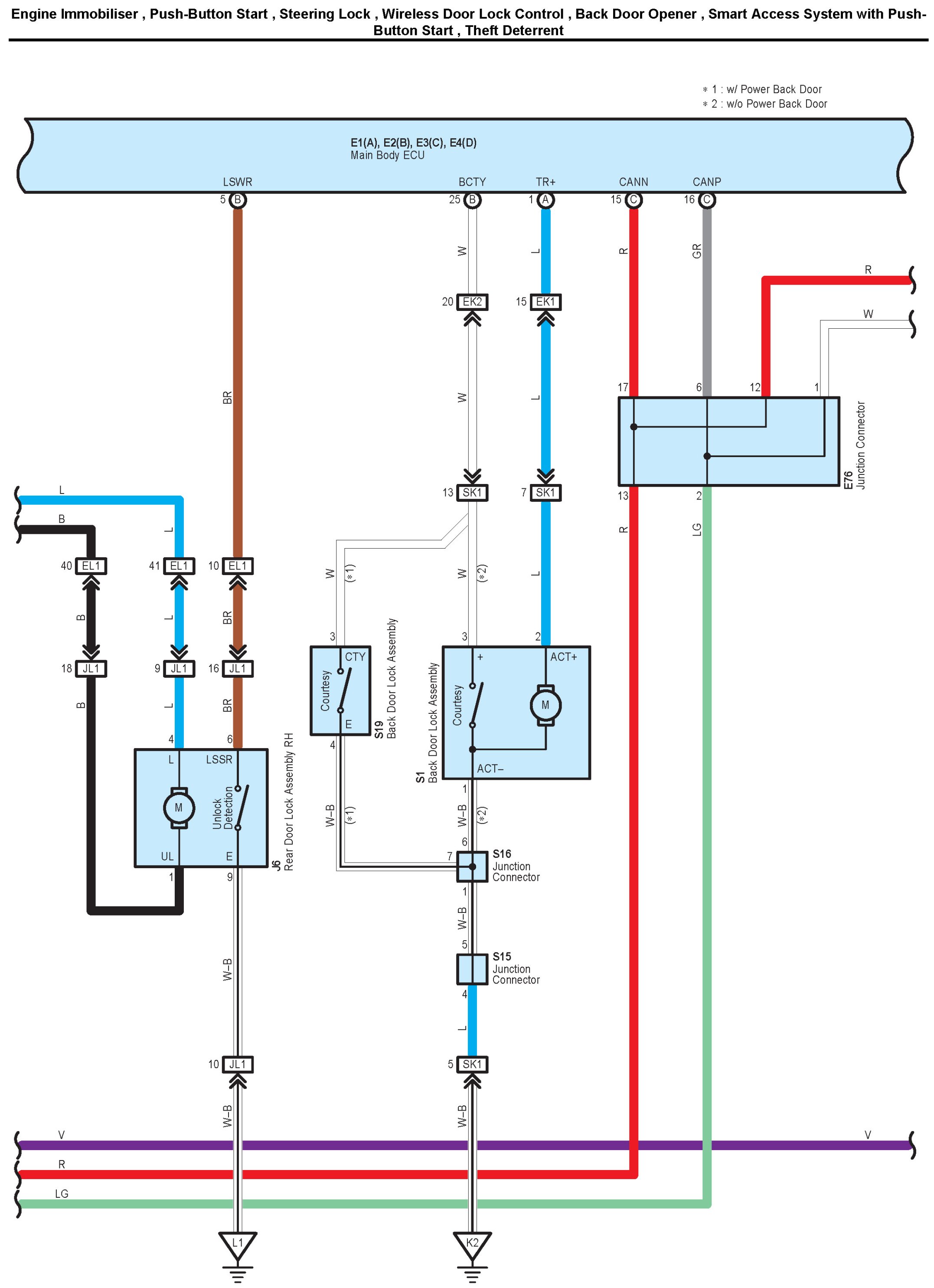

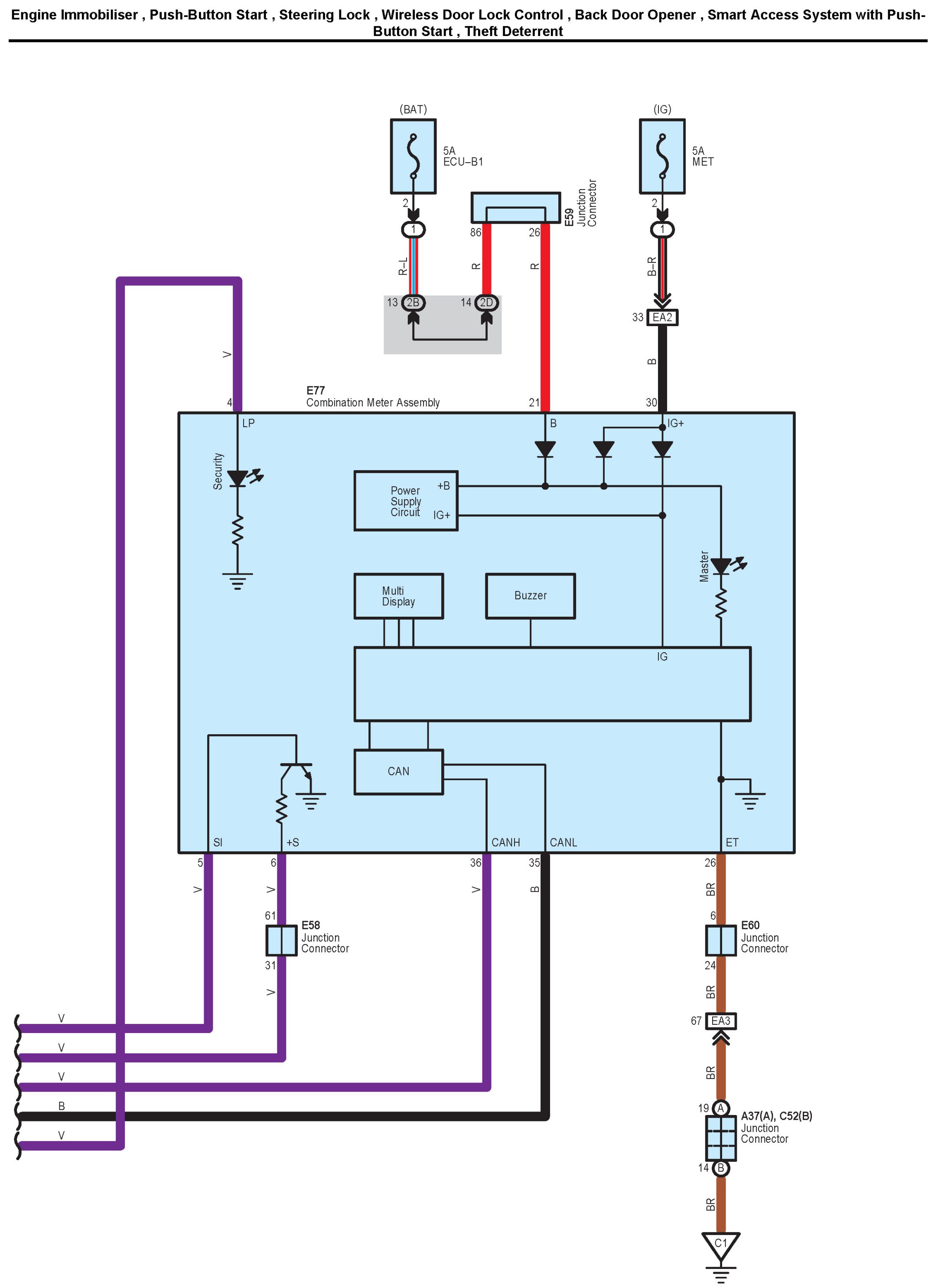

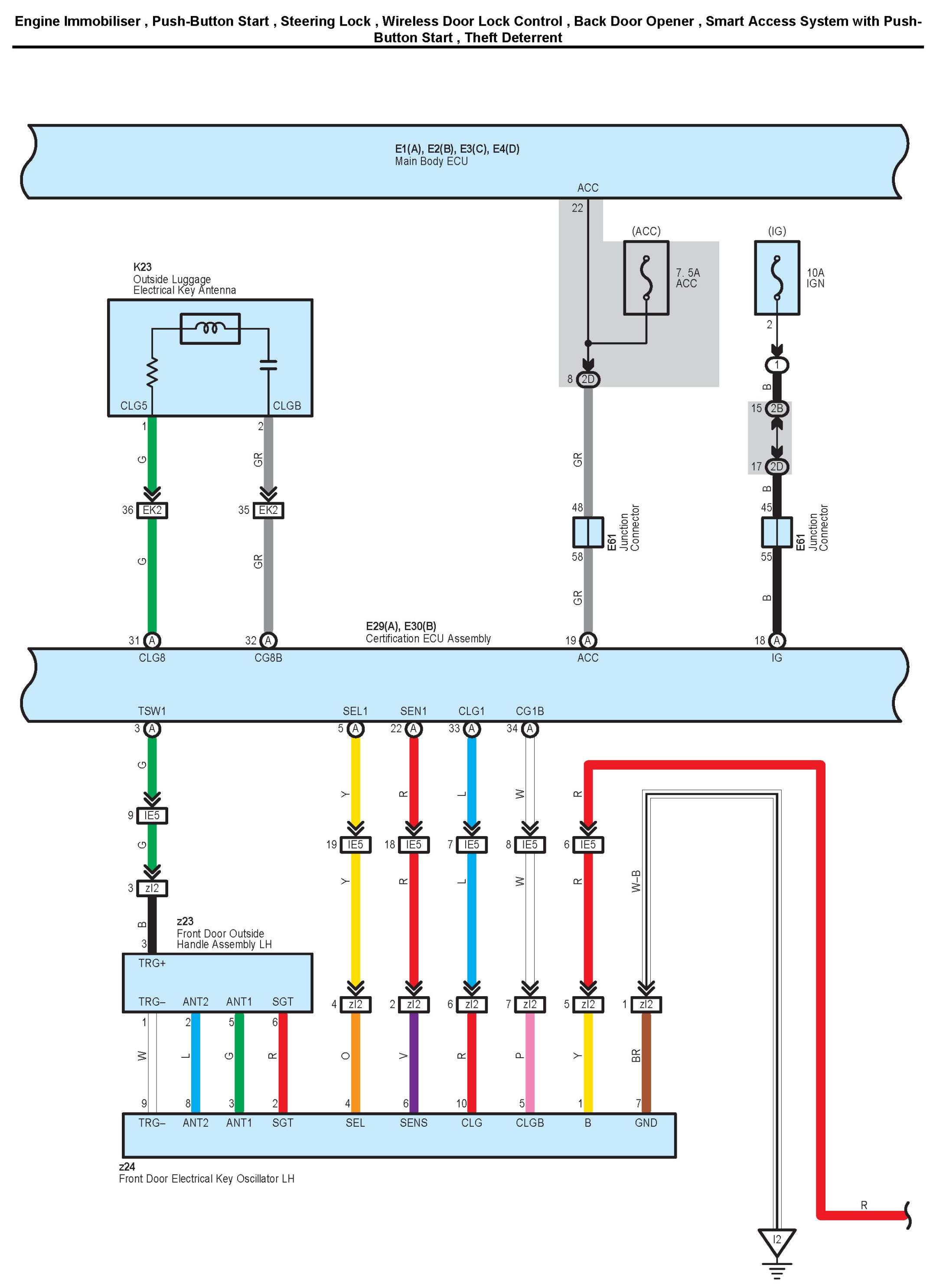

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Back Door Opener, Smart Access System with Push-Button Start, Theft Deterrent Part 1:

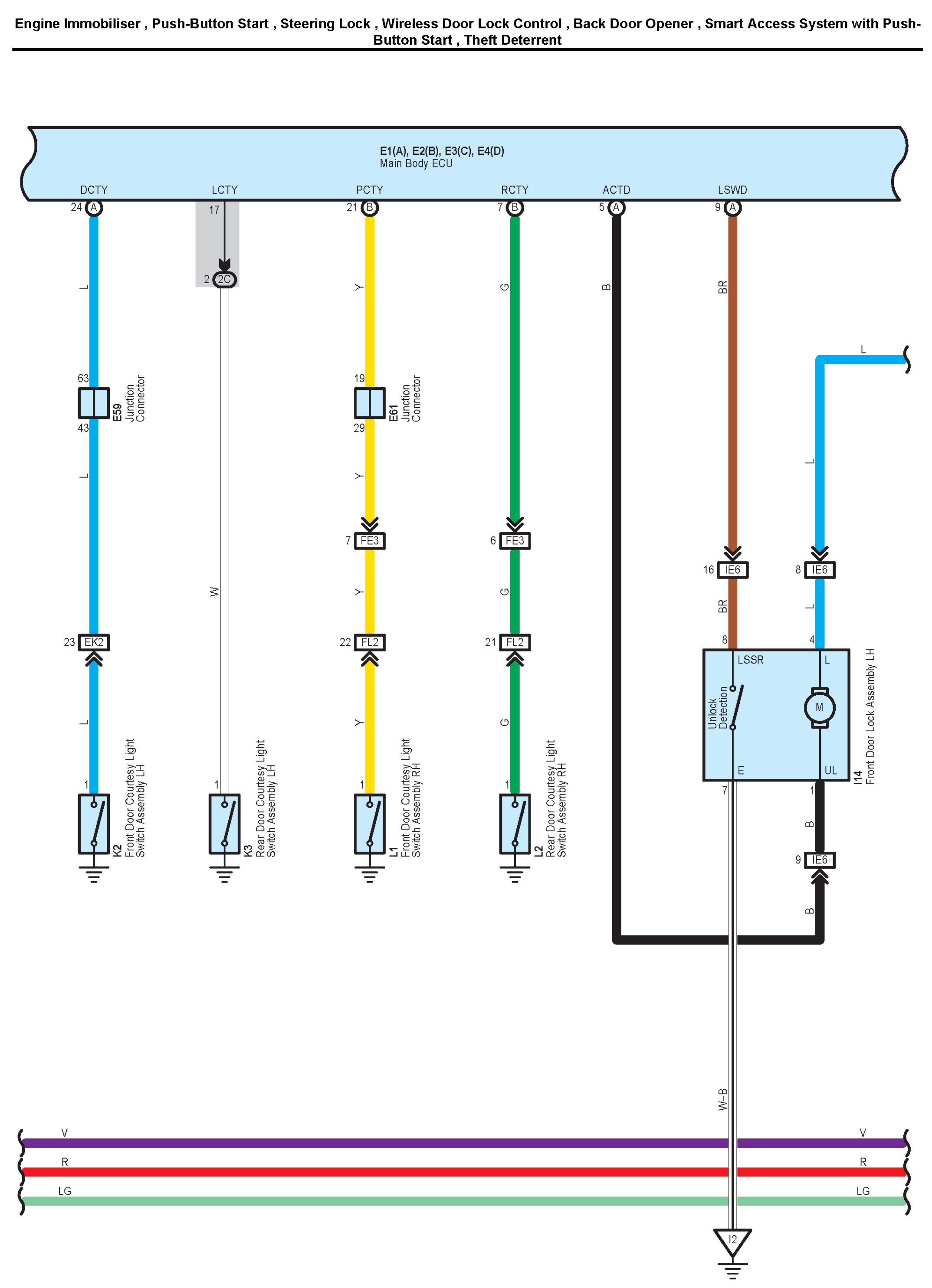

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Back Door Opener, Smart Access System with Push-Button Start, Theft Deterrent Part 2:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Back Door Opener, Smart Access System with Push-Button Start, Theft Deterrent Part 3:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Back Door Opener, Smart Access System with Push-Button Start, Theft Deterrent Part 4:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Back Door Opener, Smart Access System with Push-Button Start, Theft Deterrent Part 5:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Back Door Opener, Smart Access System with Push-Button Start, Theft Deterrent Part 6:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Back Door Opener, Smart Access System with Push- Button Start, Theft Deterrent Part 7:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Back Door Opener, Smart Access System with Push-Button Start, Theft Deterrent Part 8:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Back Door Opener, Smart Access System with Push-Button Start, Theft Deterrent Part 9:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Back Door Opener, Smart Access System with Push-Button Start, Theft Deterrent Part 10:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Back Door Opener, Smart Access System with Push-Button Start, Theft Deterrent Part 11:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Back Door Opener, Smart Access System with Push-Button Start, Theft Deterrent Part 12:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Back Door Opener, Smart Access System with Push-Button Start, Theft Deterrent Part 13:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Back Door Opener, Smart Access System with Push-Button Start, Theft Deterrent Part 14:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Back Door Opener, Smart Access System with Push-Button Start, Theft Deterrent Part 15:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Back Door Opener, Smart Access System with Push-Button Start, Theft Deterrent Part 16:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Back Door Opener, Smart Access System with Push-Button Start, Theft Deterrent Part 17:

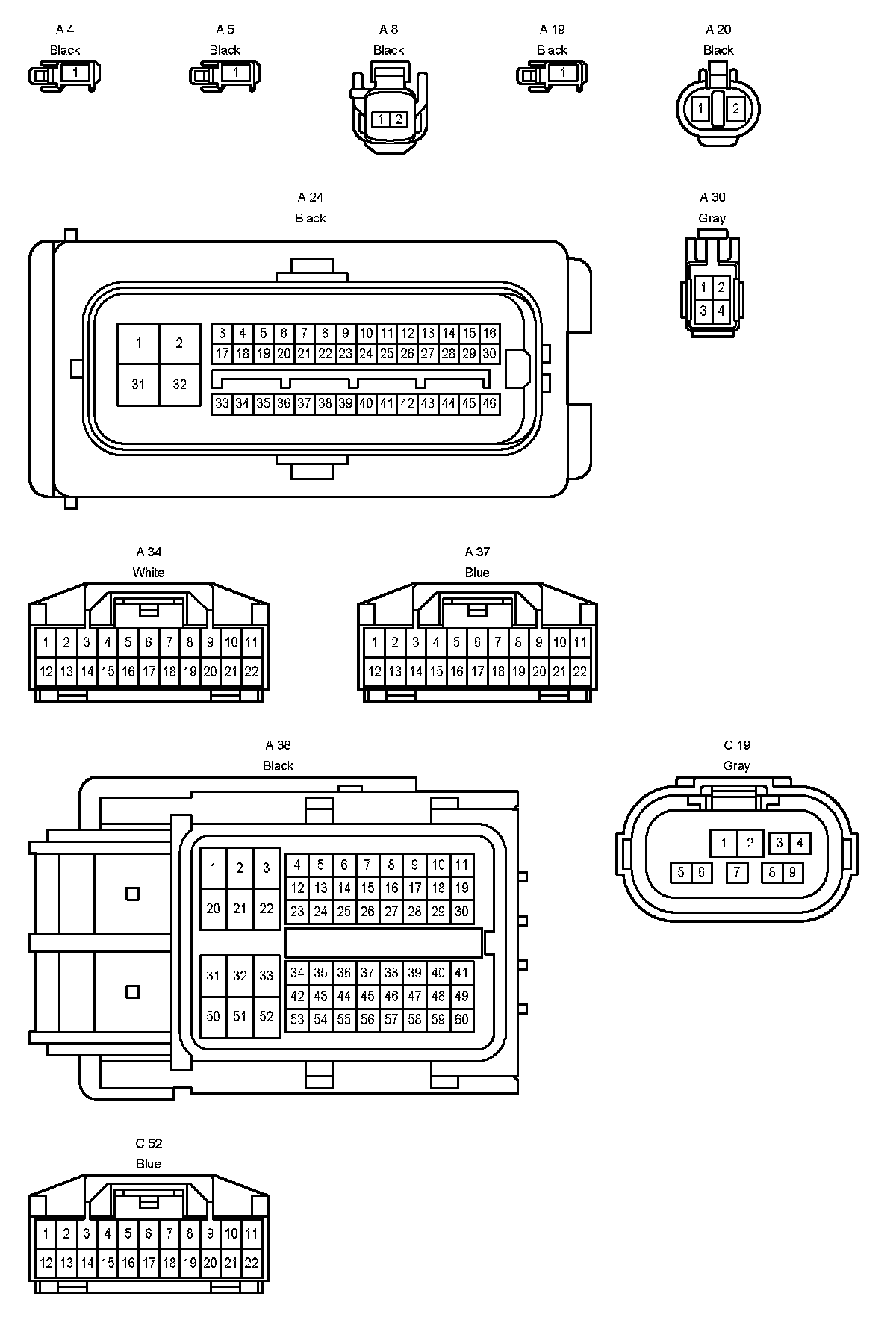

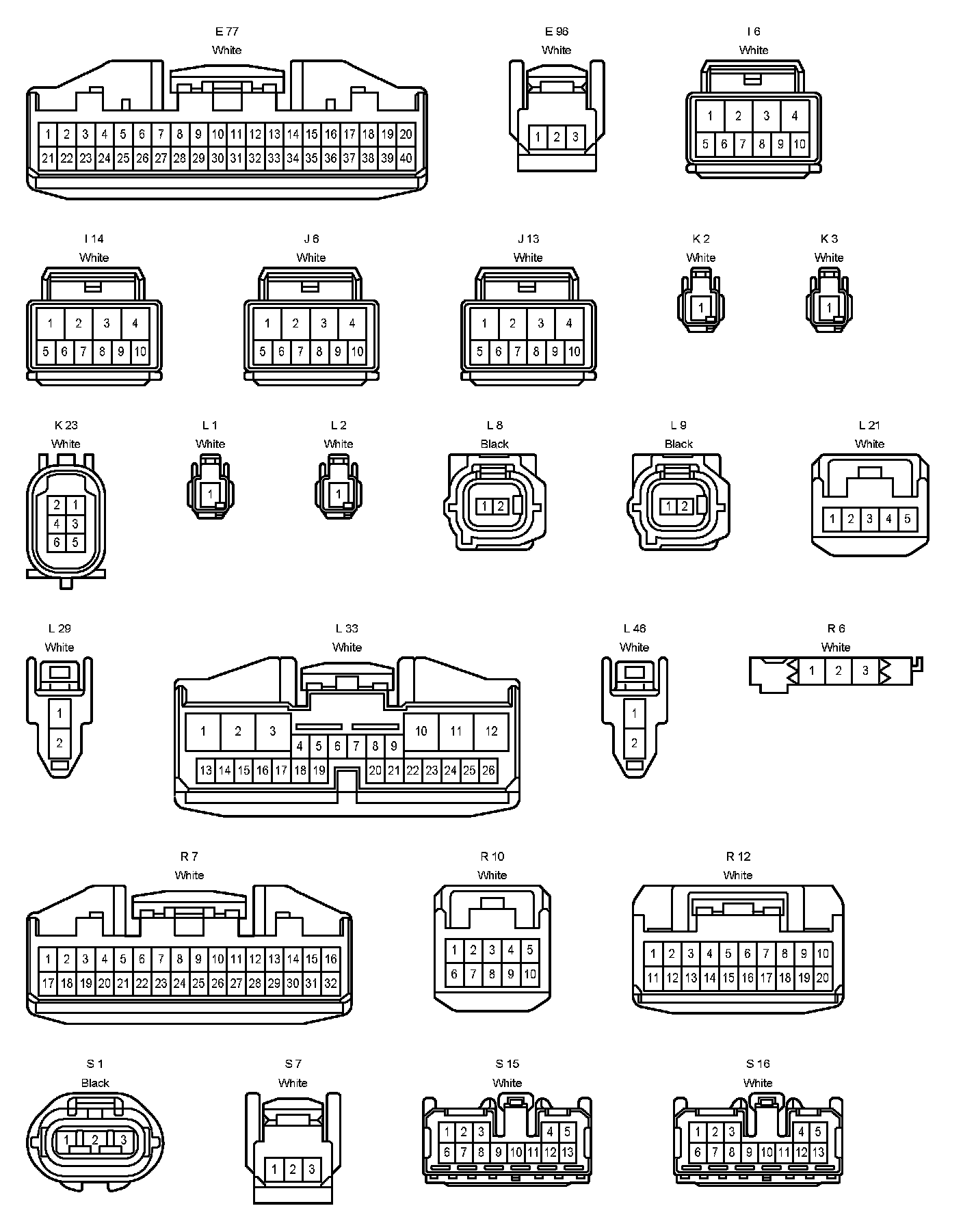

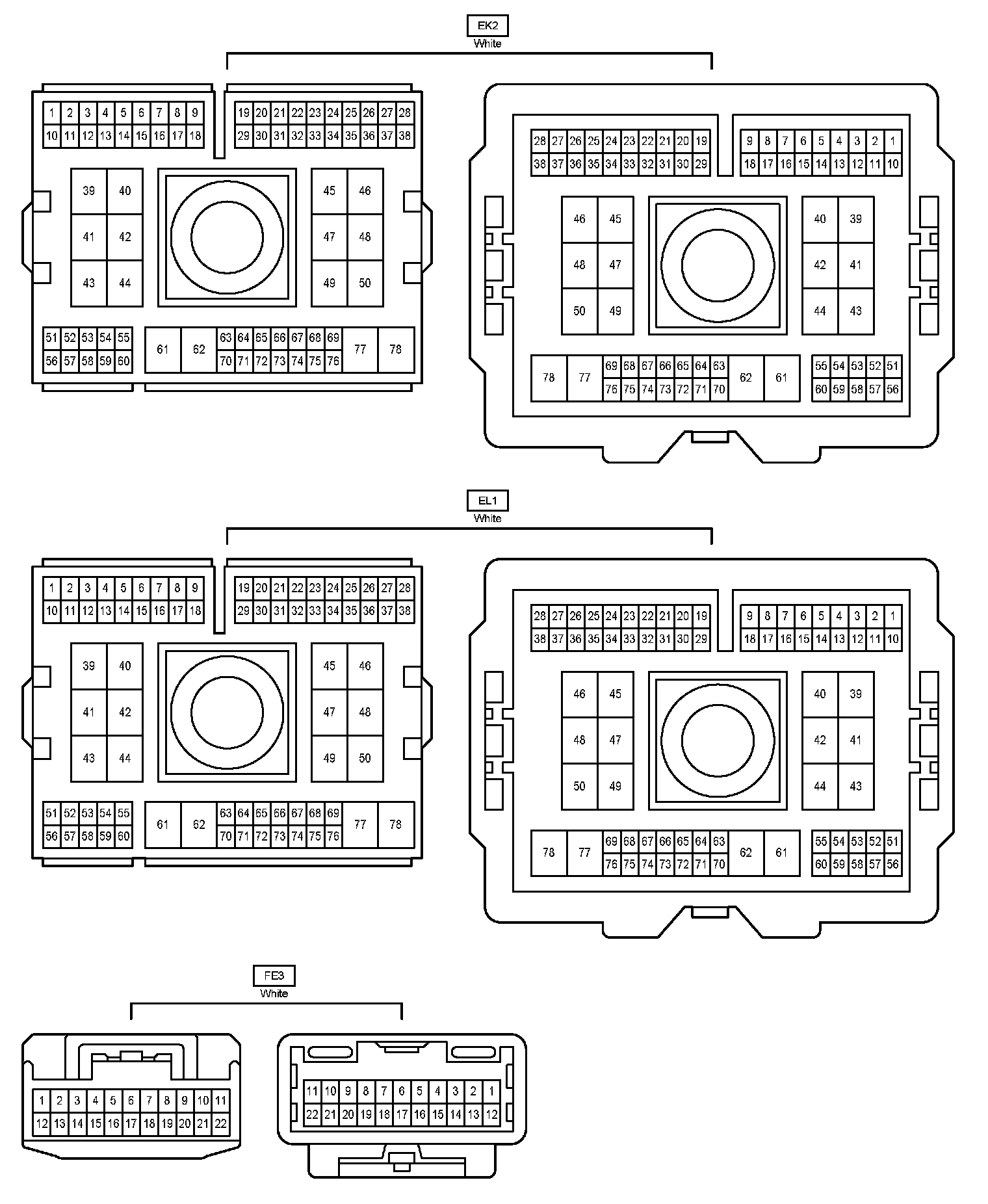

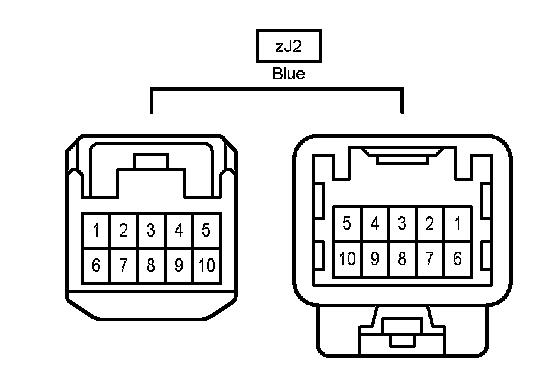

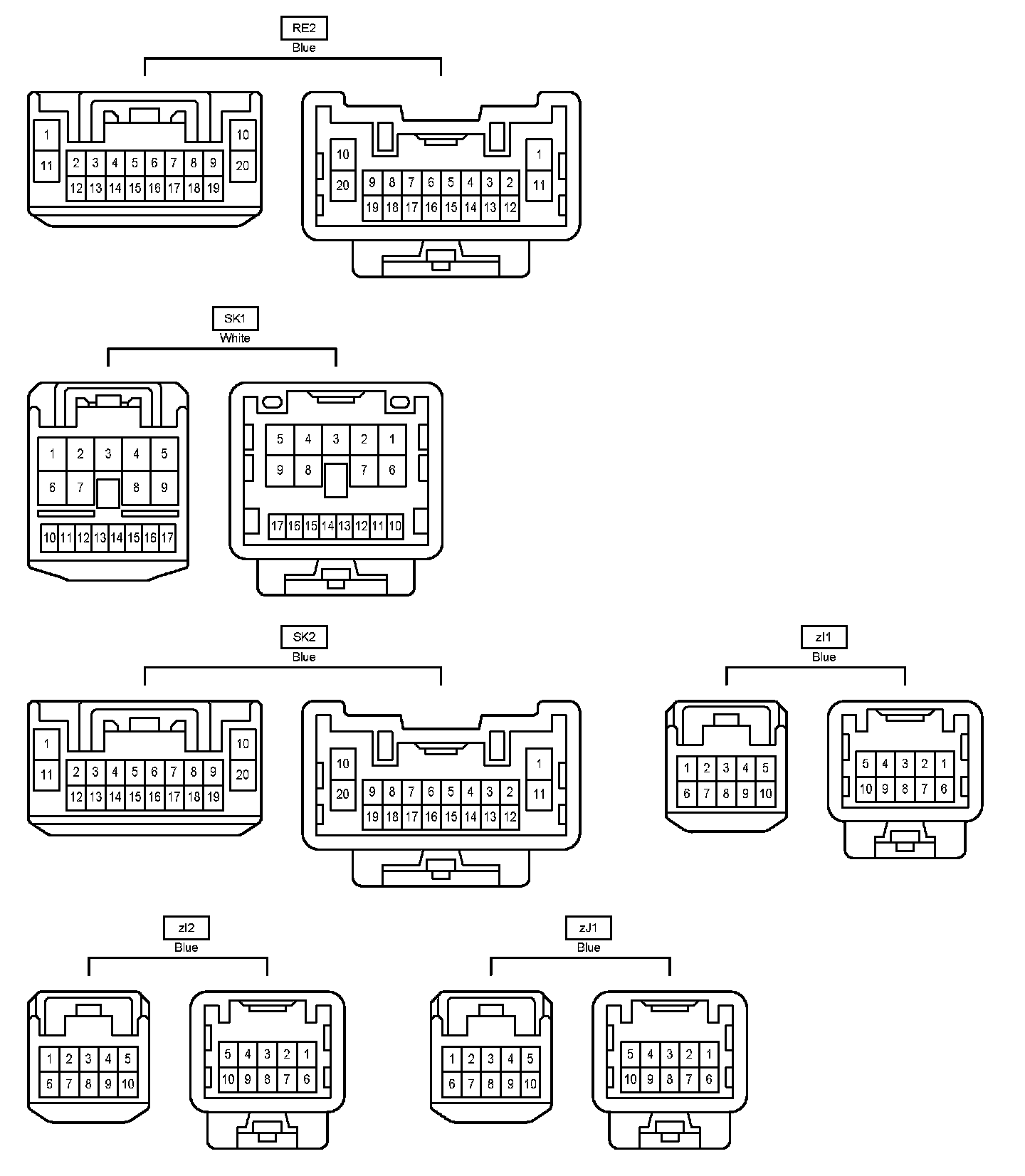

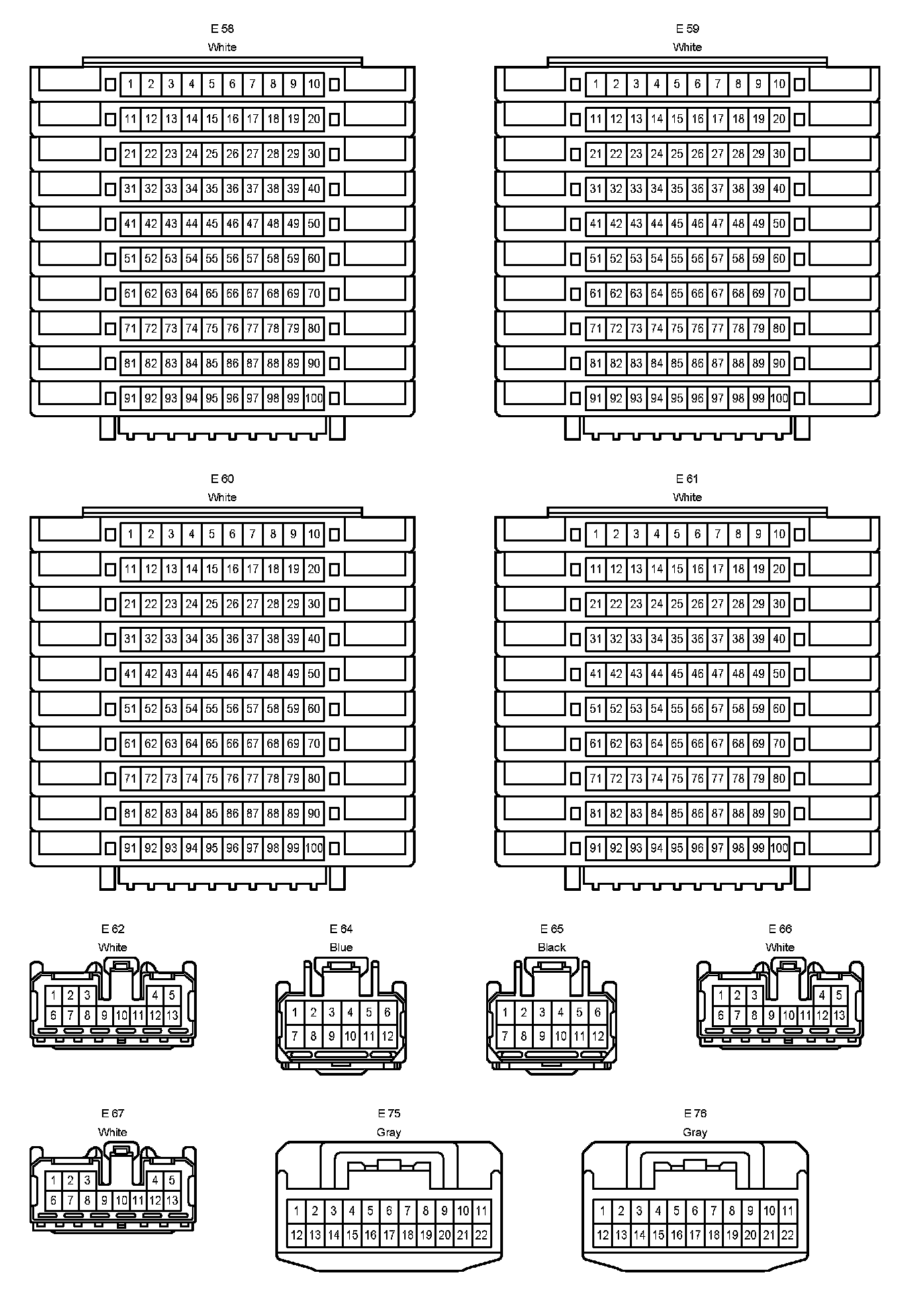

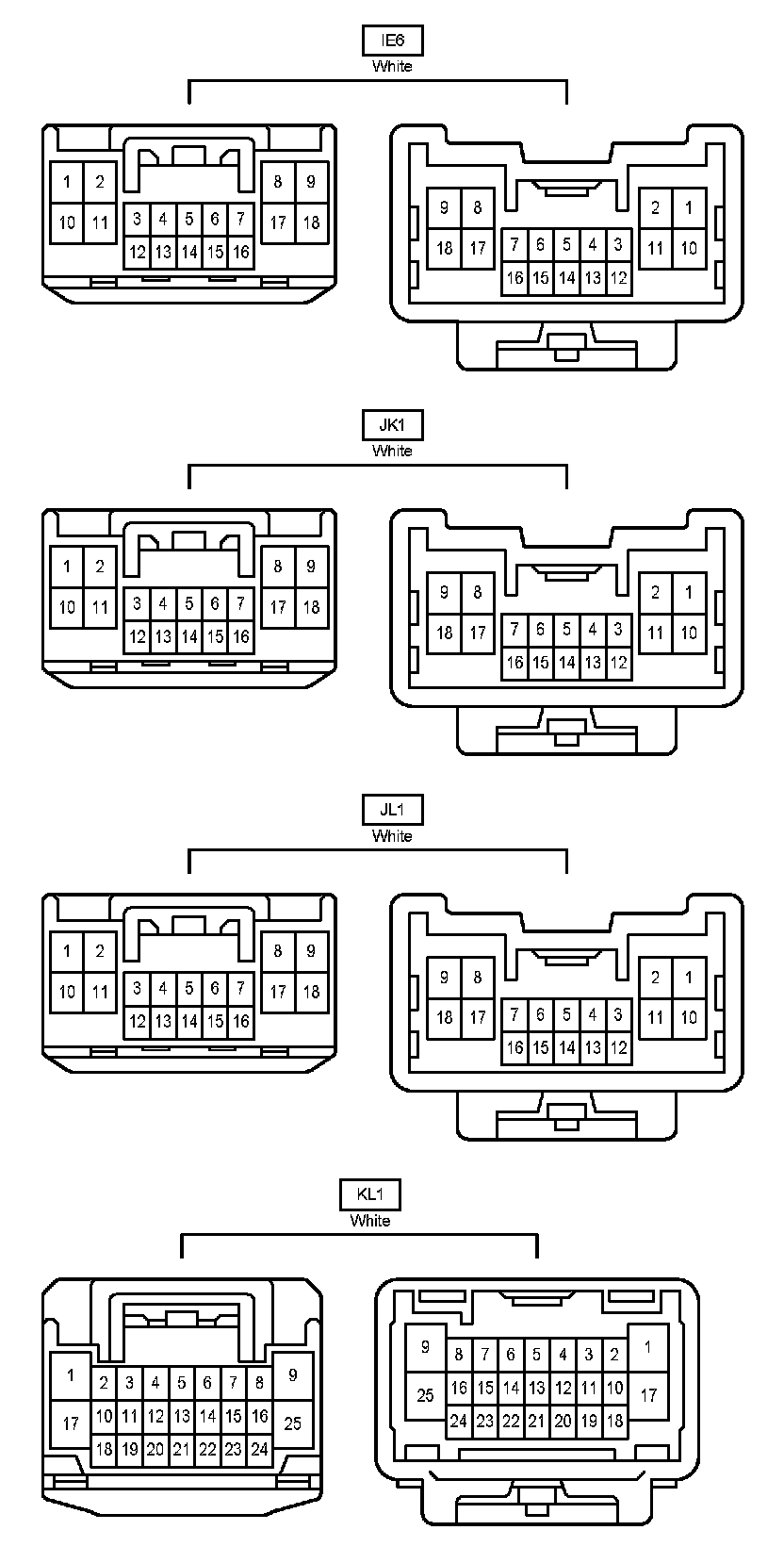

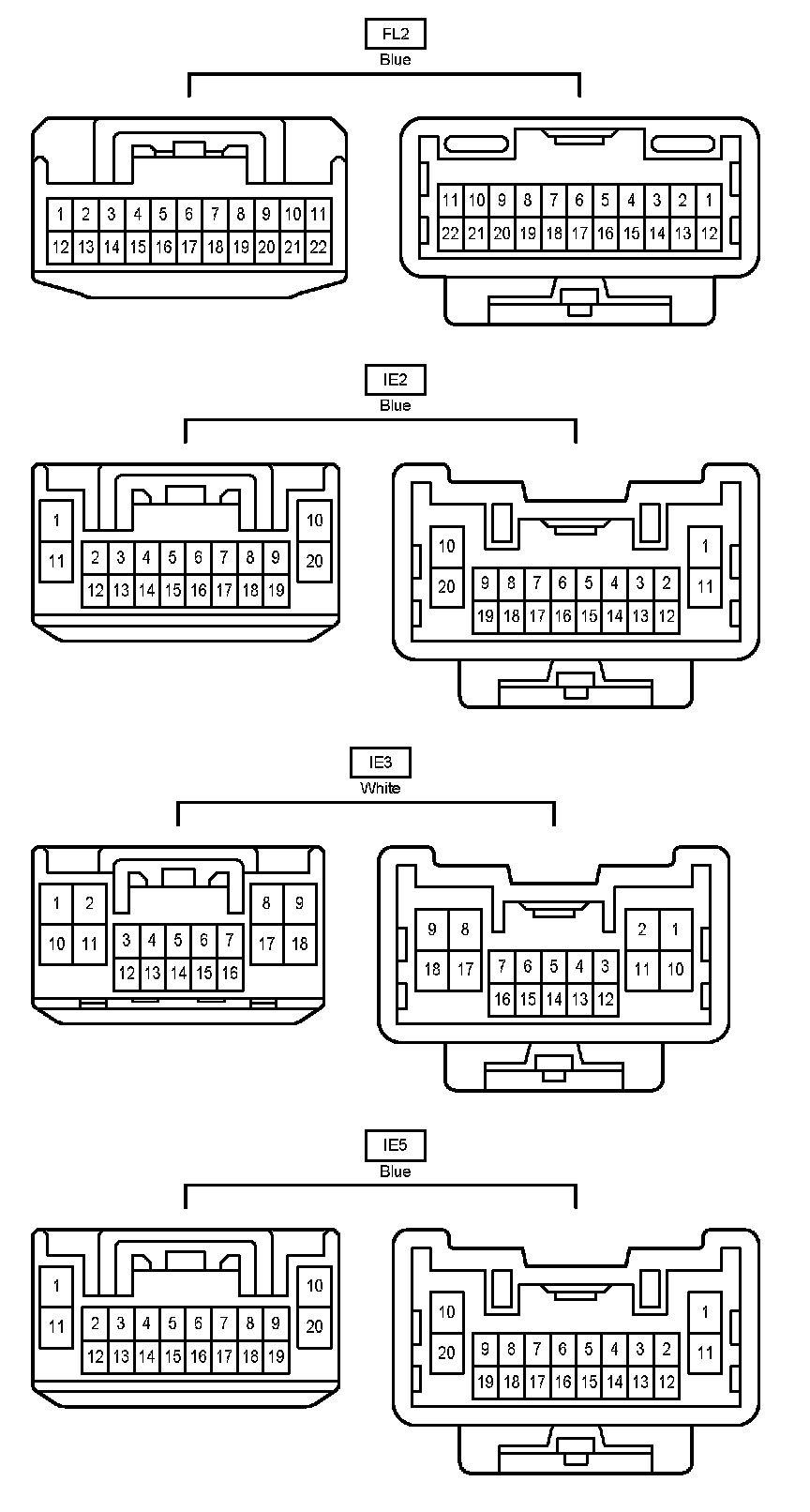

Connector Pin Outs Part 1:

Connector Pin Outs Part 2:

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Connector Pin Outs Part 6:

Connector Pin Outs Part 7:

Connector Pin Outs Part 8:

Connector Pin Outs Part 9:

Connector Pin Outs Part 10:

Connector Pin Outs Part 11:

Connector Pin Outs Part 12:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
