Audio System, LEXUS Navigation System, Multi-Display, Parking Assist [Rear View Monitor]

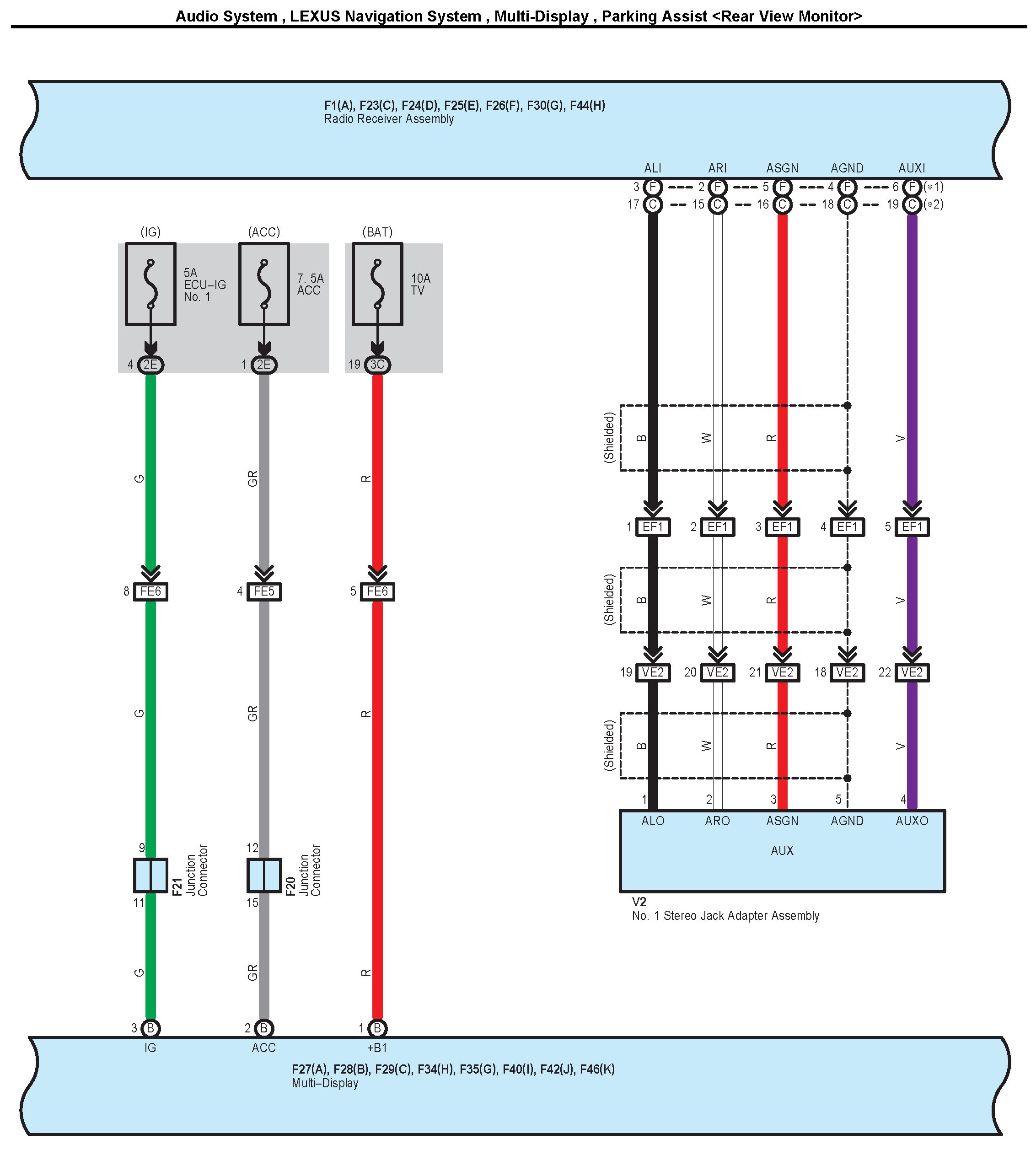

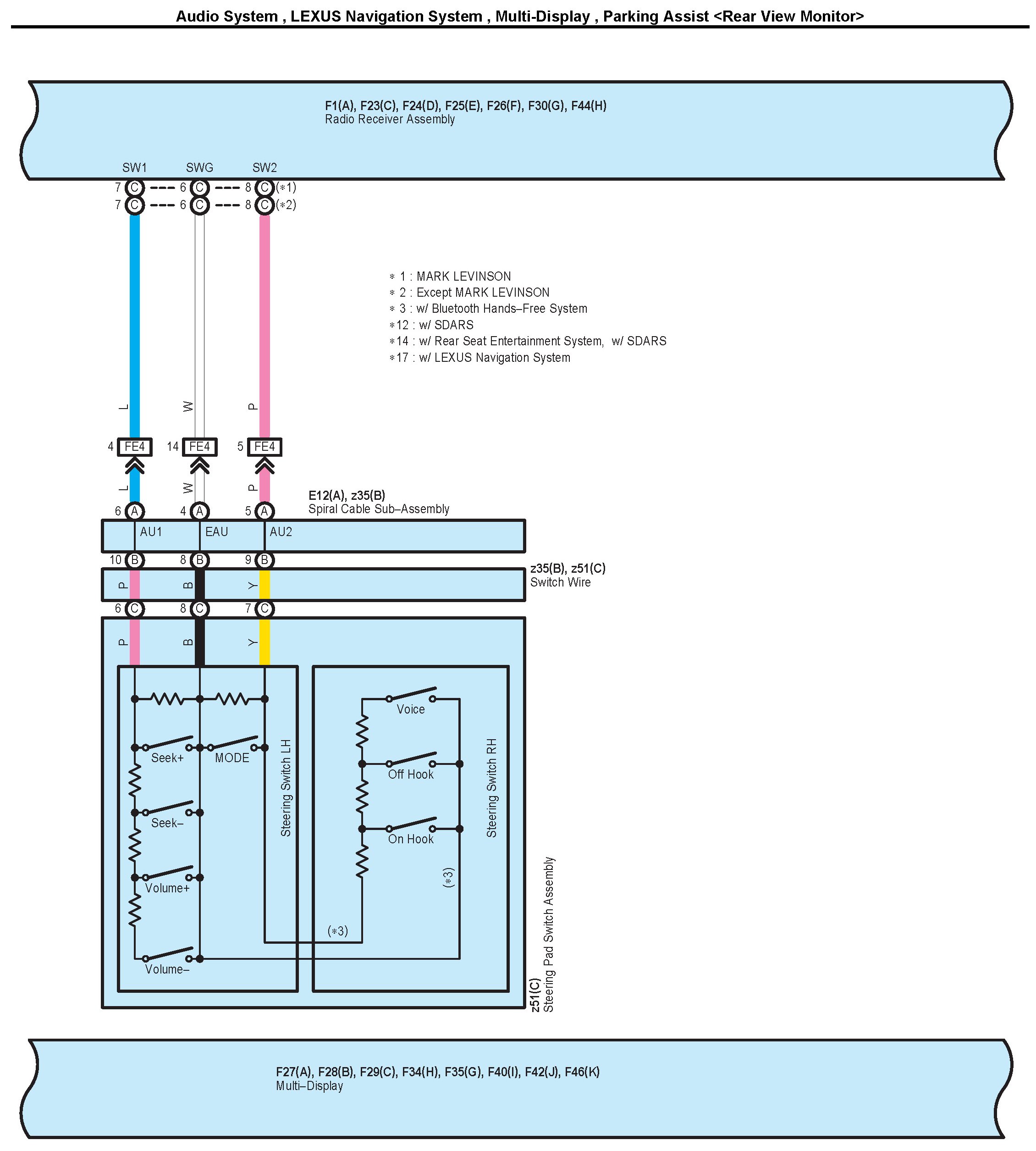

Audio System, LEXUS Navigation System, Multi-Display, Parking Assist <Rear View Monitor> Part 1:

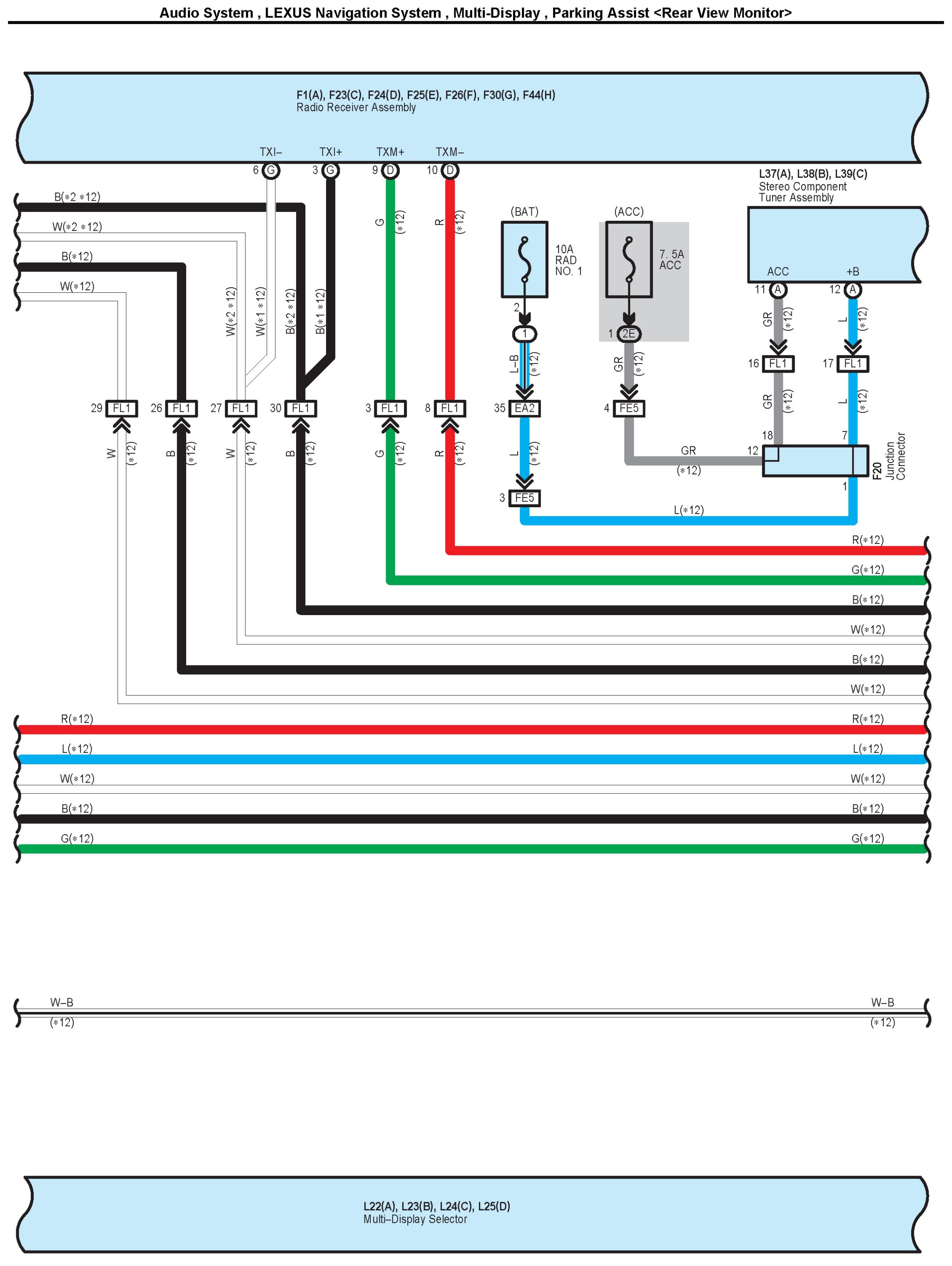

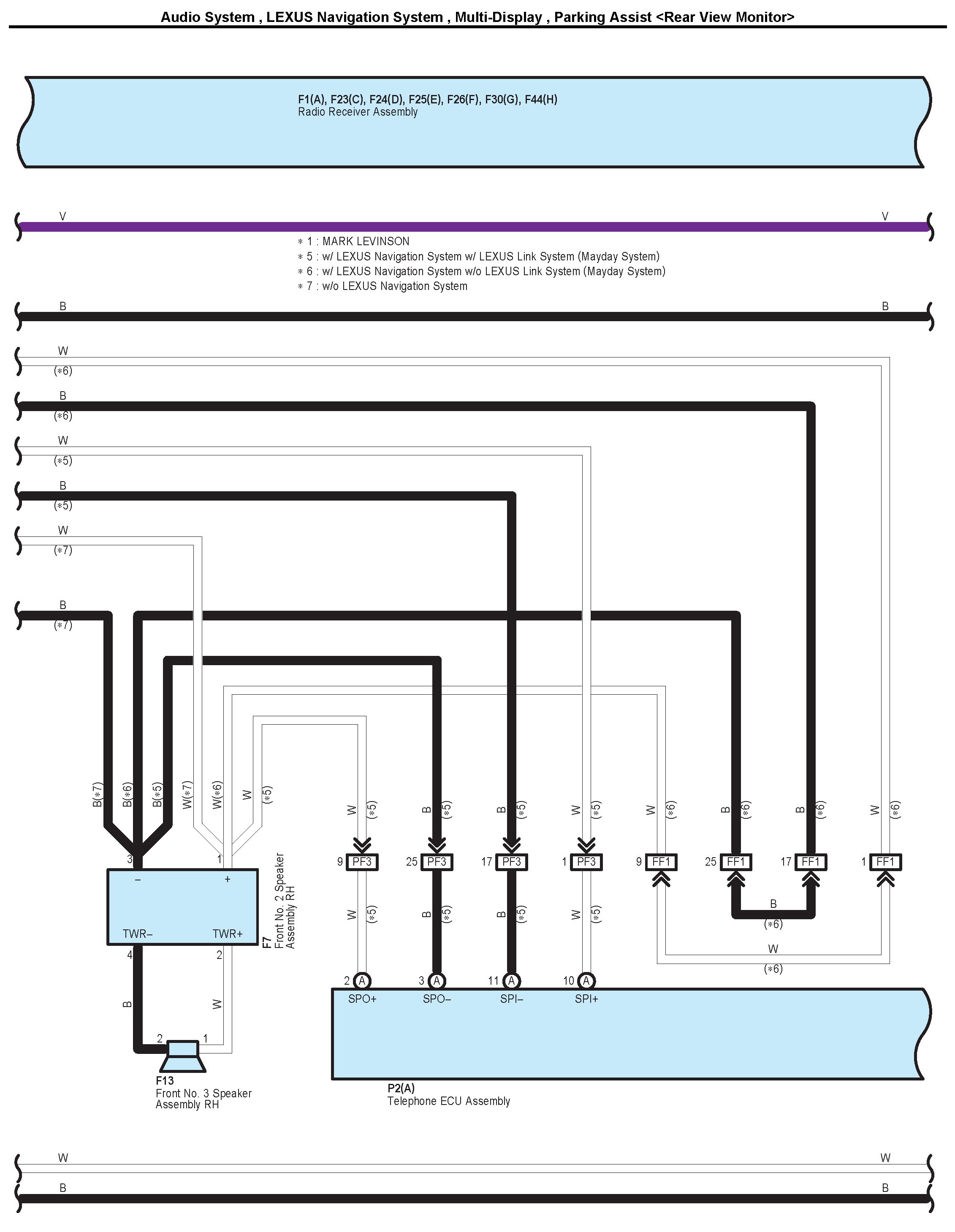

Audio System, LEXUS Navigation System, Multi-Display, Parking Assist <Rear View Monitor> Part 2:

Audio System, LEXUS Navigation System, Multi-Display, Parking Assist <Rear View Monitor> Part 3:

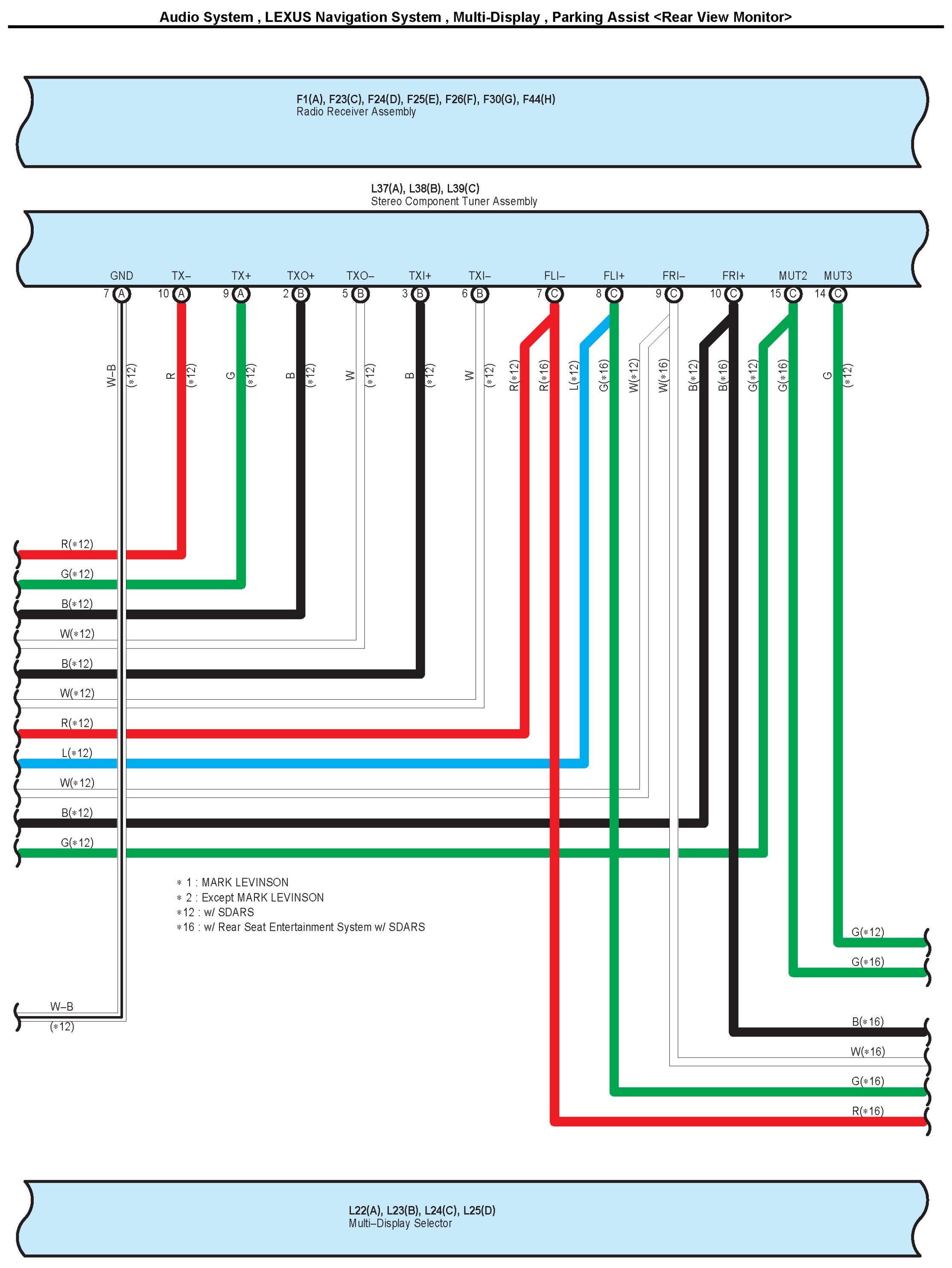

Audio System, LEXUS Navigation System, Multi-Display, Parking Assist <Rear View Monitor> Part 4:

Audio System, LEXUS Navigation System, Multi-Display, Parking Assist <Rear View Monitor> Part 5:

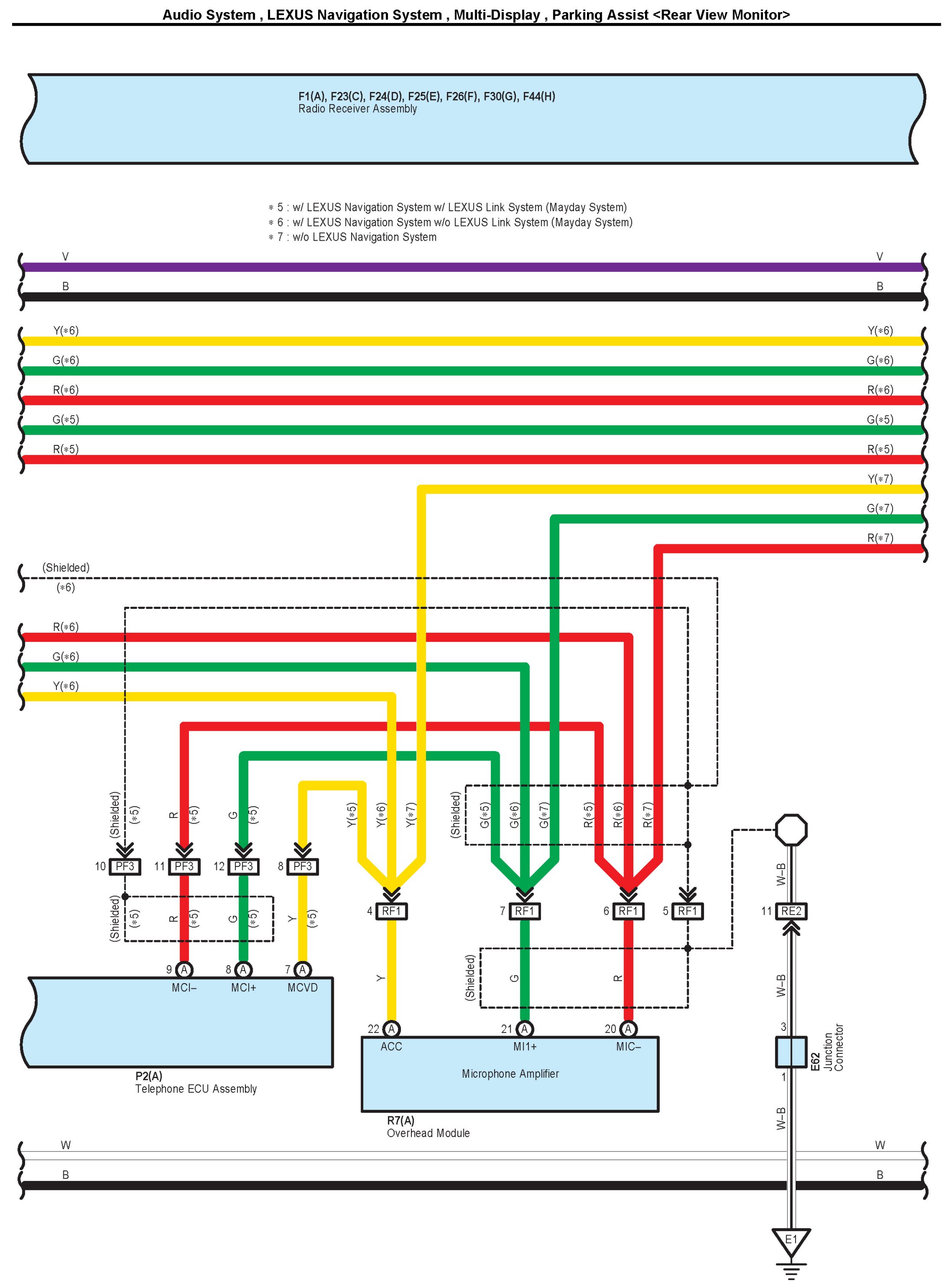

Audio System, LEXUS Navigation System, Multi-Display, Parking Assist <Rear View Monitor> Part 6:

Audio System, LEXUS Navigation System, Multi-Display, Parking Assist <Rear View Monitor> Part 7:

Audio System, LEXUS Navigation System, Multi-Display, Parking Assist <Rear View Monitor> Part 8:

Audio System, LEXUS Navigation System, Multi-Display, Parking Assist <Rear View Monitor> Part 9:

Audio System, LEXUS Navigation System, Multi-Display, Parking Assist <Rear View Monitor> Part 10:

Audio System, LEXUS Navigation System, Multi-Display, Parking Assist <Rear View Monitor> Part 11:

Audio System, LEXUS Navigation System, Multi-Display, Parking Assist <Rear View Monitor> Part 12:

Audio System, LEXUS Navigation System, Multi-Display, Parking Assist <Rear View Monitor> Part 13:

Audio System, LEXUS Navigation System, Multi-Display, Parking Assist <Rear View Monitor> Part 14:

Audio System, LEXUS Navigation System, Multi-Display, Parking Assist <Rear View Monitor> Part 15:

Audio System, LEXUS Navigation System, Multi-Display, Parking Assist <Rear View Monitor> Part 16:

Audio System, LEXUS Navigation System, Multi-Display, Parking Assist <Rear View Monitor> Part 17:

Audio System, LEXUS Navigation System, Multi-Display, Parking Assist <Rear View Monitor> Part 18:

Audio System, LEXUS Navigation System, Multi-Display, Parking Assist <Rear View Monitor> Part 19:

Audio System, LEXUS Navigation System, Multi-Display, Parking Assist <Rear View Monitor> Part 20:

Audio System, LEXUS Navigation System, Multi-Display, Parking Assist <Rear View Monitor> Part 21:

Audio System, LEXUS Navigation System, Multi-Display, Parking Assist <Rear View Monitor> Part 22:

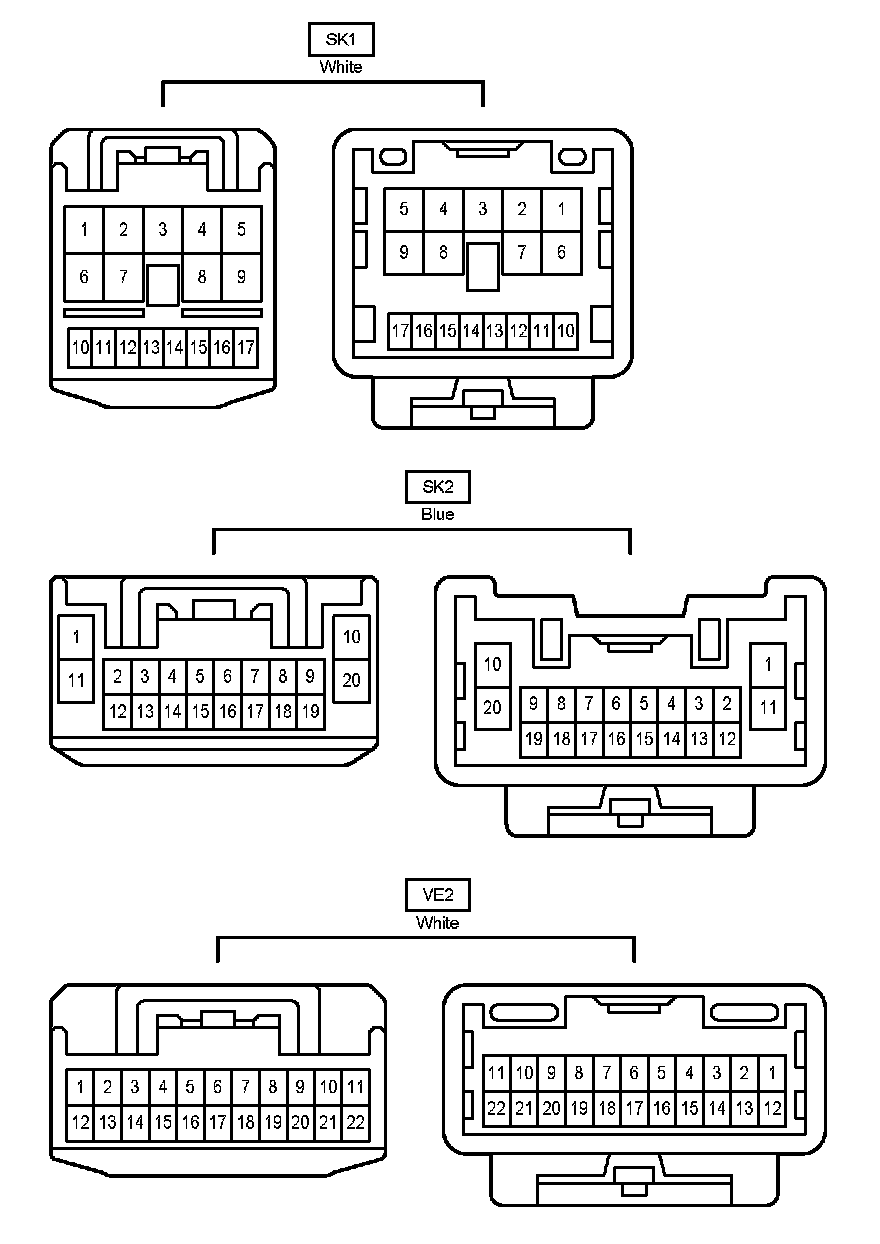

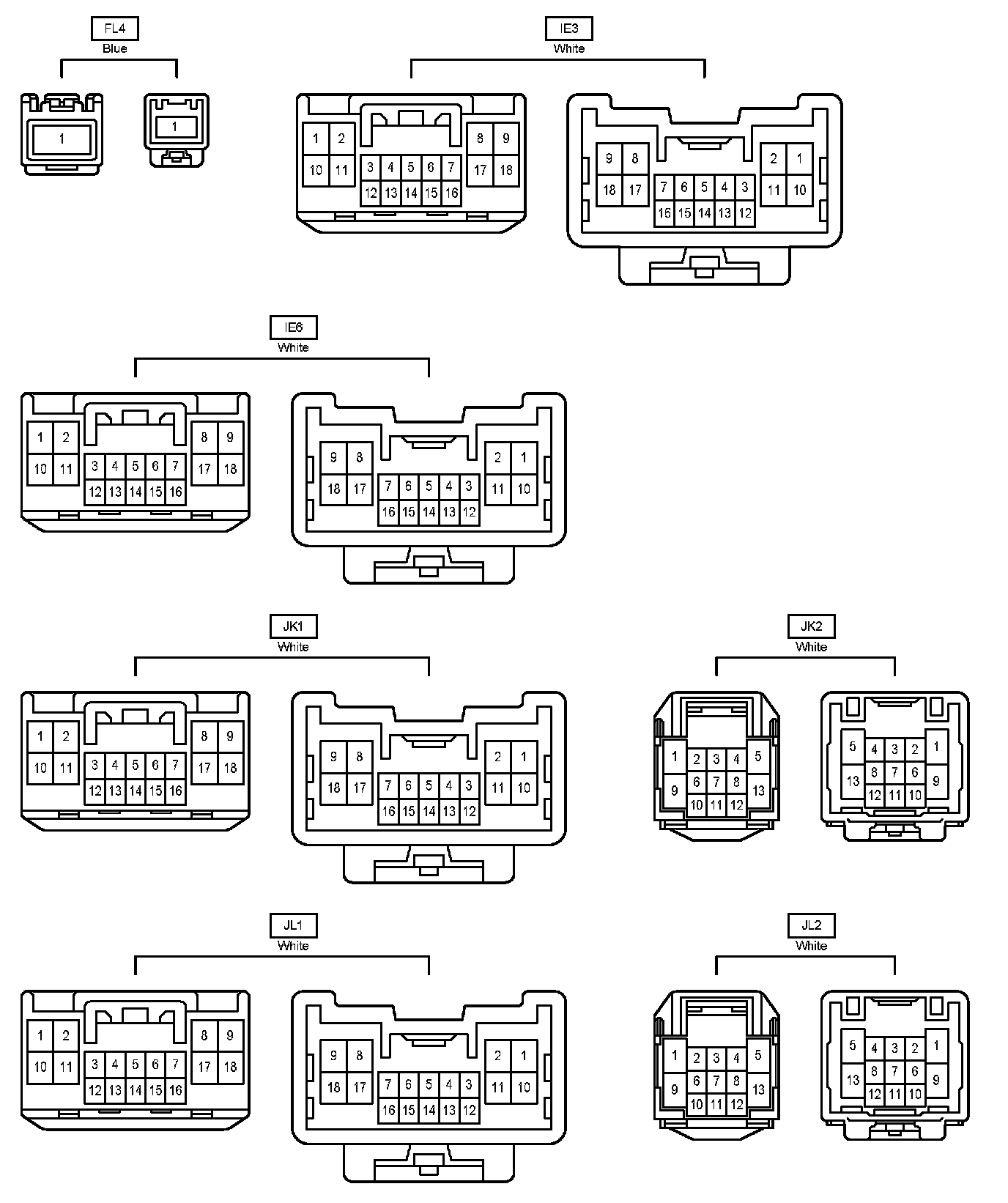

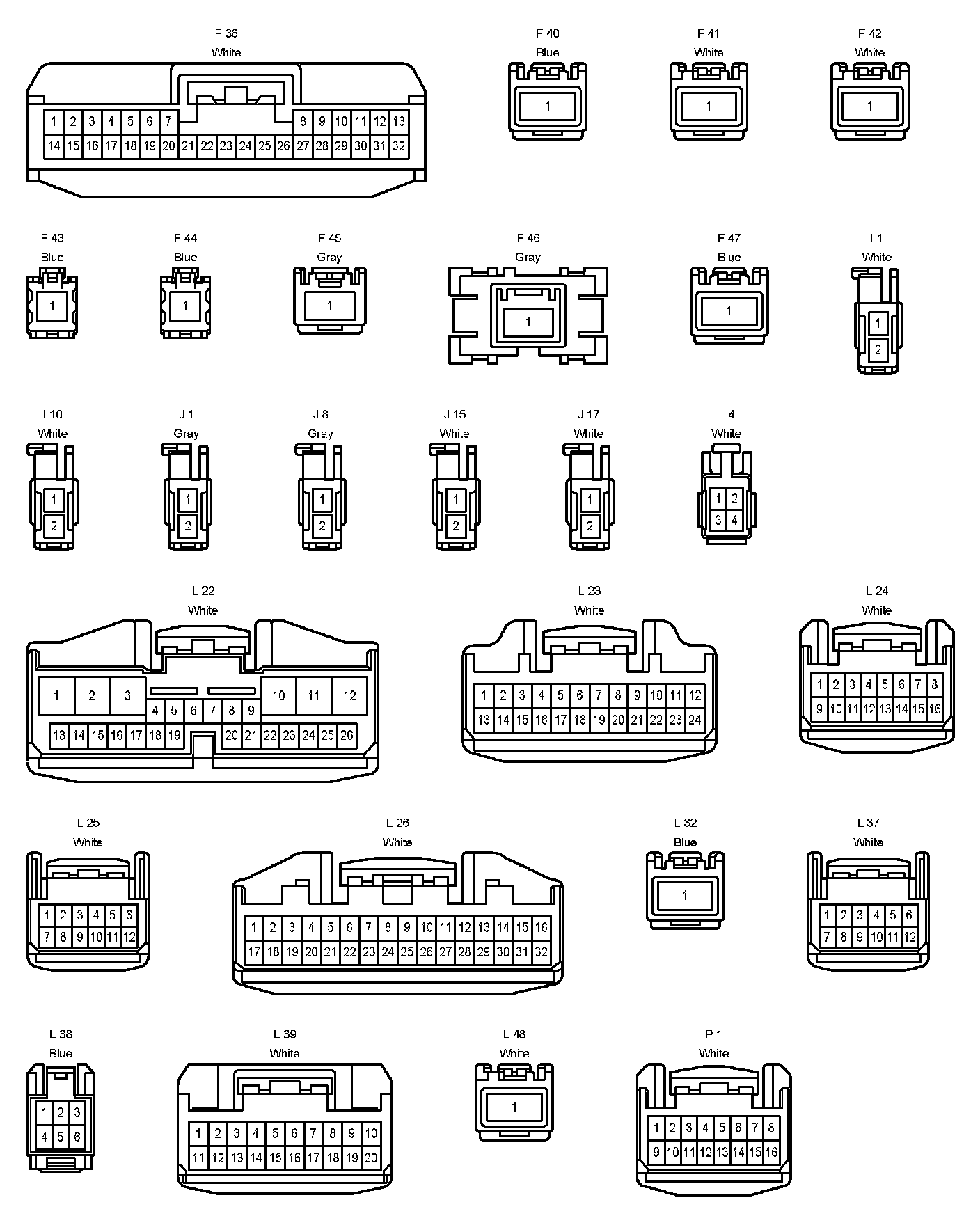

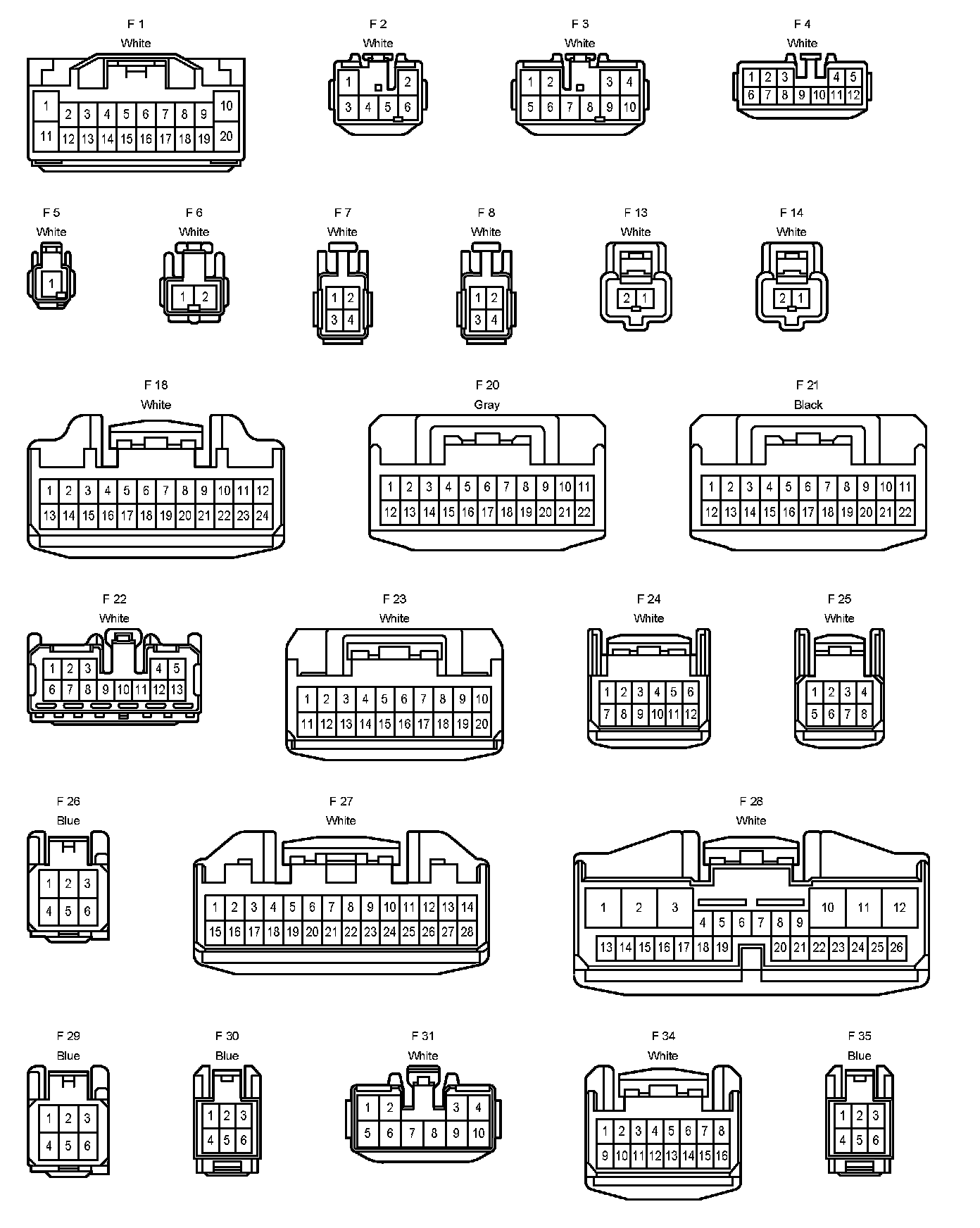

Connector Pin Outs Part 1:

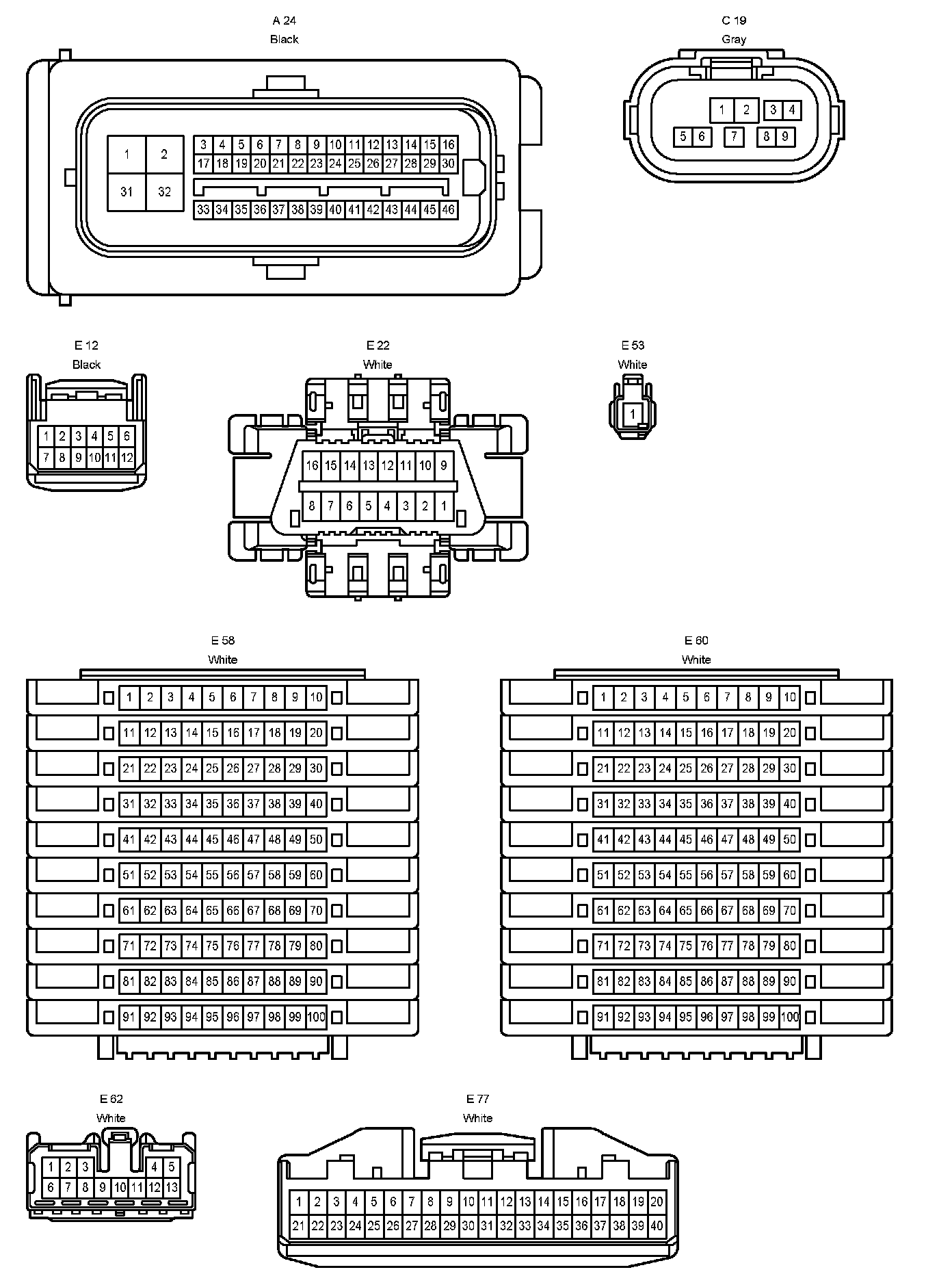

Connector Pin Outs Part 2:

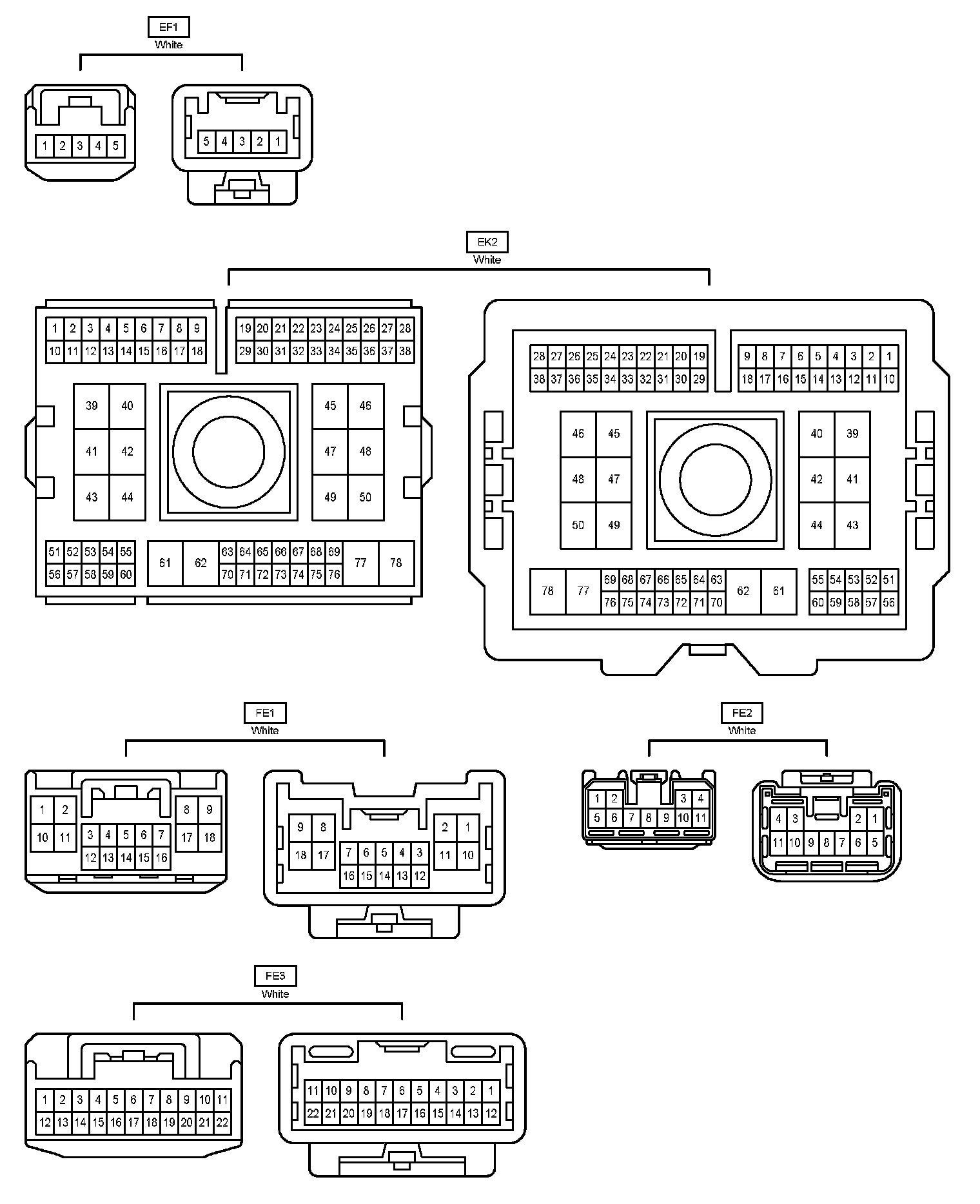

Connector Pin Outs Part 3:

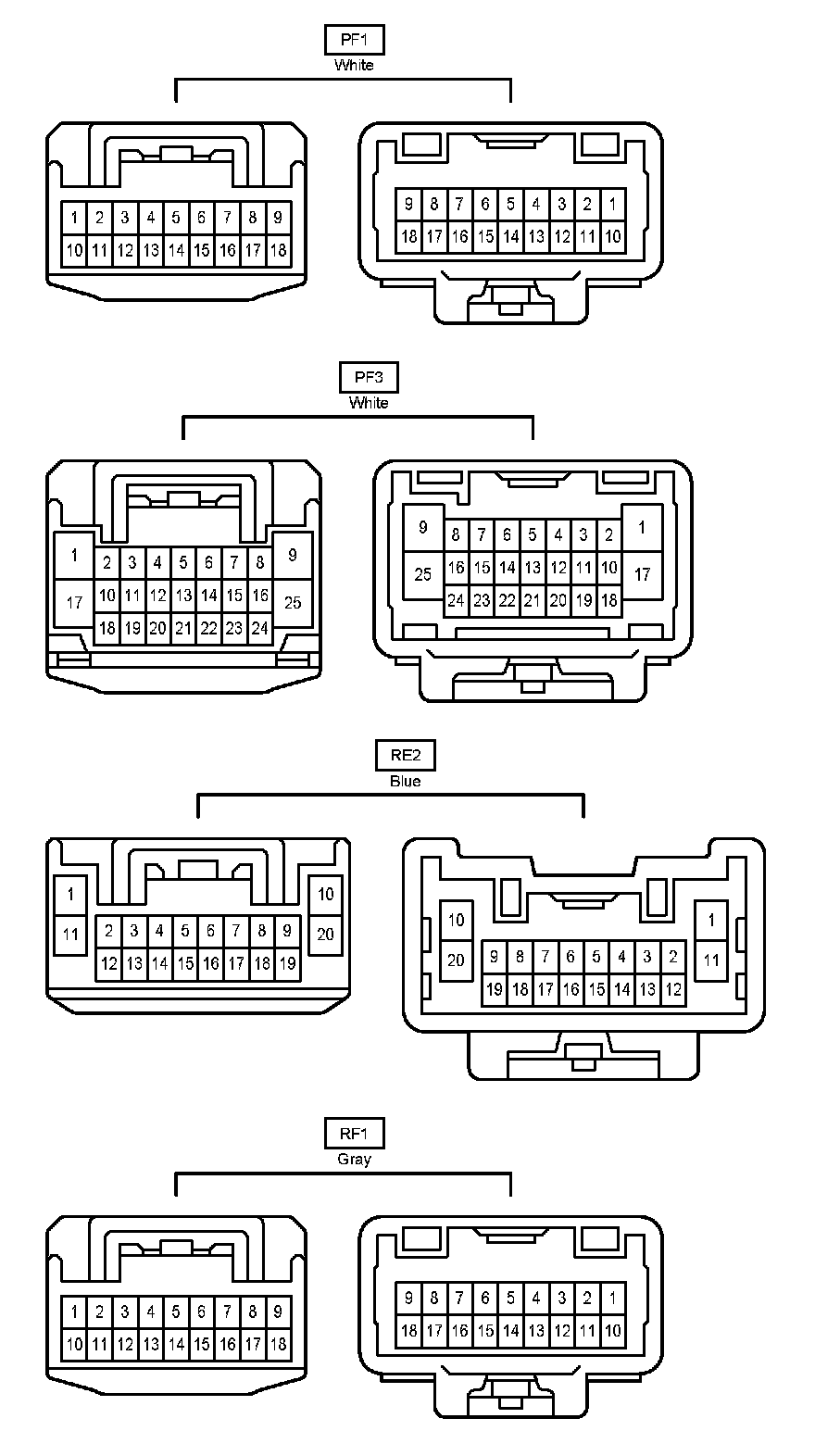

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Connector Pin Outs Part 6:

Connector Pin Outs Part 7:

Connector Pin Outs Part 8:

Connector Pin Outs Part 9:

Connector Pin Outs Part 10:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
