Suspension Control ( Automatic - Electronic )

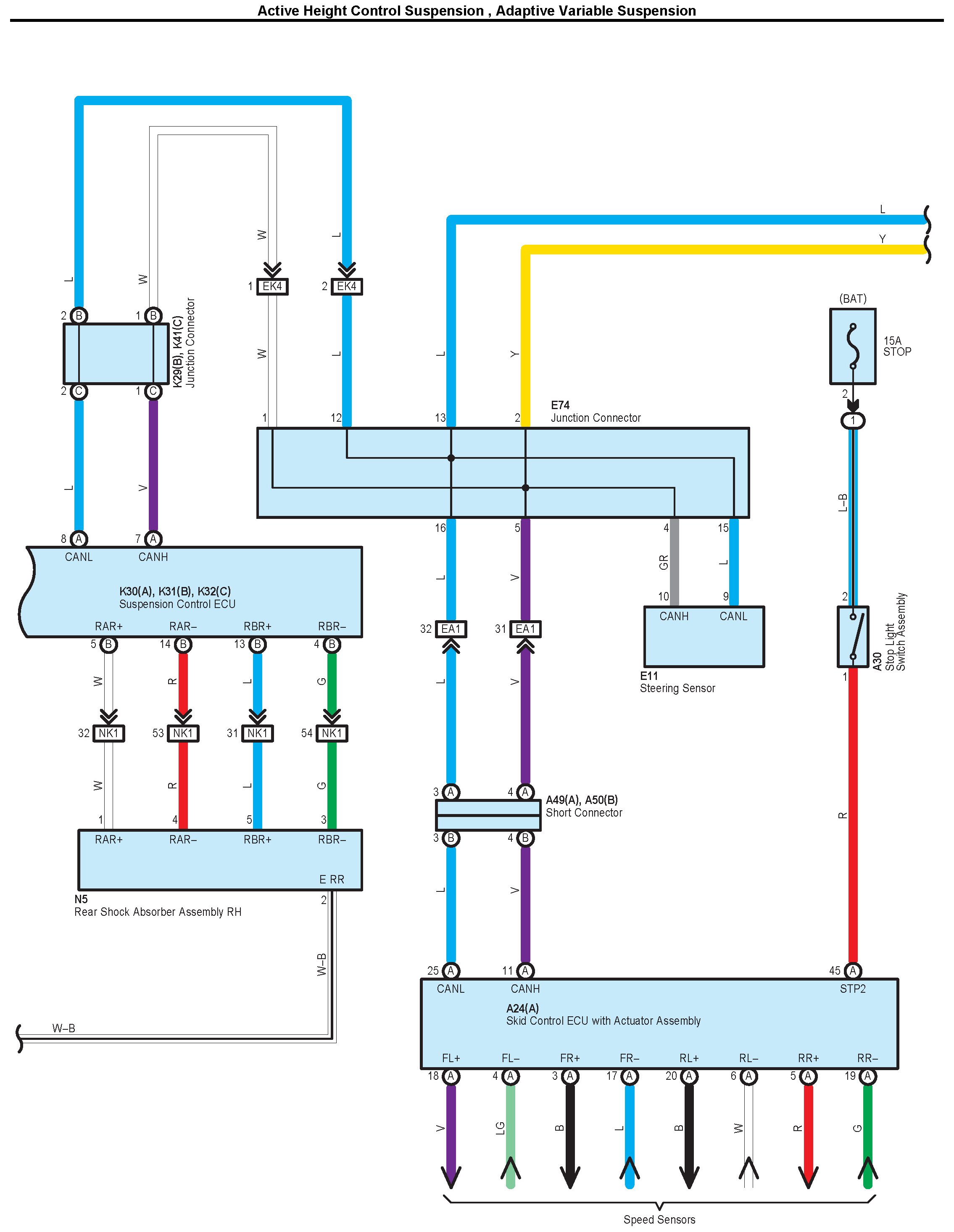

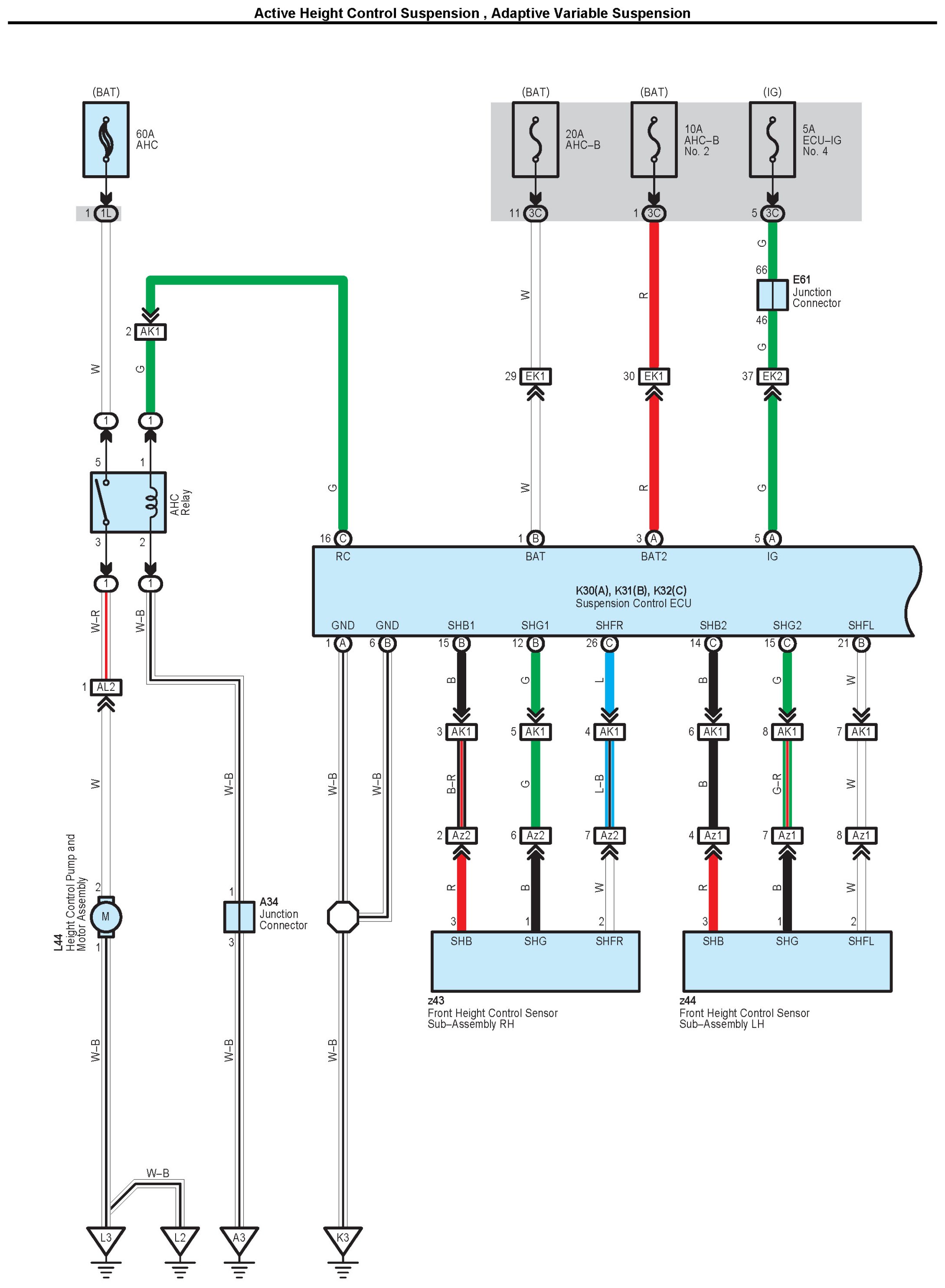

Active Height Control Suspension, Adaptive Variable Suspension Part 1:

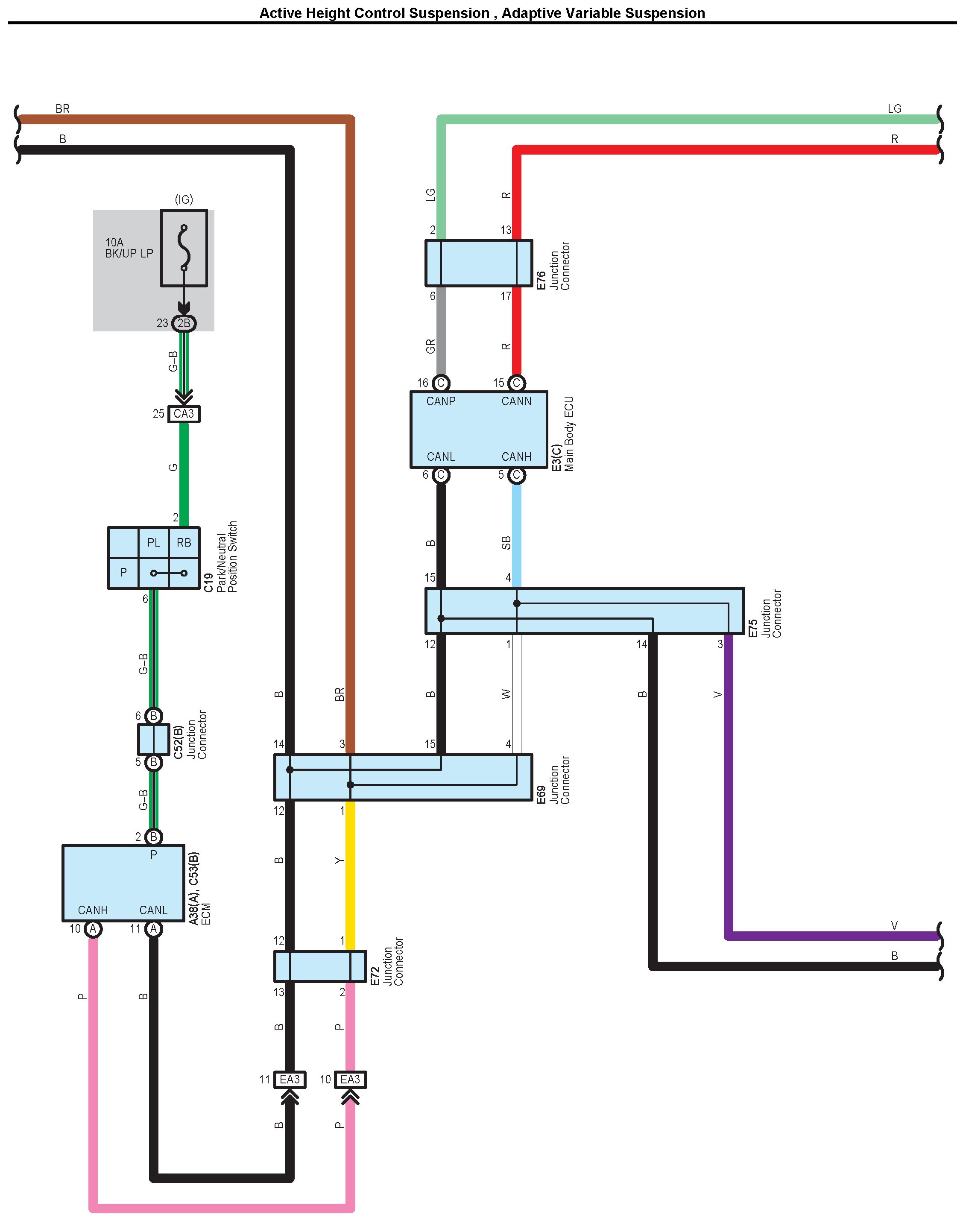

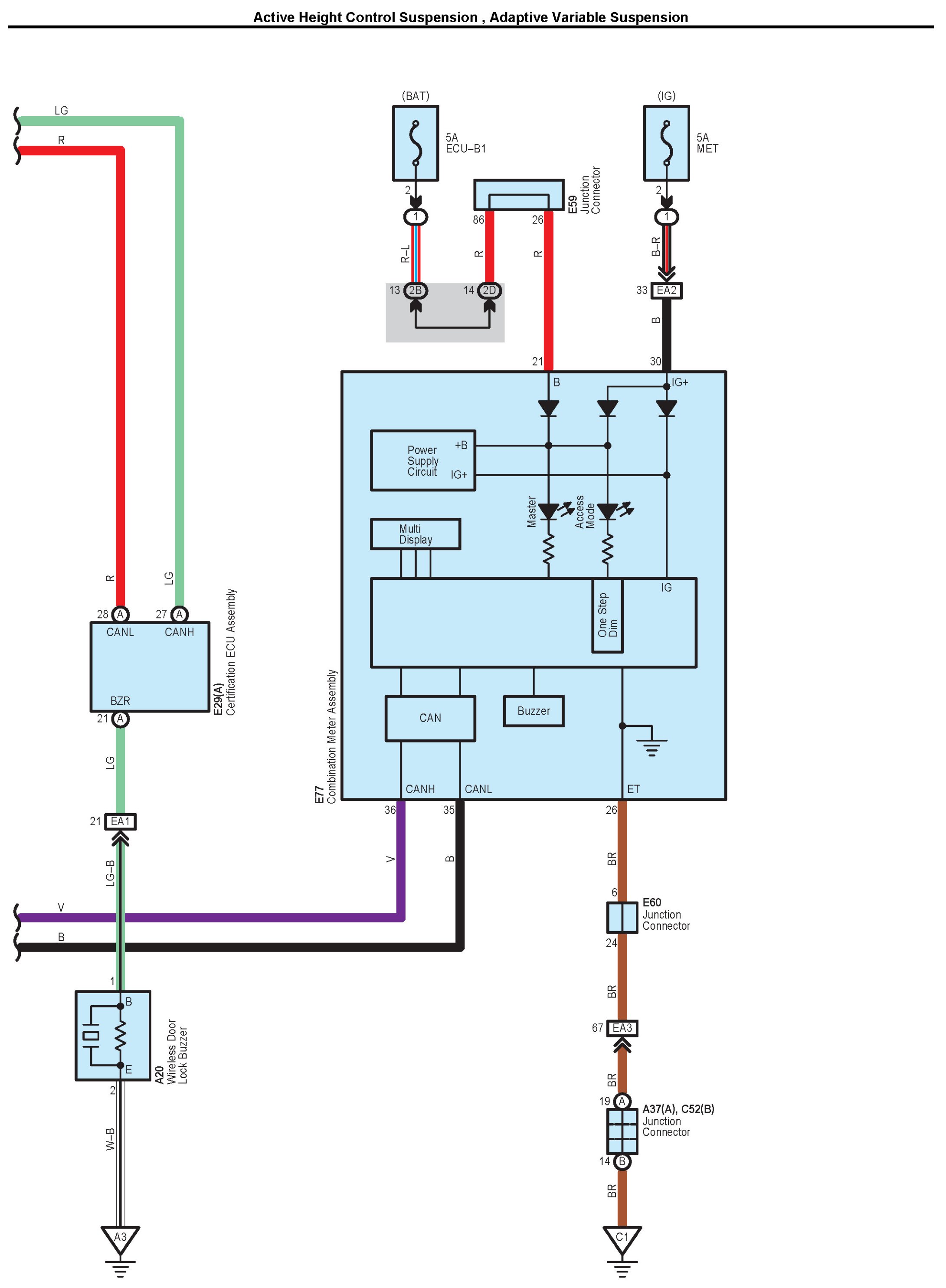

Active Height Control Suspension, Adaptive Variable Suspension Part 2:

Active Height Control Suspension, Adaptive Variable Suspension Part 3:

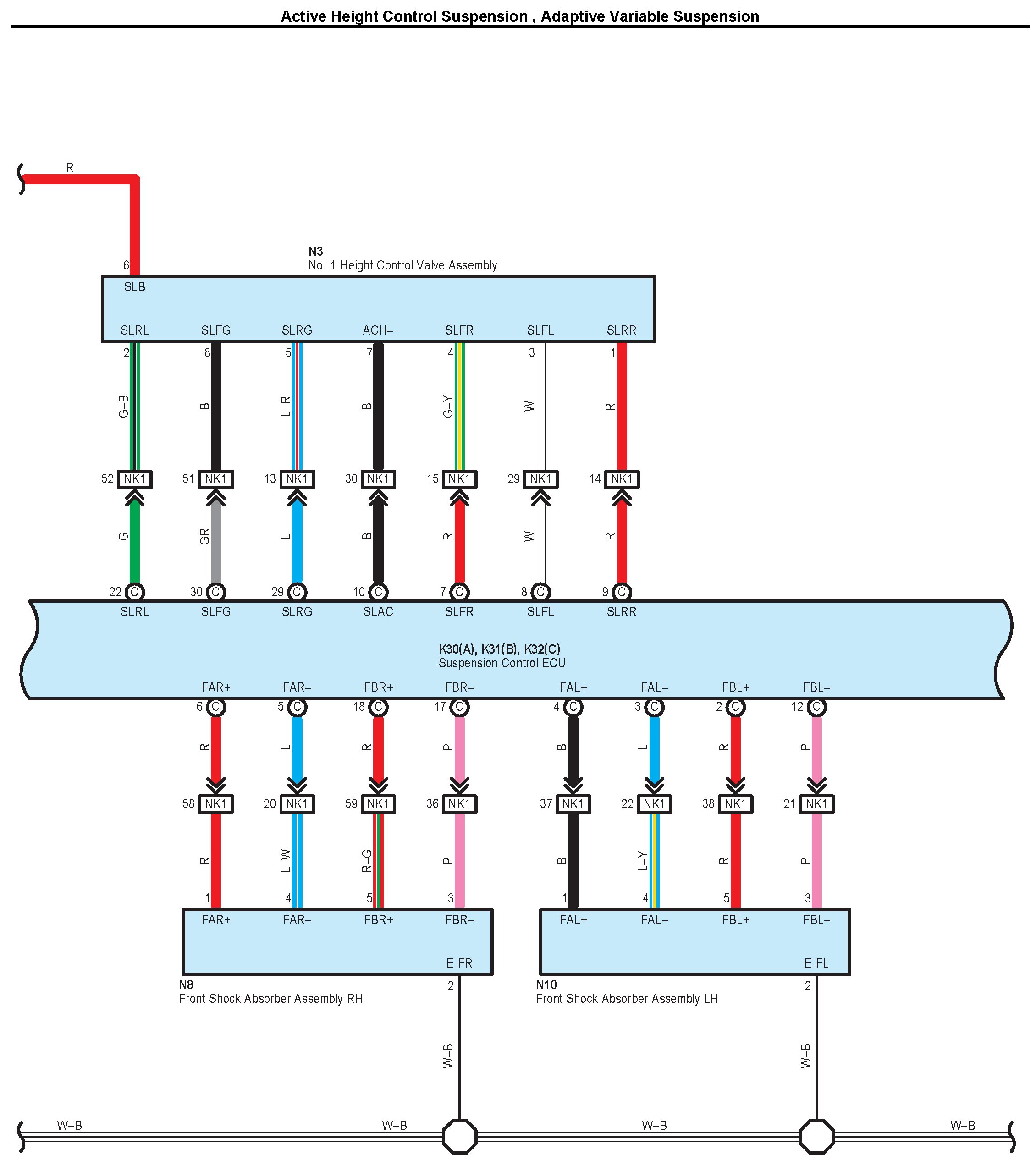

Active Height Control Suspension, Adaptive Variable Suspension Part 4:

Active Height Control Suspension, Adaptive Variable Suspension Part 5:

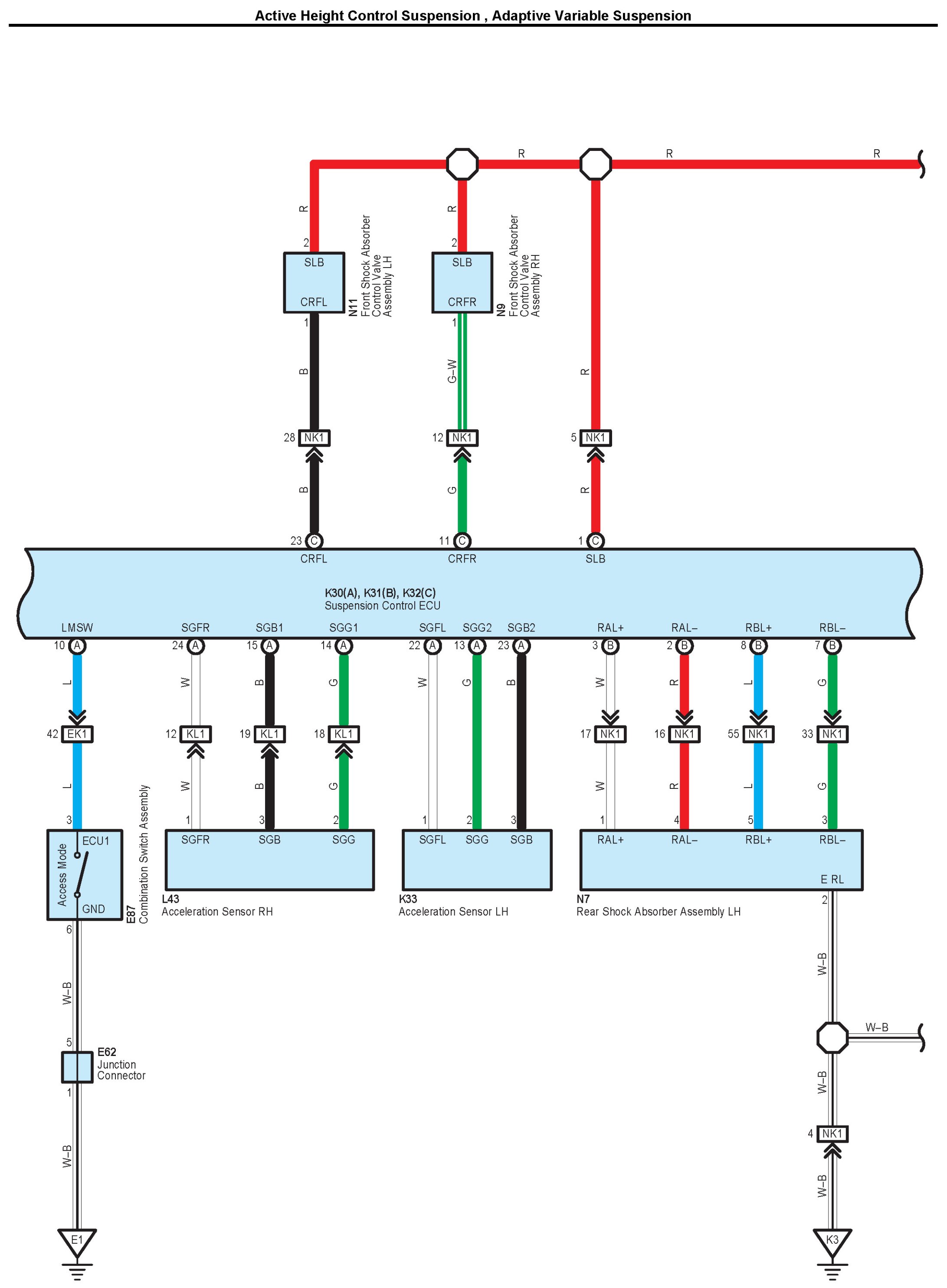

Active Height Control Suspension, Adaptive Variable Suspension Part 6:

Active Height Control Suspension, Adaptive Variable Suspension Part 7:

Active Height Control Suspension, Adaptive Variable Suspension Part 8:

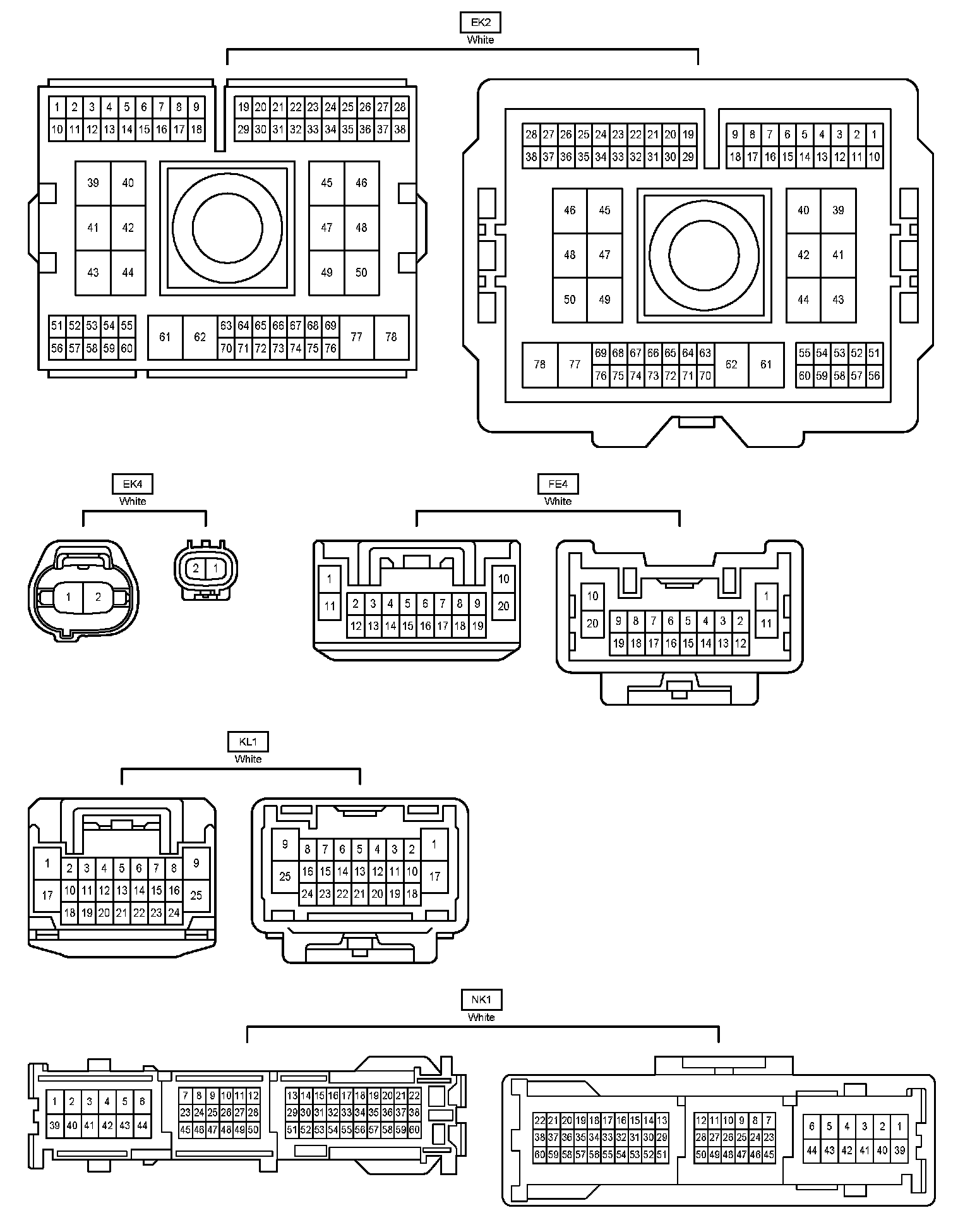

Connector Pin Outs Part 1:

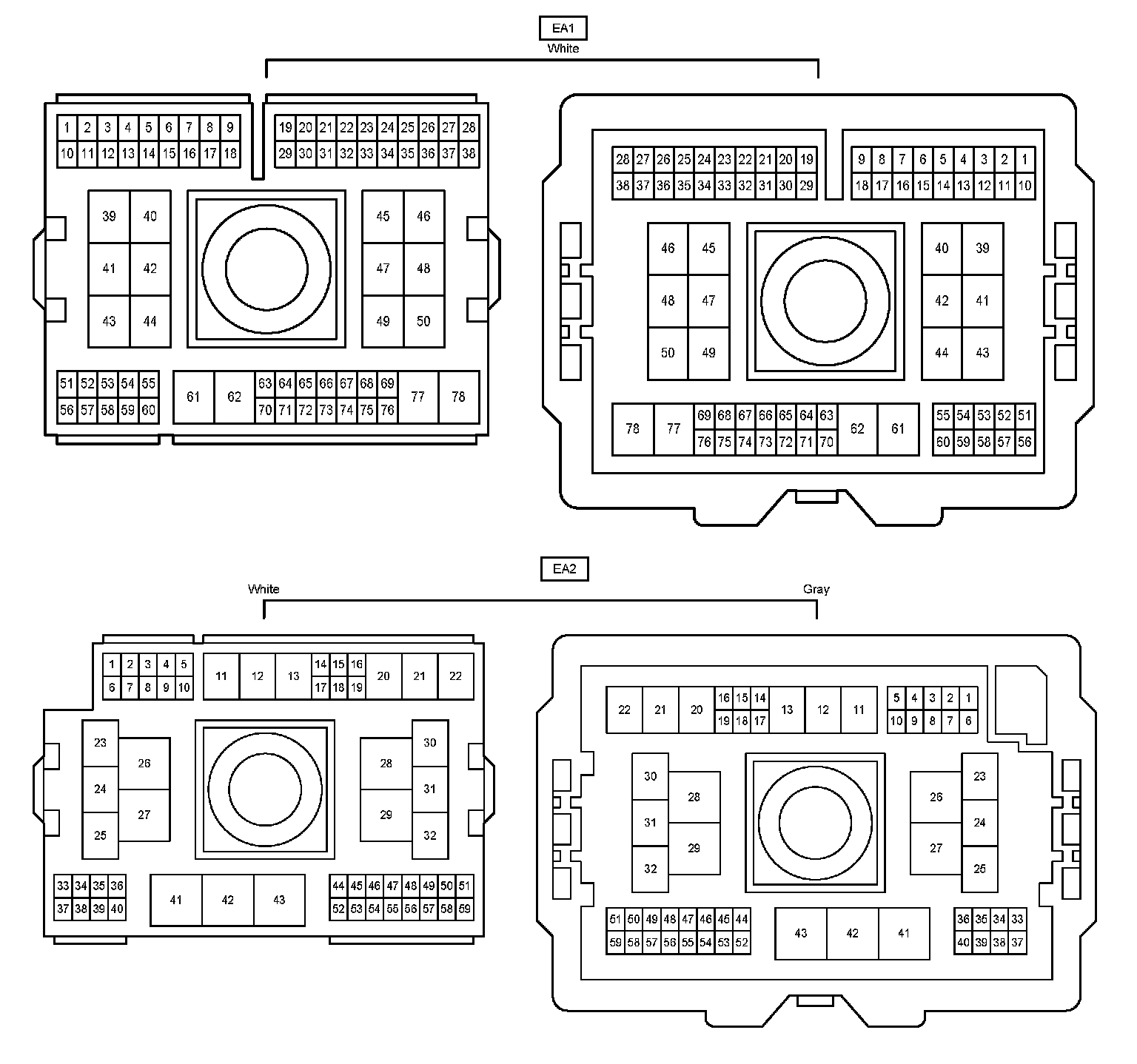

Connector Pin Outs Part 2:

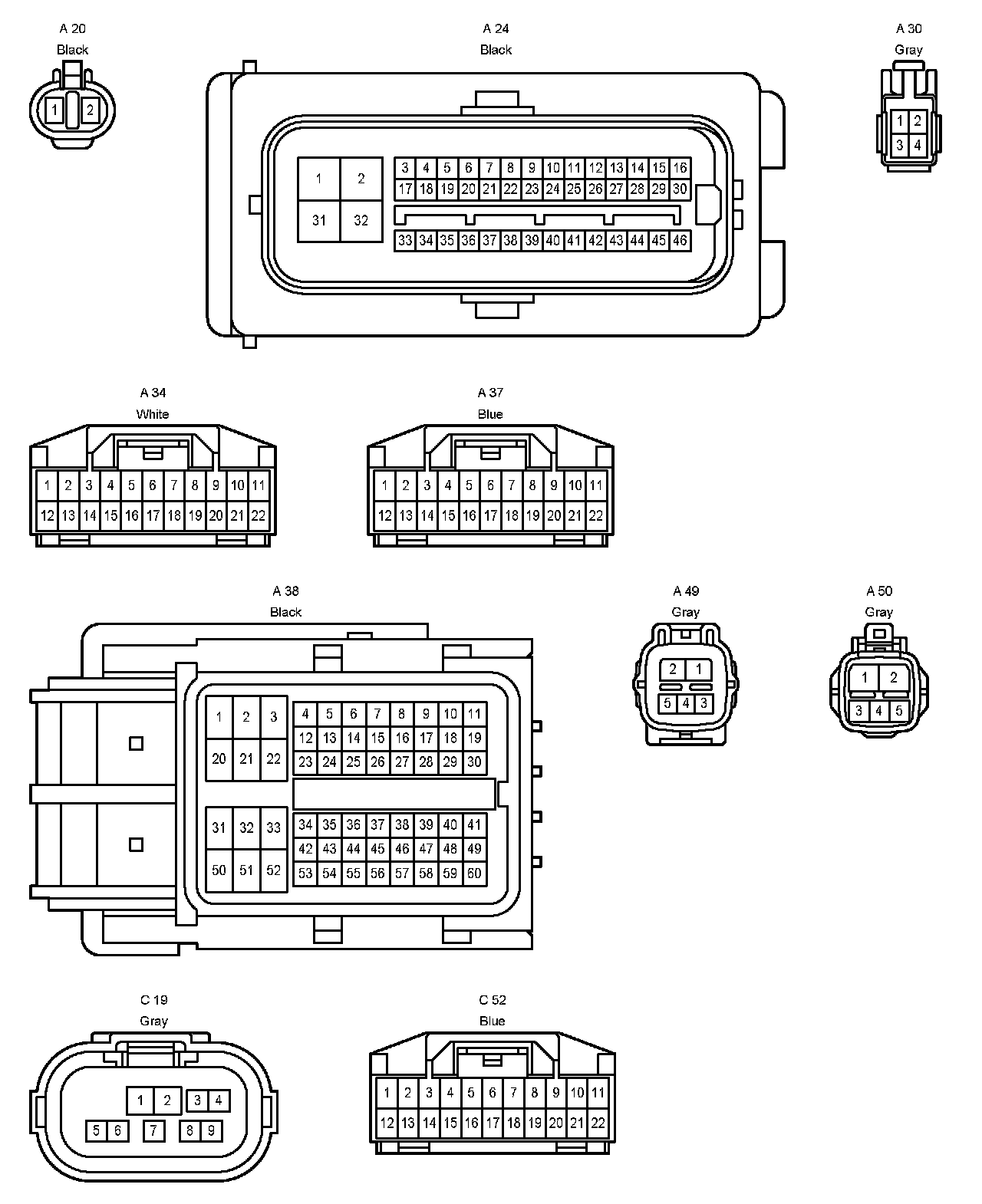

Connector Pin Outs Part 3:

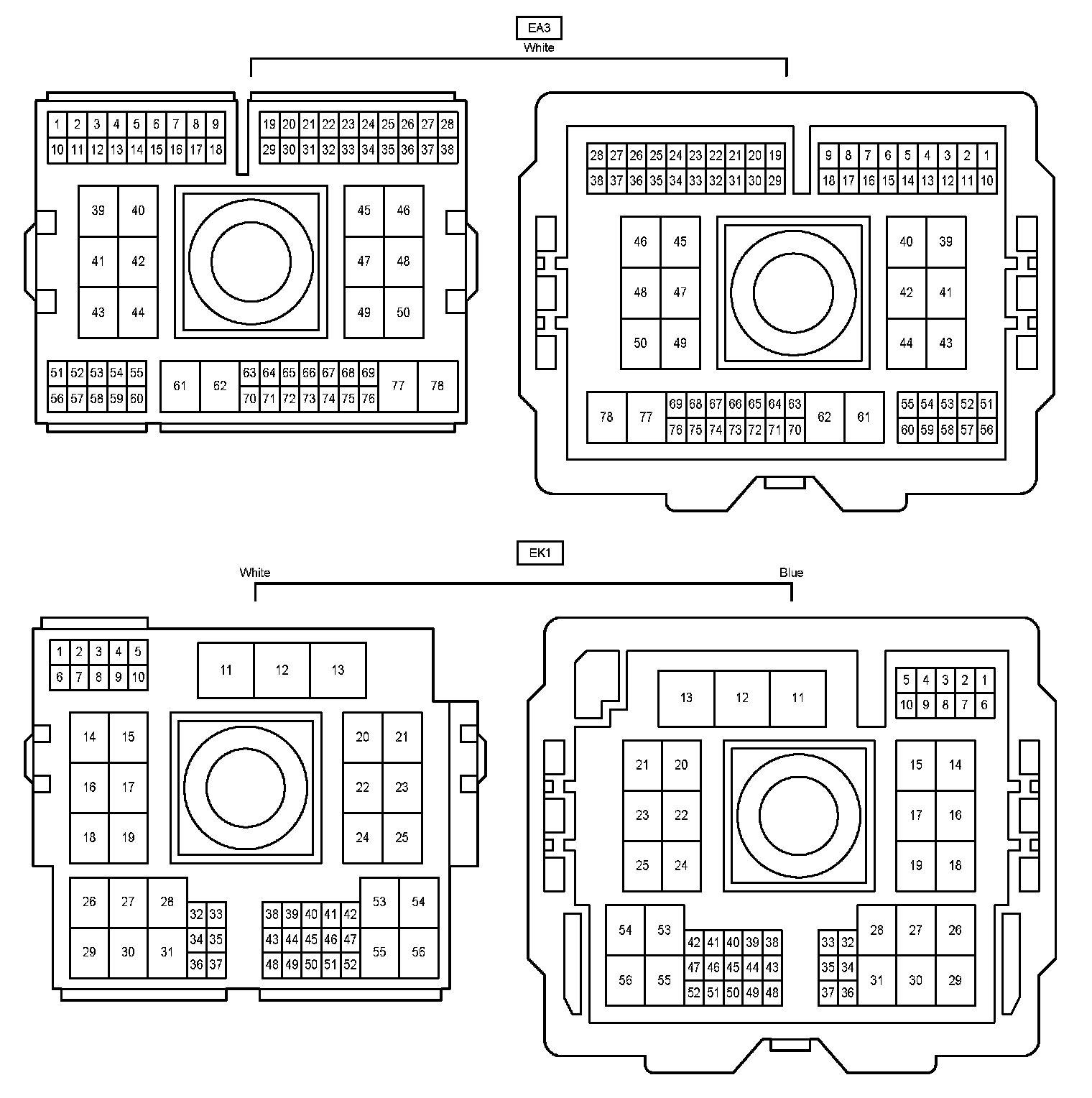

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Connector Pin Outs Part 6:

Connector Pin Outs Part 7:

Connector Pin Outs Part 8:

Connector Pin Outs Part 9:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
