Timing Components: Specifications

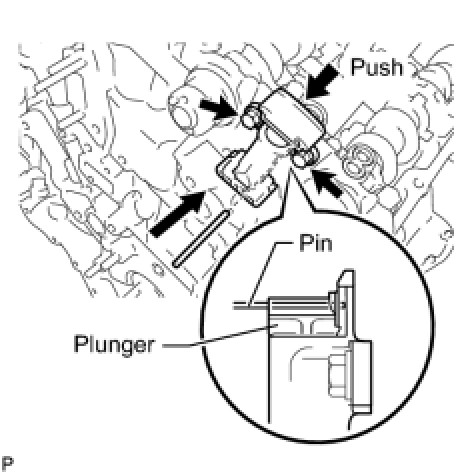

NO. 2 CHAIN TENSIONERInstall the chain tensioner with the 2 bolts.
Torque 10 Nm (102 kgf-cm, 7 ft-lbf)
NO. 1 CHAIN TENSIONER RH
Install the chain tensioner with the 2 bolts.
Torque 10 Nm (102 kgf-cm, 7 ft-lbf)
NO. 3 CHAIN TENSIONER
Install the chain tensioner with the 2 bolts.
Torque 10 Nm (102 kgf-cm, 7 ft-lbf)
NO. 1 CHAIN TENSIONER LH
Install a new gasket and the chain tensioner with the 2 bolts.
Torque 10 Nm (102 kgf-cm, 7 ft-lbf)

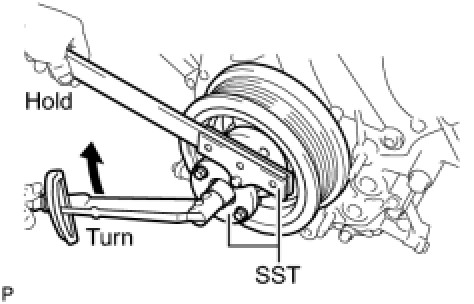

CRANKSHAFT PULLEY
Torque 300 Nm (3059 kgf-cm, 221 ft-lbf)
(b) Install the inlet pipe to the No. 1 heat exchanger cover.

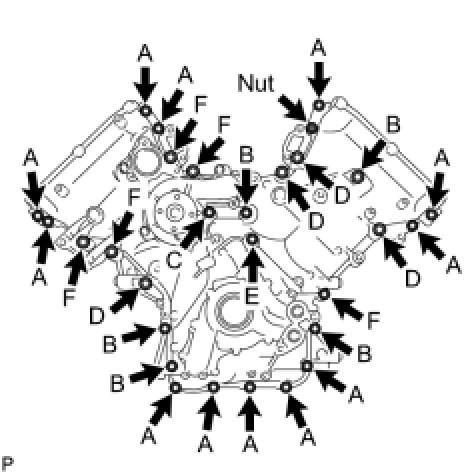

TIMING CHAIN COVER
Temporarily install the timing chain cover with the 28 bolts and nut.

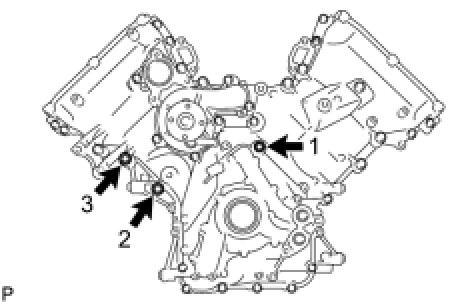

Tighten the 3 bolts in several steps in the sequence shown in the illustration.
Torque 47 Nm (479 kgf-cm, 35 ft-lbf)
Temporarily install the fluid coupling bracket with the 4 bolts.
Temporarily install the belt tensioner with the standard bolt and 6 mm hexagon wrench bolt.

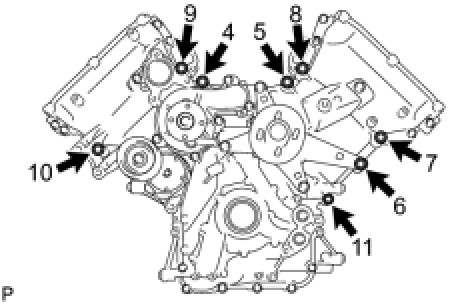

Tighten the 8 bolts labeled 4 to 11 in several steps in the sequence shown in the illustration.
Torque 47 Nm (479 kgf-cm, 35 ft-lbf)
Tighten the 23 bolts and nut labeled 12 to 35 in several steps in the sequence shown in the illustration.
Torque 23 Nm (235 kgf-cm, 17 ft-lbf)
