Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lexus Truck
>>
2008
>>
LX 570 V8-5.7L (3UR-FE)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Dashboard / Instrument Panel
>>
Service and Repair
>>
Components
Components

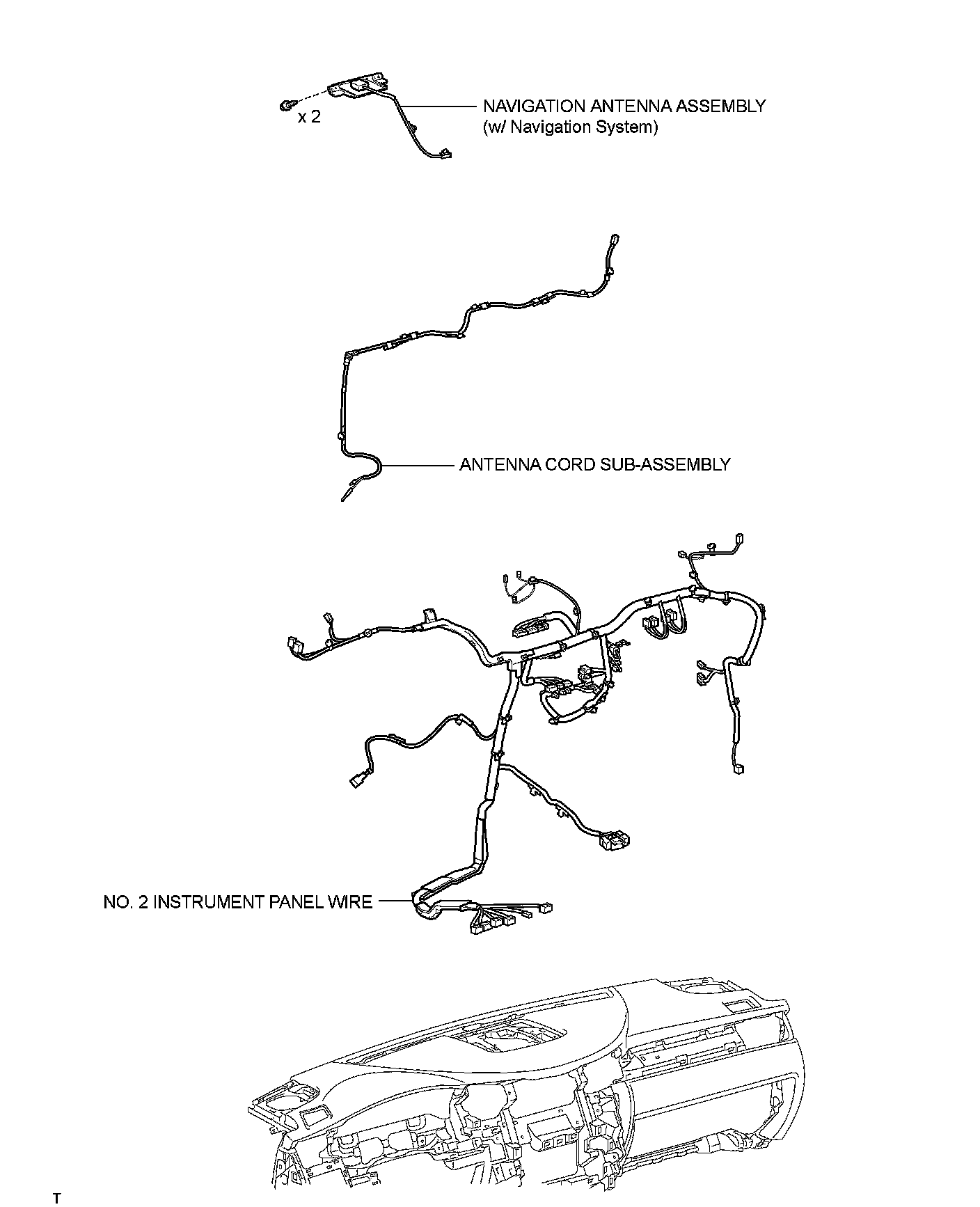

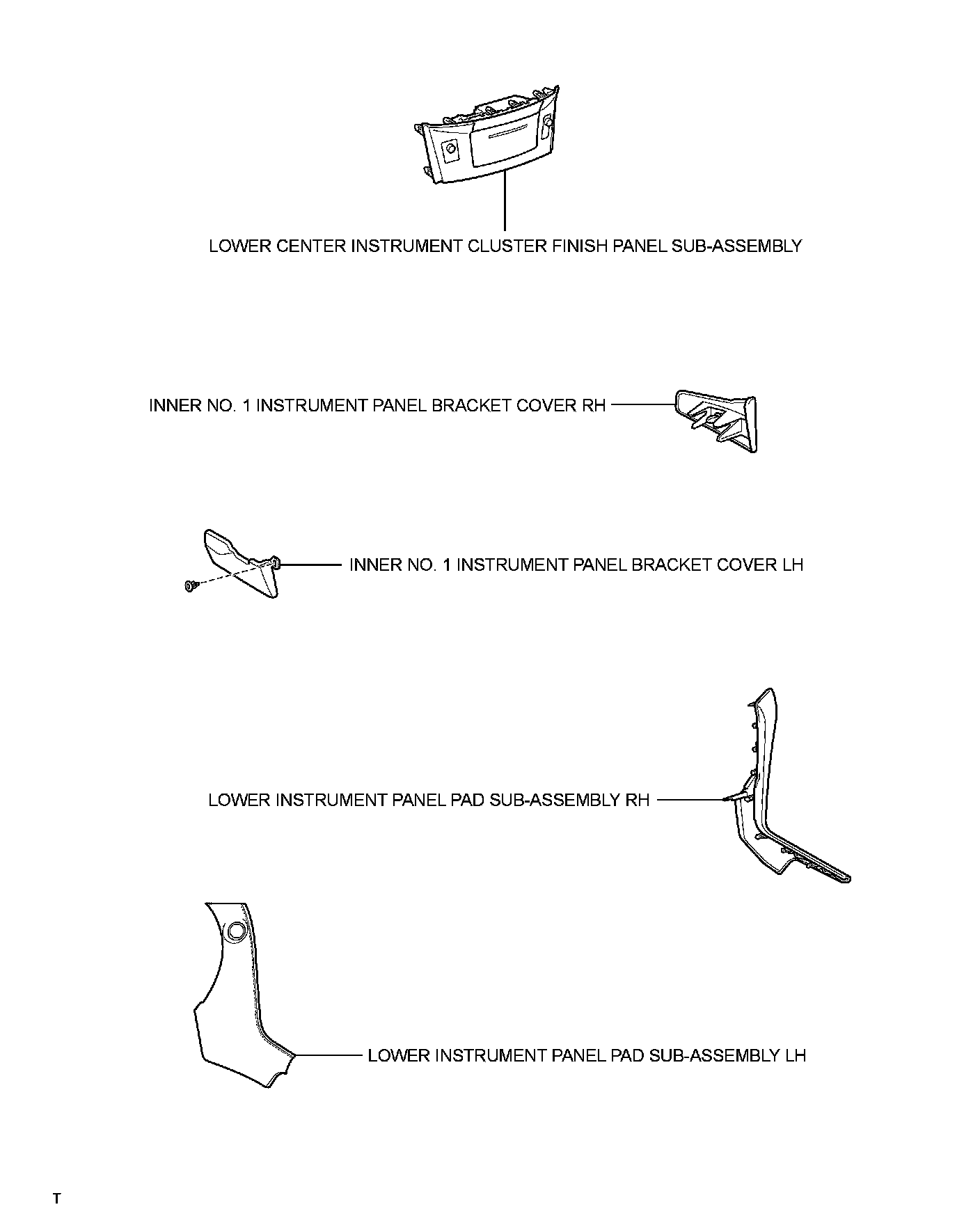

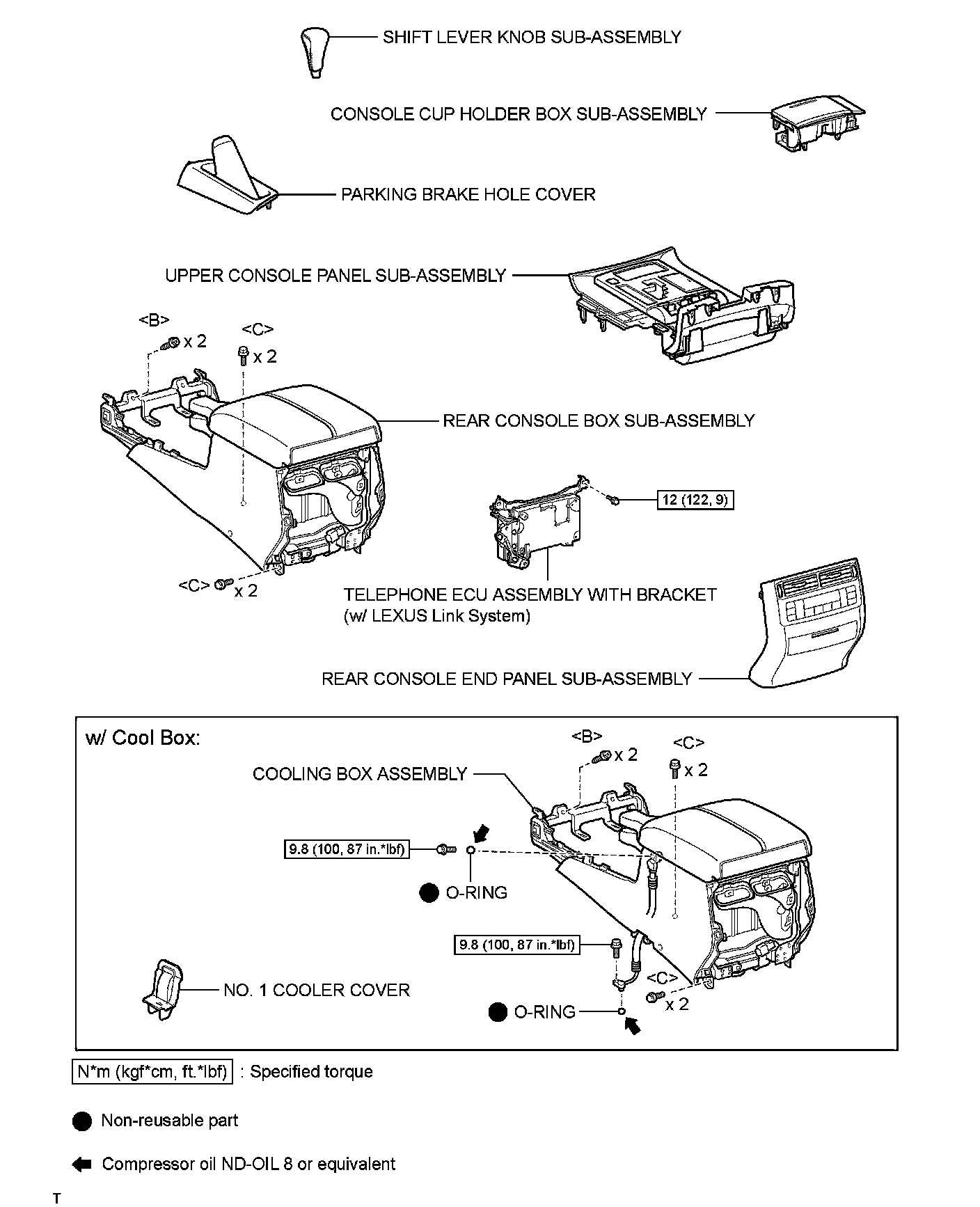

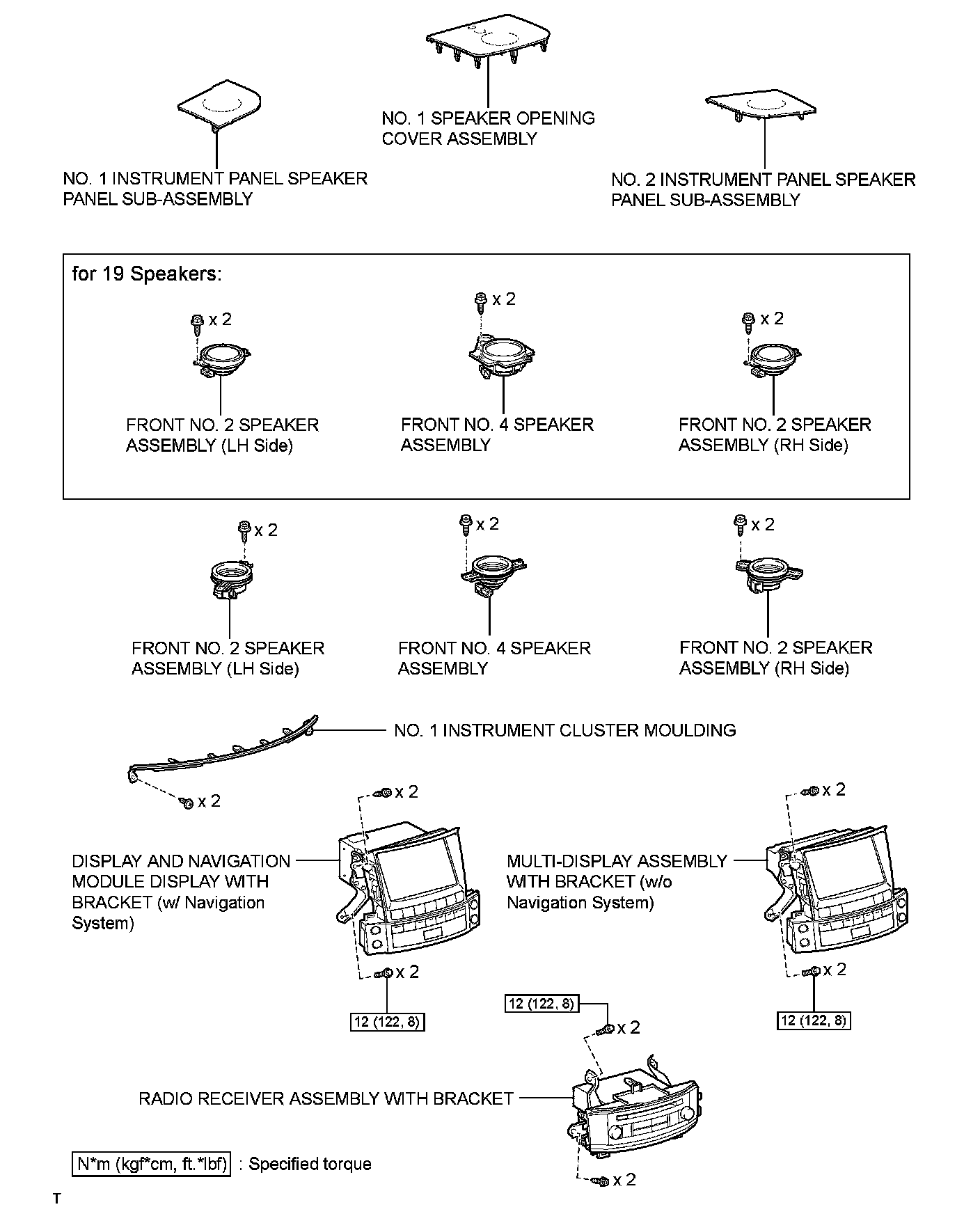

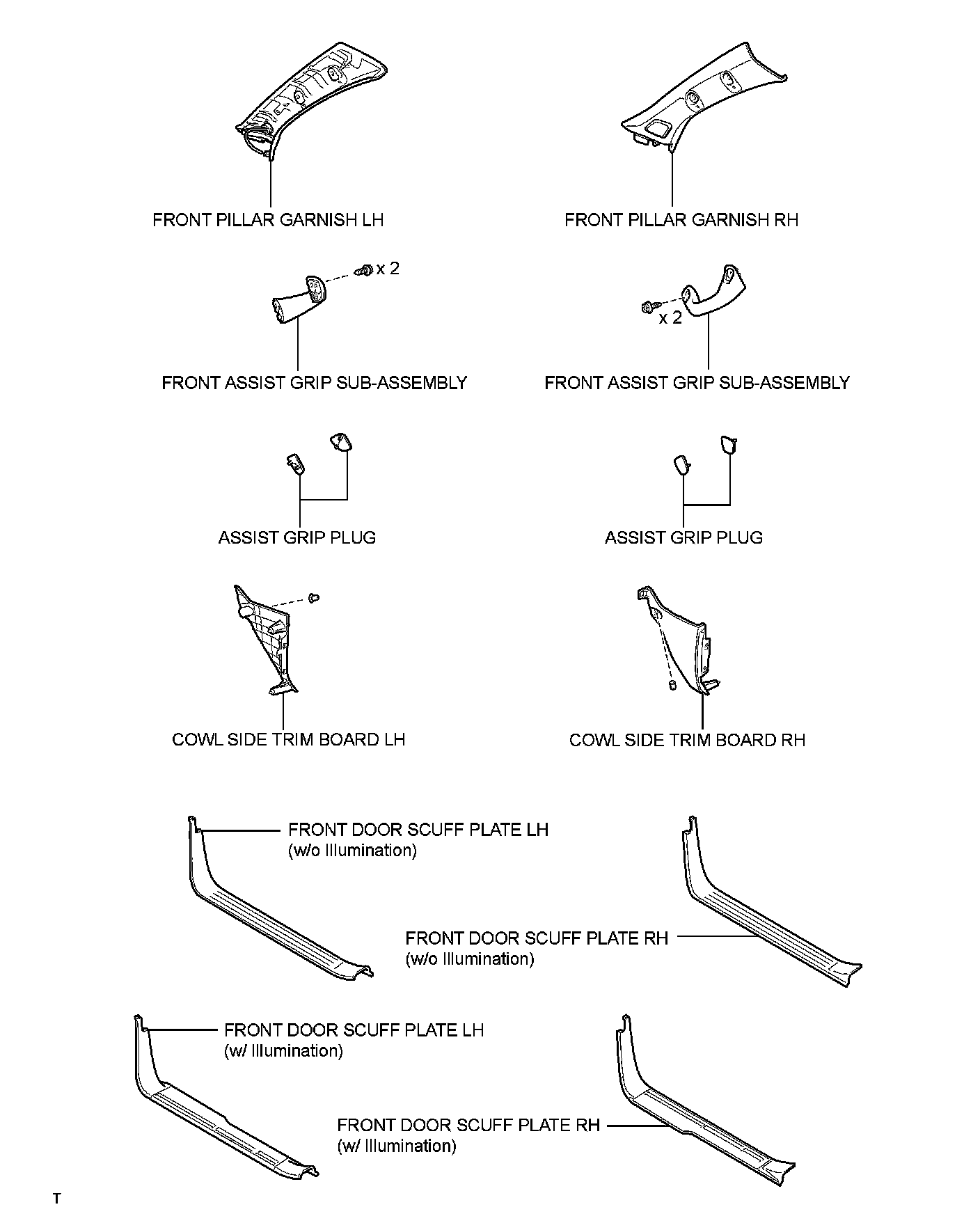

INTERIOR PANELS / TRIM: INSTRUMENT PANEL SAFETY PAD: COMPONENTS
