Instrument Panel, Gauges and Warning Indicators: Description and Operation

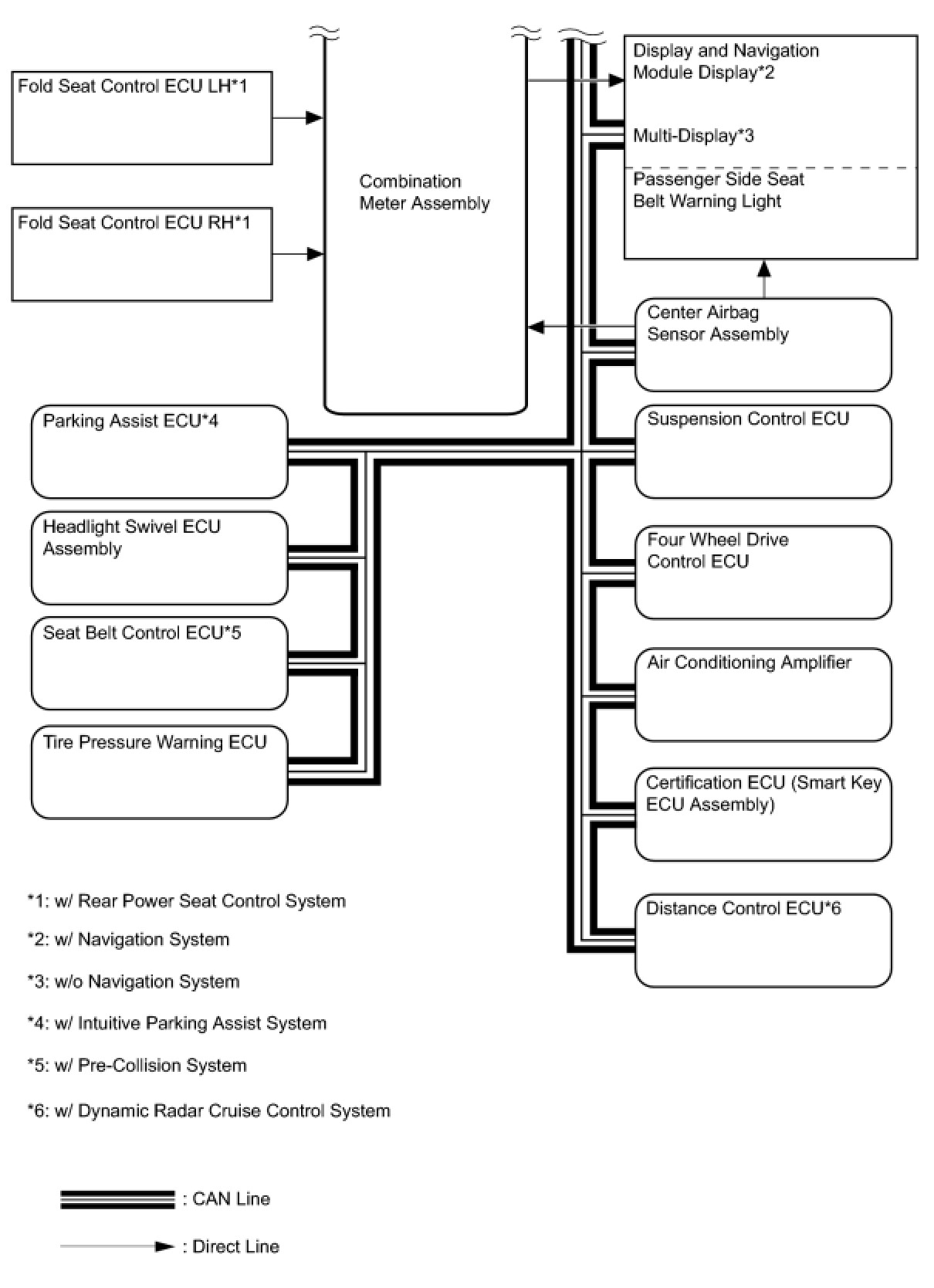

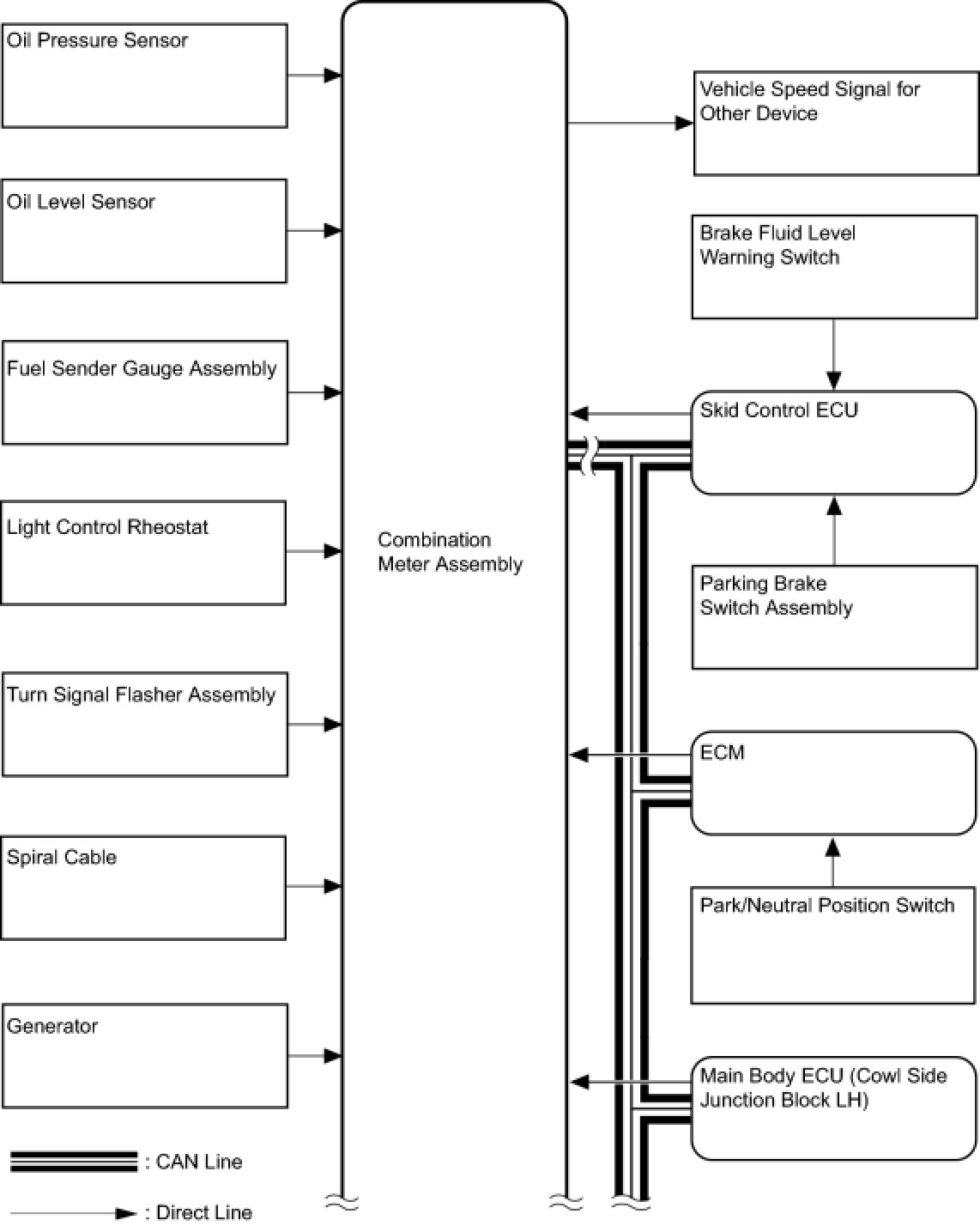

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: SYSTEM DIAGRAM

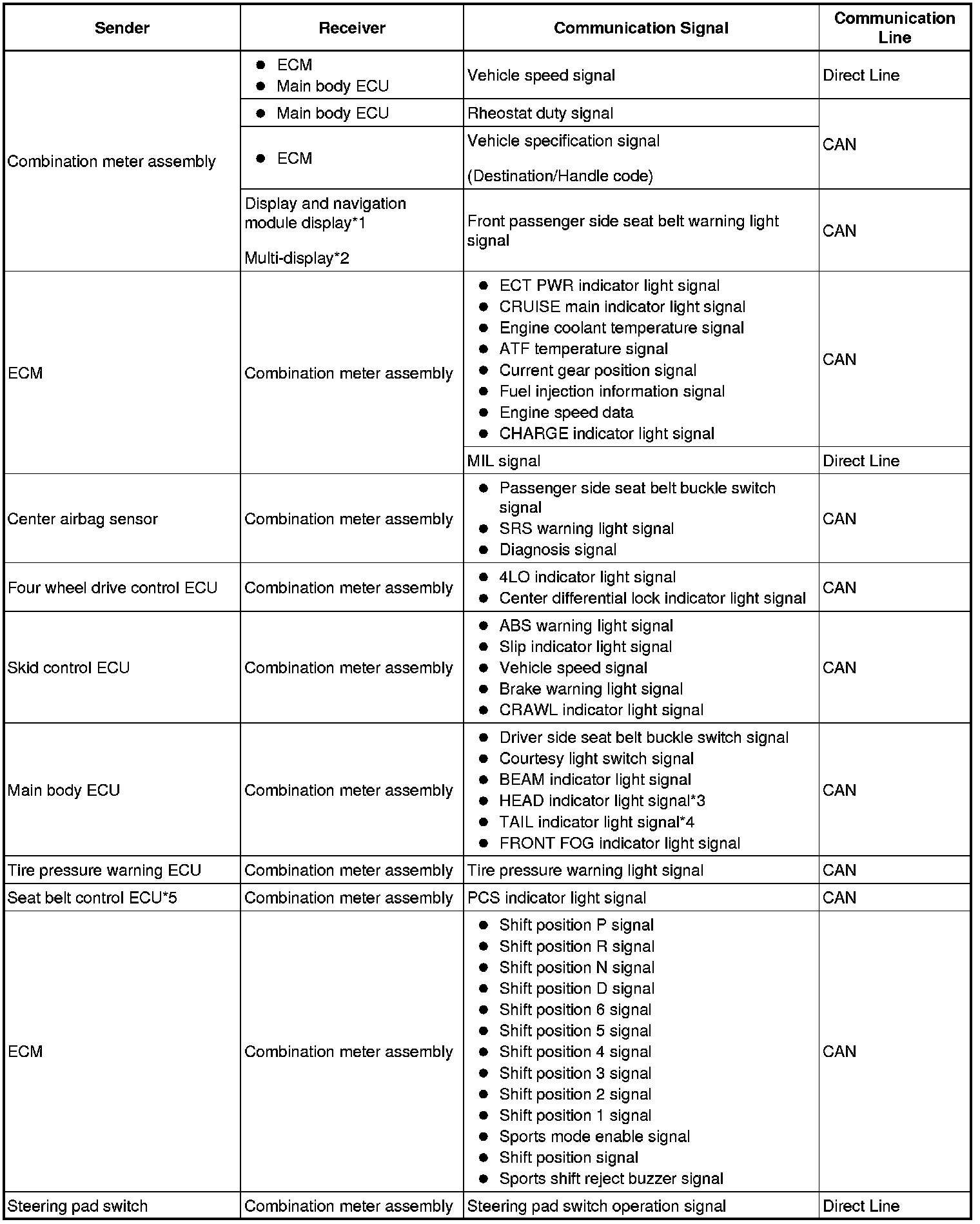

Communication Table









*1: w/ Navigation System
*2: w/o Navigation System
*3: for U.S.A.
*4: except U.S.A.
*5: w/ Pre-Collision System
*6: w/ Intuitive Parking Assist System
*7: w/ Rear Power Seat Control System
*8: w/ Dynamic Radar Cruise Control System

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: SYSTEM DESCRIPTION

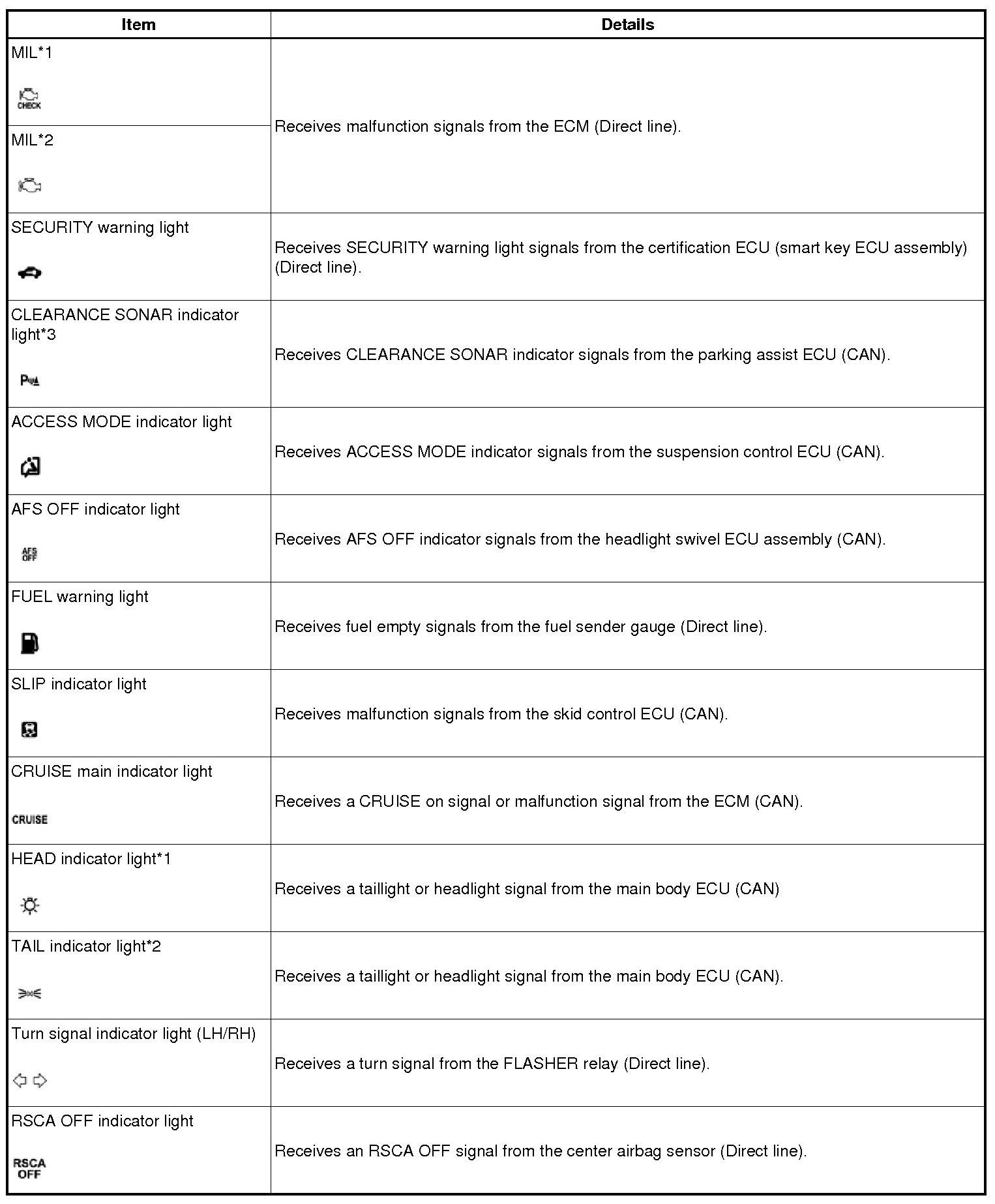

1. METER GAUGE AND WARNING/INDICATOR

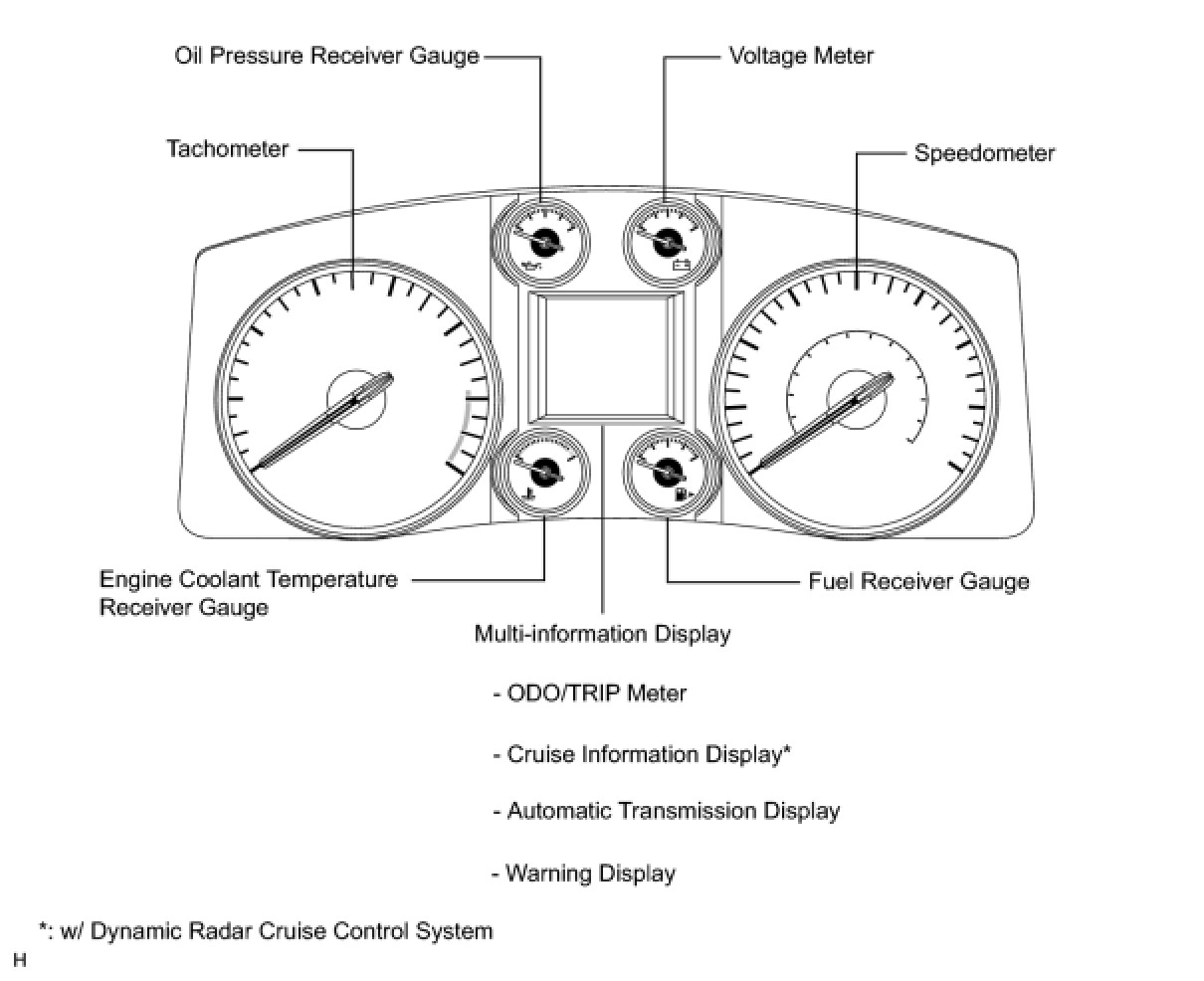

Meter/Gauge

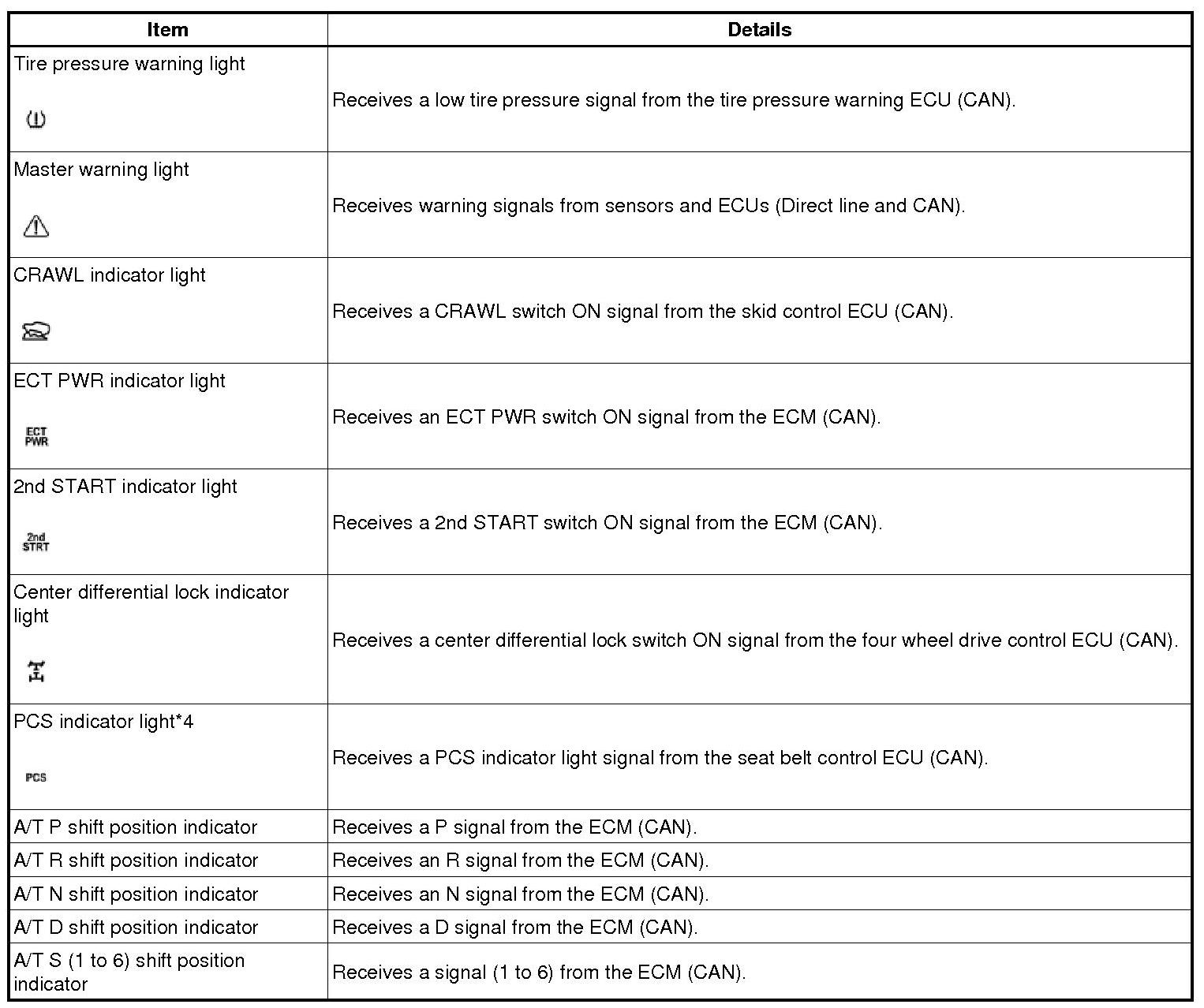

Warning/Indicator













*1: for U.S.A.
*2: except U.S.A.
*3: w/ Intuitive Parking Assist System
*4: w/ Pre-Collision System
2. MULTI-INFORMATION DISPLAY
(a) Cruise information display:
The cruise information is displayed in the following order each time the DISP switch is pressed.

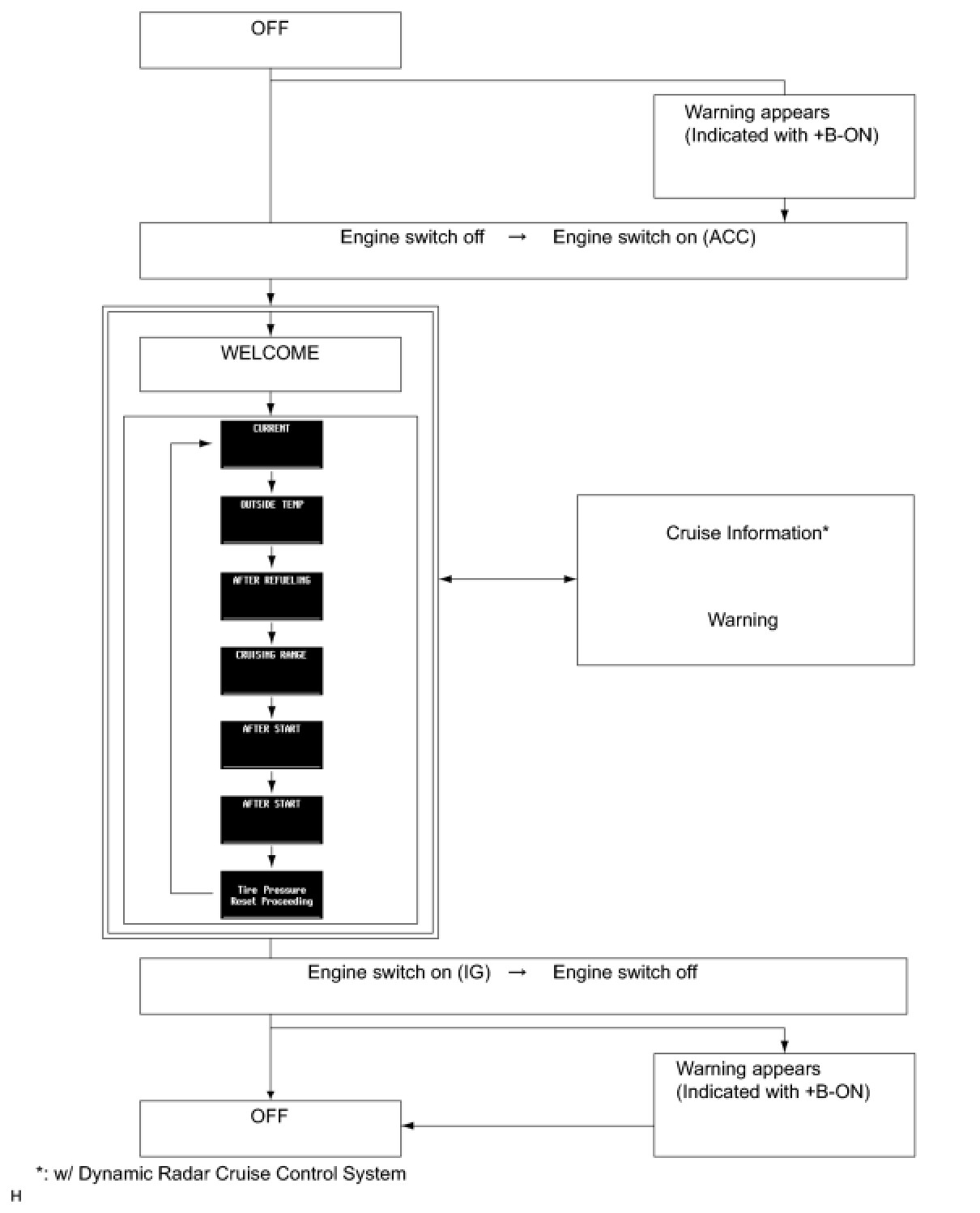

(b) Basic Flowchart.





(c) Multi-information display:

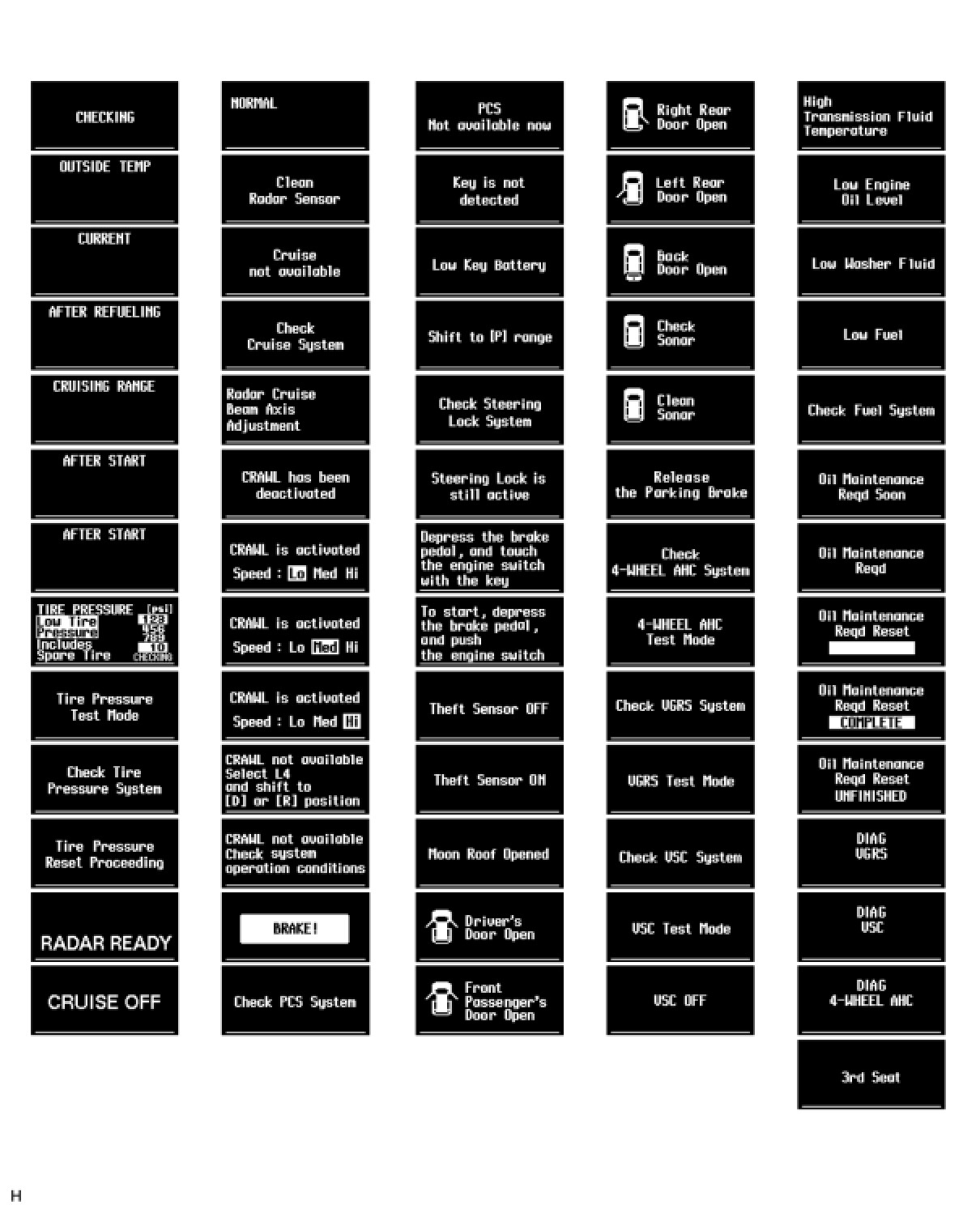

When a warning is necessary, the warning display interrupts the multi-information display.
The master warning light may illuminate or blink and a buzzer may sound depending on the item in the multi-information display.
