Exterior View Display Monitor: Locations

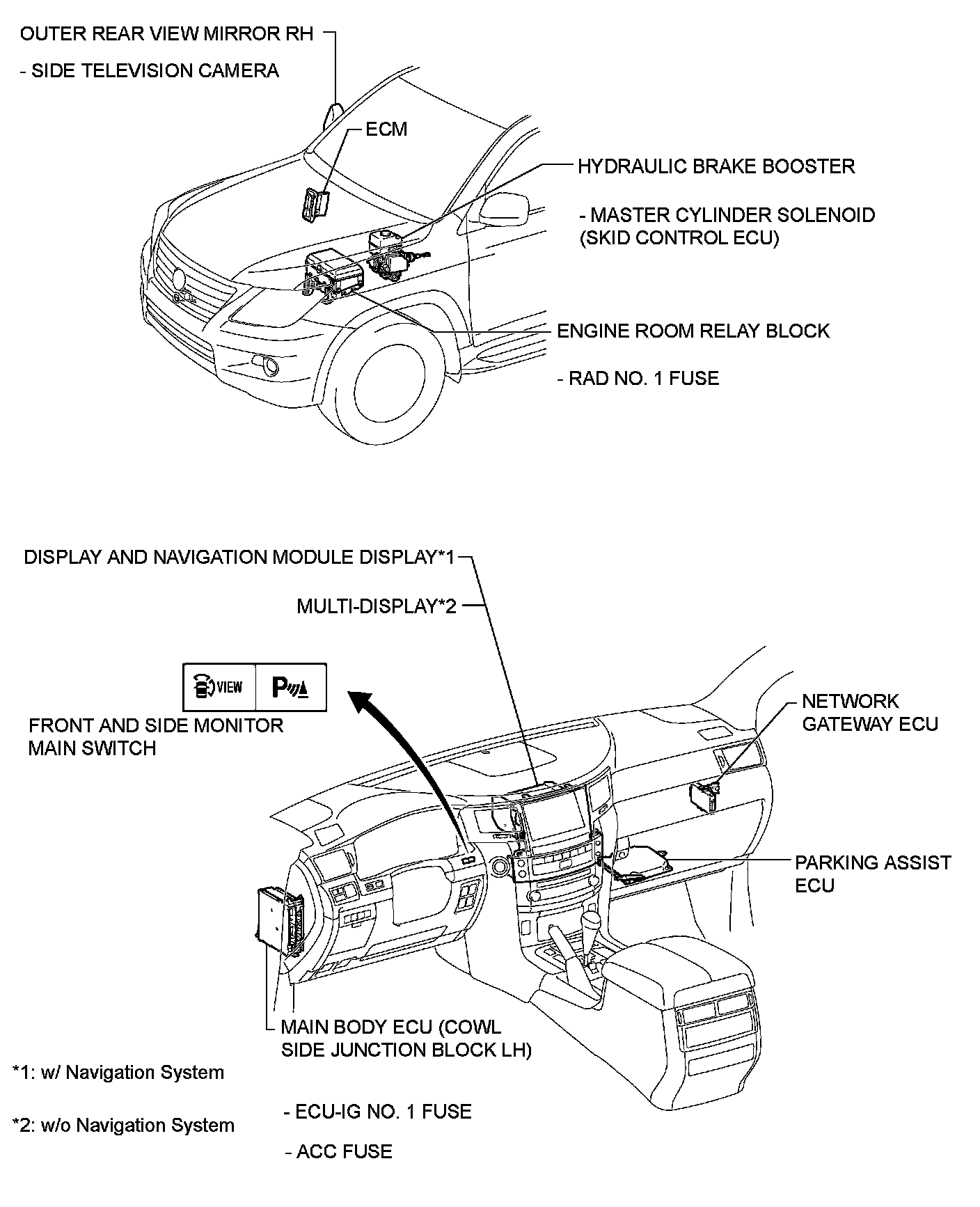

PARK ASSIST / MONITORING: SIDE MONITOR SYSTEM: PARTS LOCATION
