Reassembly

METER / GAUGE / DISPLAY: COMBINATION METER: REASSEMBLY

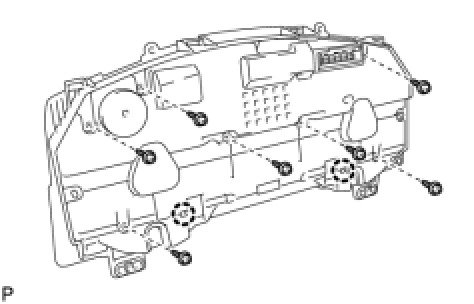

1. INSTALL NO. 1 COMBINATION METER COVER






(a) Attach the 2 claws to install the meter cover.
(b) Install the 7 screws.

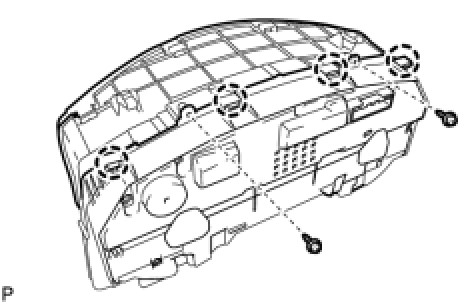

2. INSTALL NO. 2 COMBINATION METER COVER






(a) Attach the 4 claws to install the meter cover.
(b) Install the 2 screws.

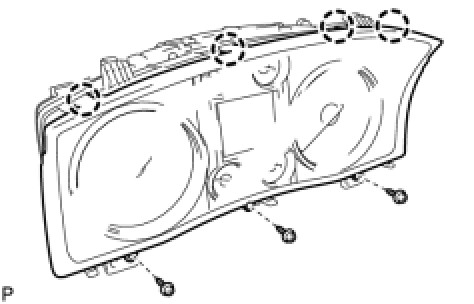

3. INSTALL COMBINATION METER GLASS






(a) Attach the 4 claws to install the meter glass.
(b) Install the 3 screws.
