Installation

LIGHTING (EXT): BACK-UP LIGHT ASSEMBLY: INSTALLATION


1. INSTALL BACK-UP LIGHT LENS AND BODY LH






(a) Install the light lens and body with the 3 screws.
(b) Attach the clip and connect the connector.

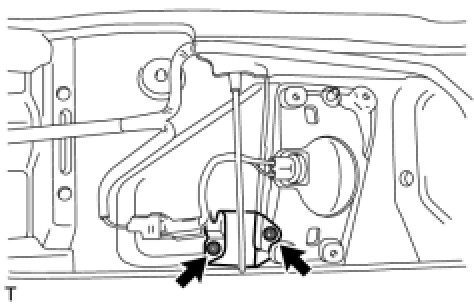

(c) Install the bracket with the 2 screws.
2. INSTALL BACK DOOR TRIM PANEL ASSEMBLY Reassembly

3. INSTALL BACK DOOR TRIM COVER RH Reassembly

4. INSTALL BACK DOOR TRIM COVER LH Reassembly

5. INSTALL REAR FLOOR MAT SUPPORT PLATE REAR Installation
