Inside Handle Light (for Rear)

LIGHTING (INT): INSIDE HANDLE LIGHT (for Rear): INSPECTION


1. INSPECT REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH (INSIDE HANDLE LIGHT)

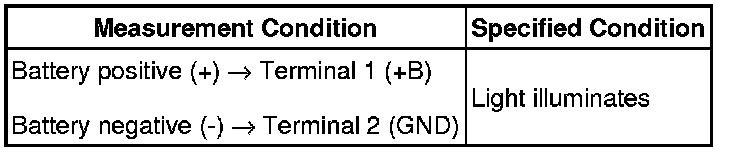

(a) Apply battery voltage to the connector and check the LED illumination condition.
OK:





If the result is not as specified, there may be a malfunction in the light.
