Installation

LIGHTING (EXT): FOG LIGHT ASSEMBLY: INSTALLATION

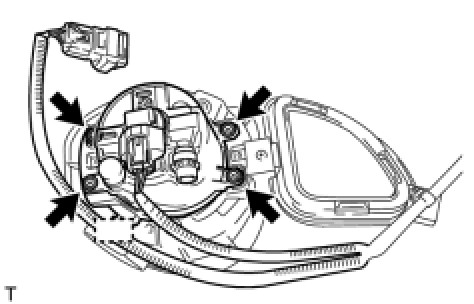

1. INSTALL FOG LIGHT ASSEMBLY LH






(a) Install the fog light with the 4 screws.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)
(b) Attach the clamp.
2. INSTALL FRONT BUMPER
(a) Install the front bumper Installation.
3. VEHICLE PREPARATION FOR FOG LIGHT AIMING ADJUSTMENT Adjustments

4. PREPARATION FOR FOG LIGHT AIMING Adjustments

5. INSPECT FOG LIGHT AIMING Adjustments

6. ADJUST FOG LIGHT AIMING Adjustments
