Home >> Lexus Truck >> 2008 >> LX 570 V8-5.7L (3UR-FE) >> Repair and Diagnosis >> Lighting and Horns >> Locations

Lighting and Horns: Locations

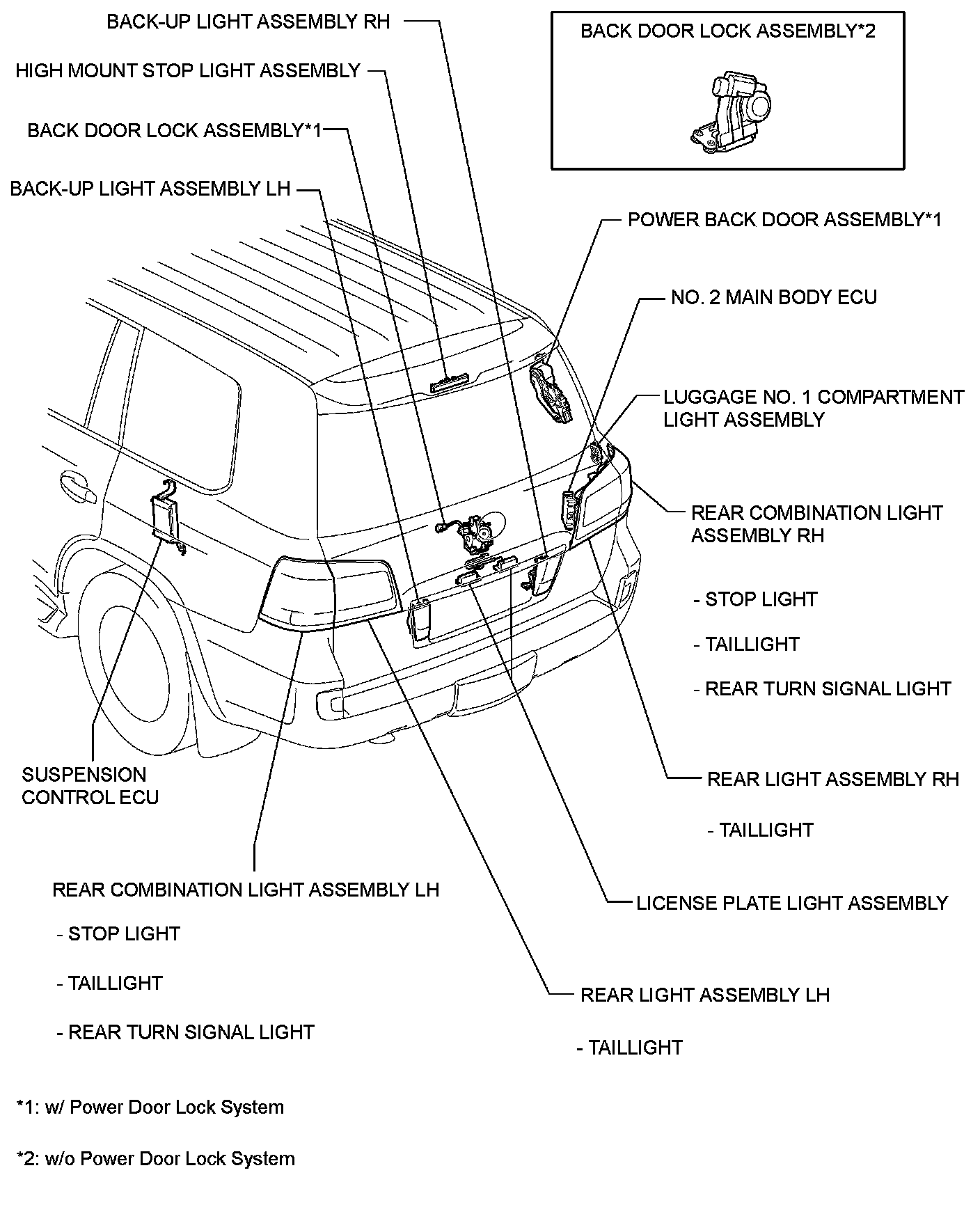

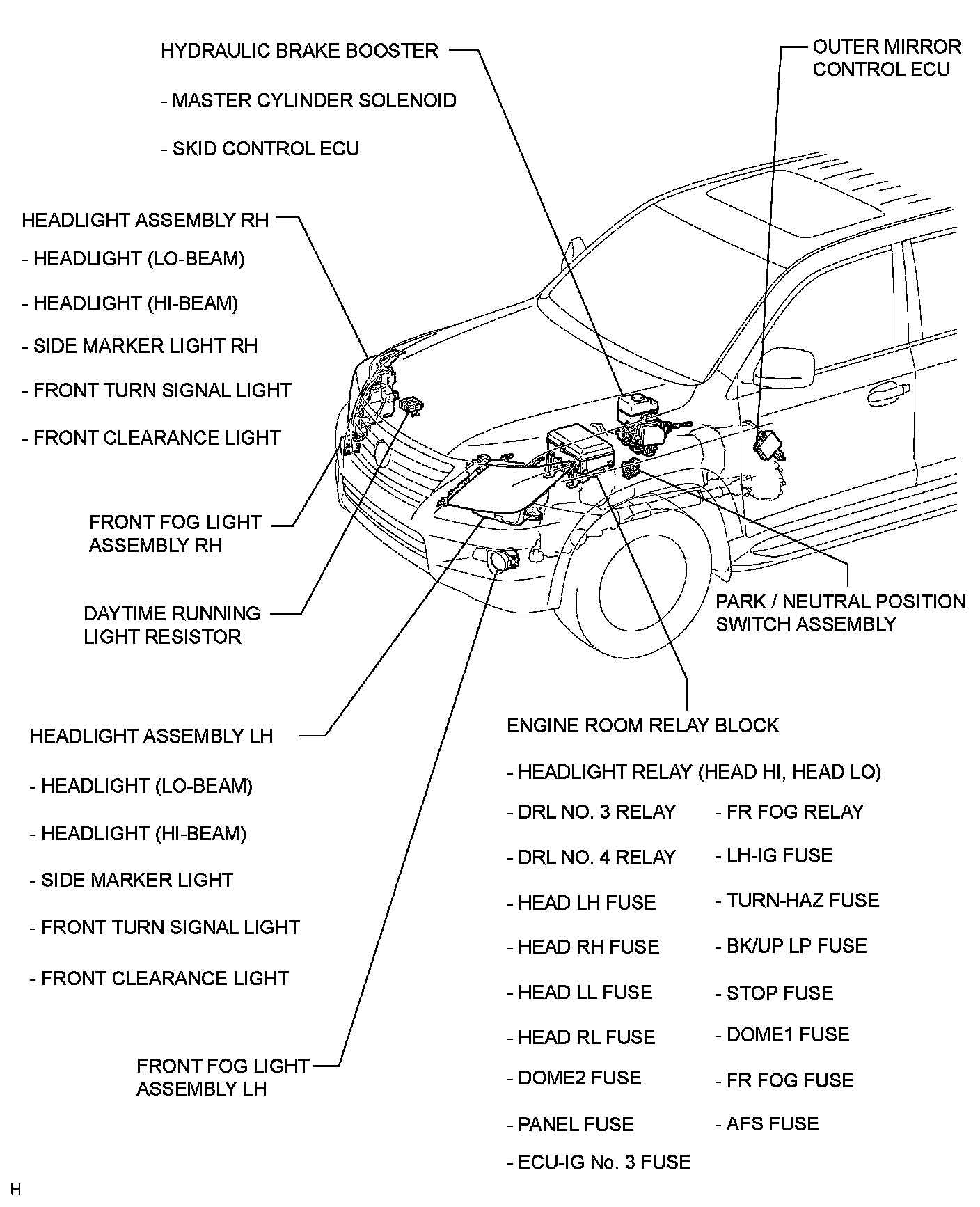

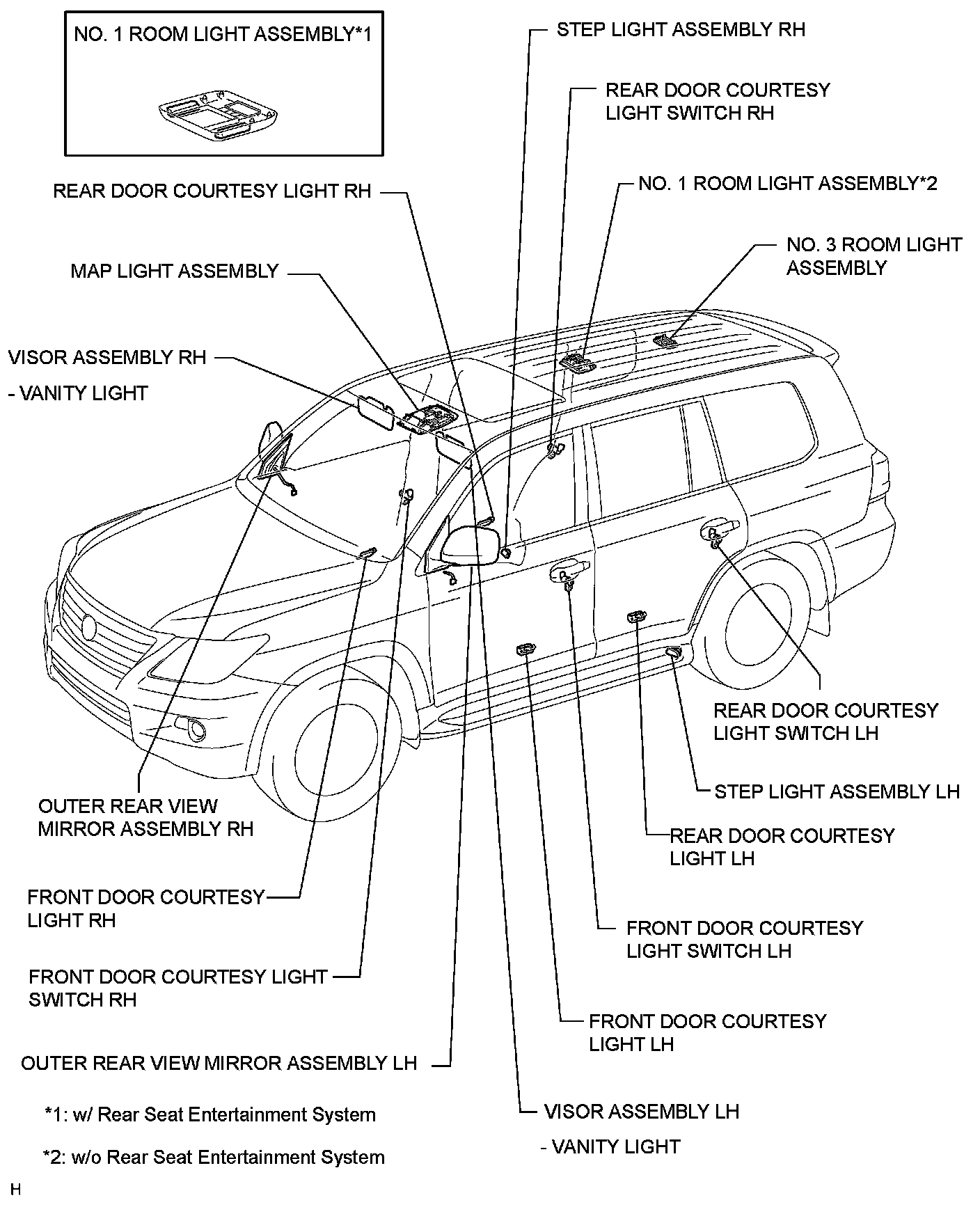

LIGHTING (EXT): LIGHTING SYSTEM: PARTS LOCATION
