Lexus Truck
>>
2008
>>
LX 570 V8-5.7L (3UR-FE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
Fuse: Locations
Cowl Side J/B LH Assembly - Cowl Side Left:

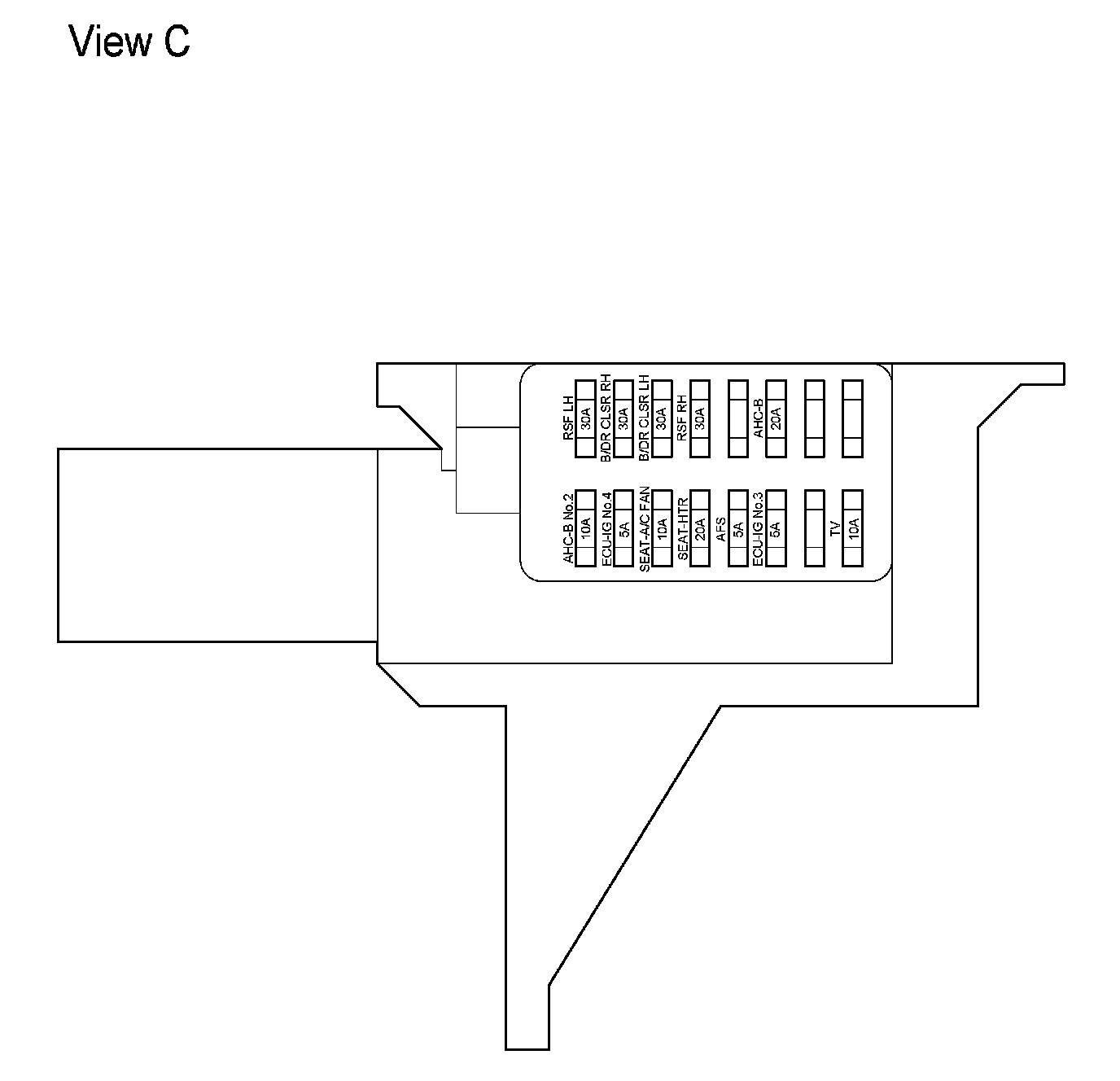

Cowl Side J/B RH Assembly - Cowl Side Right:
