Lexus Truck
>>
2008
>>
LX 570 V8-5.7L (3UR-FE)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Cooling System
>>
Engine - Coolant Temperature Sensor/Switch
>>
Locations
Engine - Coolant Temperature Sensor/Switch: Locations

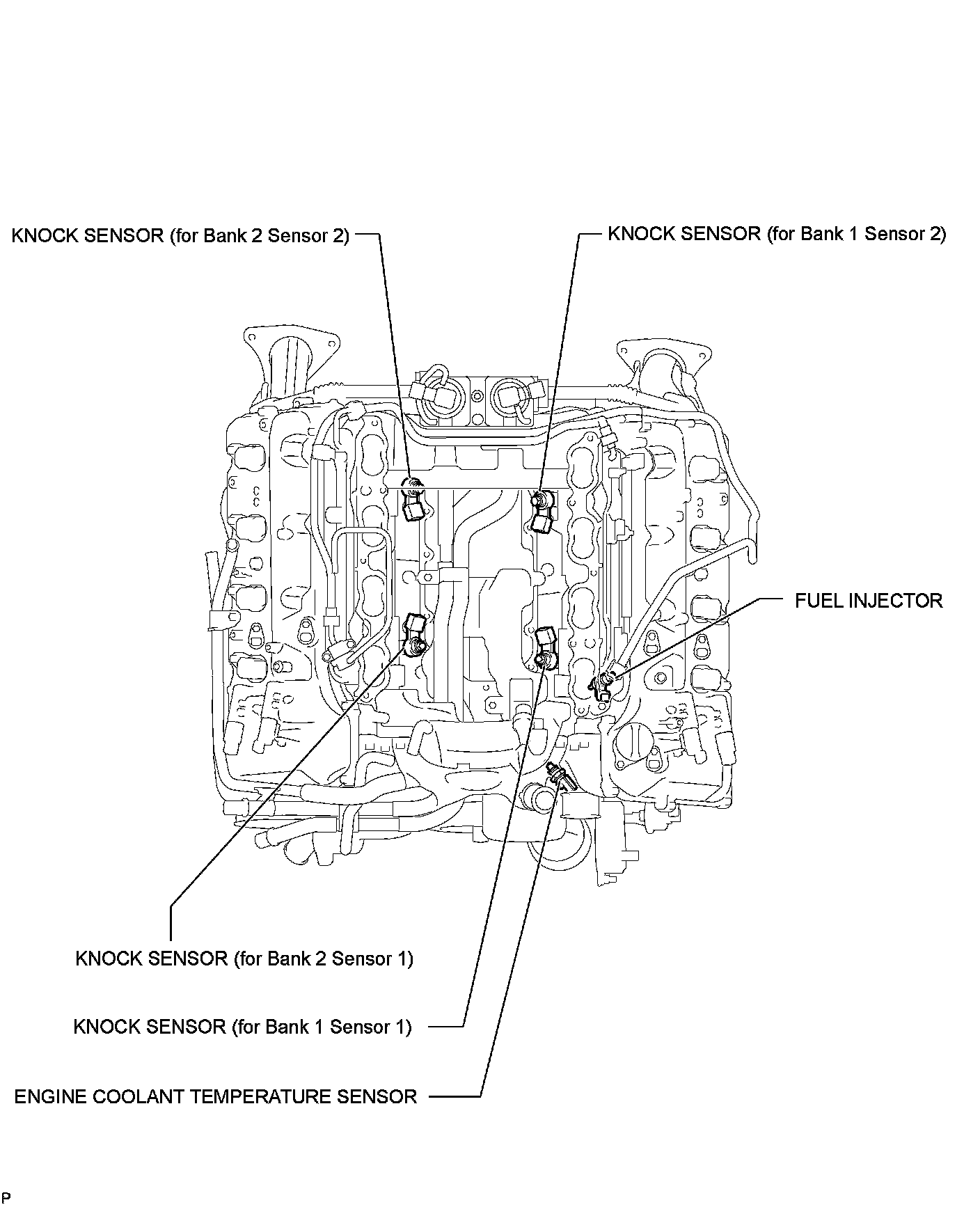

3UR-FE ENGINE CONTROL: SFI SYSTEM: PARTS LOCATION
SFI System:
