System Specifications









SPECIFICATIONS: 3UR-FE ENGINE MECHANICAL: SERVICE DATA

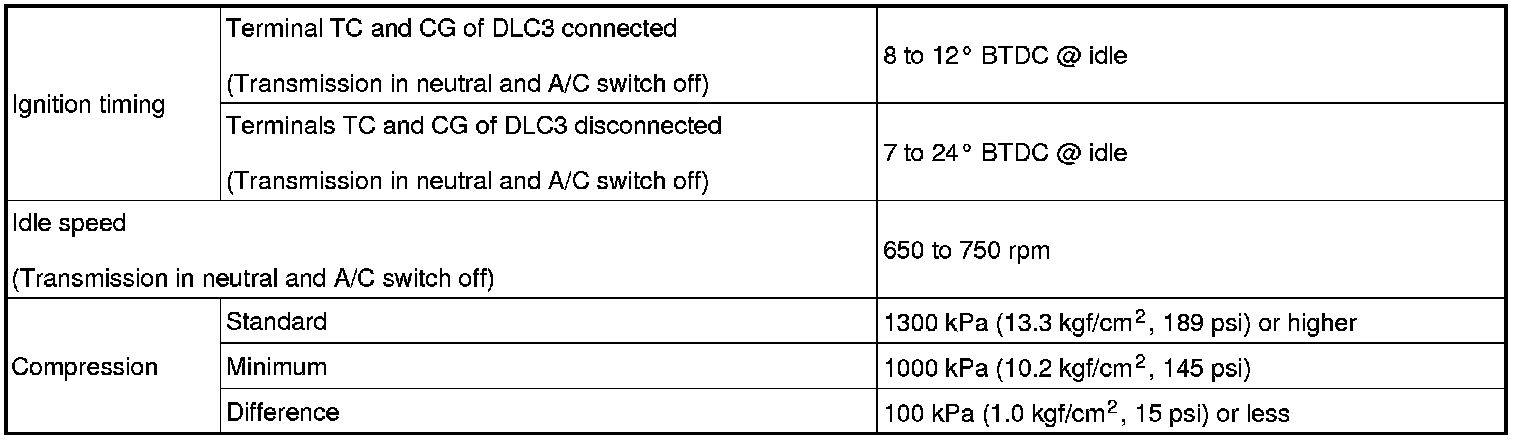

Engine





Engine Unit

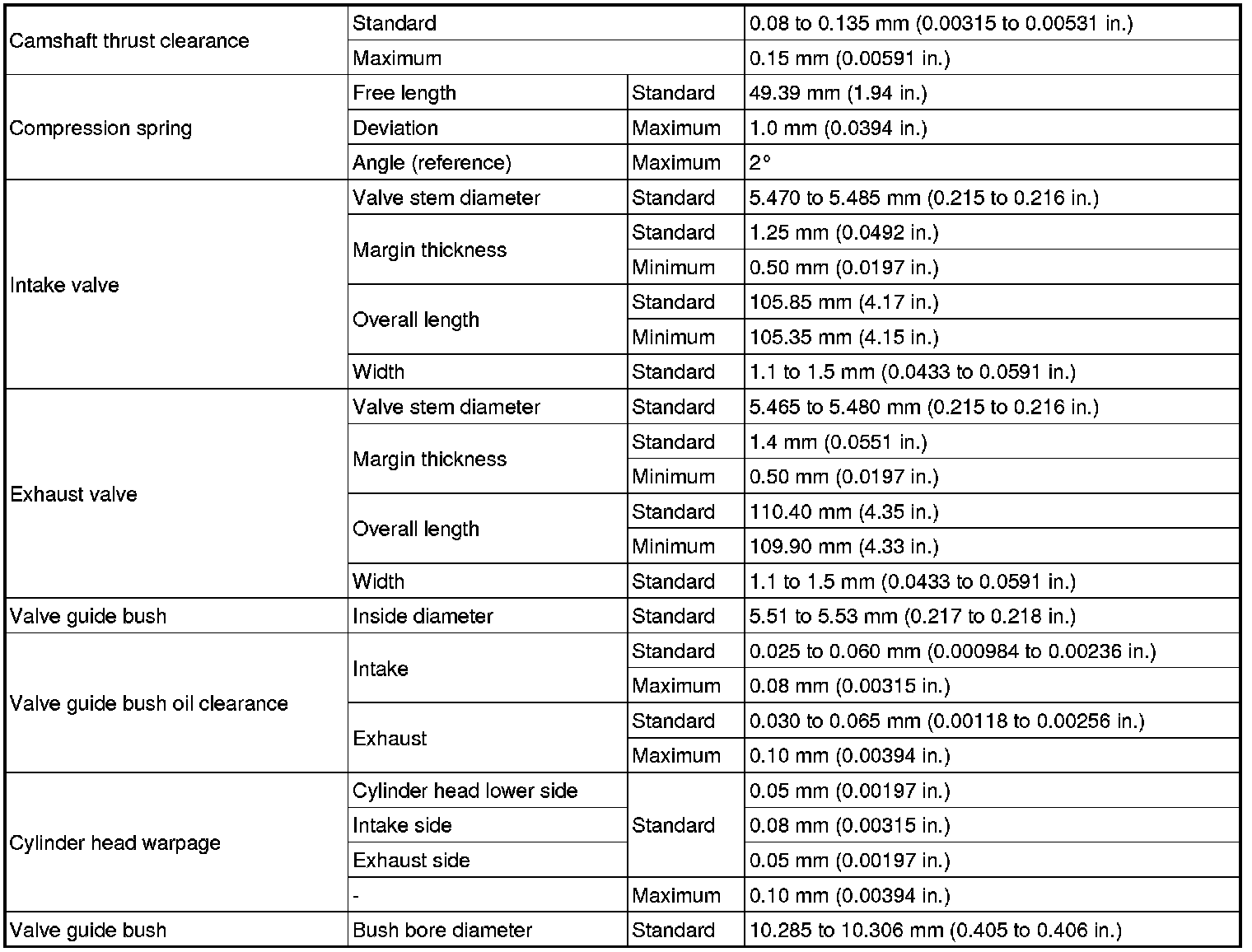

Cylinder Head

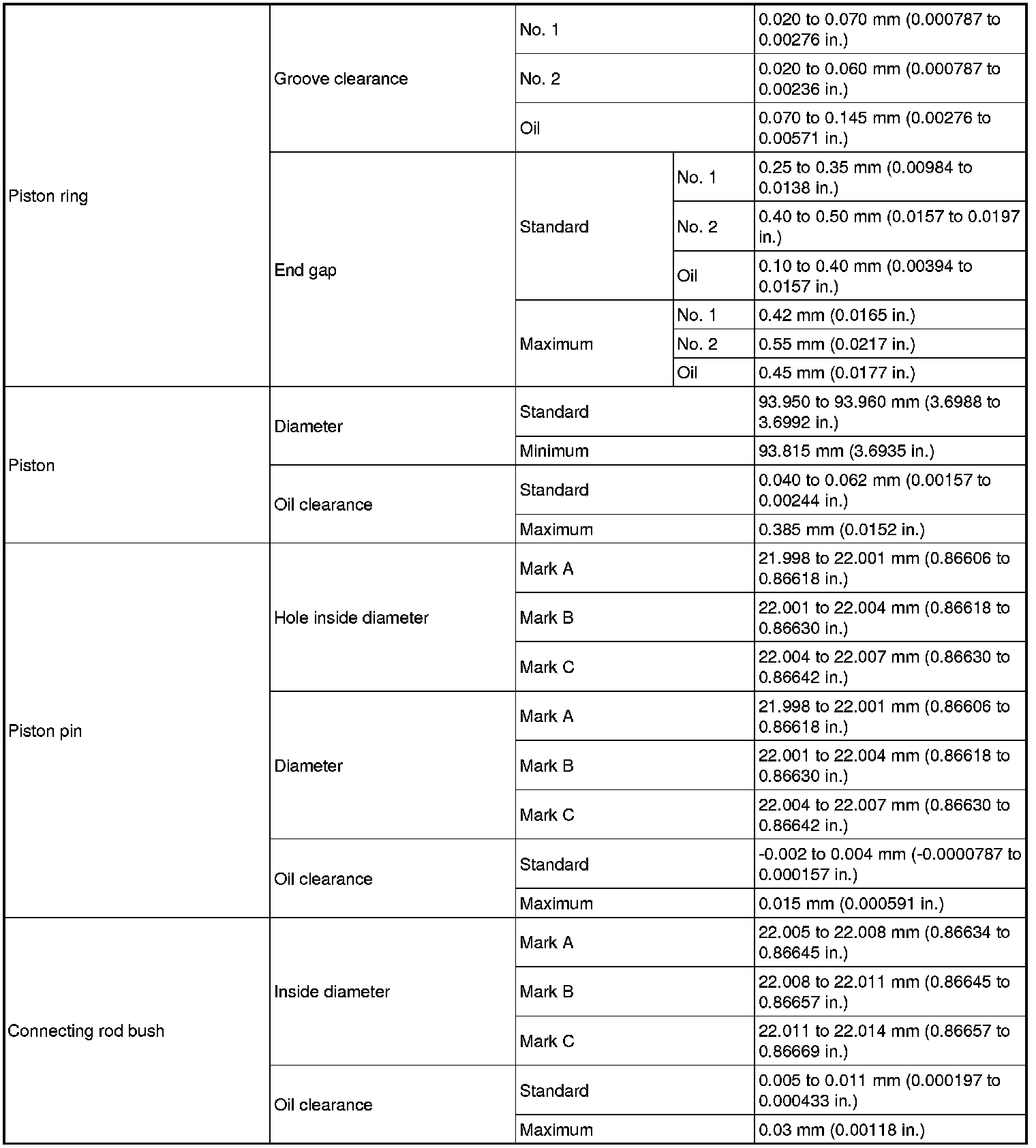

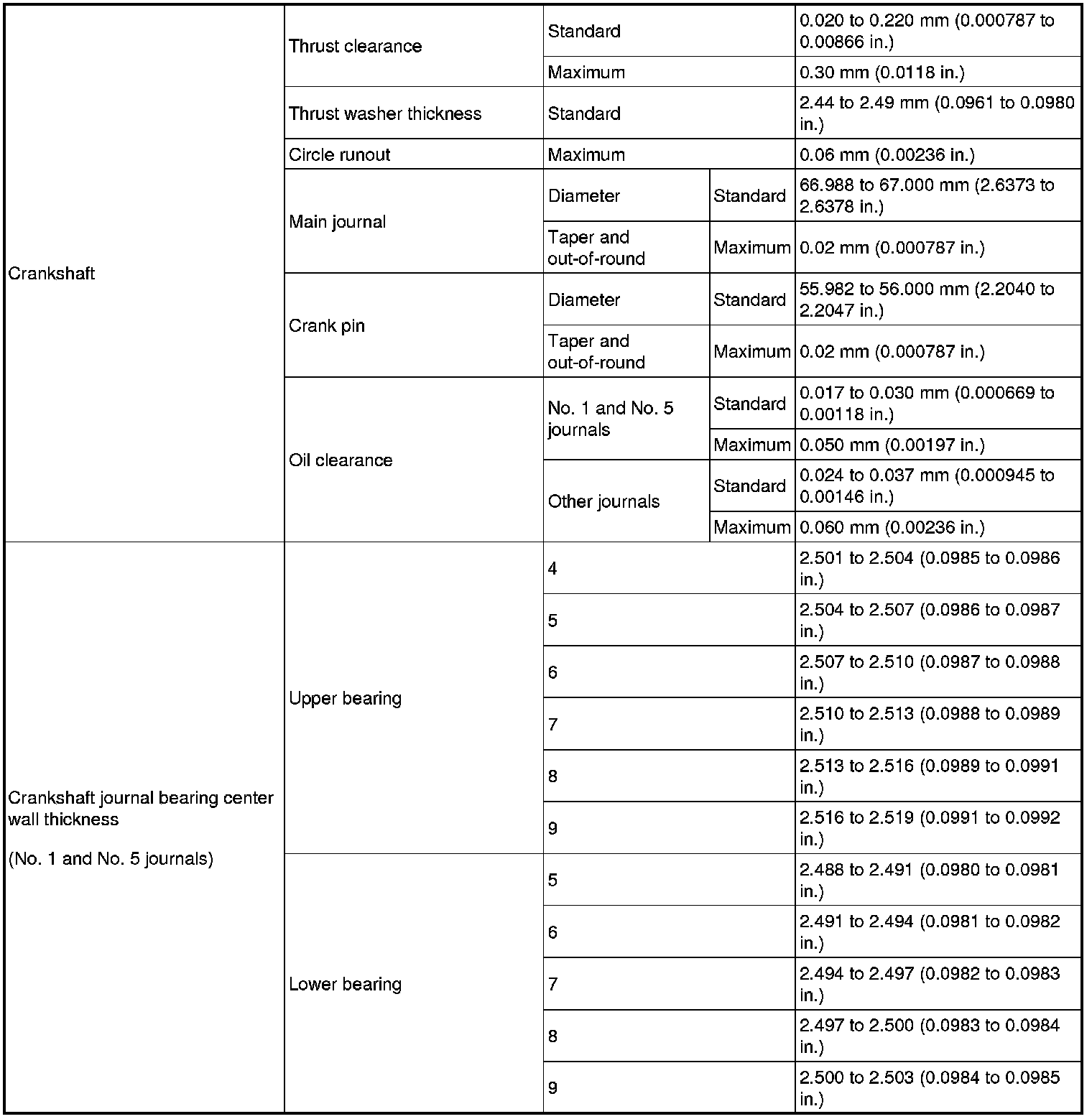

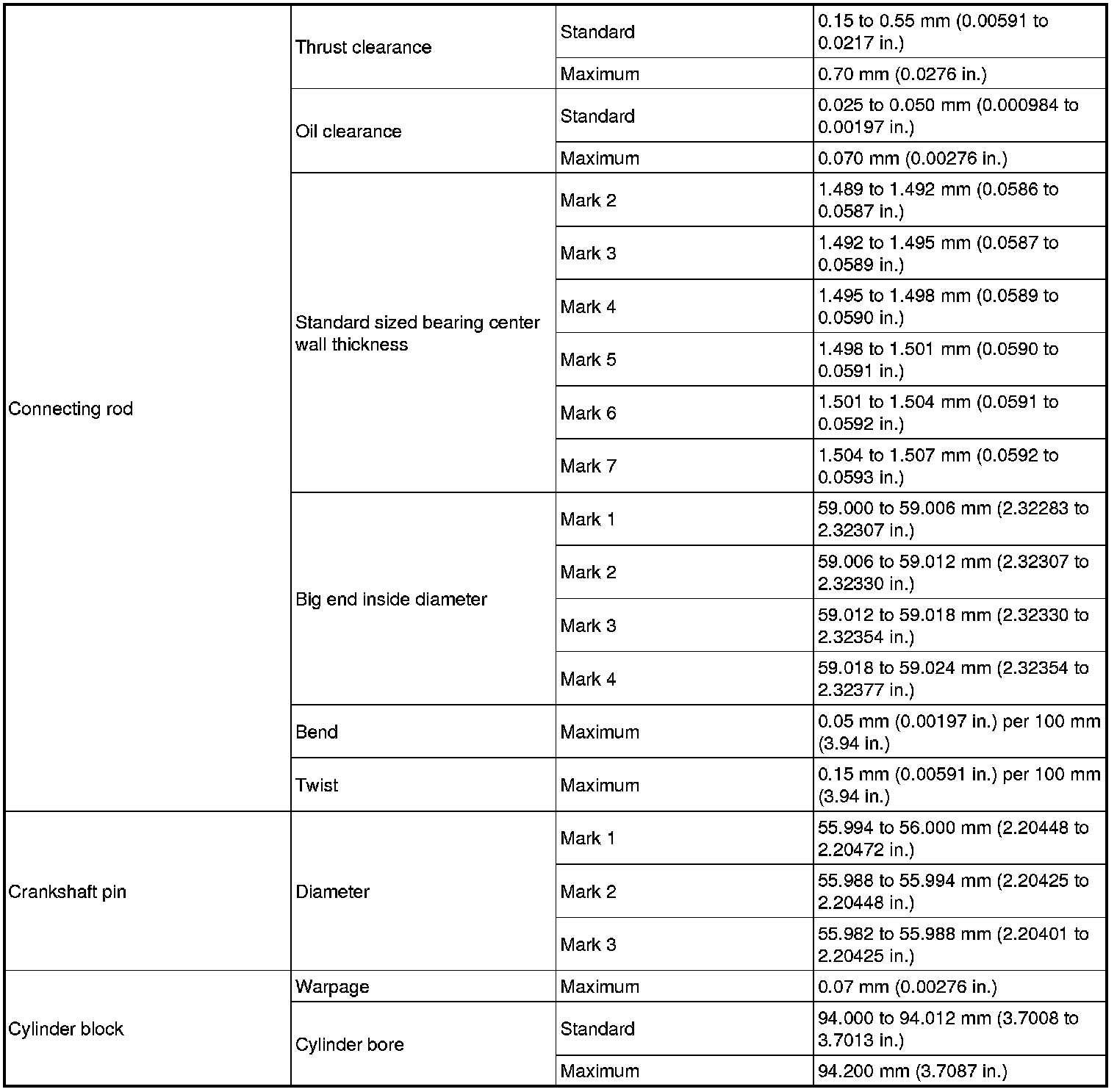

Cylinder Block
