Pinout Values and Diagnostic Parameters

VARIABLE GEAR RATIO STEERING: VARIABLE GEAR RATIO STEERING SYSTEM: TERMINALS OF ECU

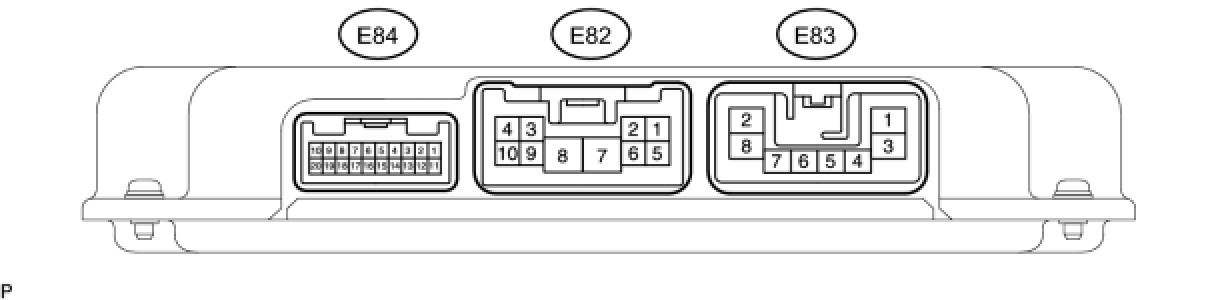

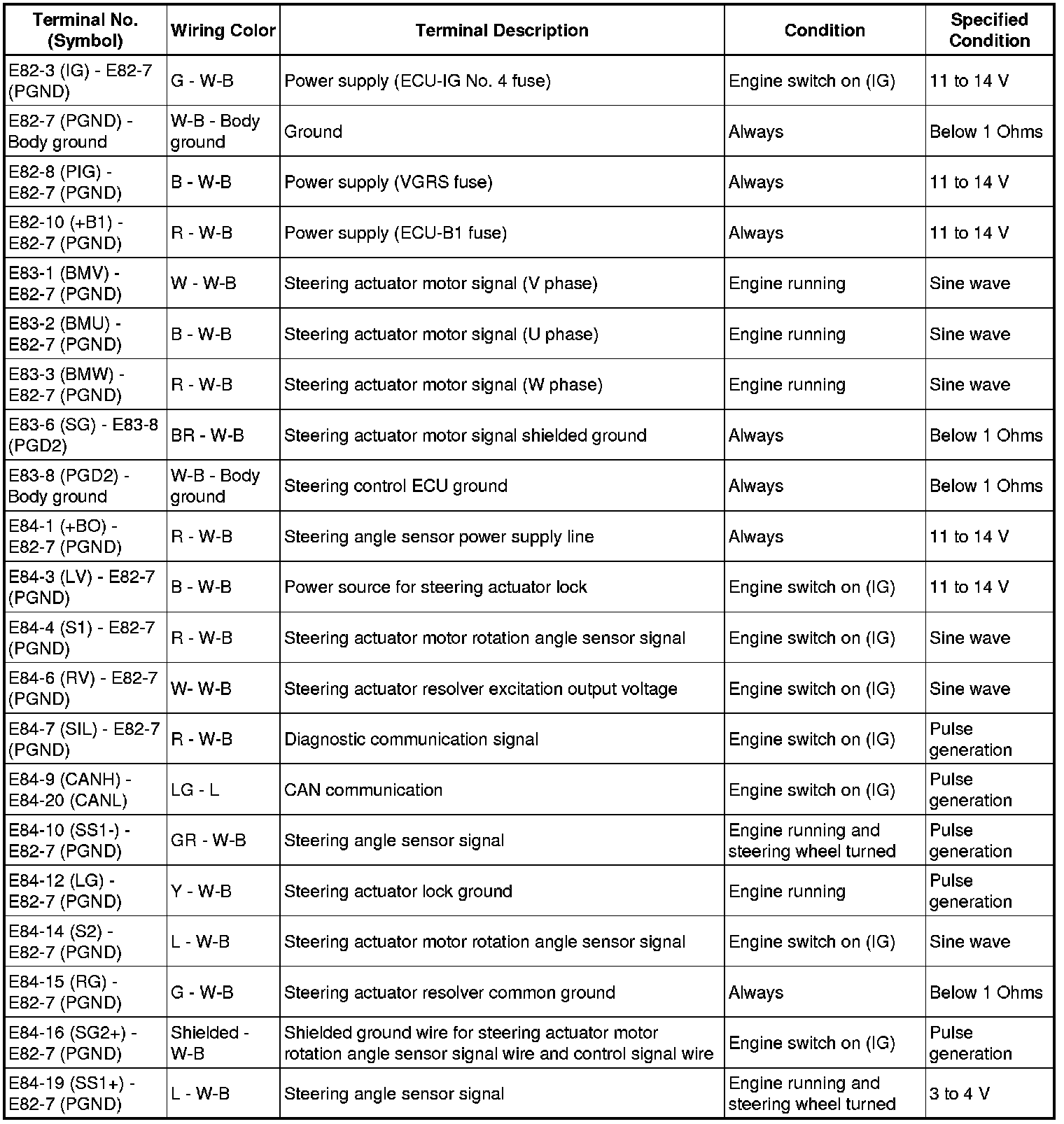

1. CHECK STEERING CONTROL ECU
HINT:
Inspect the connectors from the back side while they are connected.
