Pinout Values and Diagnostic Parameters

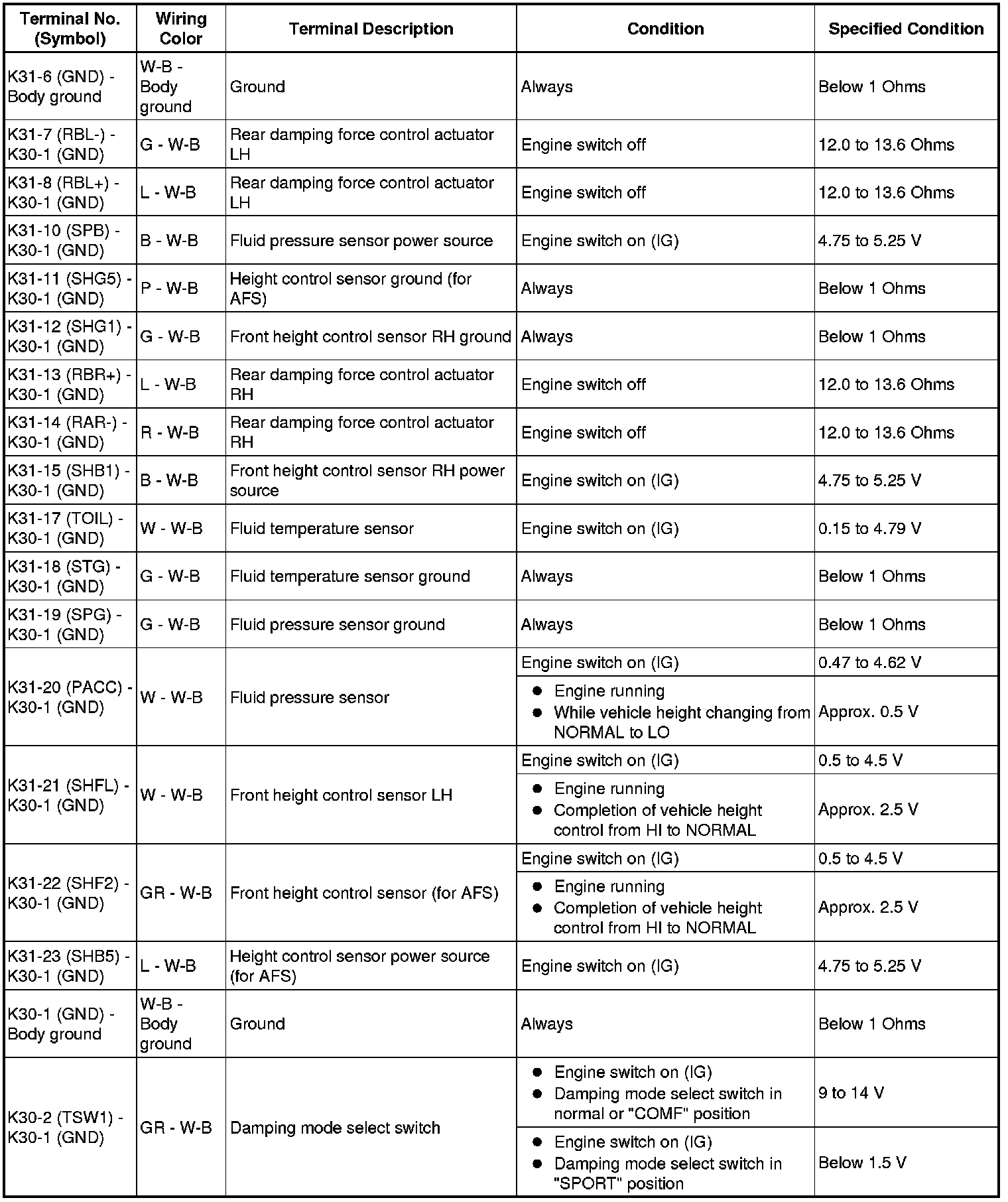

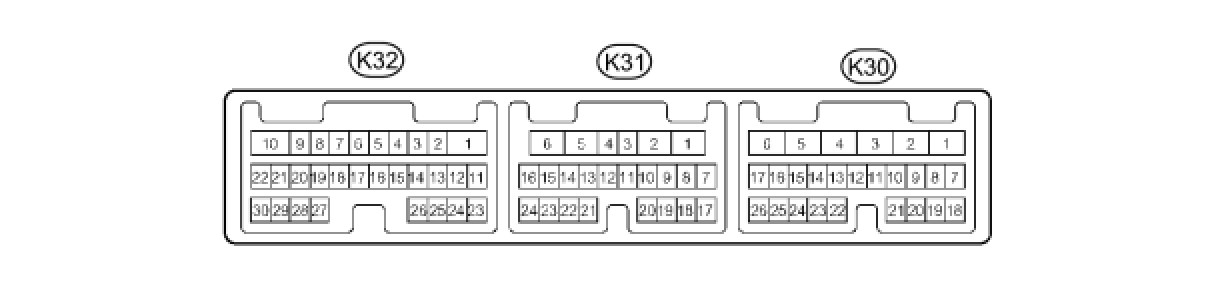

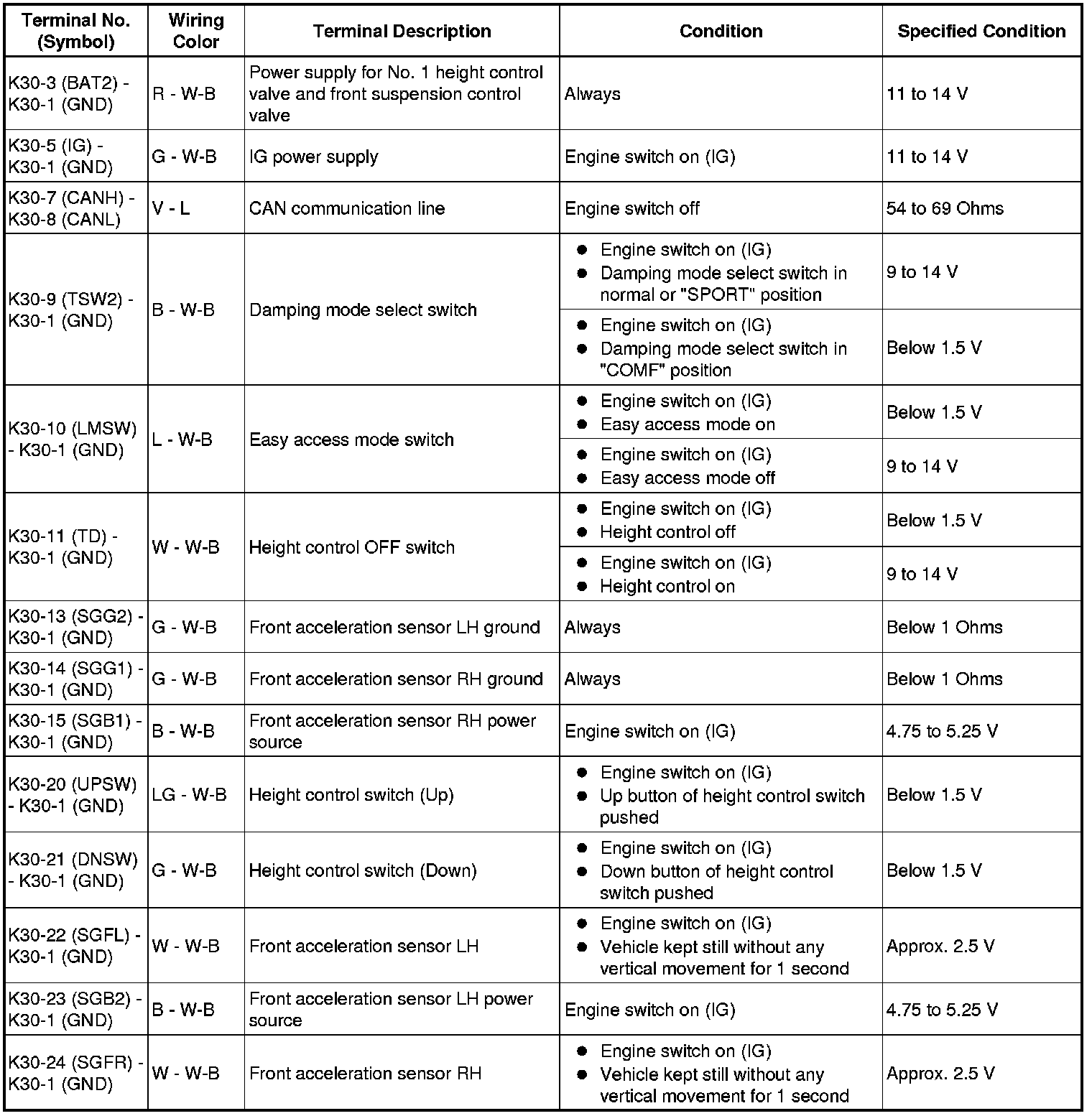

SUSPENSION CONTROL: ACTIVE HEIGHT CONTROL SUSPENSION: TERMINALS OF ECU

1. CHECK SUSPENSION CONTROL ECU
HINT:
Inspect the connectors from the back side while the connectors are connected.
