Electrical Diagrams

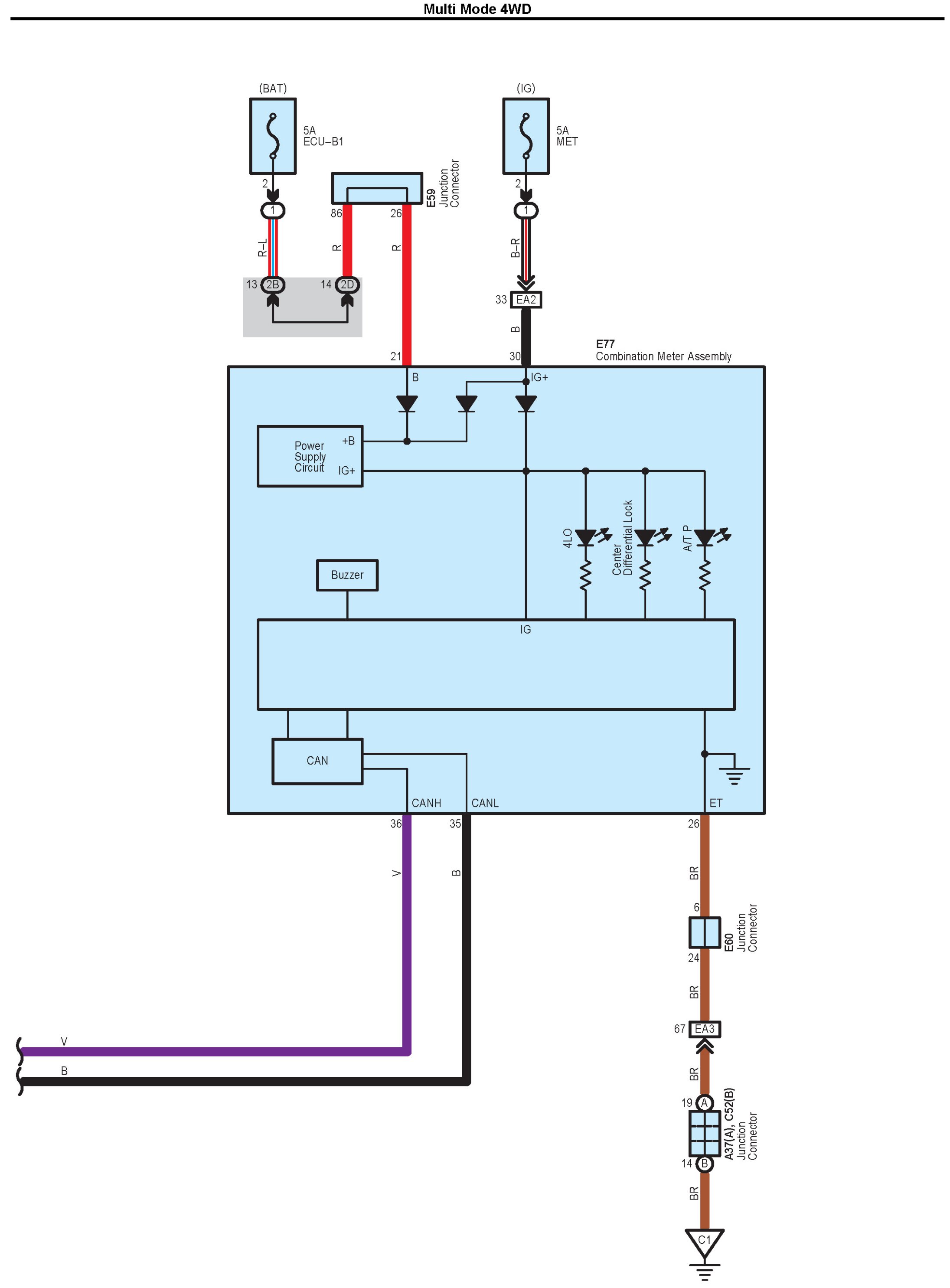

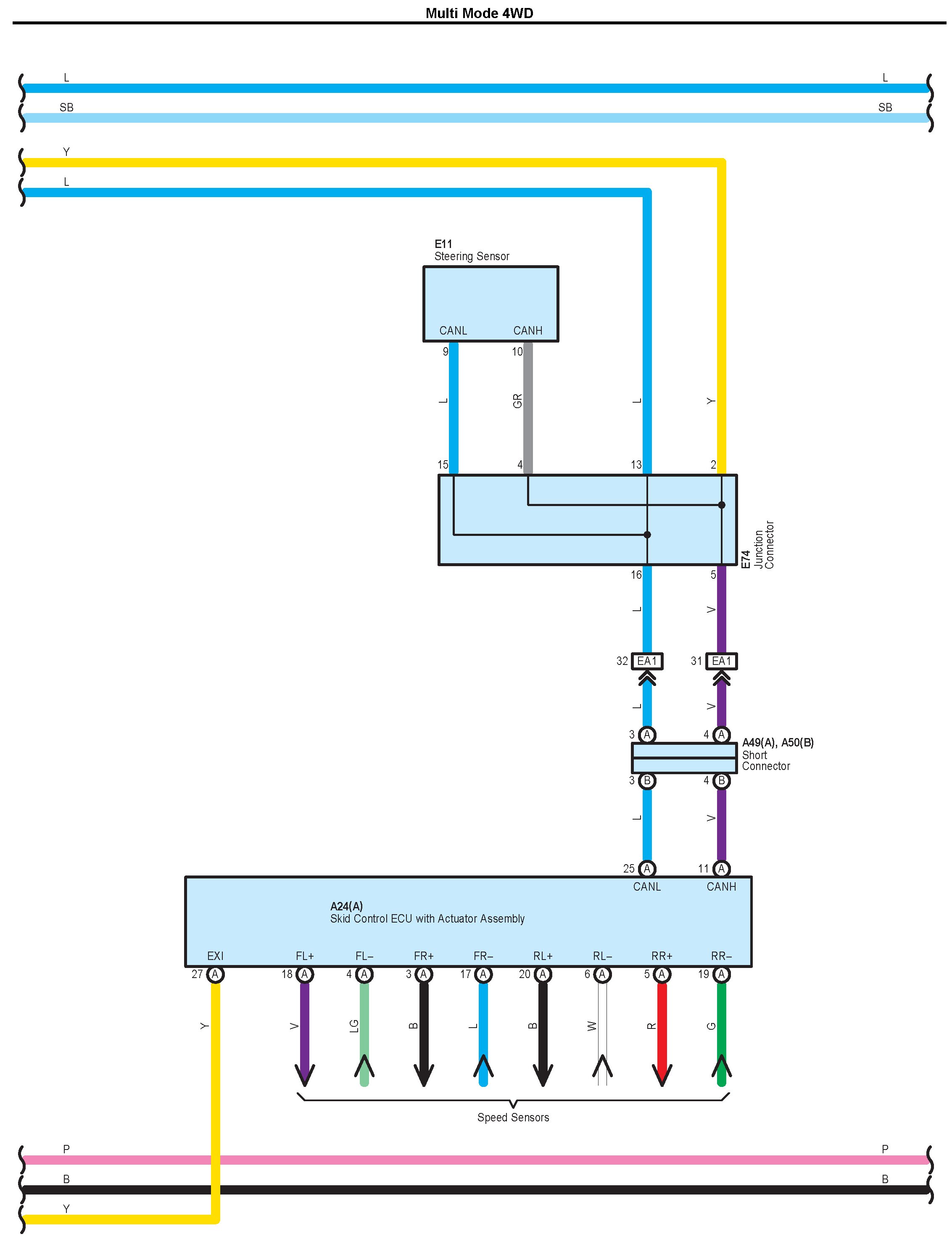

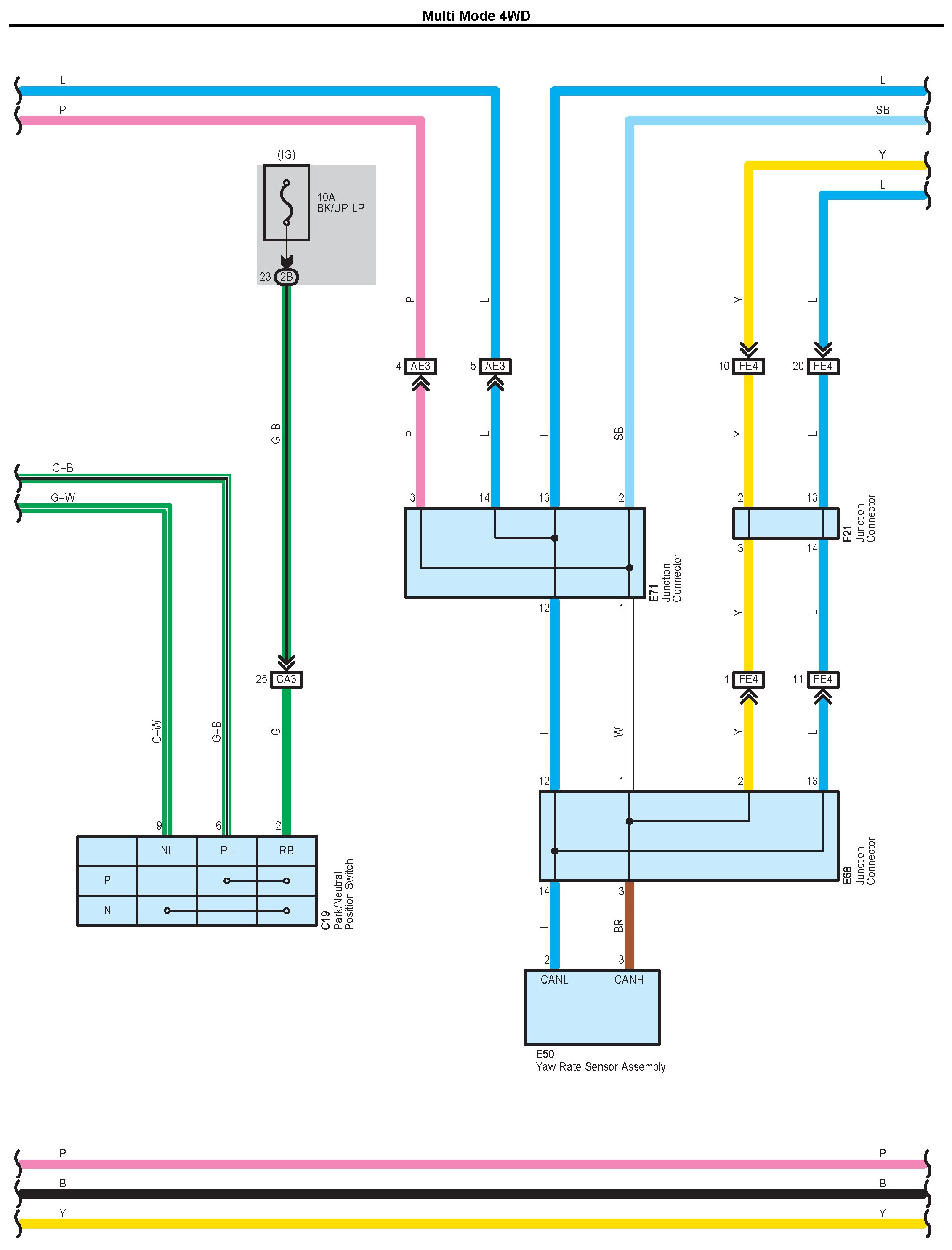

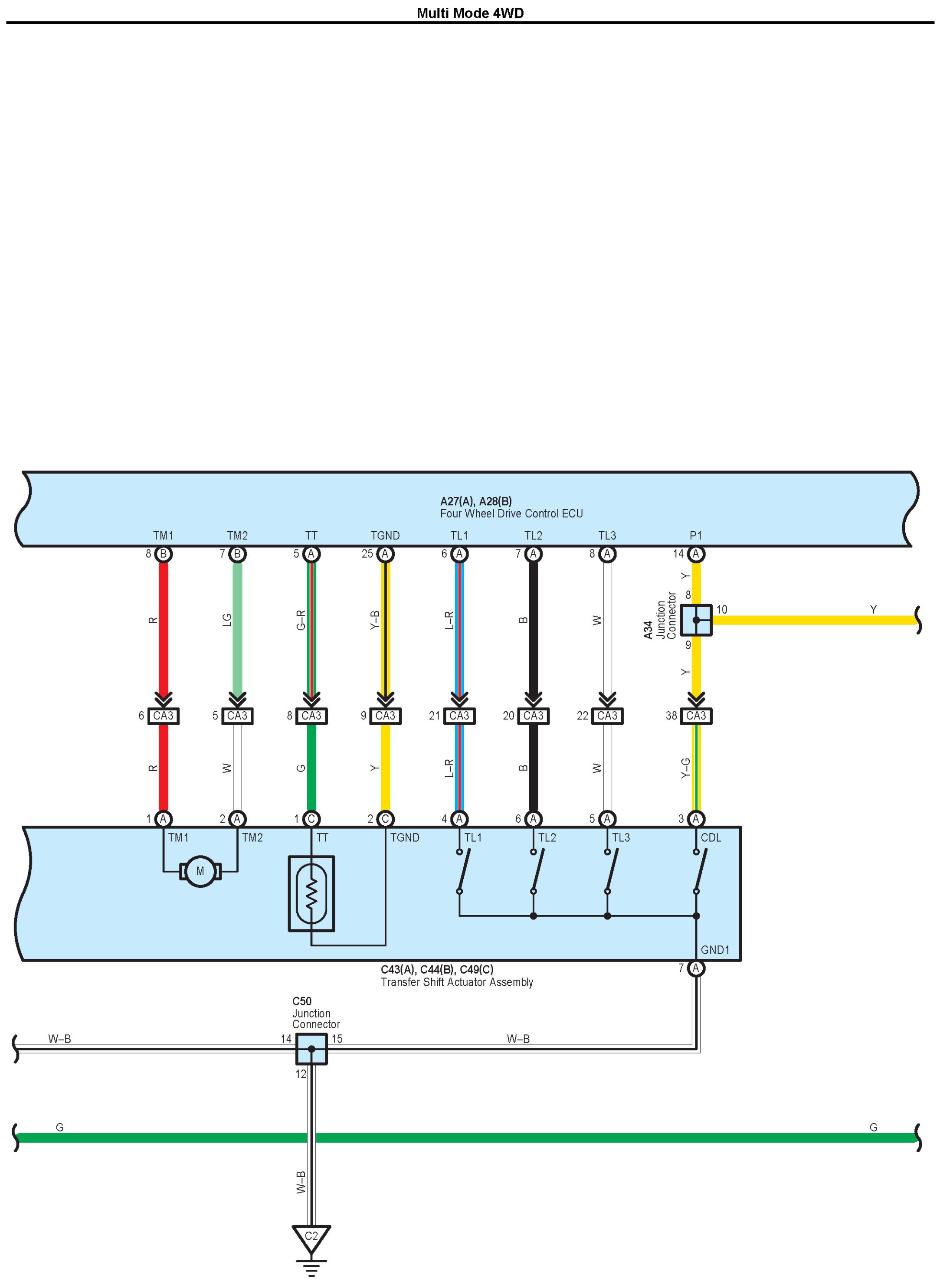

Multi Mode 4WD Part 1:

Multi Mode 4WD Part 2:

Multi Mode 4WD Part 3:

Multi Mode 4WD Part 4:

Multi Mode 4WD Part 5:

Multi Mode 4WD Part 6:

Multi Mode 4WD Part 7:

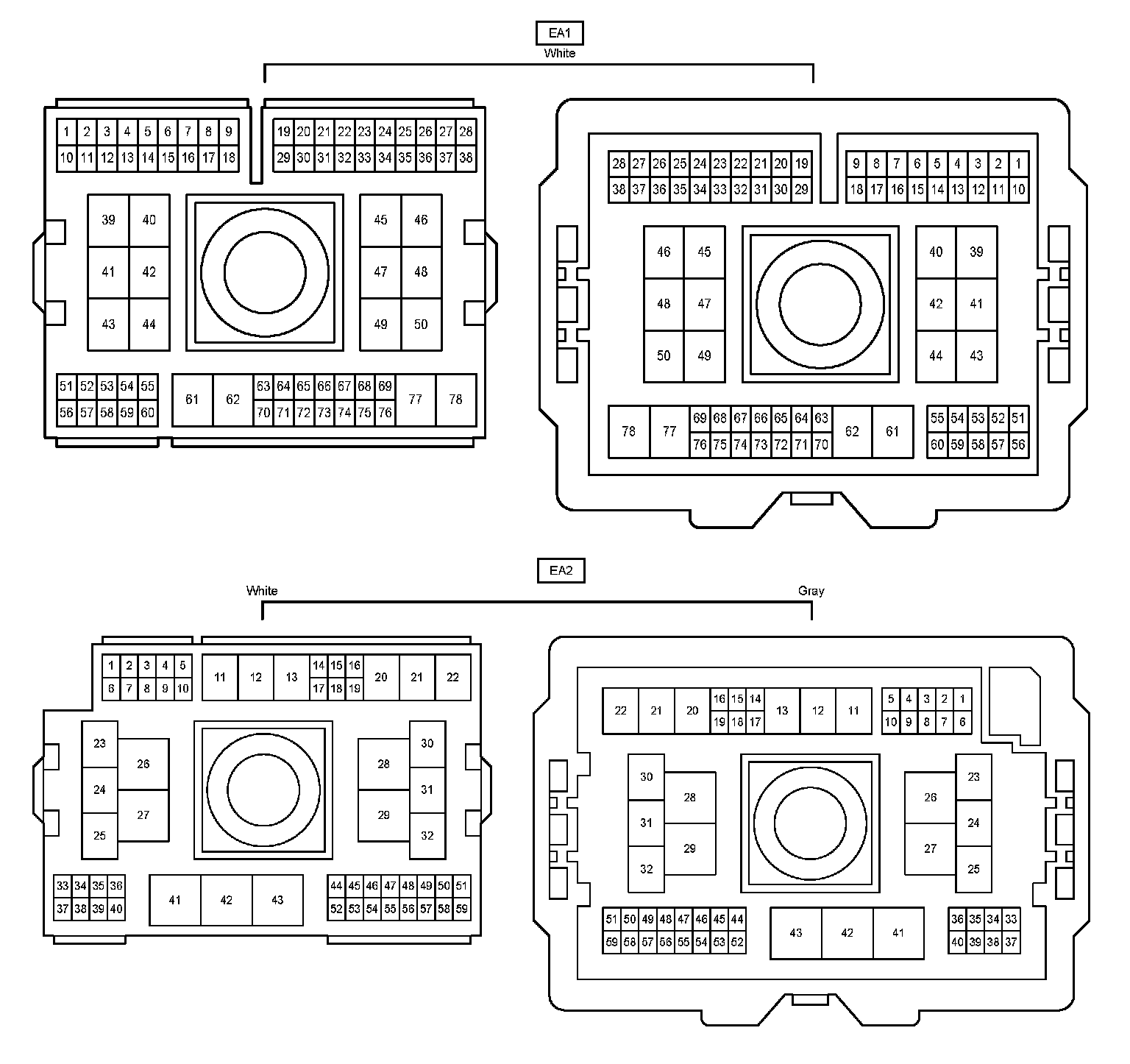

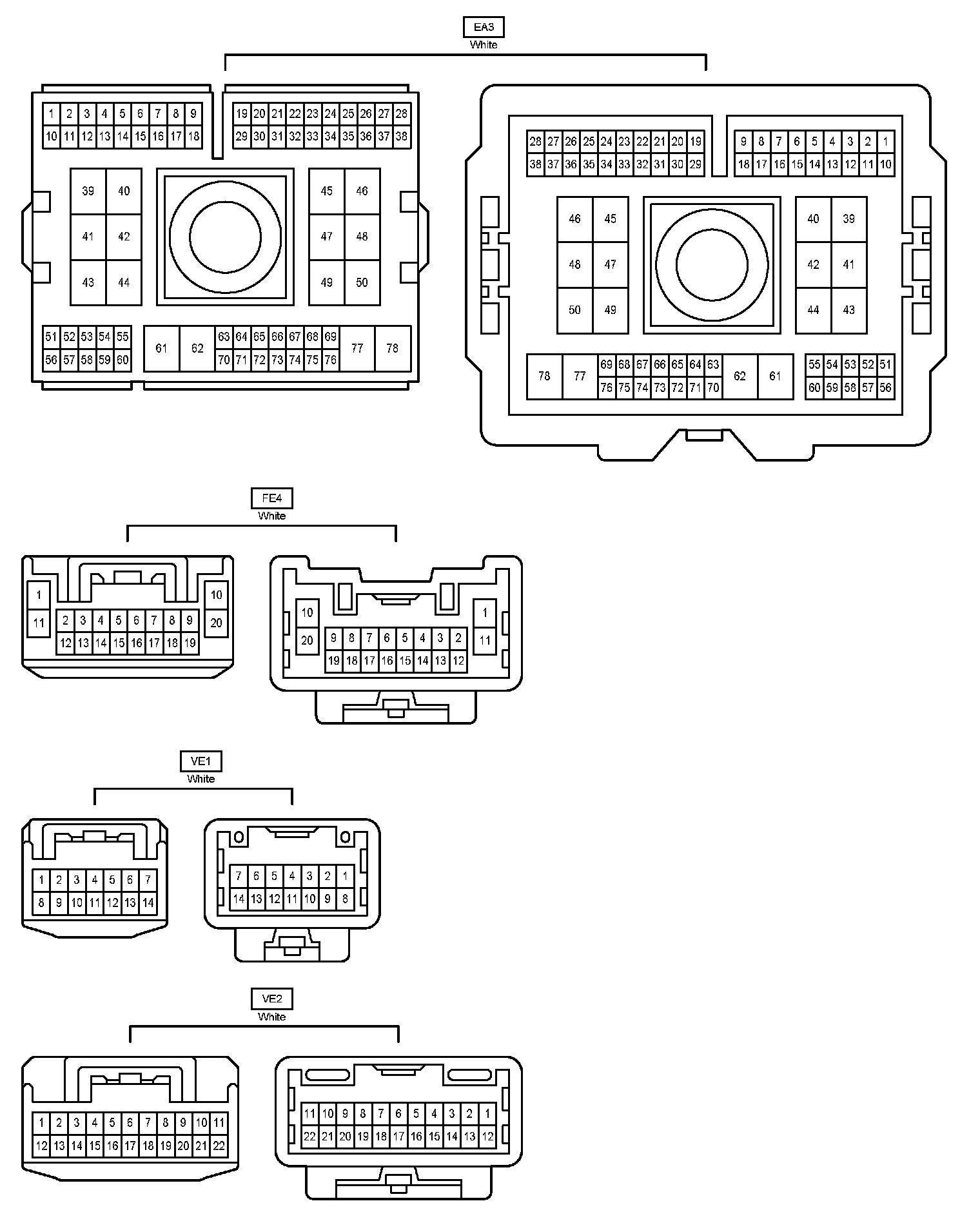

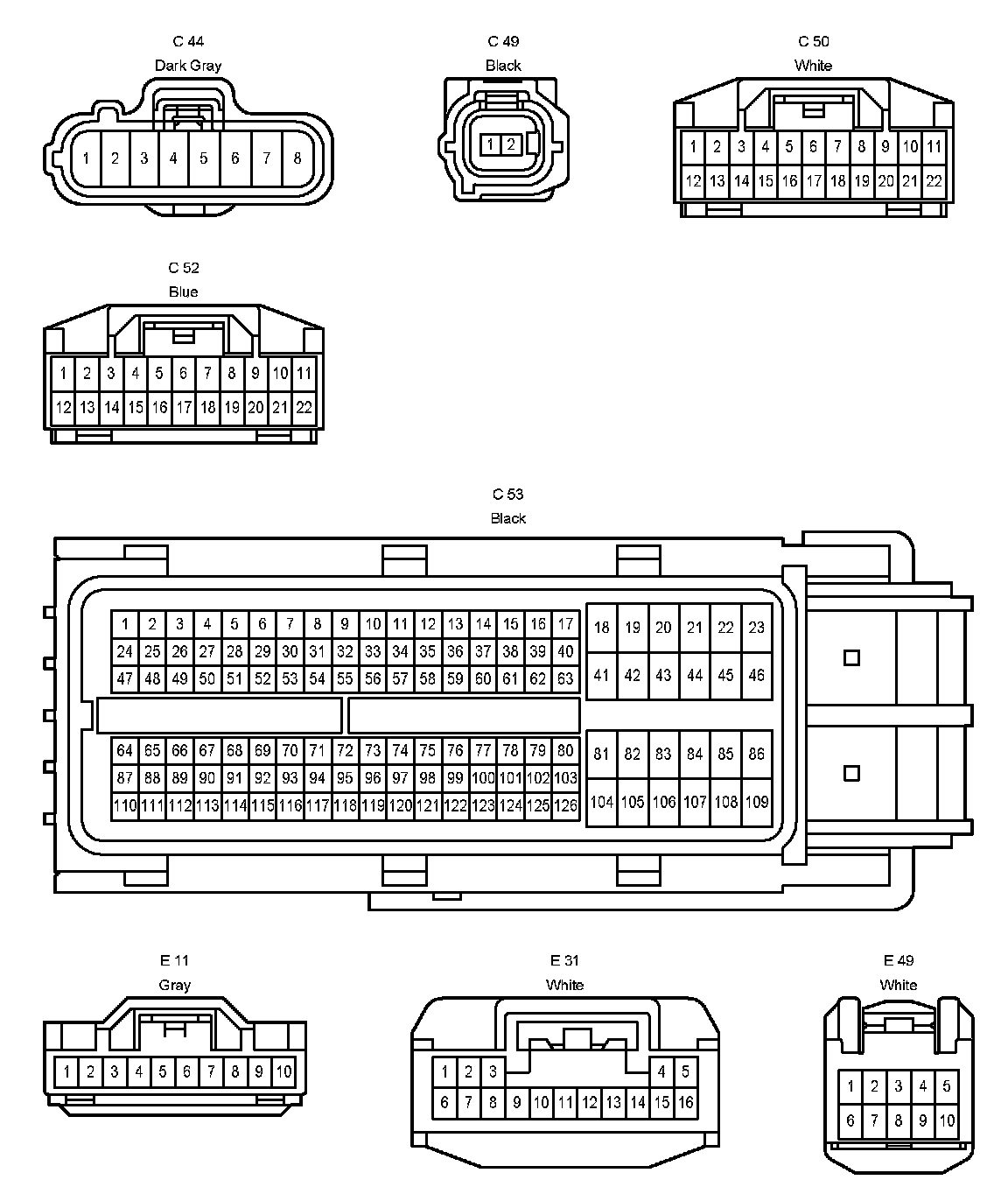

Connector Pin Outs Part 1:

Connector Pin Outs Part 2:

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Connector Pin Outs Part 6:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
