Window Defogger System

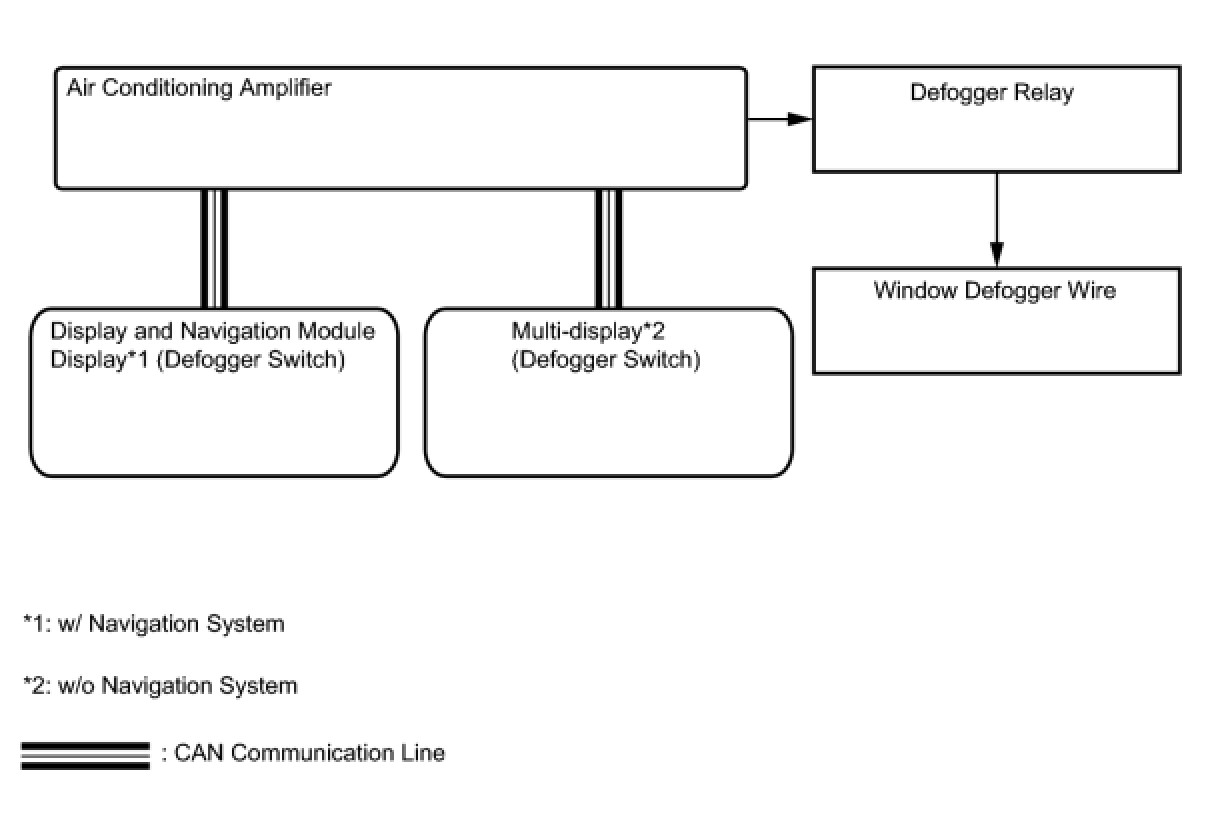

WINDOW / GLASS: WINDOW DEFOGGER SYSTEM: SYSTEM DIAGRAM






Communication Table





*1: w/ Navigation System
*2: w/o Navigation System

WINDOW / GLASS: WINDOW DEFOGGER SYSTEM: SYSTEM DESCRIPTION


1. GENERAL
The thin heater wires of the defogger system are attached to the rear window and defog the rear window surface quickly. The indicator light illuminates while the system is operating. The system automatically turns off after approximately 15 minutes.

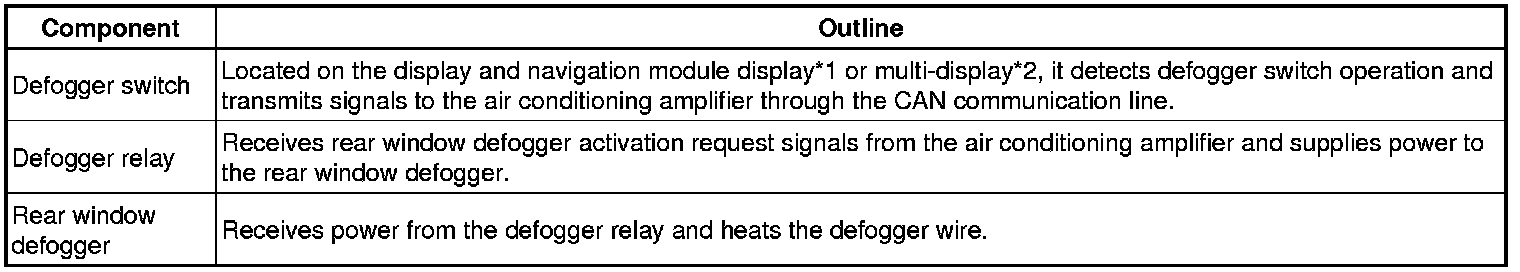

2. FUNCTION OF MAIN COMPONENT






*1: w/ Navigation System
*2: w/o Navigation System
3. DESCRIPTION
