B1100

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1100/31: Center Airbag Sensor Assembly Malfunction

DTC B1100/31 - Center Airbag Sensor Assembly Malfunction

DESCRIPTION

The center airbag sensor assembly consists of the center airbag sensor assembly, safing sensor, drive circuit, diagnosis circuit and ignition control, etc.
It receives signals from the airbag sensor, judges whether the SRS must be activated, and detects diagnosis system malfunctions.

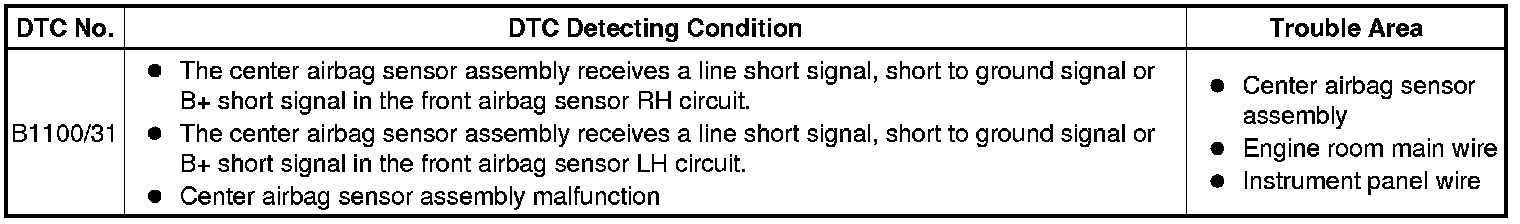

DTC B1100/31 is recorded when a malfunction is detected in the center airbag sensor assembly.

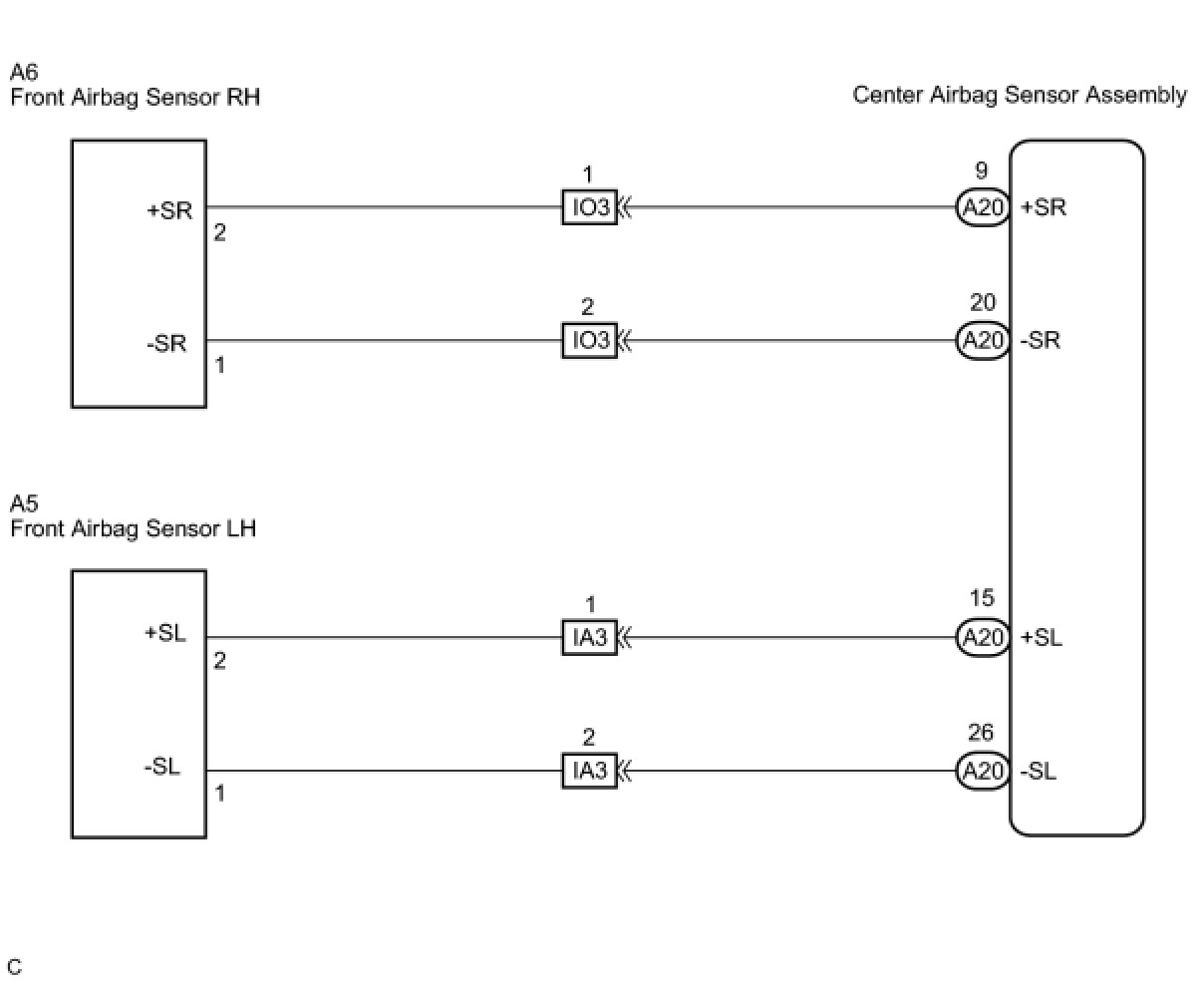

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FRONT AIRBAG SENSOR RH CIRCUIT (SHORT TO GROUND)





(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the front airbag sensor RH and the center airbag sensor assembly.
(d) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- CHECK ENGINE ROOM MAIN WIRE (SHORT TO GROUND)
OK -- Continue to next step.
2. CHECK FRONT AIRBAG SENSOR RH CIRCUIT (SHORT TO B+)





(a) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(b) Turn the ignition switch to the ON position.
(c) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- CHECK ENGINE ROOM MAIN WIRE (SHORT TO B+)
OK -- Continue to next step.
3. CHECK FRONT AIRBAG SENSOR RH CIRCUIT (SHORT)





(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- CHECK ENGINE ROOM MAIN WIRE (SHORT)
OK -- Continue to next step.

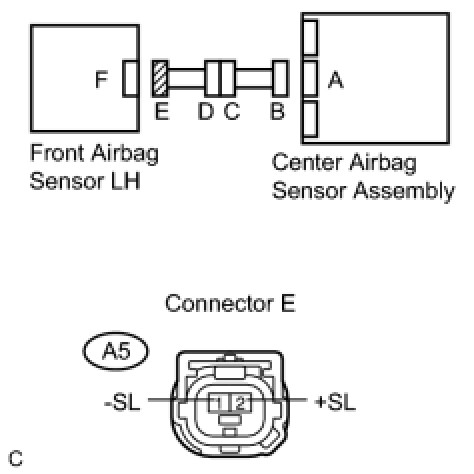

4. CHECK FRONT AIRBAG SENSOR LH CIRCUIT (SHORT TO GROUND)





(a) Disconnect the connector from the front airbag sensor LH.
(b) Measure the resistance according to the value(s) in the table below.

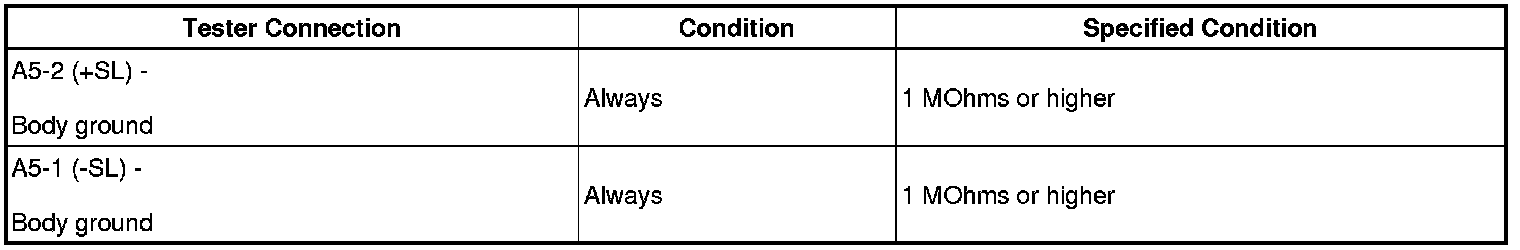

Standard resistance:






NG -- CHECK ENGINE ROOM MAIN WIRE (SHORT TO GROUND)
OK -- Continue to next step.
5. CHECK FRONT AIRBAG SENSOR LH CIRCUIT (SHORT TO B+)





(a) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(b) Turn the ignition switch to the ON position.
(c) Measure the voltage according to the value(s) in the table below.

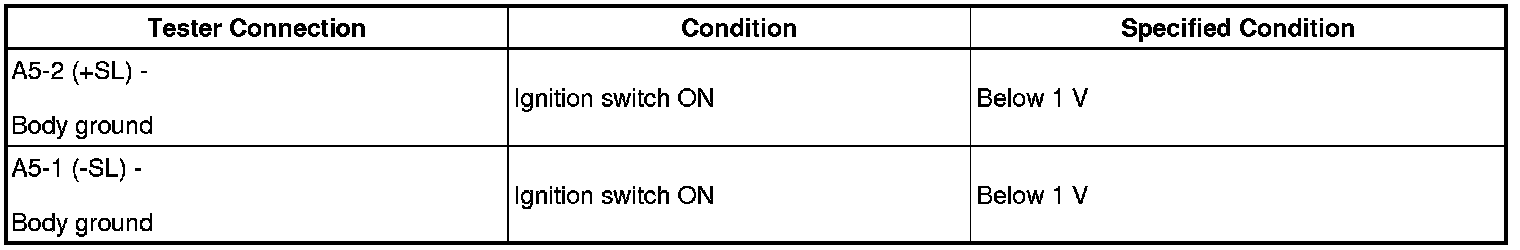

Standard voltage:






NG -- CHECK ENGINE ROOM MAIN WIRE (SHORT TO B+)
OK -- Continue to next step.
6. CHECK FRONT AIRBAG SENSOR LH CIRCUIT (SHORT)





(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- CHECK ENGINE ROOM MAIN WIRE (SHORT)
OK -- Continue to next step.
7. CHECK CENTER AIRBAG SENSOR ASSEMBLY





(a) Connect the connectors to the center airbag sensor assembly, front airbag sensors RH and LH.
(b) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(c) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(d) Clear the DTCs stored in the memory .
(e) Turn the ignition switch to the LOCK position.
(f) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(g) Check the DTCs .
OK:
DTC B1100/31 is not output.
NG -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY
OK -- USE SIMULATION METHOD TO CHECK
8. CHECK ENGINE ROOM MAIN WIRE (SHORT TO GROUND)





(a) Disconnect the engine room main wire connector from the instrument panel wire.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE ENGINE ROOM MAIN WIRE
OK -- REPAIR OR REPLACE INSTRUMENT PANEL WIRE
9. CHECK ENGINE ROOM MAIN WIRE (SHORT TO B+)





(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Disconnect the engine room main wire connector from the instrument panel wire.
(d) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position.
(f) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- REPAIR OR REPLACE ENGINE ROOM MAIN WIRE
OK -- REPAIR OR REPLACE INSTRUMENT PANEL WIRE
10. CHECK ENGINE ROOM MAIN WIRE (SHORT)





(a) Disconnect the engine room main wire connector from the instrument panel wire.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE ENGINE ROOM MAIN WIRE
OK -- REPAIR OR REPLACE INSTRUMENT PANEL WIRE
11. CHECK ENGINE ROOM MAIN WIRE (SHORT TO GROUND)





(a) Disconnect the engine room main wire connector from the instrument panel wire.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE ENGINE ROOM MAIN WIRE
OK -- REPAIR OR REPLACE INSTRUMENT PANEL WIRE
12. CHECK ENGINE ROOM MAIN WIRE (SHORT TO B+)





(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Disconnect the engine room main wire connector from the instrument panel wire.
(d) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position.
(f) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- REPAIR OR REPLACE ENGINE ROOM MAIN WIRE
OK -- REPAIR OR REPLACE INSTRUMENT PANEL WIRE
13. CHECK ENGINE ROOM MAIN WIRE (SHORT)





(a) Disconnect the engine room main wire connector from the instrument panel wire.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE ENGINE ROOM MAIN WIRE
OK -- REPAIR OR REPLACE INSTRUMENT PANEL WIRE
