B1141

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1141/33: Side Airbag Sensor Assembly LH Circuit Malfunction

DTC B1141/33 - Side Airbag Sensor Assembly LH Circuit Malfunction

DESCRIPTION

The side airbag sensor LH circuit consists of the center airbag sensor assembly and side airbag sensor LH.
If the center airbag sensor assembly receives signals from the side airbag sensor LH, it judges whether the SRS should be activated.
DTC B1141/33 is recorded when a malfunction is detected in the side airbag sensor LH circuit.






WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC





(a) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(b) Clear the DTCs stored in the memory .
(c) Turn the ignition switch to the LOCK position.
(d) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(e) Check the DTCs .
OK:
DTC B1141/33 is not output.
HINT: Codes other than code B1141/33 may be output at this time, but they are not related to this check.

NG -- CHECK CONNECTION OF CONNECTORS
OK -- USE SIMULATION METHOD TO CHECK
2. CHECK CONNECTION OF CONNECTORS
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Check that the connectors are properly connected to the center airbag sensor assembly and the side airbag sensor LH.
OK:
The connectors are properly connected.
NG -- CONNECT CONNECTORS PROPERLY, THEN GO TO STEP 1
OK -- Continue to next step.
3. CHECK FLOOR WIRE NO. 2 (OPEN)





(a) Disconnect the connectors from the center airbag sensor assembly and the side airbag sensor LH.
(b) Using a service wire, connect terminals 16 (VUPL) and 18 (ESL) of connector B.
NOTE: Do not forcibly insert a service wire into the terminals of the connector when connecting.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:










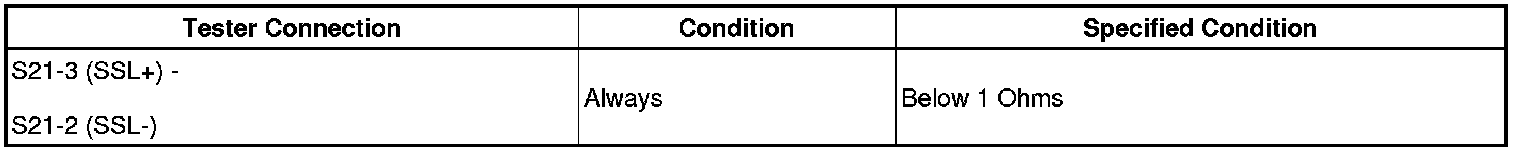

(d) Using a service wire, connect terminals 17 (SSL+) and 20 (SSL-) of connector B.
NOTE: Do not forcibly insert a service wire into the terminals of the connector when connecting.
(e) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE FLOOR WIRE NO. 2
OK -- Continue to next step.
4. CHECK FLOOR WIRE NO. 2 (SHORT TO B+)





(a) Disconnect the service wire from connector B.
(b) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(c) Turn the ignition switch to the ON position.
(d) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- REPAIR OR REPLACE FLOOR WIRE NO. 2
OK -- Continue to next step.
5. CHECK FLOOR WIRE NO. 2 (SHORT TO GROUND)





(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE FLOOR WIRE NO. 2
OK -- Continue to next step.
6. CHECK FLOOR WIRE NO. 2 (SHORT)





(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE FLOOR WIRE NO. 2
OK -- Continue to next step.

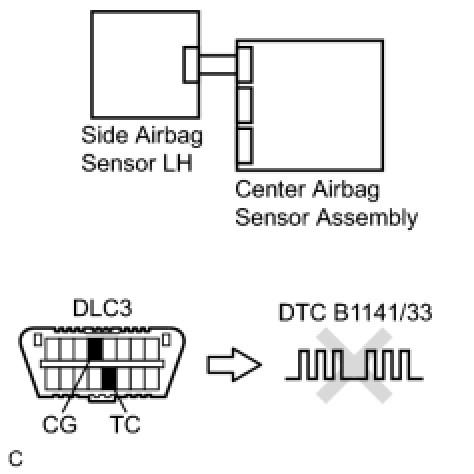

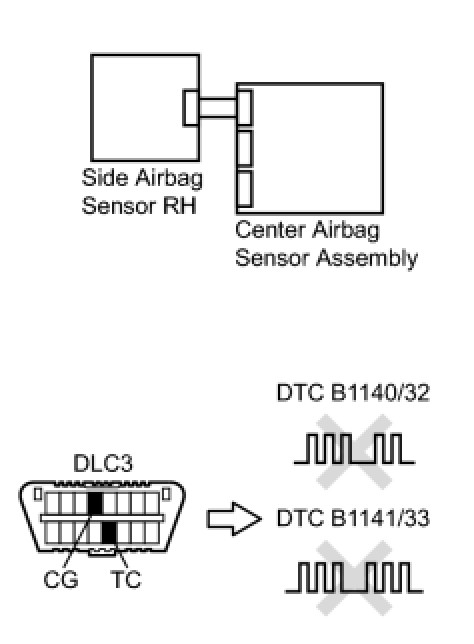

7. CHECK SIDE AIRBAG SENSOR LH





(a) Connect the connector to the center airbag sensor assembly.
(b) Interchange the side airbag sensor RH with LH and connect the connectors to them.
(c) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(d) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(e) Clear the DTCs stored in the memory .
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(h) Check the DTCs .
Result:





HINT: Codes other than DTC B1140/32 and B1141/33 may be output at this time, but they are not related to this check.

C -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY
B -- REPLACE SIDE AIRBAG SENSOR LH
A -- USE SIMULATION METHOD TO CHECK
