B1154

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1154/38: Rear Airbag Sensor RH Circuit Malfunction

DTC B1154/38 - Rear Airbag Sensor RH Circuit Malfunction

DESCRIPTION

The rear airbag sensor RH circuit consists of the center airbag sensor assembly and rear airbag sensor RH.
If the center airbag sensor assembly receives signals from the rear airbag sensor RH, it judges whether the SRS should be activated.
DTC B1154/38 is recorded when a malfunction is detected in the rear airbag sensor RH circuit.

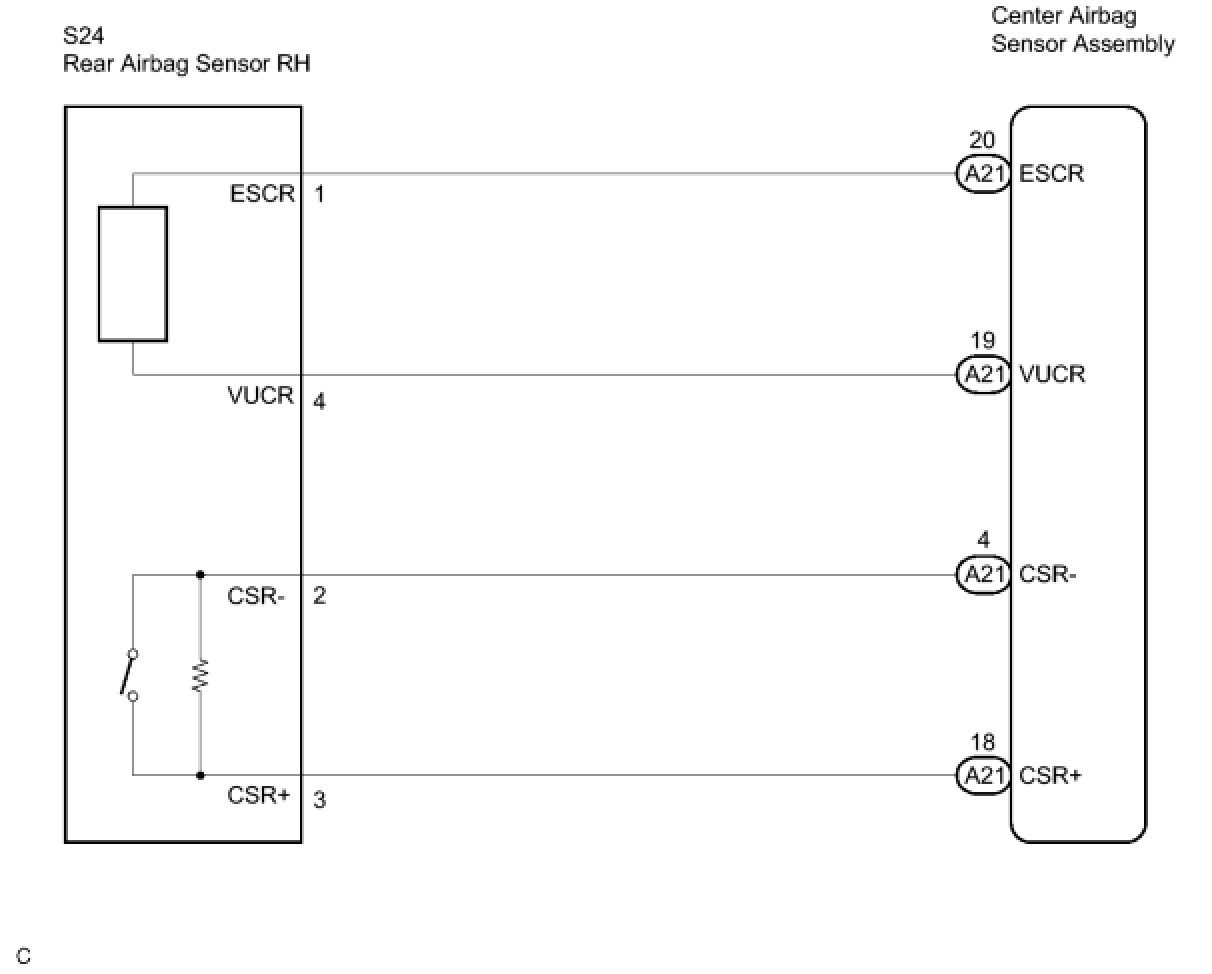

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC





(a) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(b) Clear the DTCs stored in the memory .
(c) Turn the ignition switch to the LOCK position.
(d) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(e) Check the DTCs .
OK:
DTC B1154/38 is not output.
HINT: Codes other than code B1154/38 may be output at this time, but they are not related to this check.

NG -- CHECK CONNECTION OF CONNECTORS
OK -- USE SIMULATION METHOD TO CHECK
2. CHECK CONNECTION OF CONNECTORS
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Check that the connectors are properly connected to the center airbag sensor assembly and the rear airbag sensor RH.
OK:
The connectors are properly connected.
NG -- CONNECT CONNECTORS PROPERLY, THEN GO TO STEP 1
OK -- Continue to next step.

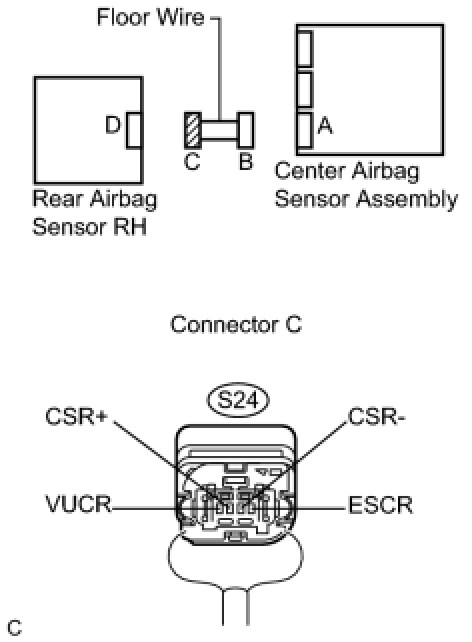

3. CHECK FLOOR WIRE (OPEN)





(a) Disconnect the connectors from the center airbag sensor assembly and the rear airbag sensor RH.
(b) Using a service wire, connect terminals 19 (VUCR) and 20 (ESCR) of connector B.
NOTE: Do not forcibly insert a service wire into the terminals of the connector when connecting.

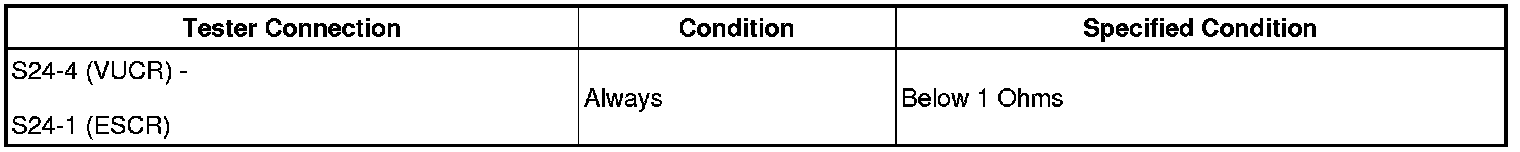

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:










(d) Using a service wire, connect terminals 18 (CSR+) and 4 (CSR-) of connector B.
CAUTION: Do not forcibly insert a service wire into the terminals of the connector when connecting.
(e) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE FLOOR WIRE
OK -- Continue to next step.
4. CHECK FLOOR WIRE (SHORT TO B+)





(a) Disconnect the service wire from connector B.
(b) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(c) Turn the ignition switch to the ON position.

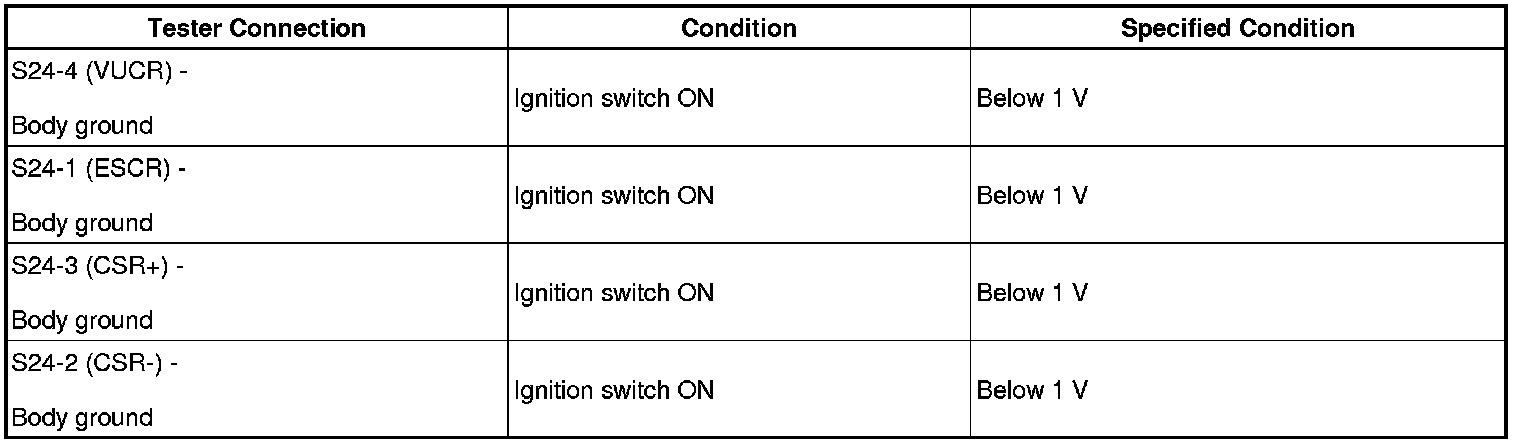

(d) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- REPAIR OR REPLACE FLOOR WIRE
OK -- Continue to next step.
5. CHECK FLOOR WIRE (SHORT TO GROUND)





(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

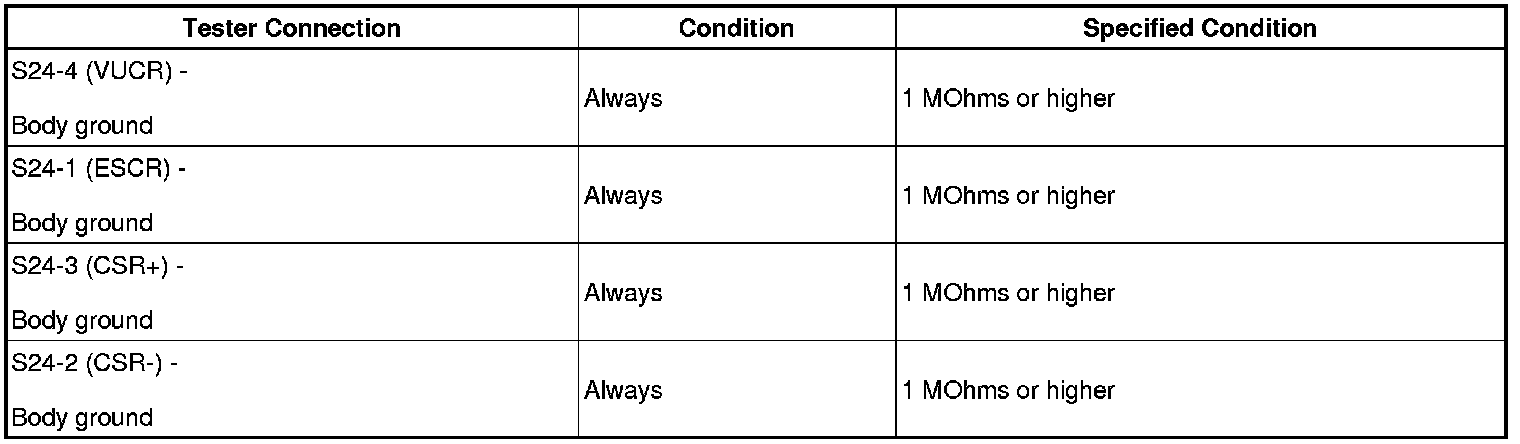

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE FLOOR WIRE
OK -- Continue to next step.
6. CHECK FLOOR WIRE (SHORT)

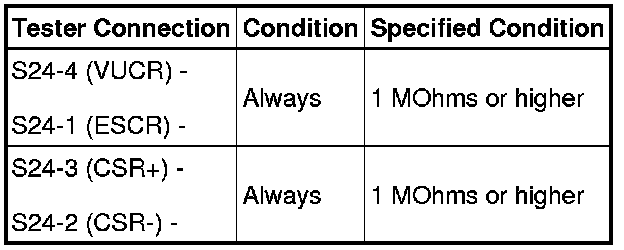

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE FLOOR WIRE
OK -- Continue to next step.

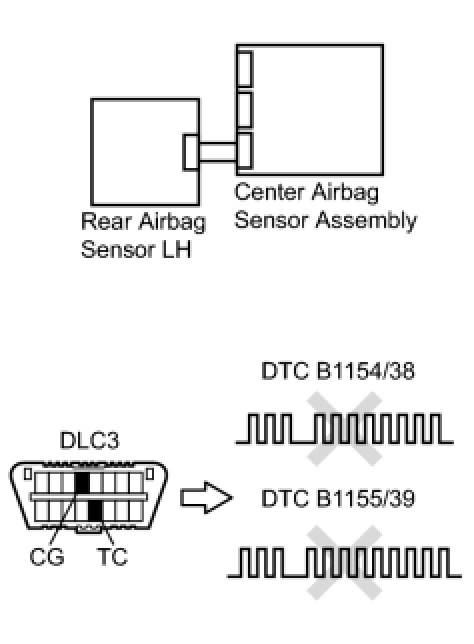

7. CHECK REAR AIRBAG SENSOR RH





(a) Connect the connector to the center airbag sensor assembly.
(b) Interchange the rear airbag sensor LH with RH and connect the connectors to them.
(c) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(d) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(e) Clear the DTCs stored in the memory .
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(h) Check the DTCs .

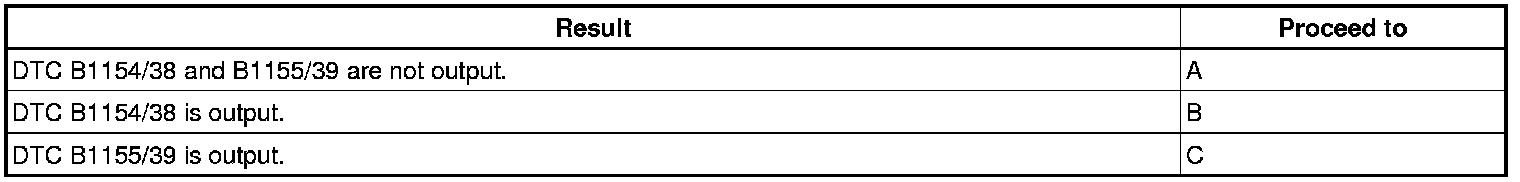

Result:





HINT: Codes other than DTC B1154/38 and B1155/39 may be output at this time, but they are not related to this check.

C -- REPLACE REAR AIRBAG SENSOR RH
B -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY
A -- USE SIMULATION METHOD TO CHECK
