SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1161/84: Open in Curtain Shield Squib RH Circuit
DTC B1161/84 - Open in Curtain Shield Squib RH Circuit
DESCRIPTION
The curtain shield squib RH circuit consists of the center airbag sensor assembly and the curtain shield airbag assembly RH.
The circuit instructs the SRS to deploy when deployment conditions are met.

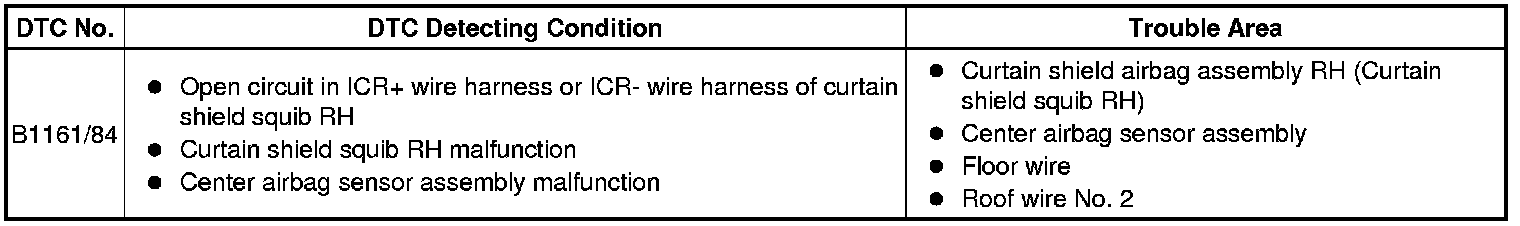

DTC B1161/84 is recorded when an open circuit is detected in the curtain shield squib RH circuit.

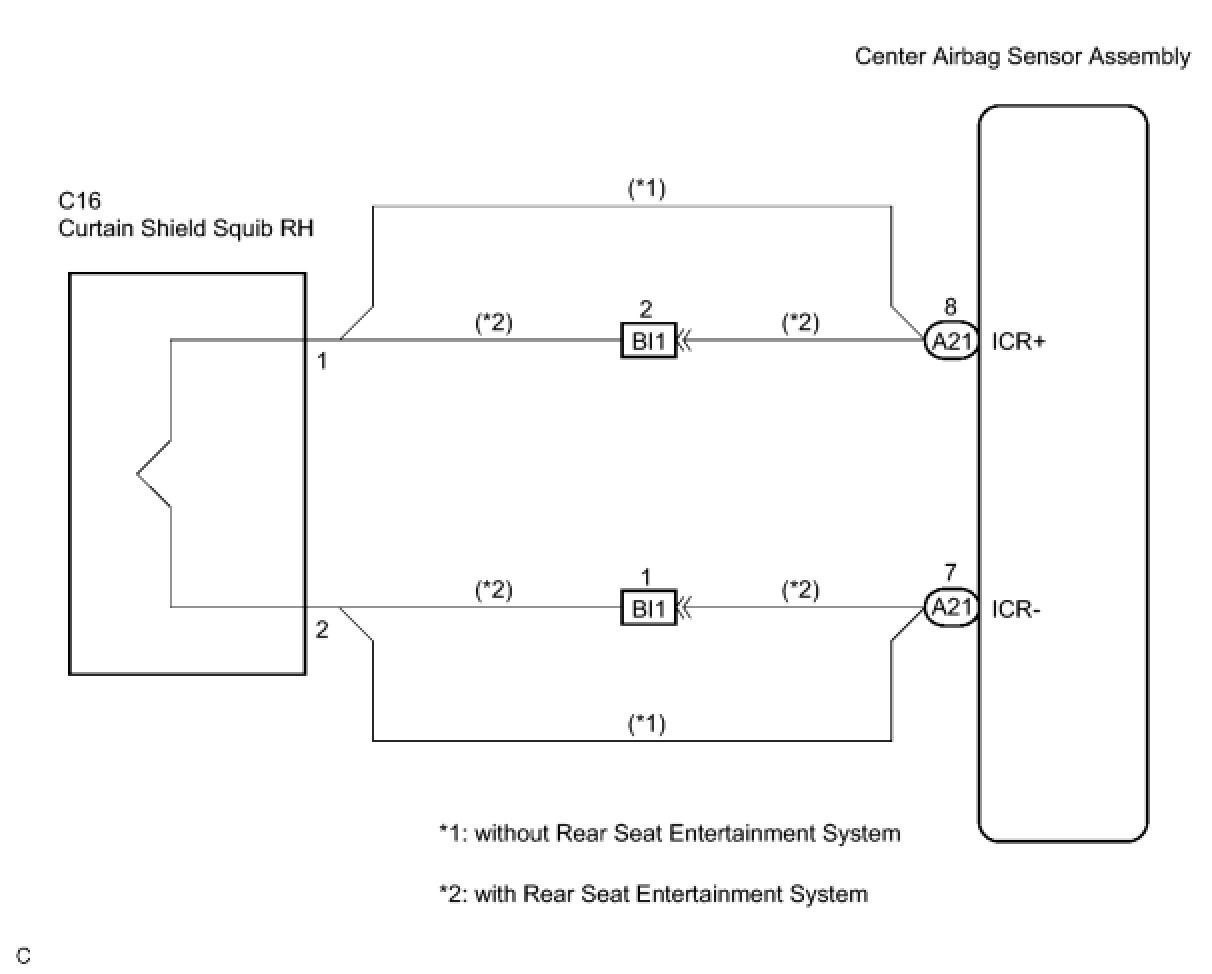

WIRING DIAGRAM
INSPECTION PROCEDURE
HINT:
- Perform the simulation method by selecting "check mode" (signal check) with the intelligent tester. Check Mode Procedure
- After selecting "check mode" (signal check), perform the simulation method by wiggling each connector of the airbag system or driving the vehicle on a city or rough road. Check Mode Procedure
PROCEDURE
1. CHECK VEHICLE CONDITION
(a) Check whether the vehicle is equipped with the rear seat entertainment system.
Result:
A
without Rear seat entertainment system
B
with Rear seat entertainment system
B -- CHECK CURTAIN SHIELD AIRBAG ASSEMBLY RH (CURTAIN SHIELD SQUIB RH)
A -- Continue to next step.
2. CHECK CURTAIN SHIELD AIRBAG ASSEMBLY RH (CURTAIN SHIELD SQUIB RH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the curtain shield airbag assembly RH.

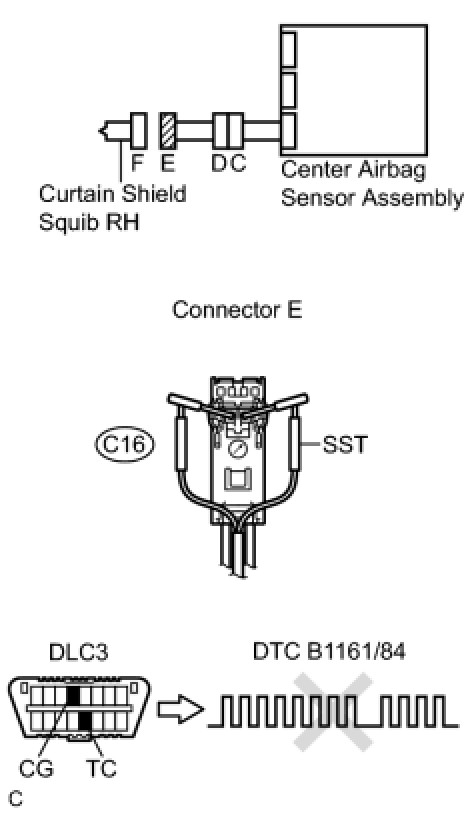

(d) Connect the white wire side of SST (resistance 2.1 Ohms) to the floor wire.
CAUTION: Never connect the tester to the curtain shield airbag assembly RH (Curtain shield squib RH) for measurement, as this may lead to a serious injury due to airbag deployment.
NOTE: Do not forcibly insert the SST into the terminals of the connector when connecting.
Insert the SST straight into the terminals of the connector.
SST: 09843-18060
(e) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(g) Clear the DTCs stored in the memory .
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at least 60 seconds.

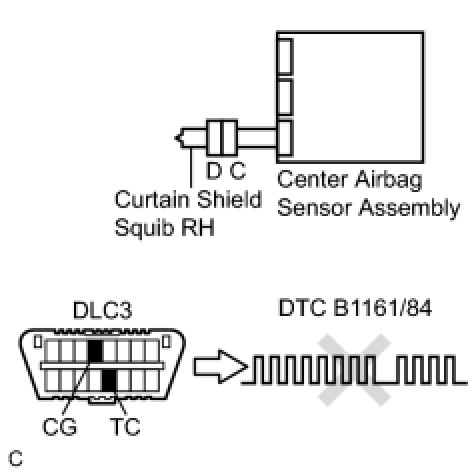

(j) Check the DTCs .
OK:
DTC B1161/84 is not output.
HINT: Codes other than DTC B1161/84 may be output at this time, but they are not related to this check.
NG -- CHECK FLOOR WIRE (CURTAIN SHIELD SQUIB RH CIRCUIT)
OK -- REPLACE CURTAIN SHIELD AIRBAG ASSEMBLY RH
3. CHECK FLOOR WIRE (CURTAIN SHIELD SQUIB RH CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Disconnect the SST (resistance 2.1 Ohms) from the floor wire.
(d) Disconnect the connector from the center airbag sensor assembly.

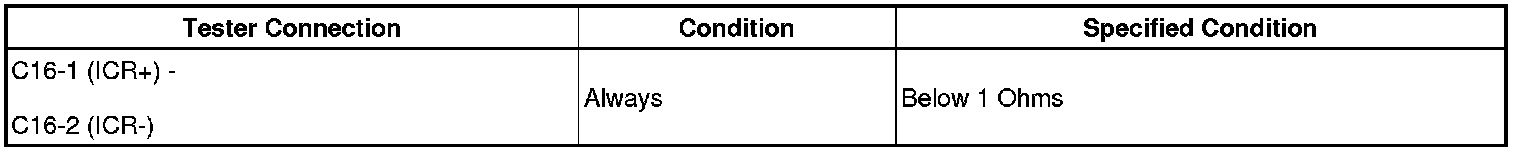

(e) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- REPAIR OR REPLACE FLOOR WIRE
OK -- Continue to next step.
4. CHECK CENTER AIRBAG SENSOR ASSEMBLY
(a) Connect the connectors to the curtain shield airbag assembly RH and the center airbag sensor assembly.
(b) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(c) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(d) Clear the DTCs stored in the memory .
(e) Turn the ignition switch to the LOCK position.
(f) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(g) Check the DTCs .
OK:
DTC B1161/84 is not output.
HINT: Codes other than DTC B1161/84 may be output at this time, but they are not related to this check.
NG -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY
OK -- USE SIMULATION METHOD TO CHECK
5. CHECK CURTAIN SHIELD AIRBAG ASSEMBLY RH (CURTAIN SHIELD SQUIB RH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the curtain shield airbag assembly RH.
(d) Connect the white wire side of SST (resistance 2.1 Ohms) to the roof wire No. 2.
CAUTION: Never connect the tester to the curtain shield airbag assembly RH (Curtain shield squib RH) for measurement, as this may lead to a serious injury due to airbag deployment.
NOTE: Do not forcibly insert the SST into the terminals of the connector when connecting.
Insert the SST straight into the terminals of the connector.
SST: 09843-18060
(e) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(g) Clear the DTCs stored in the memory .
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(j) Check the DTCs .
OK:
DTC B1161/84 is not output.
HINT: Codes other than DTC B1161/84 may be output at this time, but they are not related to this check.
NG -- CHECK CURTAIN SHIELD SQUIB RH CIRCUIT
OK -- REPLACE CURTAIN SHIELD AIRBAG ASSEMBLY RH
6. CHECK CURTAIN SHIELD SQUIB RH CIRCUIT
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Disconnect the SST (resistance 2.1 Ohms) from the roof wire No. 2.
(d) Disconnect the connector from the center airbag sensor assembly.

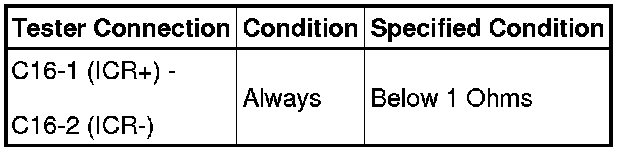

(e) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- CHECK FLOOR WIRE
OK -- Continue to next step.
7. CHECK CENTER AIRBAG SENSOR ASSEMBLY
(a) Connect the connectors to the curtain shield airbag assembly RH and the center airbag sensor assembly.
(b) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(c) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(d) Clear the DTCs stored in the memory .
(e) Turn the ignition switch to the LOCK position.
(f) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(g) Check the DTCs .
OK:
DTC B1161/84 is not output.
HINT: Codes other than DTC B1161/84 may be output at this time, but they are not related to this check.
NG -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY
OK -- USE SIMULATION METHOD TO CHECK
8. CHECK FLOOR WIRE
(a) Disconnect the floor wire connector from the roof wire No. 2.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- REPAIR OR REPLACE FLOOR WIRE
OK -- Continue to next step.
9. CHECK ROOF WIRE NO. 2

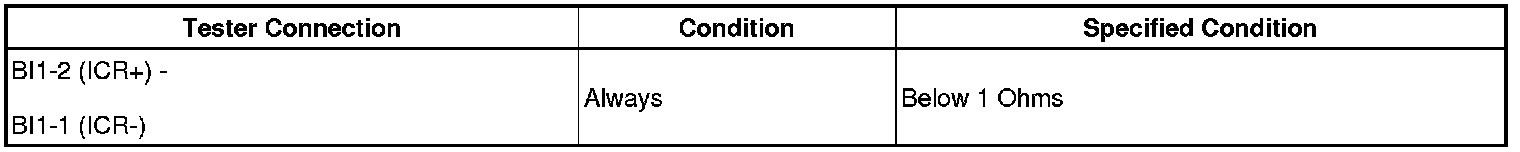

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- REPAIR OR REPLACE ROOF WIRE NO. 2
OK -- USE SIMULATION METHOD TO CHECK
