B2415

LIGHTING: LIGHTING SYSTEM: B2415: Vehicle Speed Sensor Malfunction

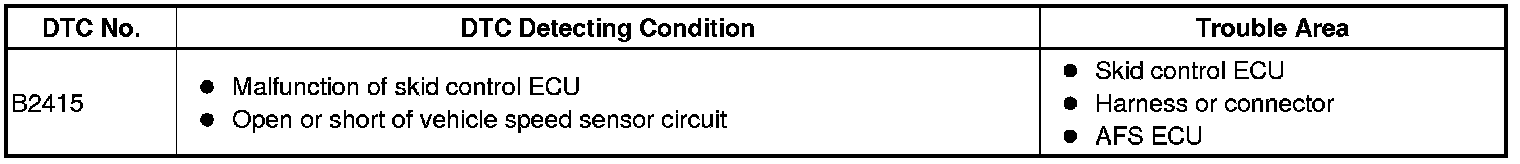

DTC B2415 - Vehicle Speed Sensor Malfunction

DESCRIPTION

The AFS ECU receives the vehicle speed signal of the rear wheels from the skid control ECU.

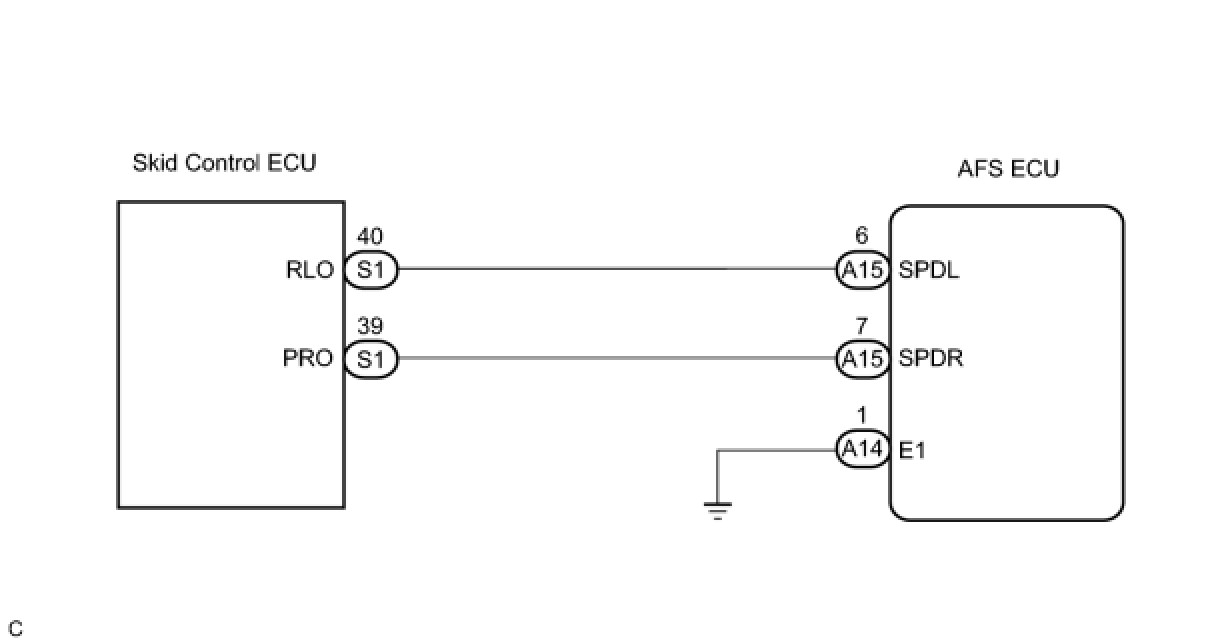

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC (ABS WITH EBD & BA & TRAC & VSC SYSTEM)
(a) Check the DTC of ABS with EBD & BA & TRAC & VSC system .
OK:
DTC is not output.
NG -- GO TO DTC CHART
OK -- Continue to next step.
2. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - AFS ECU)





(a) Disconnect the skid control ECU connector and AFS ECU connector.
(b) Measure the resistance according to the value(s) in the table below.
Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
3. INSPECT AFS ECU





(a) Measure the voltage according to the value(s) in the table below.
Voltage:










(b) *1: Oscilloscope wave
- Gauge set: 5 V/DIV, 2 ms/DIV
- Condition: Drive at about 30 km/h (19 mph)

Result:






C -- REPLACE ABS AND TRACTION ACTUATOR ASSEMBLY
B -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
A -- REPLACE AFS ECU
