B2419

LIGHTING: LIGHTING SYSTEM: B2419: BEAN Communication Malfunction

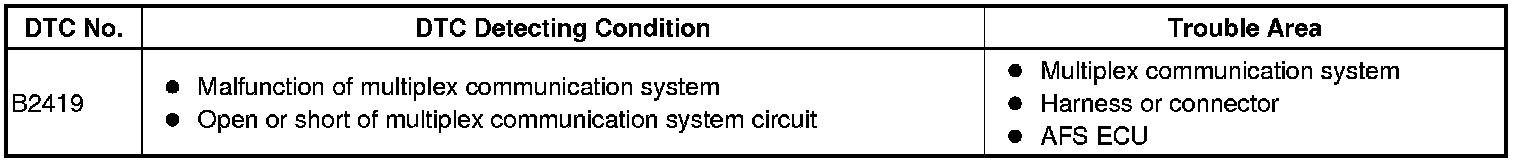

DTC B2419 - BEAN Communication Malfunction

DESCRIPTION

The AFS ECU receives the signal regarding lighting condition of the headlight, shift position signal of the transaxle, and vehicle speed signal from the combination meter using multiplex communication.
When the DTC (B2419) is output, the other DTCs are output at the same time.






INSPECTION PROCEDURE

PROCEDURE

1. INSPECT MULTIPLEX COMMUNICATION SYSTEM

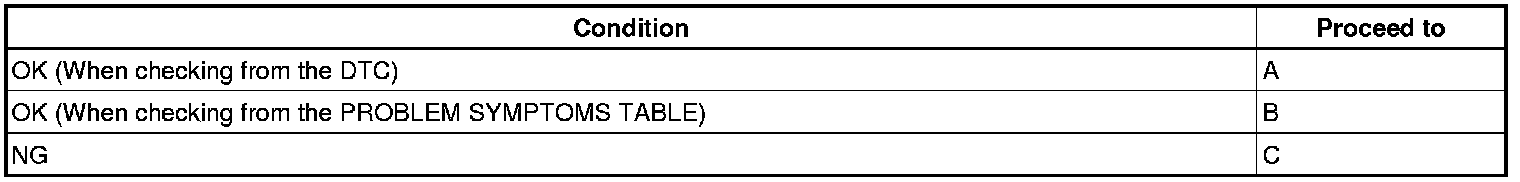

Result:






C -- GO TO MULTIPLEX COMMUNICATION SYSTEM
B -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
A -- REPLACE AFS ECU
