B2784

ENGINE IMMOBILISER SYSTEM: B2784: Antenna Coil Open / Short

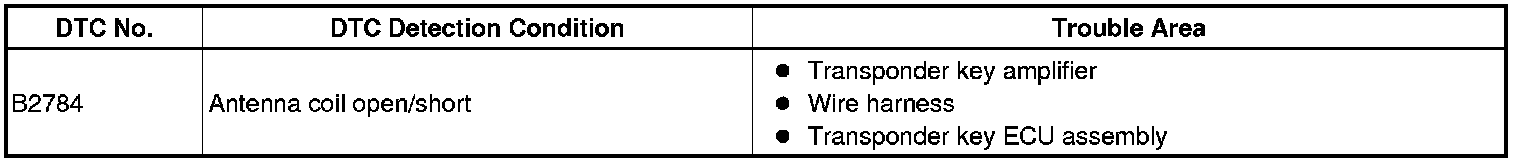

DTC B2784 - Antenna Coil Open / Short

DESCRIPTION

The transponder key coil is built into the transponder key amplifier and receives a key code signal from the transponder chip in the key. This signal is amplified by the amplifier, and output to the transponder key ECU.

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1. READ VALUE USING INTELLIGENT TESTER
(a) Connect the intelligent tester (with CAN VIM) to the DLC3.
(b) Turn the ignition switch to the ON position and turn the intelligent tester main switch on.
(c) Select ANTENNA COIL in the DATA LIST and read the value displayed on the intelligent tester.

Transponder key ECU:

OK:
NORMAL (Antenna coil is normal) appears on the screen.
OK -- REPLACE TRANSPONDER KEY ECU ASSEMBLY
NG -- Continue to next step.
2. CHECK HARNESS AND CONNECTOR (TRANSPONDER KEY ECU ASSEMBLY - TRANSPONDER KEY AMPLIFIER)

(a) Disconnect the T9 ECU and T8 amplifier connectors.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
3. INSPECT TRANSPONDER KEY ECU ASSEMBLY

(a) Reconnect the T9 ECU and T8 amplifier connectors.

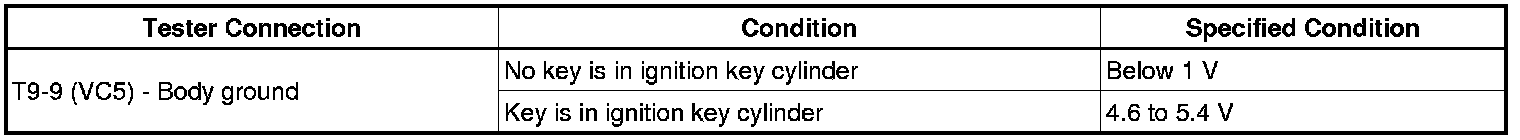

(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:

NG -- REPLACE TRANSPONDER KEY ECU ASSEMBLY
OK -- REPLACE TRANSPONDER KEY AMPLIFIER
