Occupant Classification System

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM:

DIAGNOSTIC TROUBLE CODE CHART

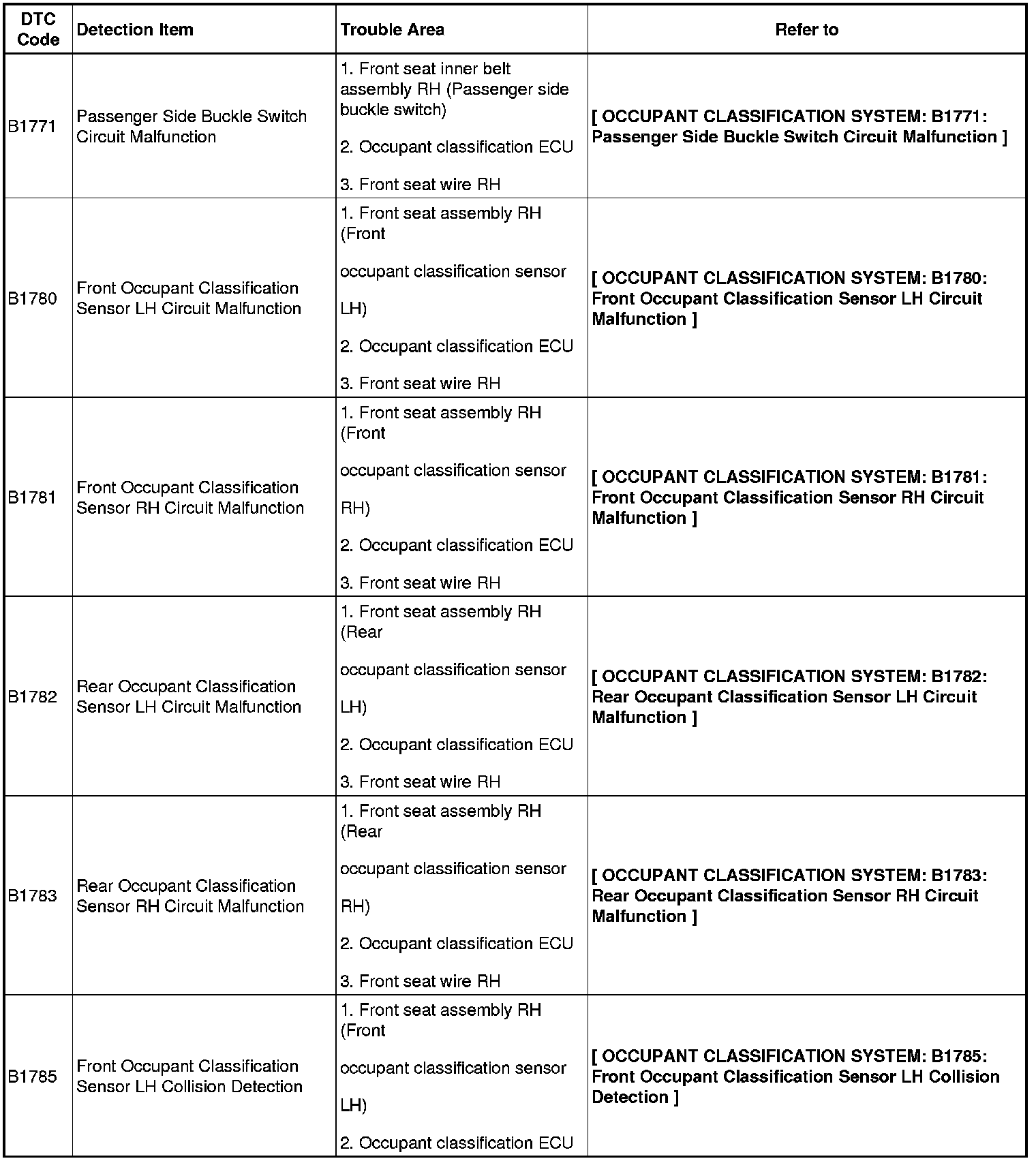

If a trouble code is displayed during the DTC check, check the circuit listed for the code in the table below.
HINT: When DTC B1150/23 is detected as a result of troubleshooting for the Airbag System, perform troubleshooting for the Occupant Classification System as shown in the chart below.

OCCUPANT CLASSIFICATION SYSTEM:
