Power Tilt and Power Telescopic Steering Column System

STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM:

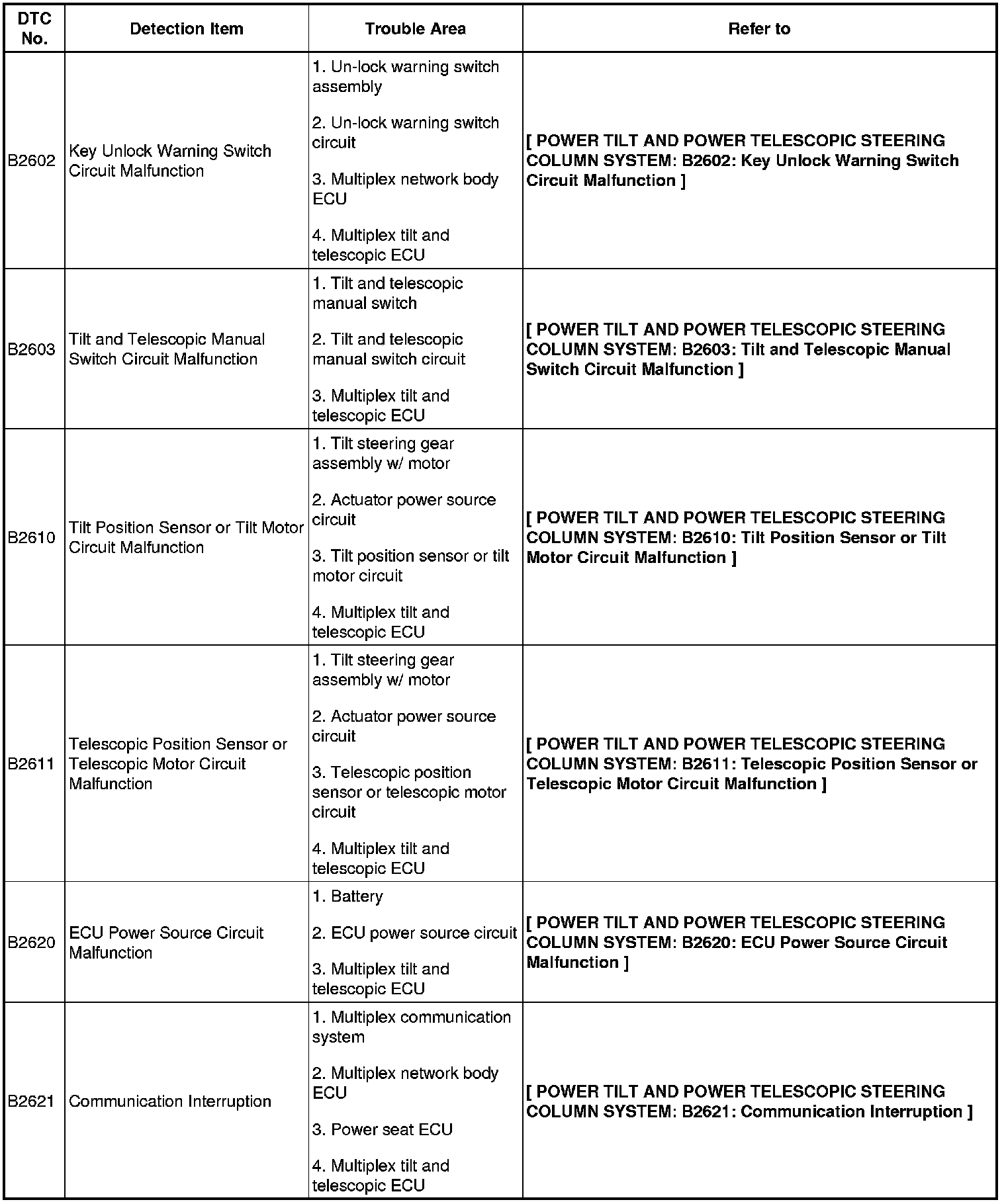

DIAGNOSTIC TROUBLE CODE CHART

If a DTC is displayed, check the circuit for that code listed in the table below. For details of each code, refer to the applicable Diagnostic Trouble Code Test.

POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
