Home >> Lexus Truck >> 2008 >> RX 350 AWD V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heated Glass Element

Heated Glass Element

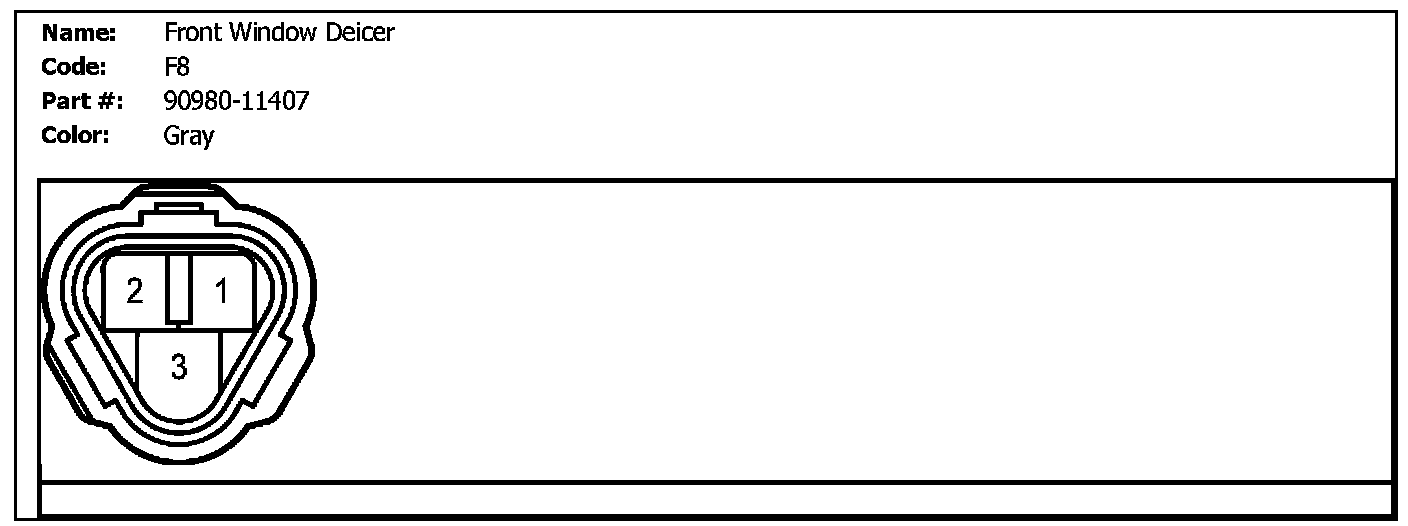

F8 (Front Window Deicer):



N4 (Noise Filter And Rear Window Defogger):



N5 (Noise Filter And Rear Window Defogger):
