Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lexus Truck
>>
2008
>>
RX 350 AWD V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio/Stereo
Radio/Stereo

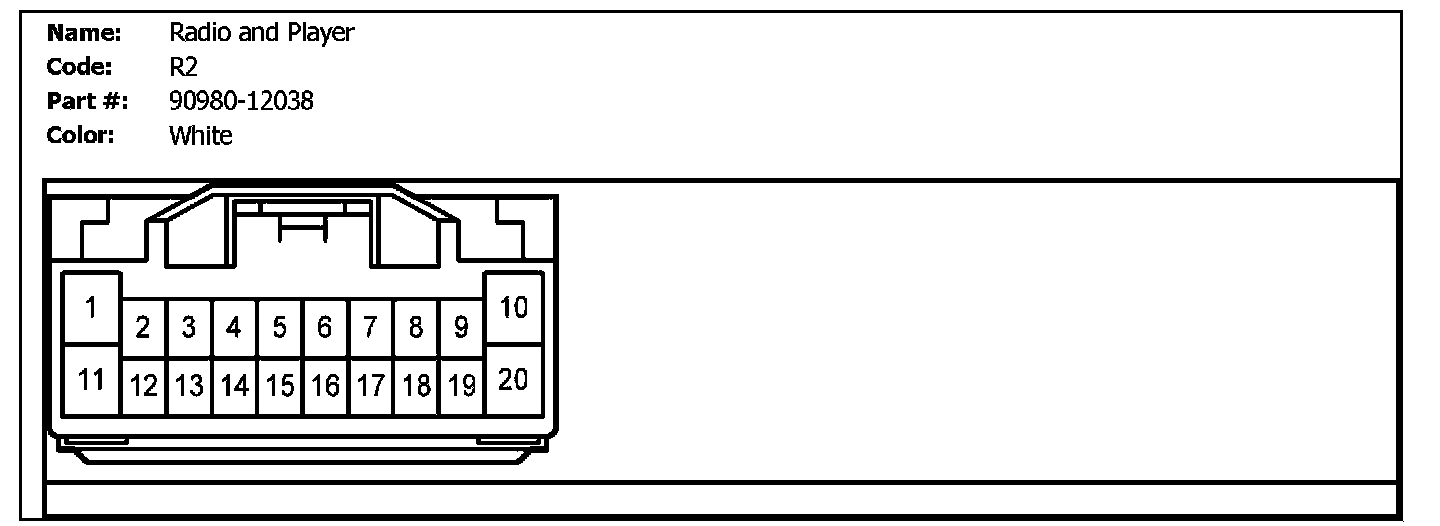

R2 (Radio And Player):

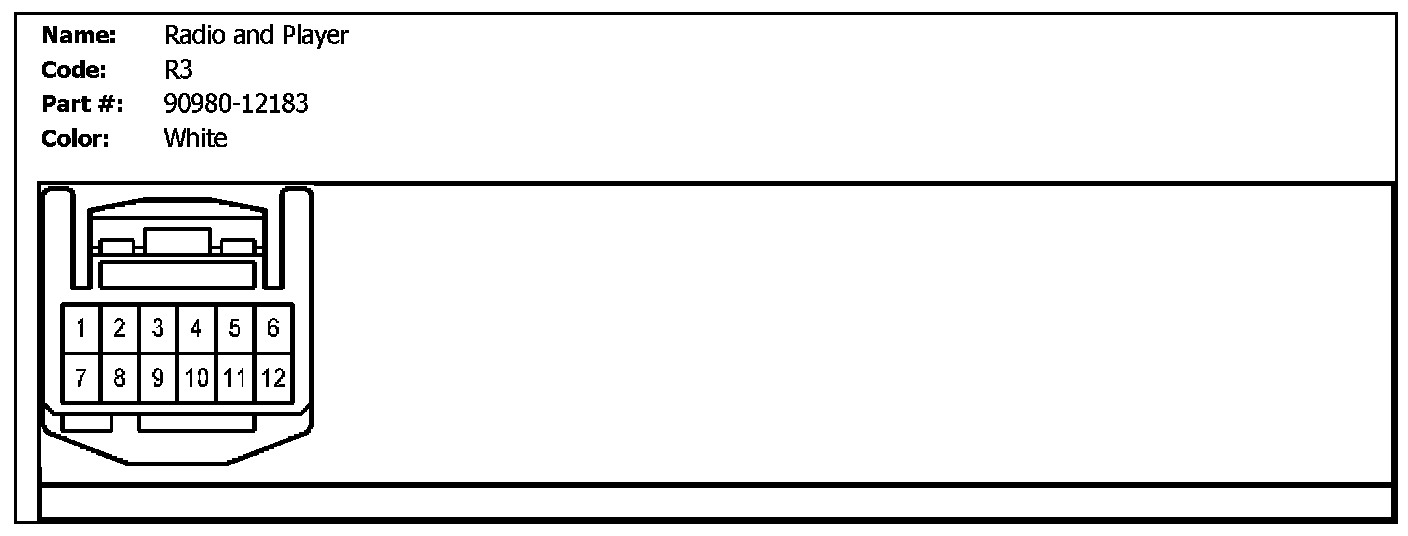

R3 (Radio And Player):

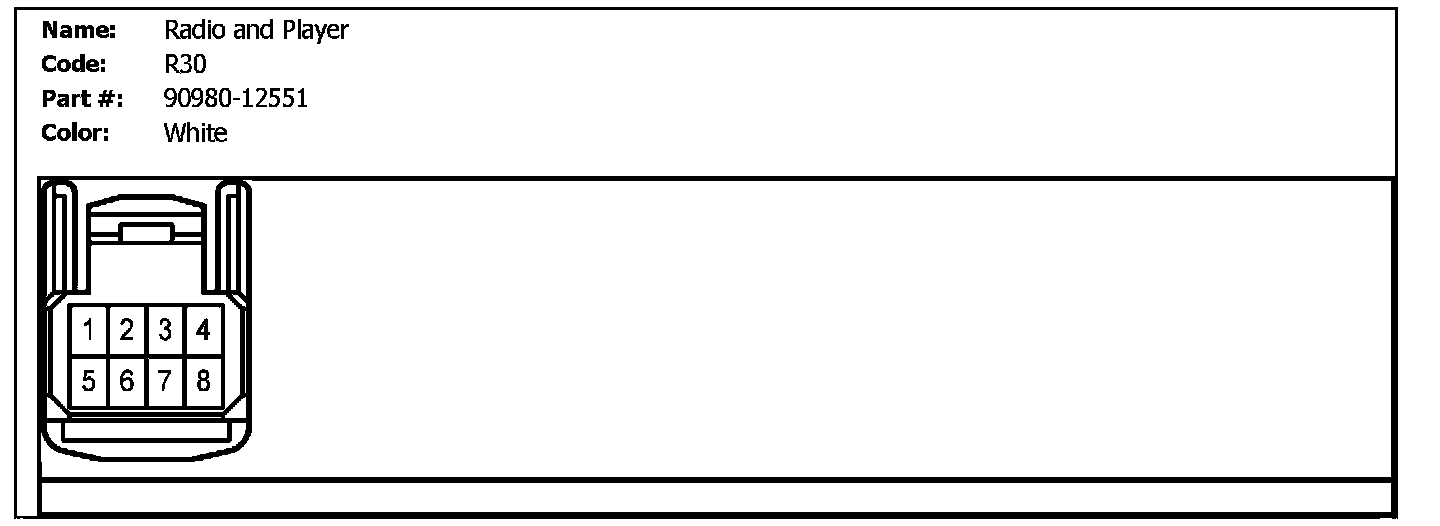

R30 (Radio And Player):

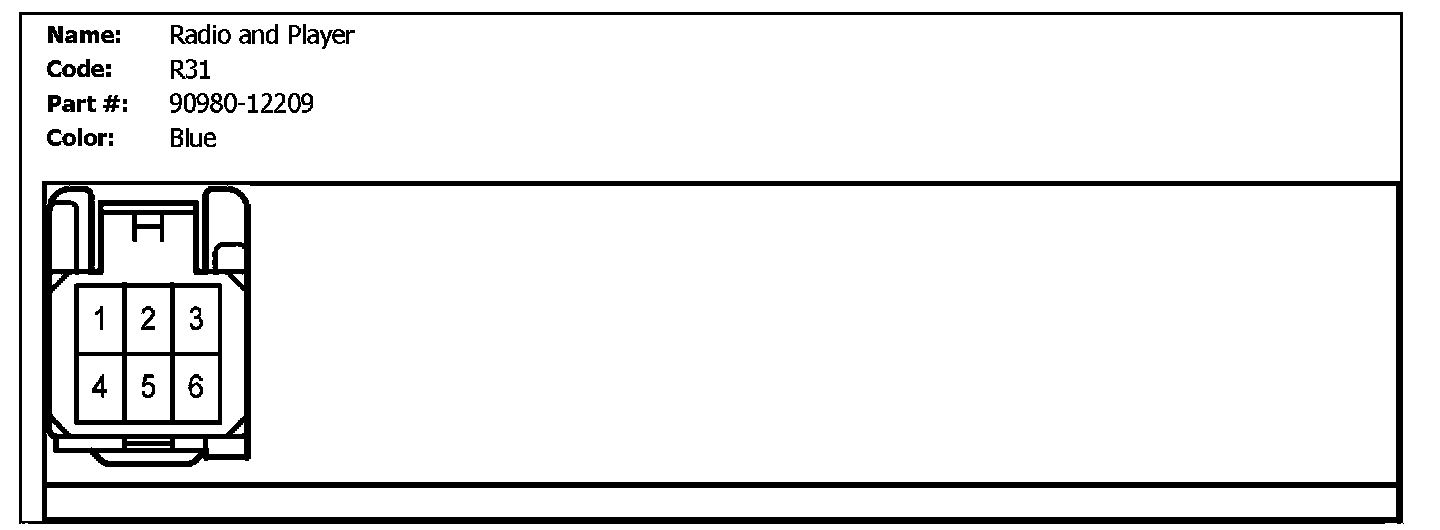

R31 (Radio And Player):

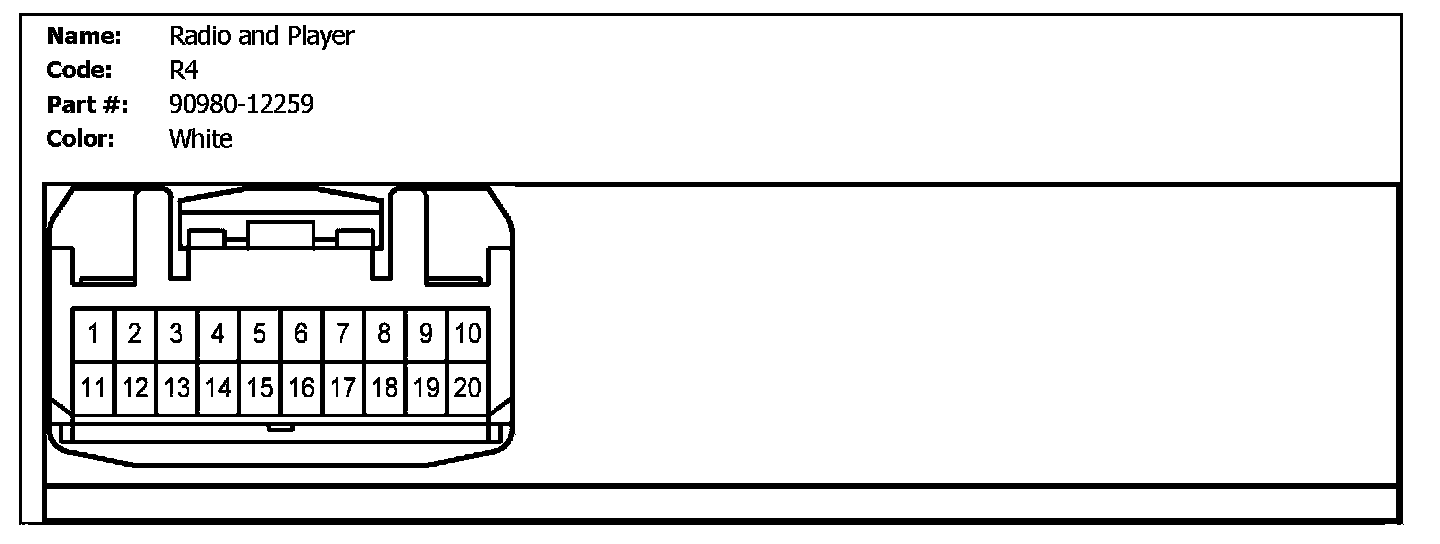

R4 (Radio And Player):
