Blower Motor Relay: Testing and Inspection

AIR CONDITIONING: HEATER RELAY:

ON-VEHICLE INSPECTION

1. INSPECT HEATER RELAY






(a) Remove the heater relay from the instrument panel J/B.

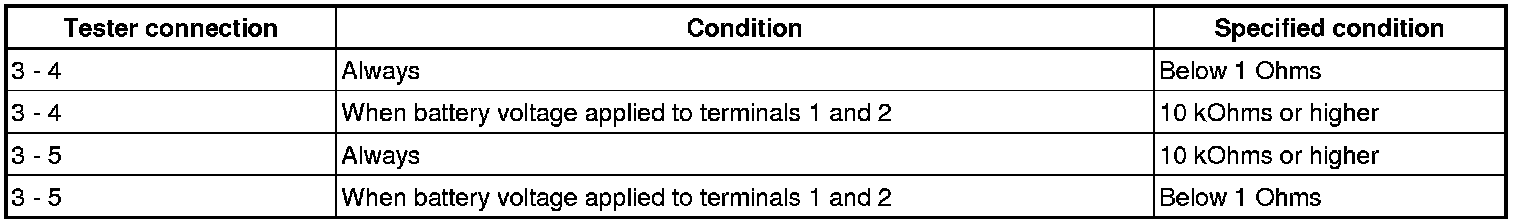

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the resistance is not as specified, replace the heater relay.
NOTE: While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
