Clock: Testing and Inspection

CLOCK:

ON-VEHICLE INSPECTION

1. INSPECT INTEGRATION CONTROL & PANEL ASSEMBLY






(a) Disconnect the C4 connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:






(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:





HINT: If the value is not as specified, repair or replace the harness or connector.

2. INSPECT MULTI-DISPLAY

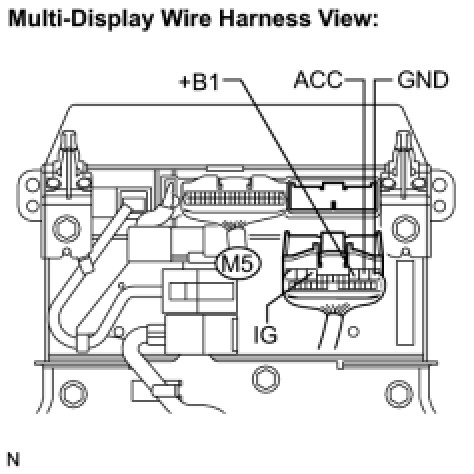

(a) Disconnect the M5 connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:

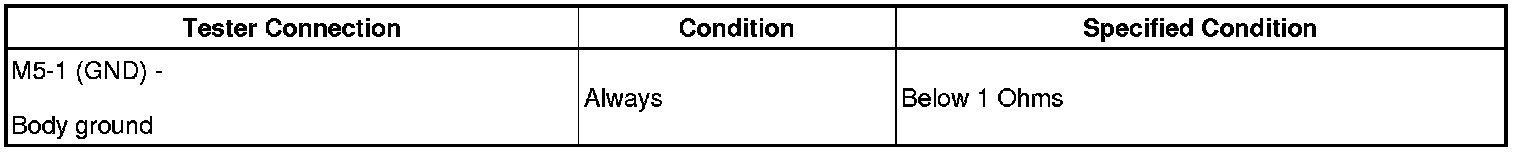

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:





HINT: If the value is not as specified, repair or replace the harness or connector.
