Fuel Gauge Sender: Testing and Inspection

METER: FUEL SENDER GAUGE ASSEMBLY: INSPECTION

INSPECTION

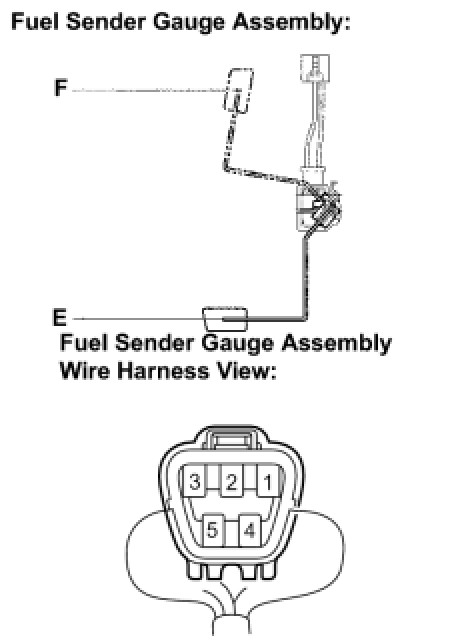

1. INSPECT FUEL SENDER GAUGE ASSEMBLY






(a) Remove the fuel sender gauge assembly.
(b) Check the operation of the float moving smoothly between F and E.

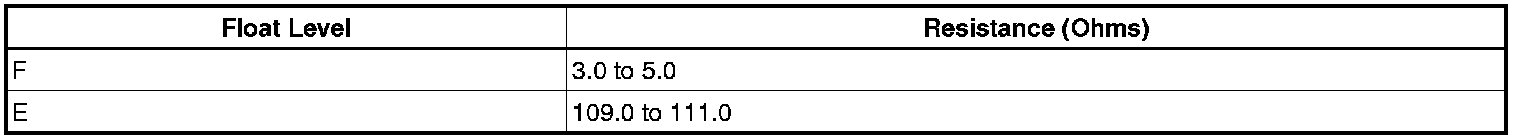

(c) Measure the resistance between terminals 2 (FE) and 3 (FS) of the connector according to the value(s) in the table below.
OK:





HINT: If the value is not as specified, replace the fuel sender gauge assembly.
