Lexus Truck
>>
2008
>>
RX 350 AWD V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Locations
>>
Meter / Gauge System
Meter / Gauge System

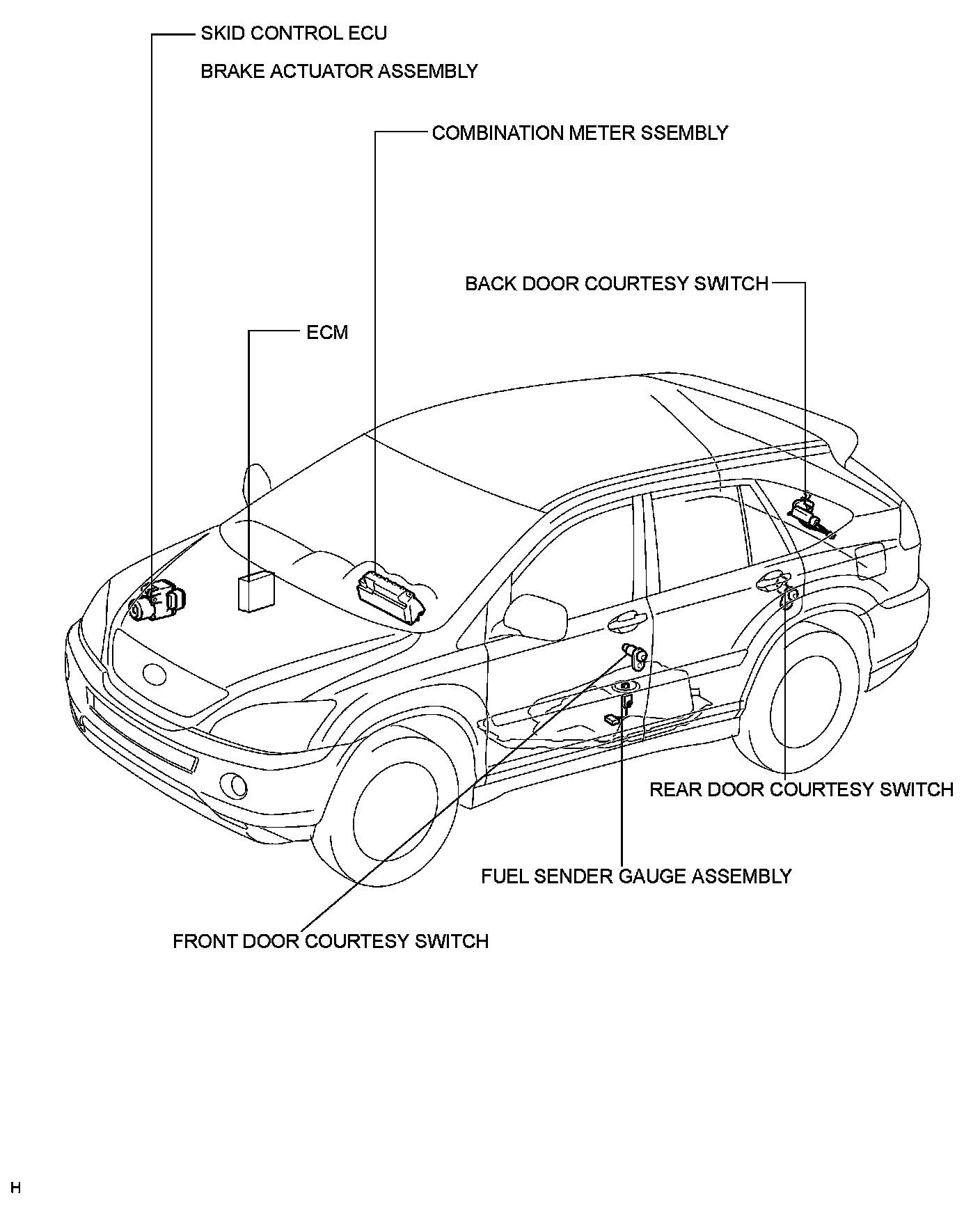

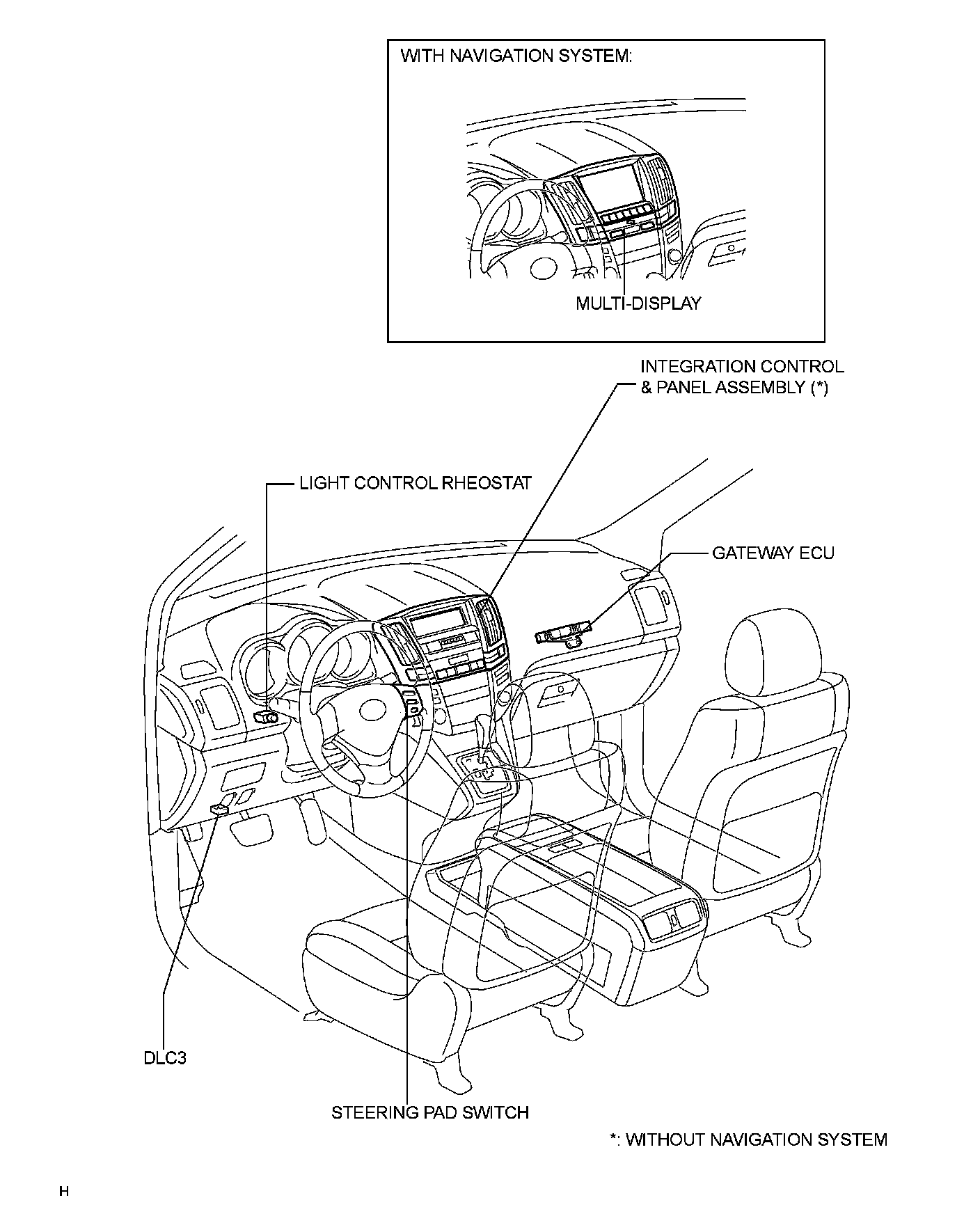

METER / GAUGE SYSTEM: PARTS LOCATION
PARTS LOCATION
