Fog/Driving Lamp: Adjustments

LIGHTING: FOG LIGHT ASSEMBLY: ADJUSTMENT

ADJUSTMENT

1. PUT VEHICLE THESE CONDITIONS
(a) Tire inflation pressure is in the specified value. Component Tests and General Diagnostics

(b) Start the engine.
2. ADJUST FOG LIGHT AIM

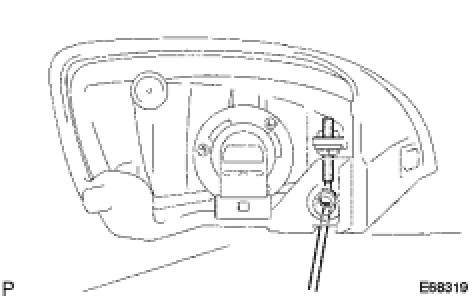

(a) The fog light aim can be adjusted by moving the aiming screw in the vertical direction.
HINT: The optical aim moves upward when turning the screwdriver clockwise, while it moves downward when turning the screwdriver counterclockwise.
