Scan Tool Testing and Procedures

LIGHTING SYSTEM: DATA LIST / ACTIVE TEST

DATA LIST / ACTIVE TEST

1. DATA LIST
HINT: Using the DATA LIST displayed on the intelligent tester, you can read the value of the switch, sensor, actuator, etc. without removing any parts. Reading the DATA LIST as the first step in troubleshooting is one of the methods to shorten labor time.

(a) Connect the intelligent tester to the DLC3.
(b) Turn the ignition switch to the ON position.
(c) According to the display on the tester, read the "DATA LIST".

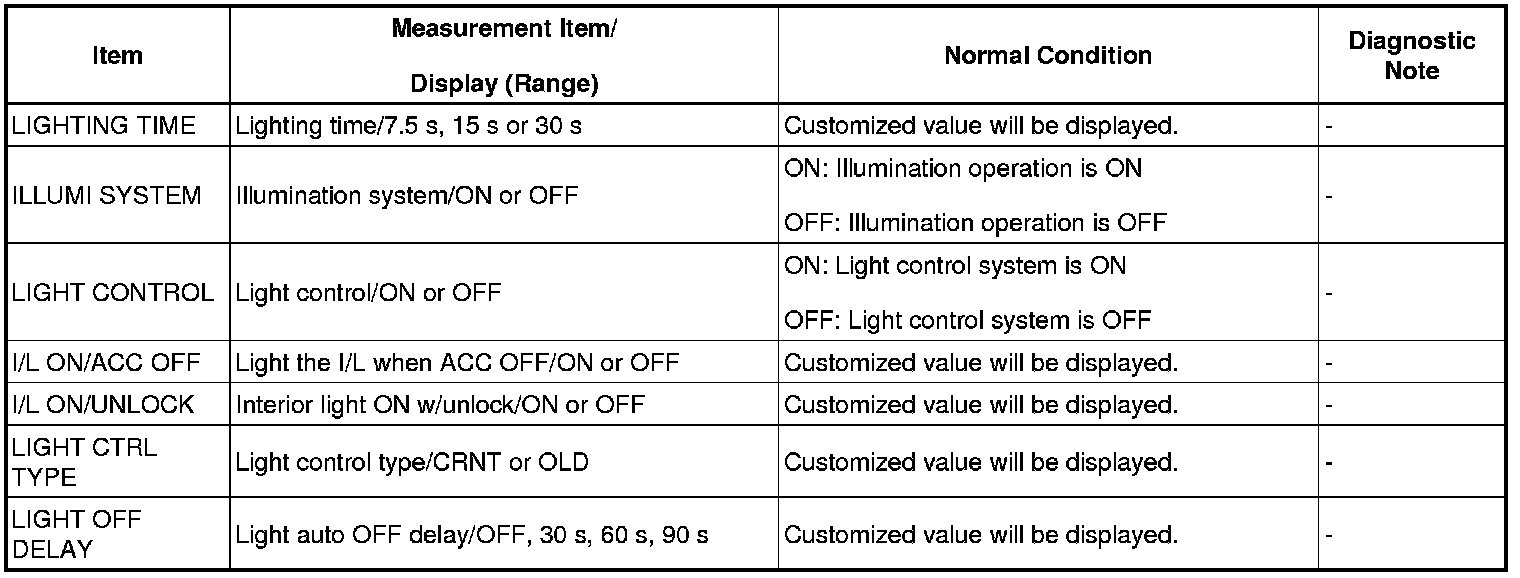

BODY (Multiplex Network Body ECU):









BACK-DOOR (Back Door ECU):

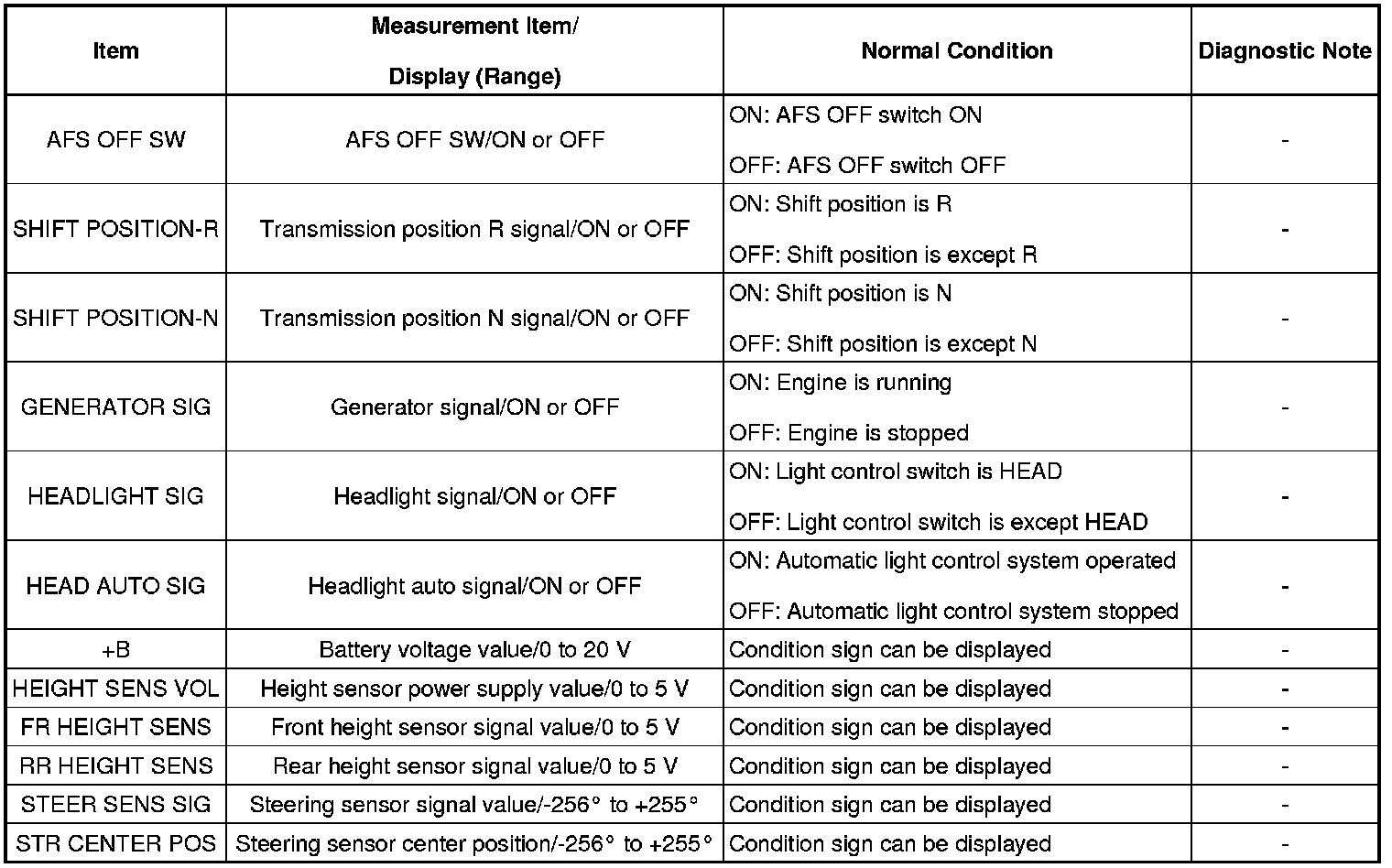

AFS (AFS ECU):





2. ACTIVE TEST
HINT: Performing the ACTIVE TEST using the intelligent tester allows the relay, VSV, actuator, etc. to operate without removing any part. Performing the ACTIVE TEST as the first step of troubleshooting is one of the methods to shorten labor time. The DATA LIST can be displayed during the ACTIVE TEST.

(a) Connect the intelligent tester to the DLC3.
(b) Turn the ignition switch to the ON position.
(c) According to the display on the tester, perform the "ACTIVE TEST".

BODY (Multiplex Network Body ECU):





BACK-DOOR (Back Door ECU):





AFS (AFS ECU):
