Fuse: Locations

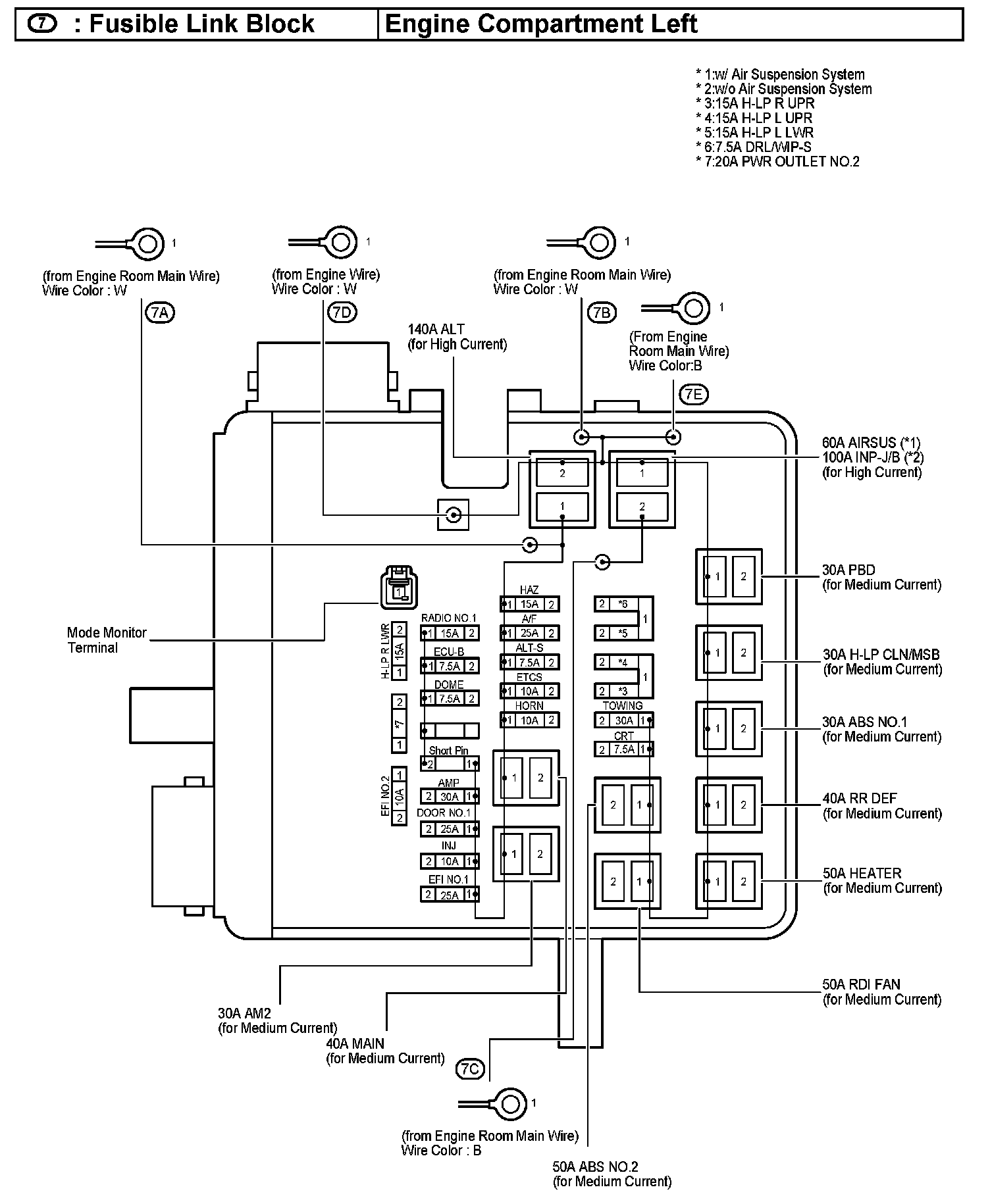

Fusible Link Block - Engine Compartment Left:

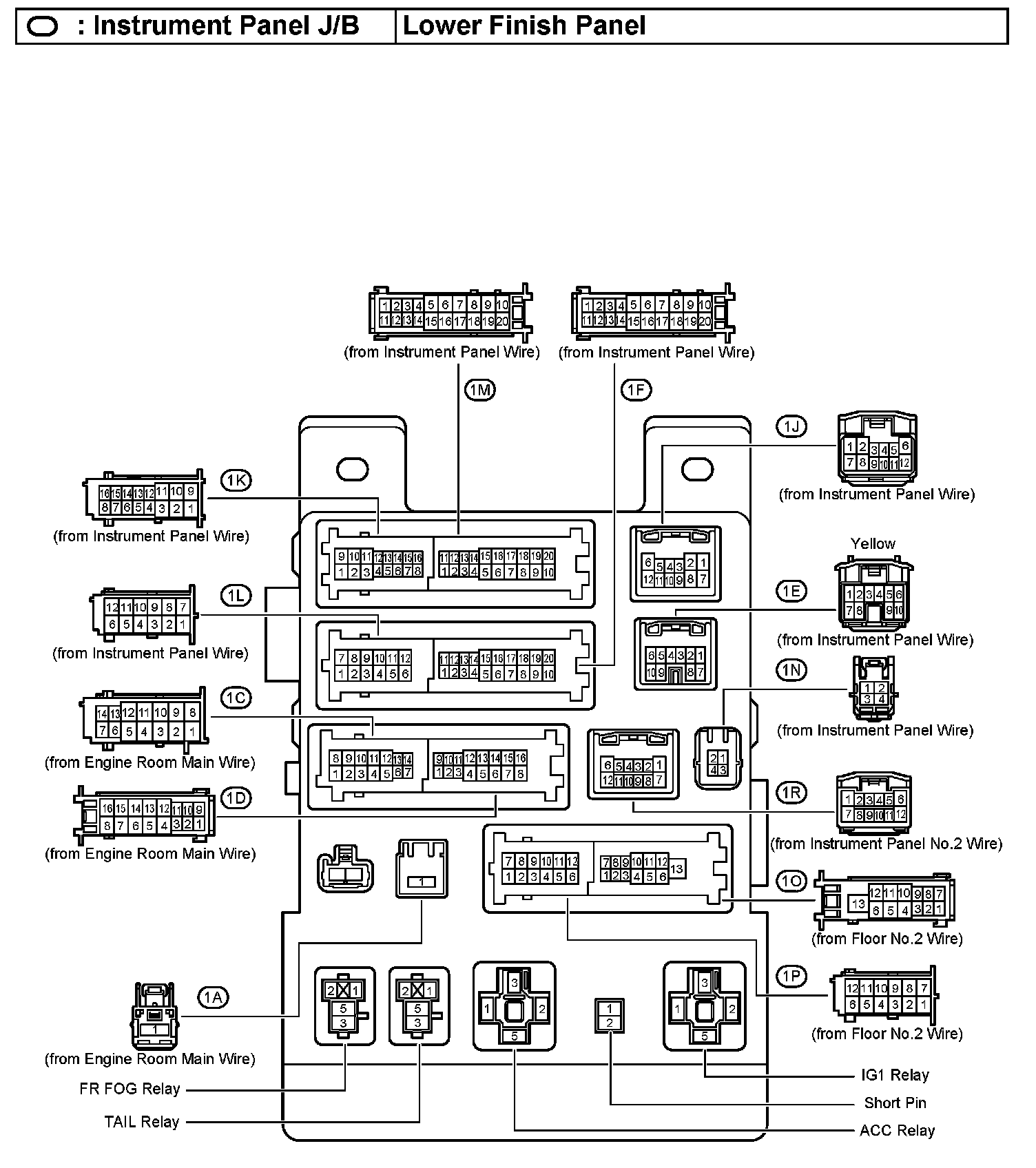

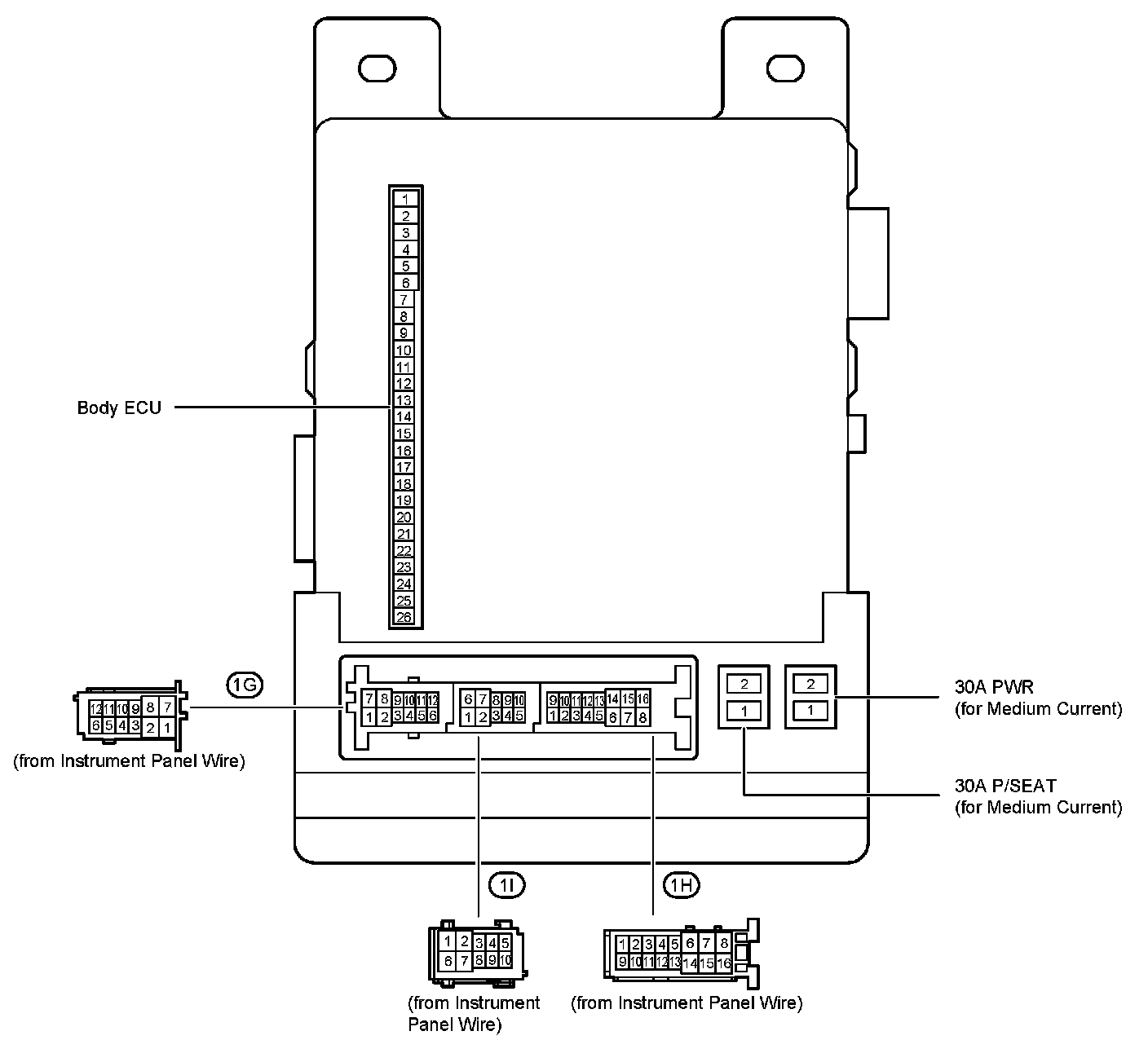

Instrument Panel J/B - Lower Finish Panel:

Instrument Panel J/B - Lower Finish Panel:

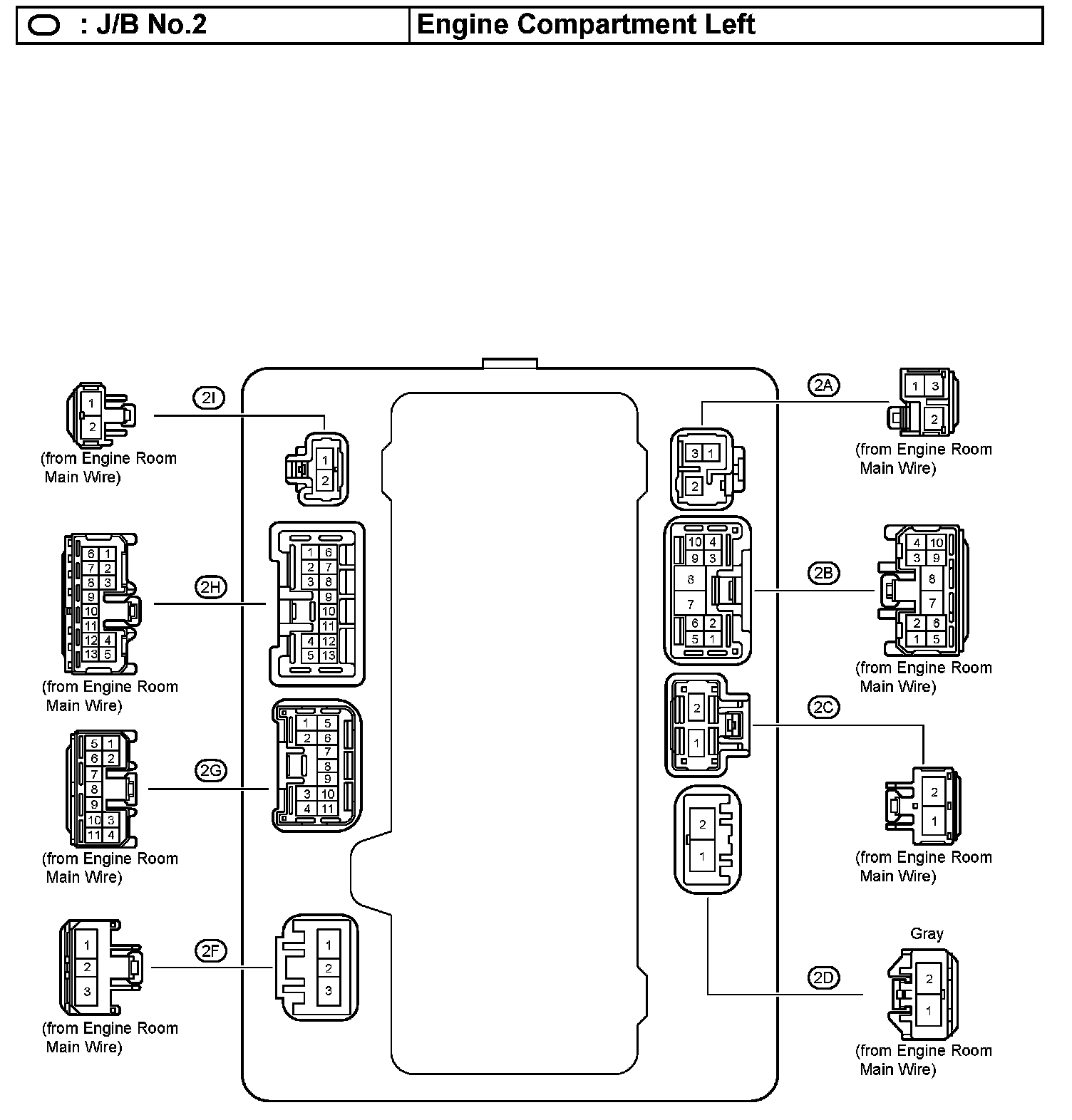

J/B No.2 - Engine Compartment Left:

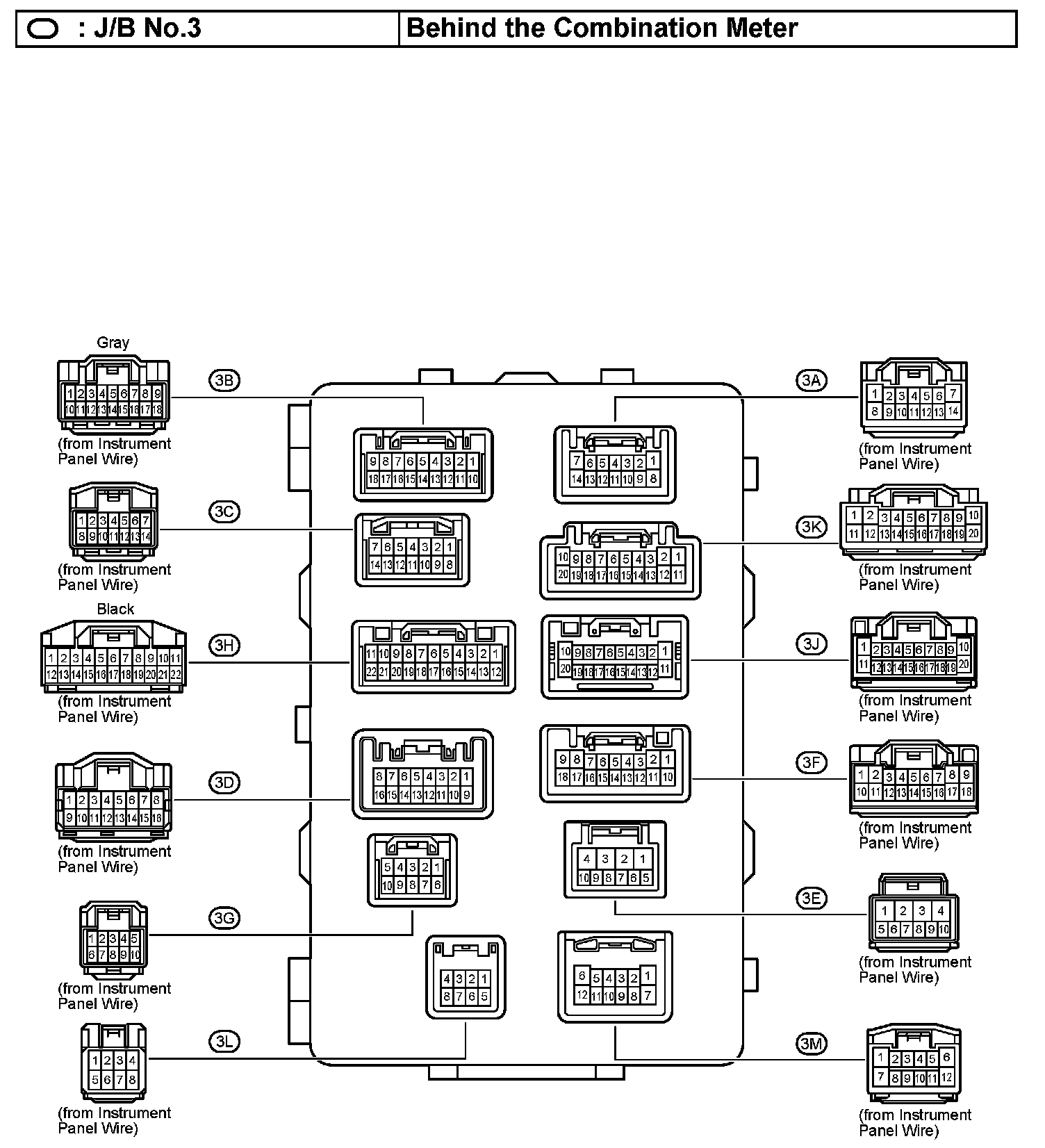

J/B No.3 - Behind The Combination Meter:

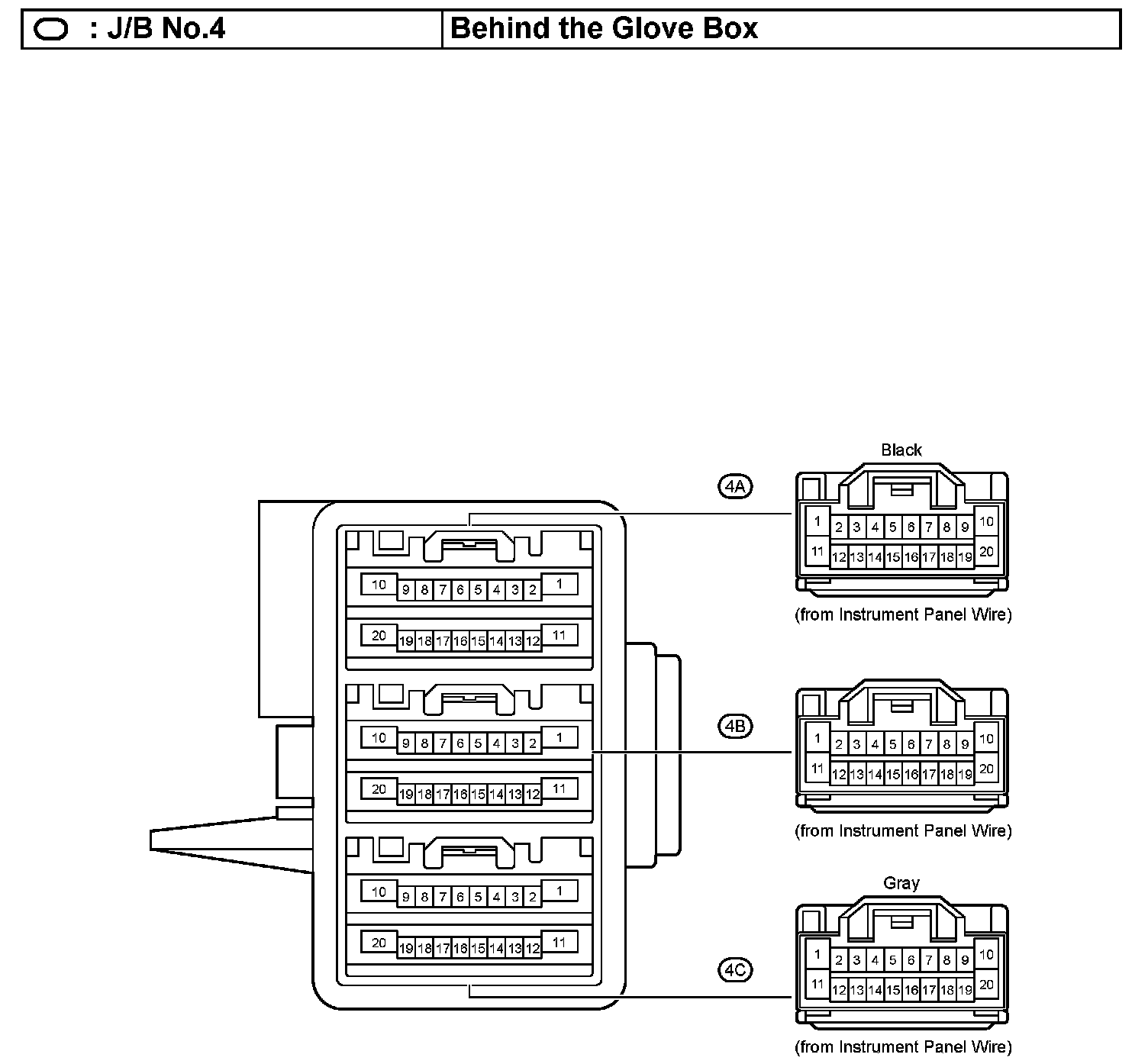

J/B No.4 - Behind The Glove Box:

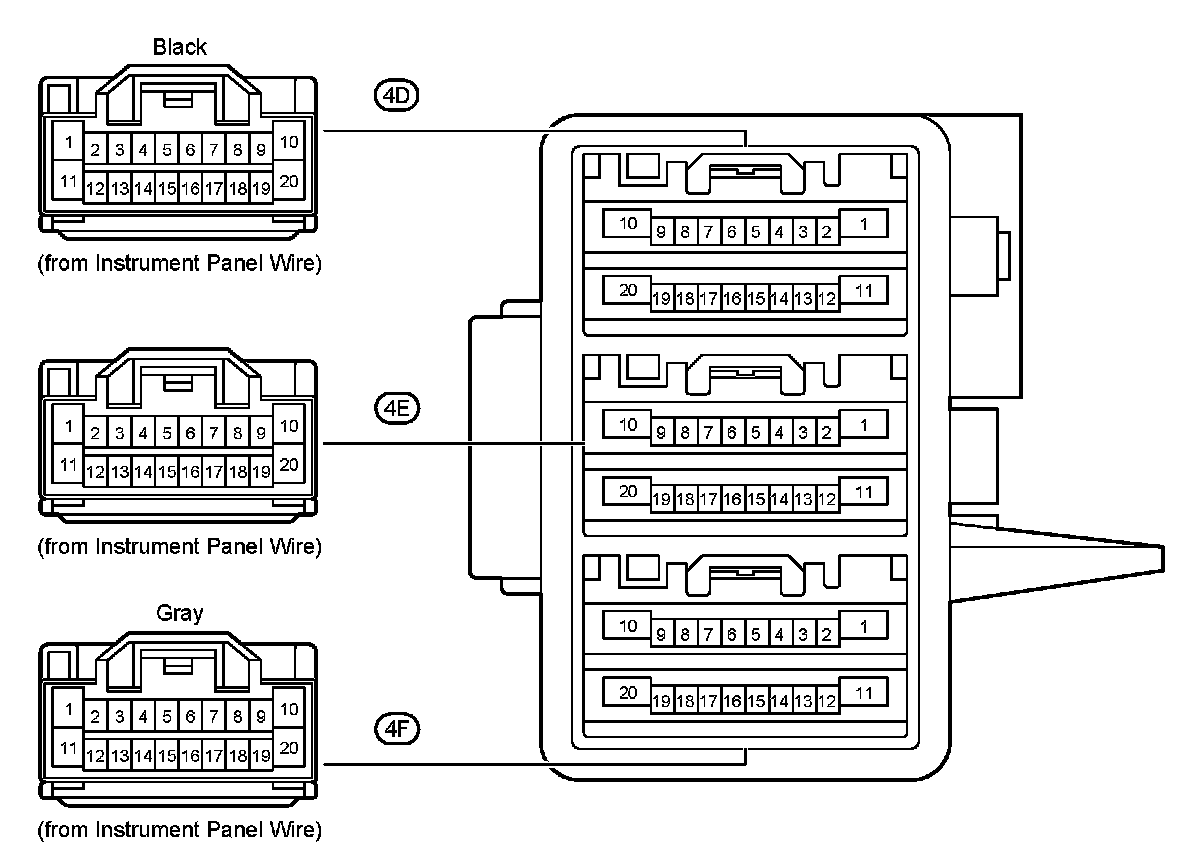

J/B No.4 - Behind The Glove Box:

Junction Connector (CAN Front) - Right Kick Panel:

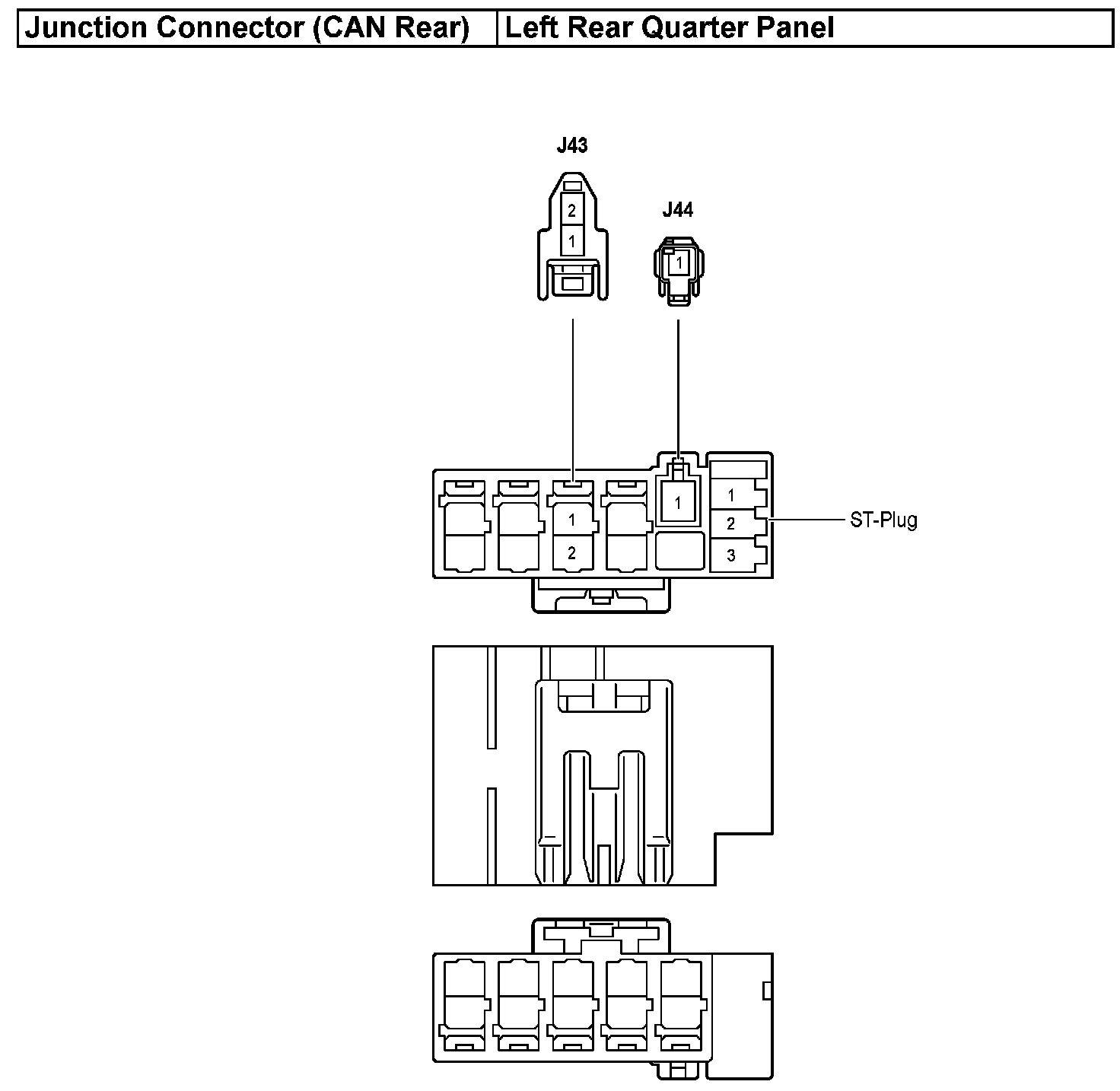

Junction Connector (CAN Rear) - Left Rear Quarter Panel:

R/B No.1 - Cowl Side Panel LH:

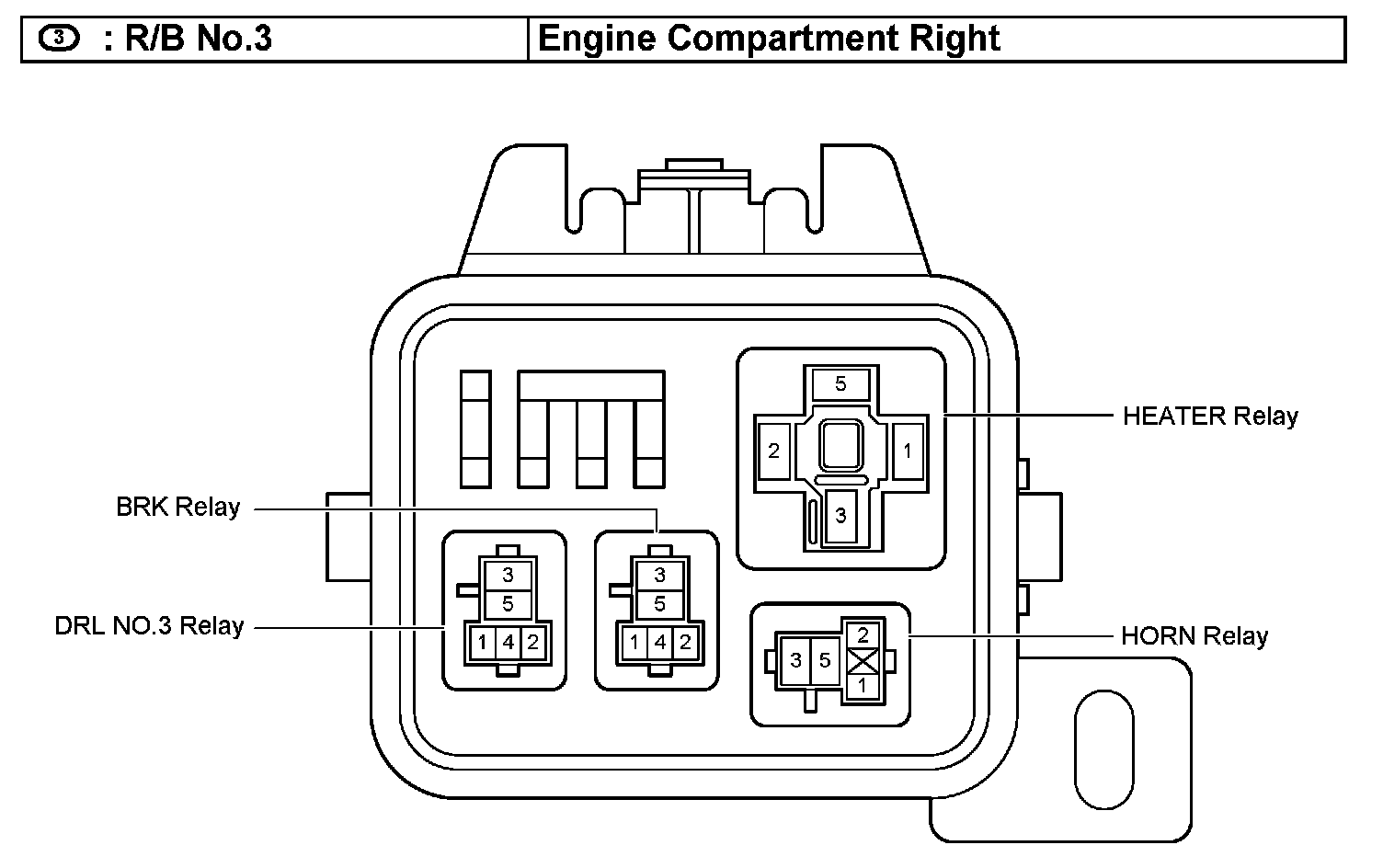

R/B No.3 - Engine Compartment Right:

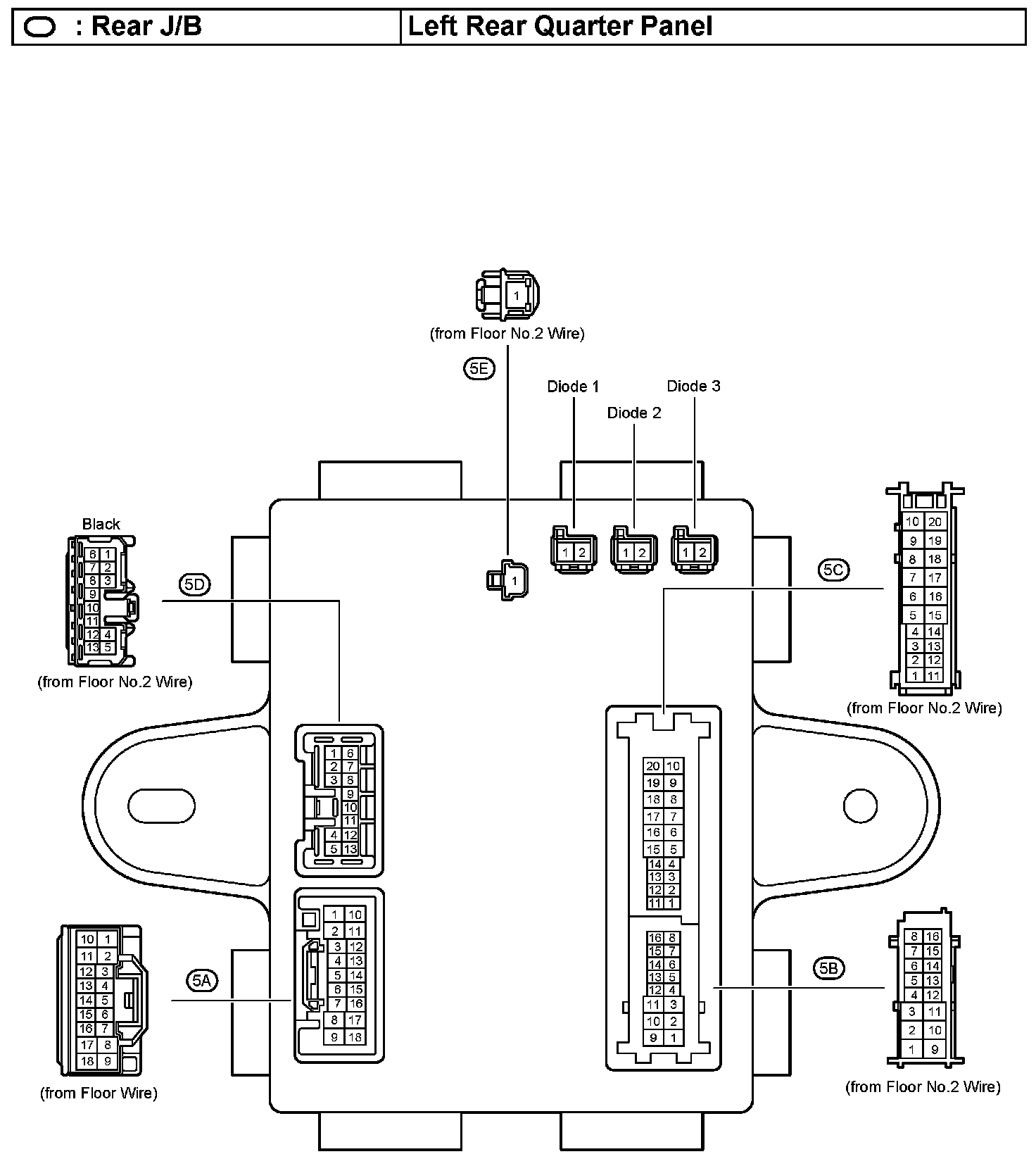

Rear J/B - Left Rear Quarter Panel:

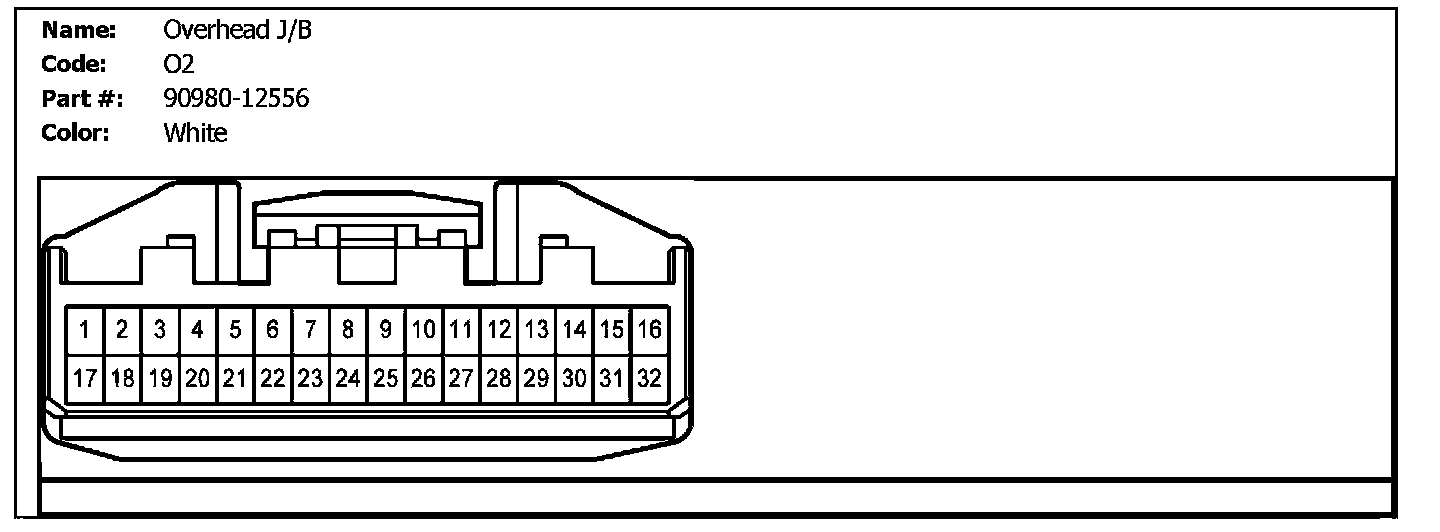

O2 (Overhead J/B):
